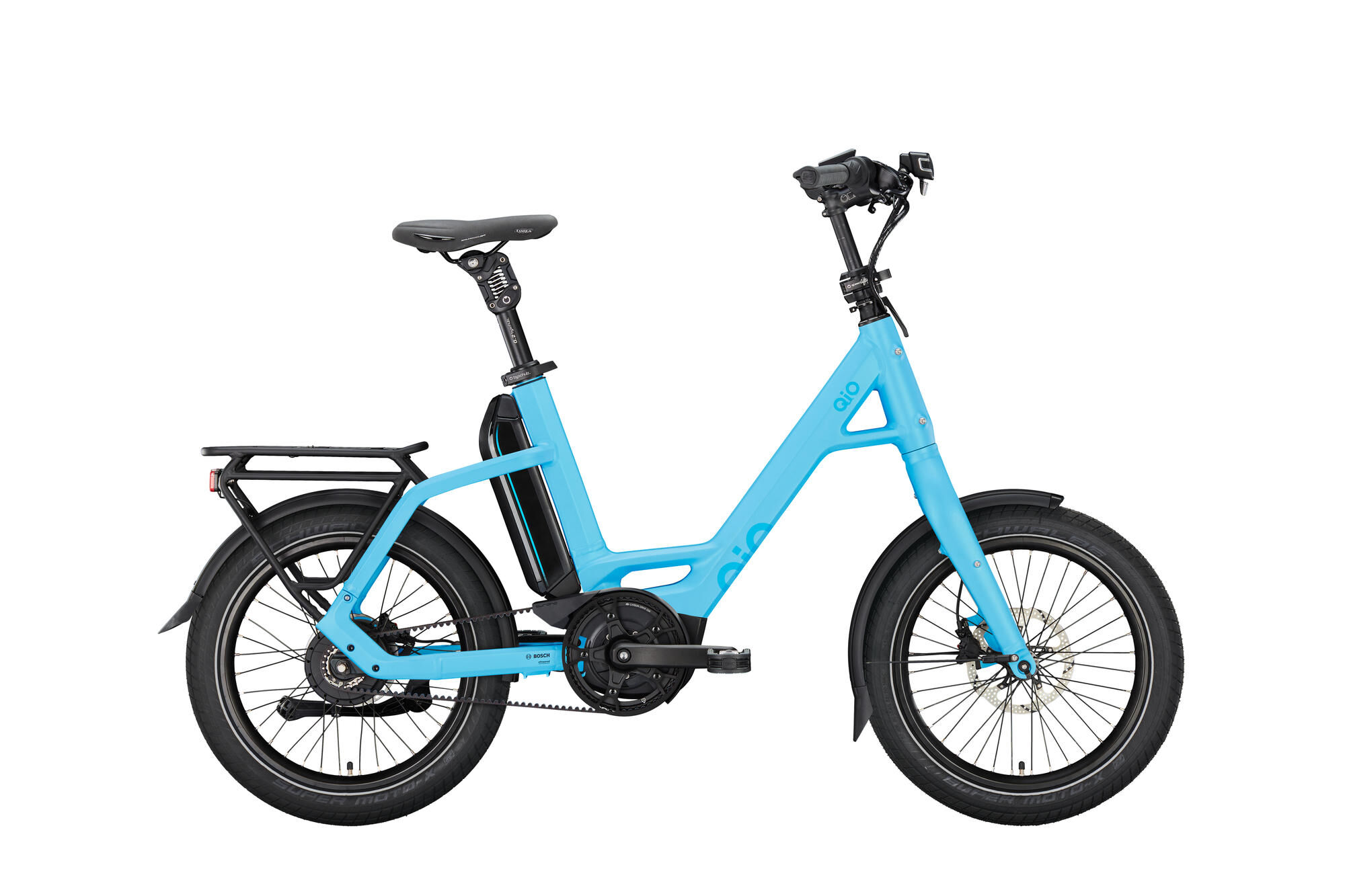

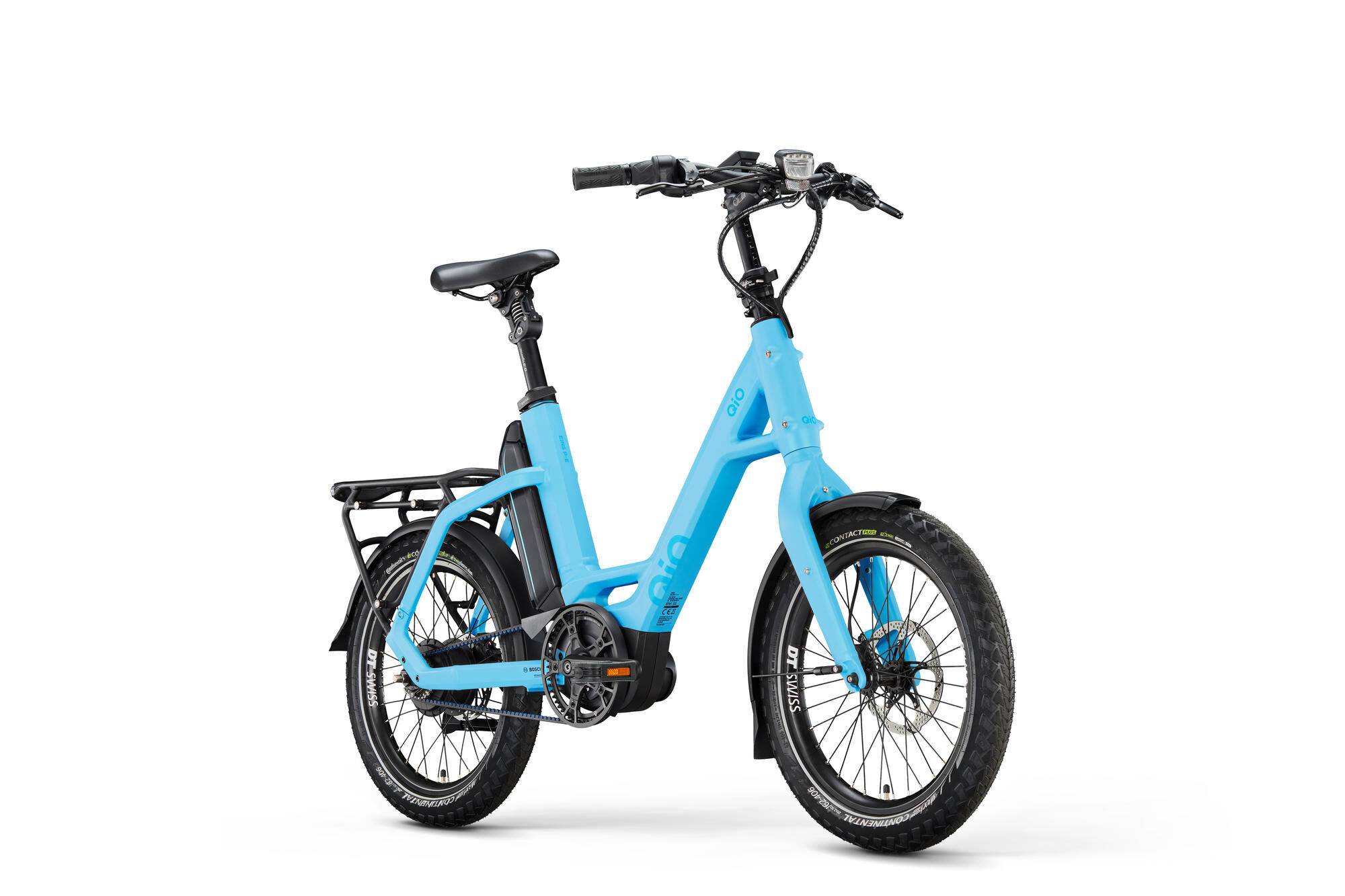

QiO Electric compact bike "EINS P-E" (#1)
unisex, 20", ice blue matt, enviolo "TR", 48 cm
Read more Read less - Article number: 02652053
- Original number: 01723550
- Electric compact bike with a 250 W mid-drive motor and a 545.0 Wh battery capacity.
- enviolo "TR" hub gear system and belt drive.
- Hydraulic disc brakes.
- 20" wheels.
- Chain Guard, suspension seatpost, low step-through frame, electronic Pushing Help, system rack, fenders.
- Aluminum.
- Maximum system weight: 180 kg.
PU 1
Product information
- Battery capacity 545.0 Wh
- Bosch Smart System yes
- Brake system hydraulic disc brake
- Colour designation ice blue matt
- Drive belt
- Drive system BOSCH Performance Line
- Drive version middle motor
- E-bike yes
- Engine power 250 W
- Features chain guard , deep entry , electronic sliding aid , fender , suspension seatpost , system carrier
- Frame height 48 cm
- Frame shape unisex
- Gears stepless
- Gender unisex
- Main colour blue
- Material 1 aluminium
- Model range EINS
- Permissible system weight 180 kg
- Shifting name enviolo "TR"
- Shifting type internal gear shifting
- Support up to 25km/h
- Type compact bike
- Wheel size 20 "
- Access height 182 mm
- Chainstay 451 mm
- Length 1685 mm
- Passage width 190 mm
- Reach 408 mm
- Seat angle 70.5 °
- Seat tube 48 mm
- Stack 541 mm
- Steering tube 220 mm
- Steering tube angle 71.0 °
- Stem length 70.0 mm
- Toptube 576 mm
- Wheel distance 1108 mm
- Battery BOSCH "PowerPack 545", 545 Wh
- Battery Lock ABUS Battery Lock
- Bottom bracket BOSCH
- Brake lever TRP HD-EU817
- Chain / belt GATES "CDC"
- Chain guard CURANA "C+", 55 teeth
- Chain ring / pulley Gates "CDC", 55 teeth, belt line 45.5 mm
- Charger BOSCH 4 A
- Crank Stronglight "Magan 3B", 170 mm
- Derailleur hanger QIO Slider Dropout
- Display BOSCH "Kiox 300", 4-stages, remote control, push aid
- Engine BOSCH "Performance Line" engine, max. 75 Nm
- Fender curana "Apollo Orbit 70"
- Fork Aluminum, tapered 1 1/4" - 1.5"
- Frame QIO EINS, Bosch Gen. 3, BES3, aluminum, 49.5 cm
- Front brake TRP "C1.8 HD-EU817", Post Mount
- Front hub SHIMANO "Deore HB-M5100", Center Lock, Schnellspanner
- Front light Busch + Müller "Briq-S E", 60 lux
- Front rotor TRP "TR-25", Ø 180 mm, Centerlock
- Front tire CONTINENTAL "eContact Plus", 62-406, Reflex
- Grips HERRMANS "Nucore Town", wave
- Handlebar ergotec "Lady Town", 620 mm, Ø 31.8 mm, 30° backsweep
- Headset TOKEN "TK255E-HJ04", IS52/40 / IS52/44
- Pedals UNION "SP-153", foldable
- Rear brake TRP "C1.8 HD-EU817"
- Rear carrier "MIK HD 2.0" for MIK Side
- Rear hub ENVIOLO "TR", stepless, 6-hole
- Rear light Busch + Müller "Dart E Brex "
- Rear rotor TRP "RS02M", Ø 160 mm, 6-hole
- Rear tire CONTINENTAL "eContact Plus", 62-406, Reflex
- Remote BOSCH "BRC3600", LED remote
- Rims DT SWISS "U 663", 36 hole, eyeletted, tubeless ready
- Saddle Selle Royal "On", Moderate Wide
- Seatpost by,schulz "G.2 ST", Ø 34.9 mm, 400 mm long, 30 mm travel, 12 mm offset
- Sensor Pedal pressure measuring im Motor + speed sensor
- Shifting lever ENVIOLO "Twist Pure Display", stepless
- Spokes DT-Swiss ELEMENTAL, schwarz
- Sprocket / pulley Gates "CDC", 22 teeth
- Stands URSUS "R78 - King Mini"
- Stem BY.SCHULZ "Stem SDS", 1 1/8", 31.8 mm handlebar clamps, 70 mm long, angle 7°, black
- Supplier Article Number: 01723550
- EAN 4251971163966
- MSRP: €4,499.00
- Fedas-Code 159021
- DST-Code 1A01
- WEEE registration number DE92509320
- SB-Article No
- Bidex-Code 123040
- Brand/Supplier QiO
- Unit of measure: PIECE
- Weight 27.3 kg
| Article | Price | |
|---|---|---|
 Out of Stock unisex, 20", ice blue matt, enviolo "TR", 48 cm Read more Read less
| PU 1 |
| Article | Price | |
|---|---|---|
 | PU 16 | |
 | PU 1 | |
 | PU 10 | |
 | PU 10 | |
 | PU 1 | |
 Out of Stock workshop package with 10 pcs. Read more Read less
| PU 1 | |
 | PU 14 | |
 | PU 1 | |
 | PU 1 | |
 | PU 1 | |
 | PU 3 | |
 | PU 10 | |
 | PU 1 | |
 | PU 4 | |
 | PU 4 |
The QiO "EINS P-E" compact e-bike is ideal for city riding and running errands. With the Bosch Smart System (BES3), it’s always up to date. The eBike Flow app connects the “Performance Line” engine, the 545-Wh battery, and the Operating Unit, allowing you to select riding modes, plan routes, and record rides. You can sync your data with health apps, for example.The continuously variable Enviolo “TR” hub gear is perfect for hilly terrain and cross-country rides. Together with the Bosch engine, you can reach speeds of up to 25 km/h. The Gates CDC straps, compact design, foldable pedals, and folding Handlepost make it easy to store in small spaces or in a RV.With 62 mm-wide tires on 20" wheels and the Parallelogramm Suspension Seatpost, this compact e-bike offers a high level of comfort on paved paths. The by,schulz seatpost is also theft-proof.
