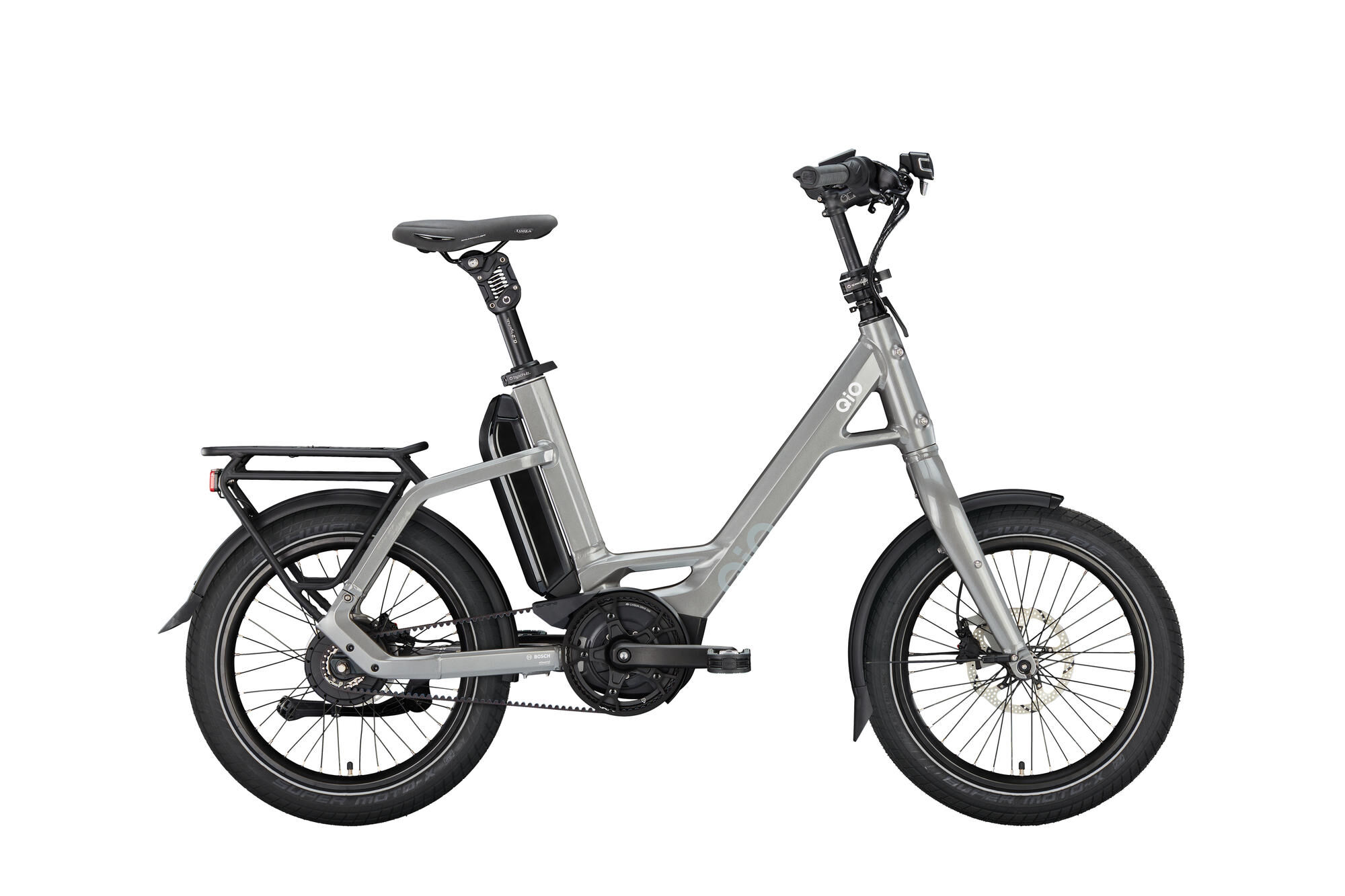

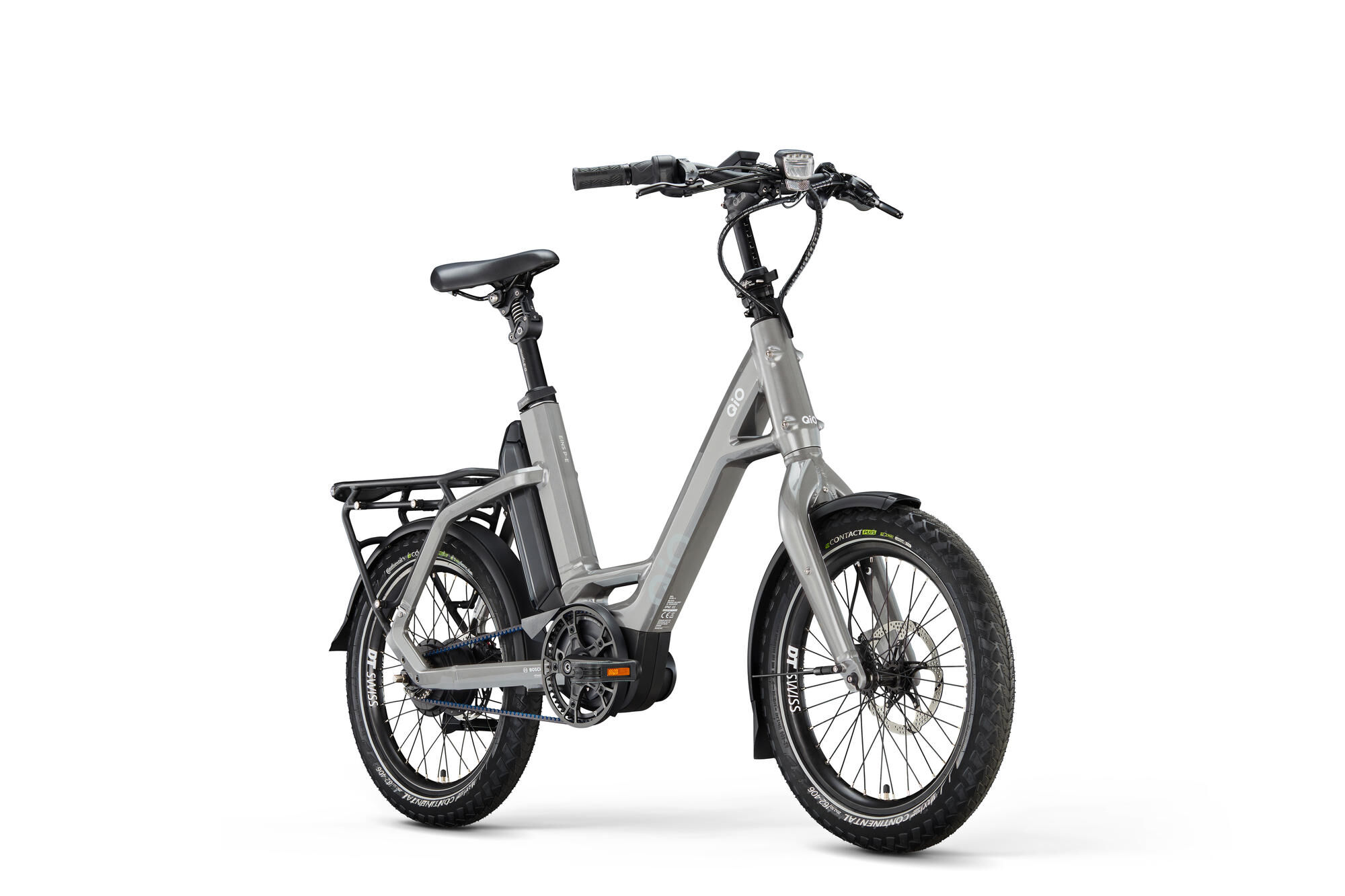

QiO Electric compact bike "EINS P-E" (#1)
unisex, 20", lead metal, enviolo "TR", 48 cm
Read more Read less - Article number: 02652048
- Original number: 01723500
The electric compact bike is equipped with a Bosch Performance Line mid-motor, which offers a motor output of 250 W. A battery with a capacity of 545 Wh is integrated into the frame. Drives are provided by a belt drive, while an enviolo "TR" hub gear ensures gear selection. The hydraulic Disc Brakes ensure reliable braking performance. The electric compact bike has 20" wheels and an aluminum frame, which enables a permissible system weight of 180 kg. Other features include a suspension seatposts, a Chain Guard and a system luggage rack.
Product information
- Access height 182 mm
- Battery capacity 545.0 Wh
- Bosch Smart System yes
- Brake system hydraulic disc brake
- Chainstay 451 mm
- Colour designation lead metal
- Drive belt
- Drive system BOSCH Performance Line
- Drive version middle motor
- E-bike yes
- Engine power 250 W
- Features fender
- Frame height 48 cm
- Frame shape unisex
- Gears stepless
- Gender unisex
- Length 1685 mm
- Main colour grey
- Material 1 aluminium
- Passage width 190 mm
- Permissible system weight 180 kg
- Reach 408 mm
- Seat angle 70.5 °
- Seat tube 48 mm
- Shifting name enviolo "TR"
- Shifting type internal gear shifting
- Stack 541 mm
- Steering tube 220 mm
- Steering tube angle 71.0 °
- Stem length 70.0 mm
- Support up to 25km/h
- Toptube 576 mm
- Type compact bike
- Wheel distance 1108 mm
- Wheel size 20 "
- Battery: BOSCH "PowerPack 545", 545 Wh
- Battery Lock: ABUS Akkuschloss
- Bottom bracket: BOSCH
- Brake lever: TRP HD-EU817
- Bremse H.R.: TRP "C1.8 HD-EU817"
- Bremse V.R.: TRP "C1.8 HD-EU817", Post Mount
- Chain / belt: GATES "CDC"
- Chain guard: CURANA "C+", 55 teeth
- Chain ring / pulley: Gates "CDC", 55 Zähne, Rimeenlinie 45,5 mm
- Charger: BOSCH 4 A
- Crank: Stronglight "Magan 3B", 170 mm
- Derailleur hanger: QIO Slider Dropout
- Display: BOSCH "Kiox 300", 4-stages, remote control, push aid
- Engine: BOSCH "Performance Line" engine, max. 75 Nm
- Fender: curana "Apollo Orbit 70"
- Fork: QIO EINS 20", aluminum, tapered 1 1/4" - 1.5", 313.5 mm stem, post mount, light olive matt
- Frame: QIO EINS, Bosch Gen. 3, BES3, aluminum, 49.5 cm, lead metal glossy
- Front hub: SHIMANO "Deore HB-M5100", Center Lock, Schnellspanner
- Front light: Busch + Müller "Briq-S E", 60 Lux
- Front rotor: TRP "TR-25", Ø 180 mm, Centerlock
- Front tire: CONTINENTAL "eContact Plus", 62-406, Reflex
- Grips: HERRMANS "Nucore Town", wave
- Handlebar: ergotec "Lady Town", 620 mm, Ø 31.8 mm, 30° backsweep
- Headset: TOKEN "TK255E-HJ04", IS52/40 / IS52/44
- Pedals: UNION "SP-153", foldable
- Rear carrier: QIO "MIK HD 2.0" mit MIK STUDS
- Rear hub: ENVIOLO "TR", stepless, 6-hole
- Rear light: Busch + Müller "Dart E Brex "
- Rear rotor: TRP "RS02M", Ø 160 mm, 6-hole
- Rear tire: CONTINENTAL "eContact Plus", 62-406, Reflex
- Remote: BOSCH "BRC3600", LED Remote
- Rims: DT SWISS "U 663", 36 hole, eyeletted, tubeless ready
- Saddle: Selle Royal "On", Moderate Wide
- Seatpost: by,schulz "G.2 ST", Ø 34.9 mm, 400 mm long, 30 mm travel, 12 mm offset
- Sensor: Pedal pressure measuring im Motor + speed sensor
- Shifting lever: ENVIOLO "Twist Pure Display", stepless
- Spokes: DT-Swiss ELEMENTAL, schwarz
- Sprocket / pulley: GATES "CDC", 22 teeth
- Stands: URSUS "R78 - King Mini"
- Stem: BY.SCHULZ "Stem SDS", 1 1/8", 31.8 mm handlebar clamps, 70 mm long, angle 7°, black
- Supplier Article Number: 01723500
- EAN: 4251971163911
- MSRP: €4,499.00
- Fedas-Code: 159021
- DST-Code: 1A01
- WEEE registration number: DE92509320
- SB-Article: No
- Bidex-Code: 123040
- Brand/Supplier QiO
- Unit of measure: PIECE
- Weight: 27.3 kg
| Article | Price | |
|---|---|---|
 black, AZ Standard, removable keys, with Battery Lock for PowerPack BES 3 Read more Read less
| ||
 | ||
 | ||
 | ||
 Scarves: blackCover: dark gray Read more Read less
| ||

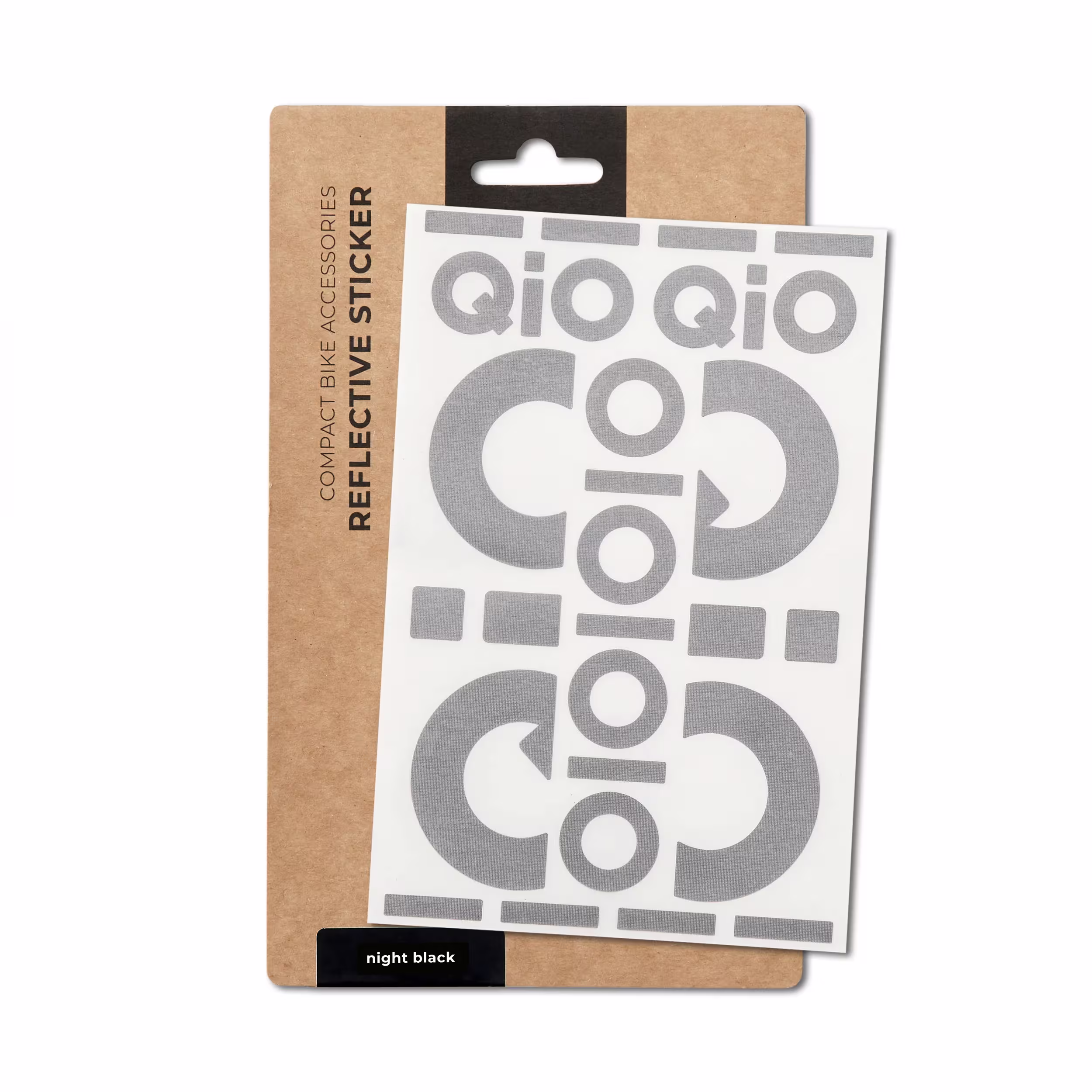

 for night black matt frame colour Read more Read less
| ||
 | ||
 | ||
 | ||
 | ||
 | ||
 | ||
 | ||
 | ||
 | ||

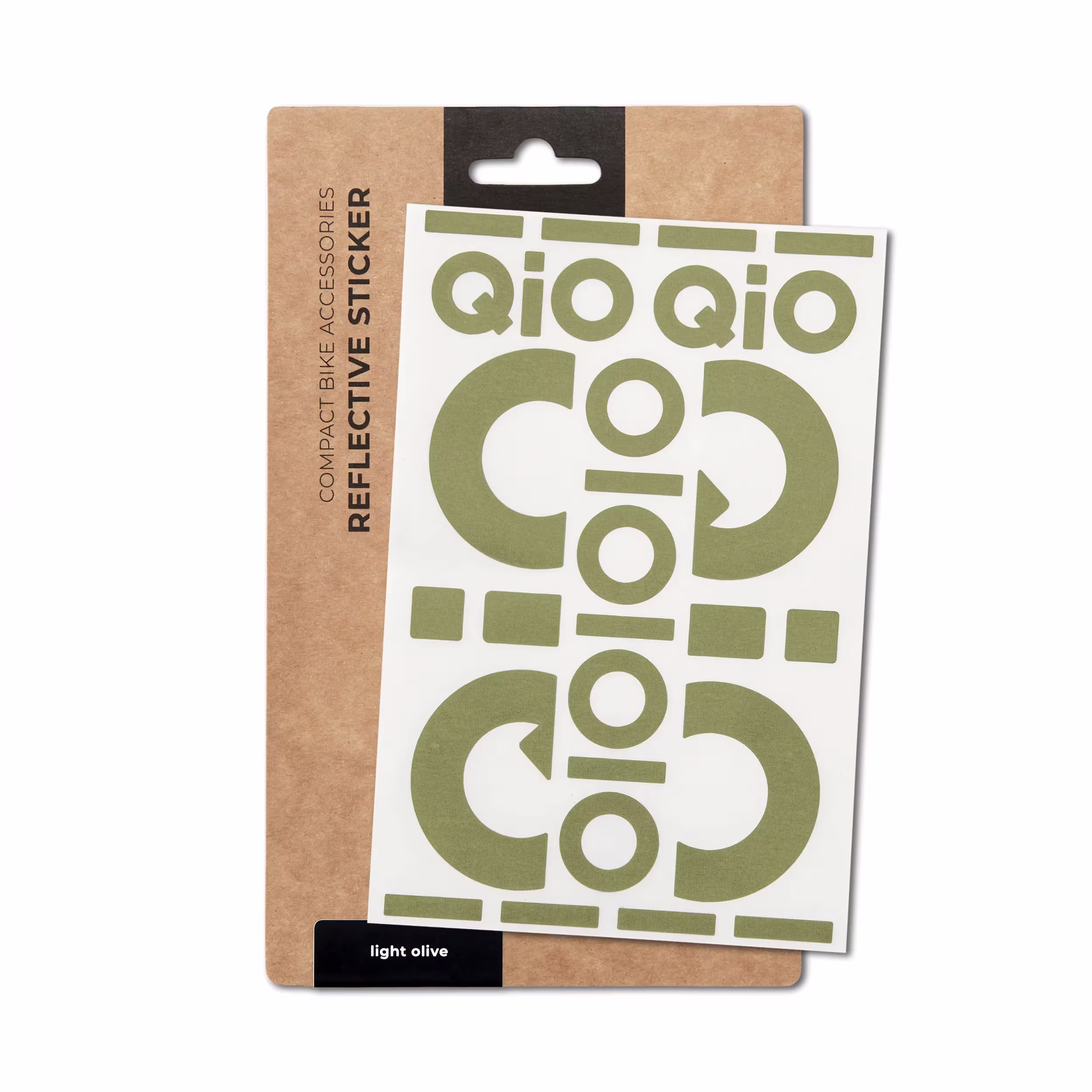

 for light olive matt frame colour Read more Read less
| ||

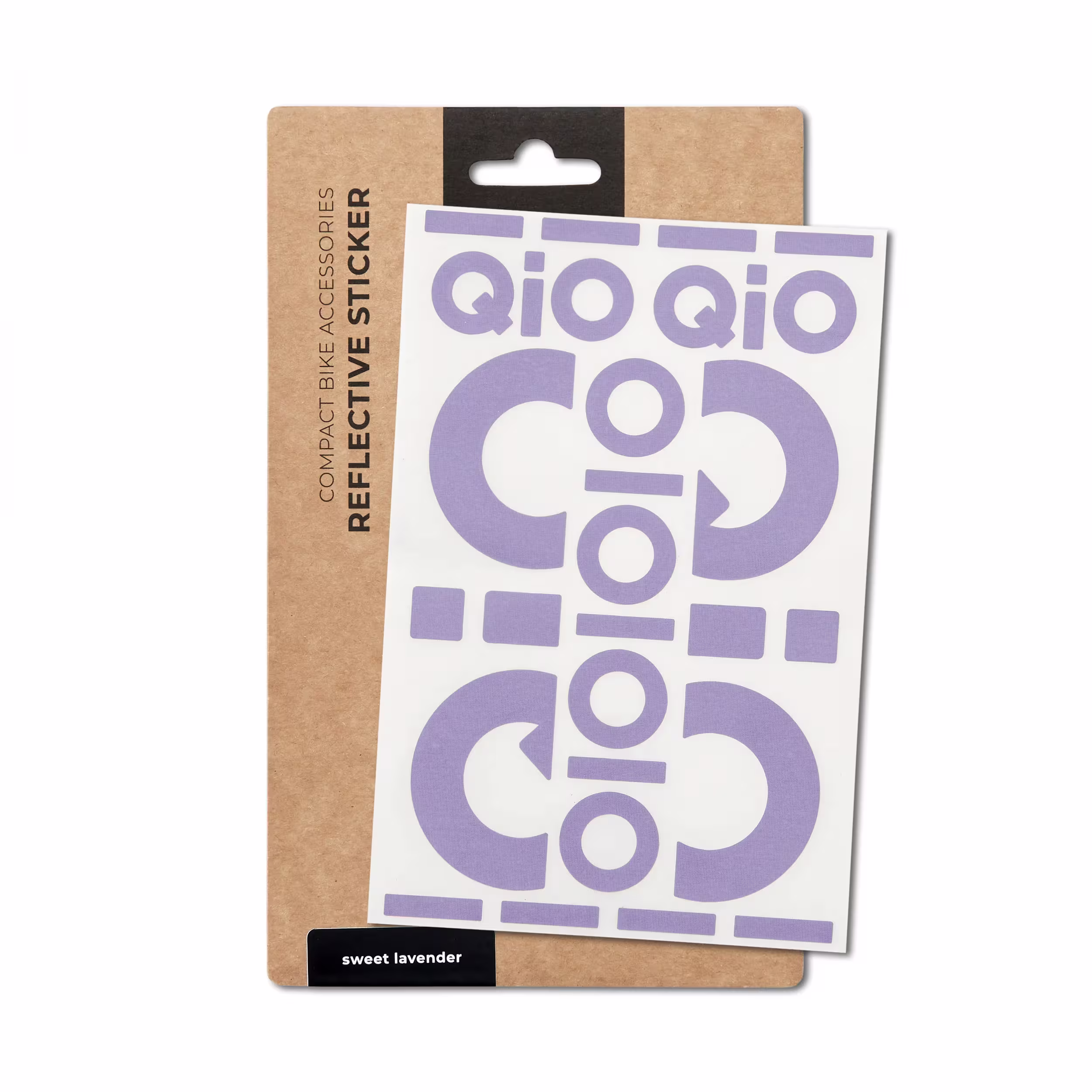

 for sweet lavender matt frame colour Read more Read less
| ||
 | ||
 | ||
| ||

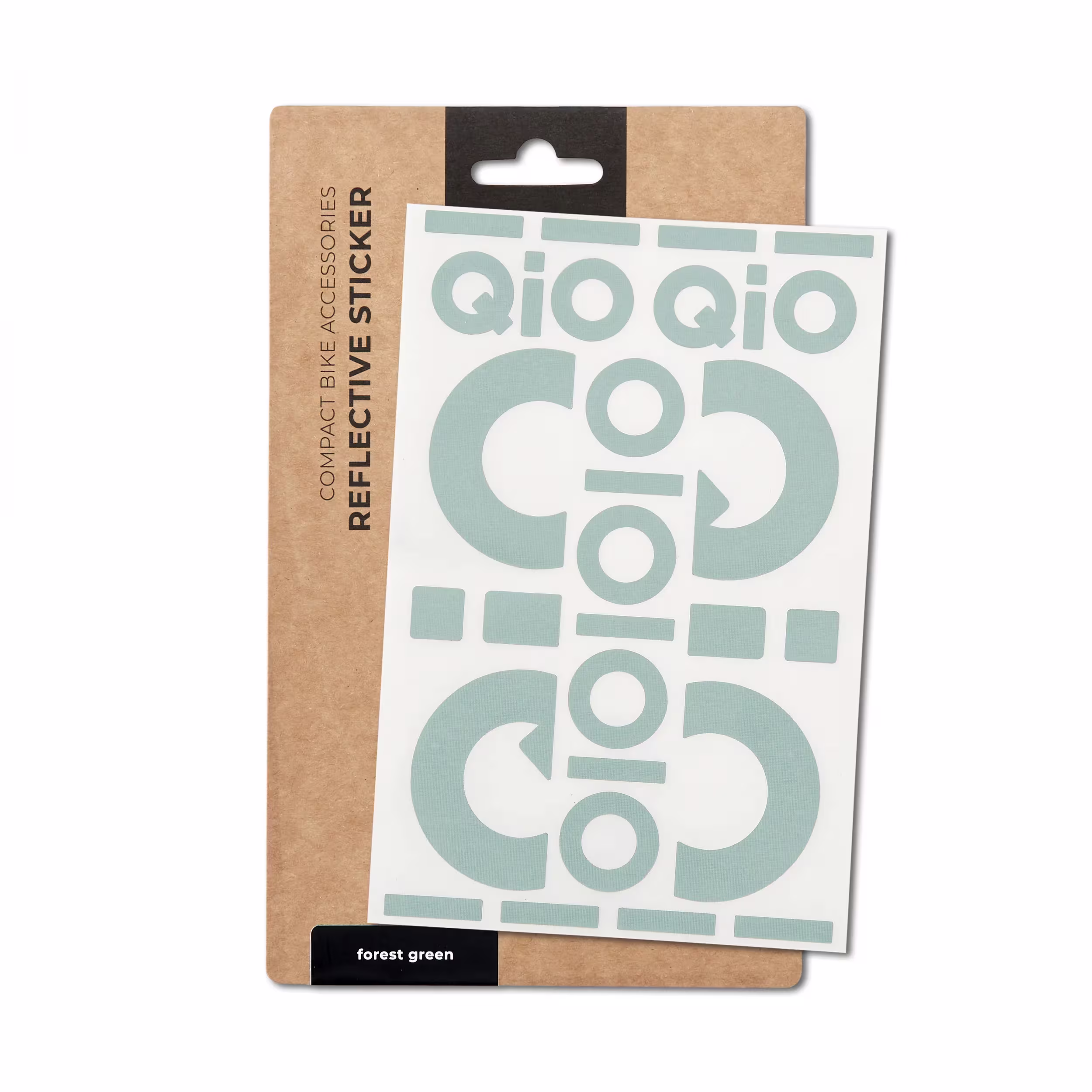

 for forest green frame colour Read more Read less
| ||
 | ||
 | ||

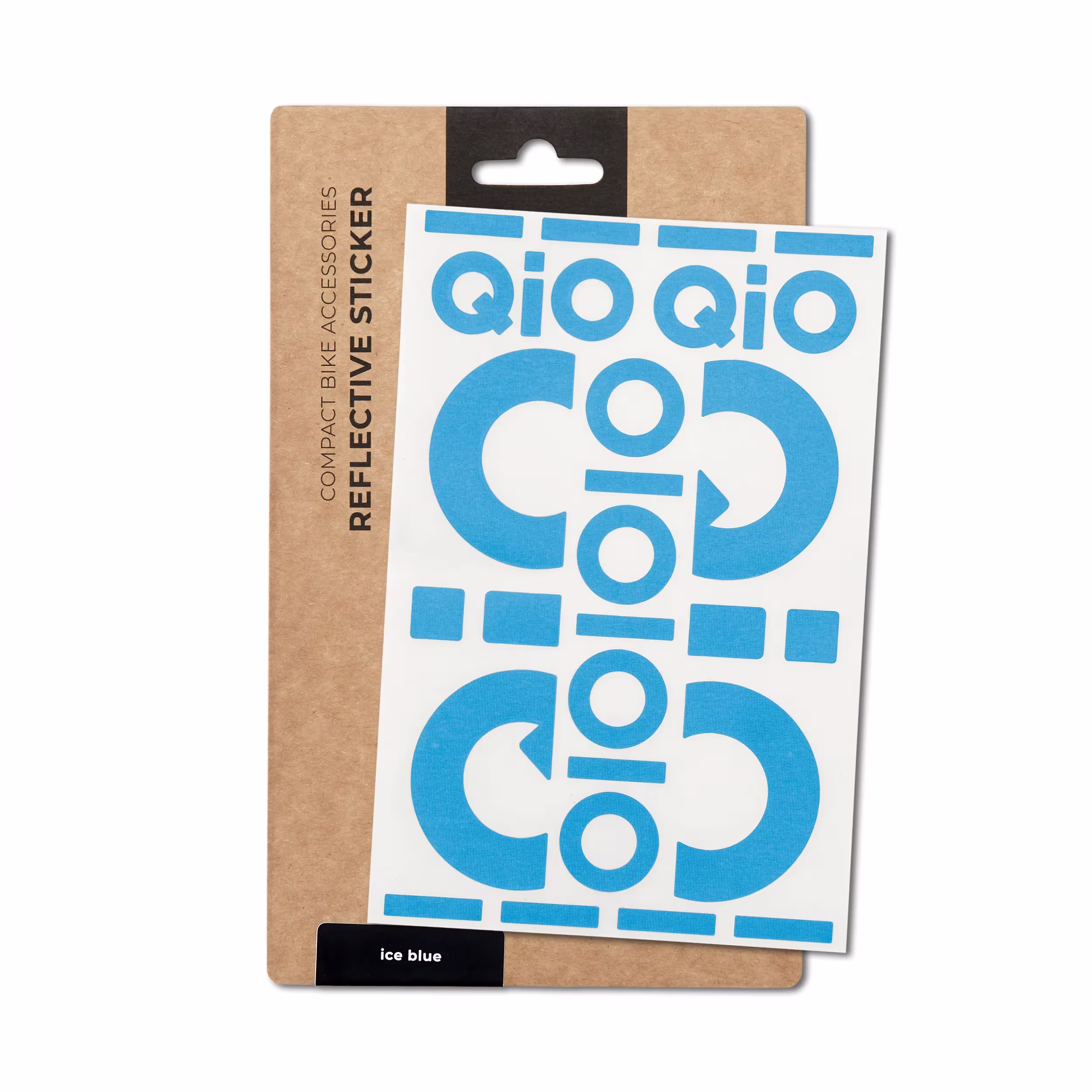

 for ice blue matt frame colour Read more Read less
| ||
 | ||
 | ||
 | ||
 for crystal white frame colour Read more Read less
| ||
 | ||
 | ||
 | ||
 | ||
 | ||
 | ||
 | ||
 | ||
 for lead metal frame colour Read more Read less
| ||
 | ||
 | ||
 | ||
 | ||

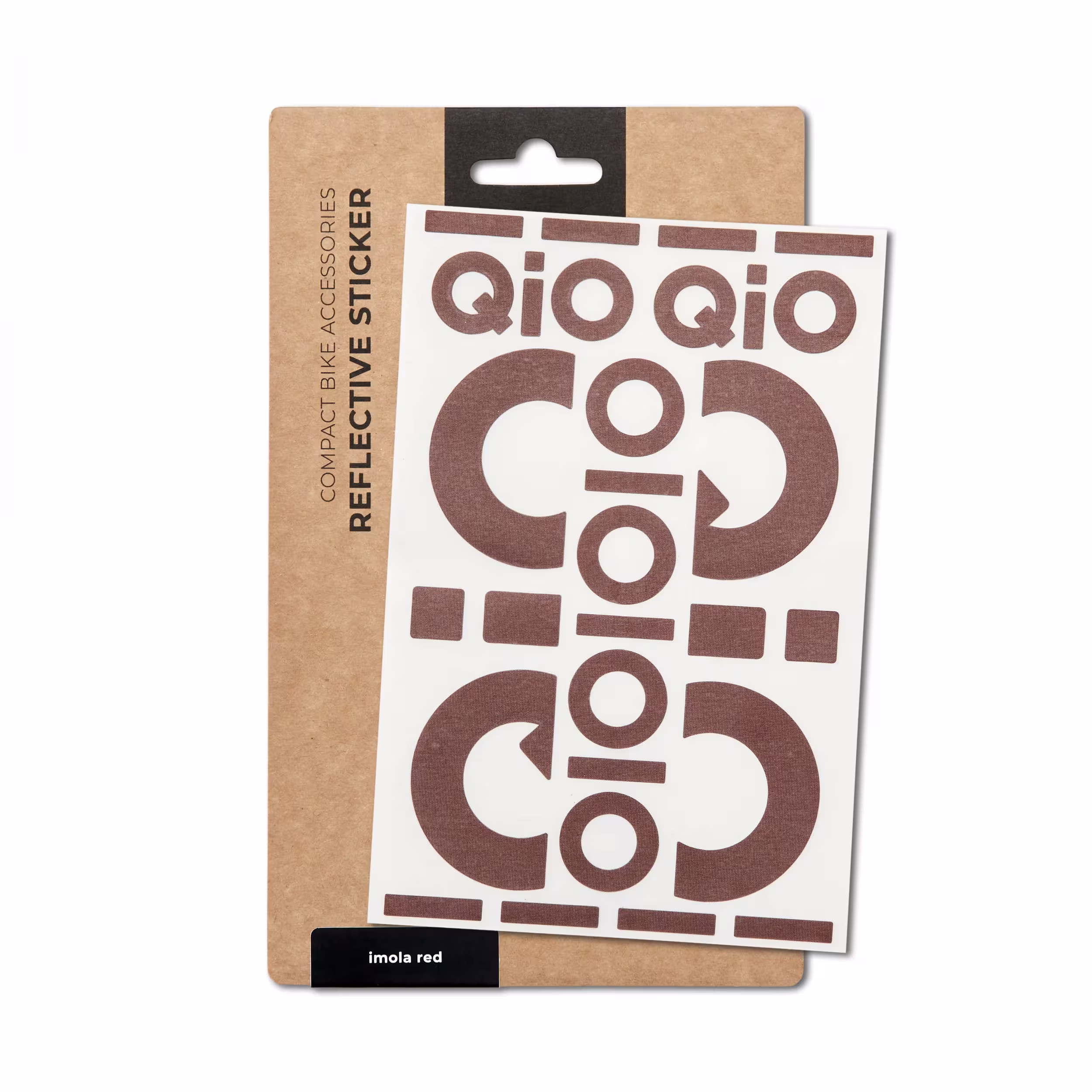

 for imola red matt frame colour Read more Read less
| ||
 | ||
 | ||
 | ||
"Folding Lock Duo", black, incl. one short and one long XPlus Lock Cylinder Read more Read less
| ||
 | ||
| ||
 |
The QiO "EINS P-E" compact e-bike is ideal for city rides and shopping. With the Bosch Smart System (BES3), it always stays up to date. The eBike Flow app connects the "Performance Line" engine, the 545 Wh Battery and the Operating Unit, allowing you to select riding modes, plan routes and record tours. The results can be synchronized with health apps, for example.The continuously variable Enviolo "TR" gear hub is perfect for hilly terrain and overland tours. Together with the Bosch engine, you can reach speeds of up to 25 km/h. The Gates CDC Straps The compact design, foldable pedals and folding Handlepost make it easy to stow away in small spaces or in a camper van.With 62 mm wide tires on 20" wheels and the Parallelogramm Suspension Seatposts, the compact e-bike offers a high level of comfort on paved paths. The by,schulz seatpost is also theft-proof.
