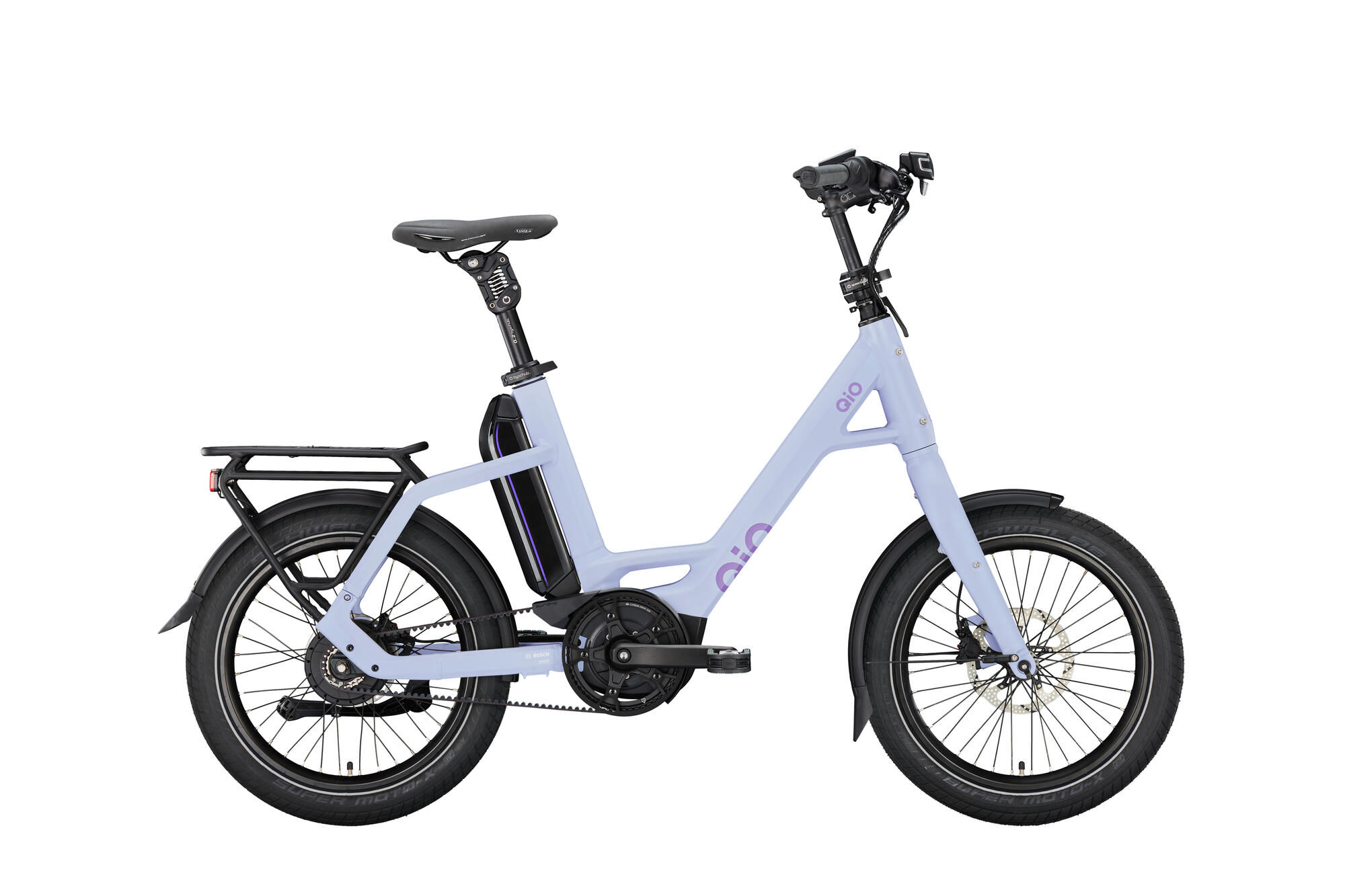

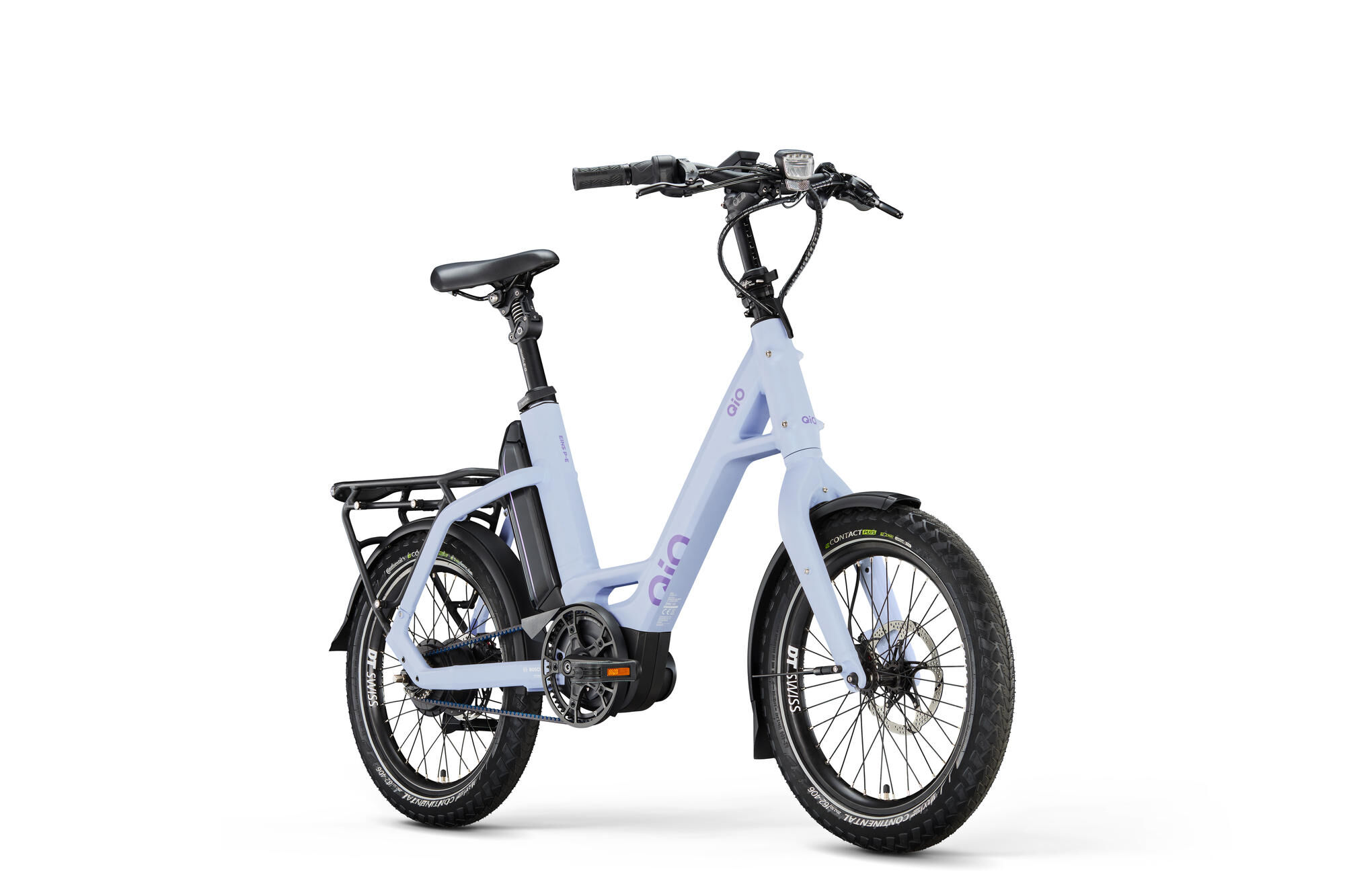

QiO Electric compact bike "EINS P-E" (#1)
unisex, 20", sweet lavender matt, enviolo "TR", 48 cm
Read more Read less - Article number: 02652055
- Original number: 01723570
The electric compact bike is equipped with a Bosch Performance Line mid-motor, which offers a motor output of 250 W. A battery with a capacity of 545 Wh is integrated into the frame. Drives are provided by a belt drive, while an enviolo "TR" hub gear ensures gear selection. The hydraulic Disc Brakes ensure reliable braking performance. The electric compact bike has 20" wheels and an aluminum frame, which enables a permissible system weight of 180 kg. Other features include a suspension seatposts, a Chain Guard and a system luggage rack.
PU 1
Product information
- Access height 182 mm
- Battery capacity 545.0 Wh
- Bosch Smart System yes
- Brake system hydraulic disc brake
- Chainstay 451 mm
- Colour designation sweet lavender matt
- Drive belt
- Drive system BOSCH Performance Line
- Drive version middle motor
- E-bike yes
- Engine power 250 W
- Features chain guard , deep entry , electronic sliding aid , fender , suspension seatpost , system carrier
- Frame height 48 cm
- Frame shape unisex
- Gears stepless
- Gender unisex
- Length 1685 mm
- Main colour purple
- Material 1 aluminium
- Model series EINS
- Passage width 190 mm
- Permissible system weight 180 kg
- Reach 408 mm
- Seat angle 70.5 °
- Seat tube 48 mm
- Shifting name enviolo "TR"
- Shifting type internal gear shifting
- Stack 541 mm
- Steering tube 220 mm
- Steering tube angle 71.0 °
- Stem length 70.0 mm
- Support up to 25km/h
- Toptube 576 mm
- Type compact bike
- Wheel distance 1108 mm
- Wheel size 20 "
- Battery BOSCH "PowerPack 545", 545 Wh
- Battery Lock ABUS Akkuschloss
- Bottom bracket BOSCH
- Brake lever TRP HD-EU817
- Chain / belt GATES "CDC"
- Chain guard CURANA "C+", 55 teeth
- Chain ring / pulley Gates "CDC", 55 teeth, belt line 45.5 mm
- Charger BOSCH 4 A
- Crank Stronglight "Magan 3B", 170 mm
- Derailleur hanger QIO Slider Dropout
- Display BOSCH "Kiox 300", 4-stages, remote control, push aid
- Engine BOSCH "Performance Line" engine, max. 75 Nm
- Fender curana "Apollo Orbit 70"
- Fork Aluminum, tapered 1 1/4" - 1.5"
- Frame QIO EINS, Bosch Gen. 3, BES3, aluminum, 49.5 cm
- Front hub SHIMANO "Deore HB-M5100", Center Lock, Schnellspanner
- Front light Busch + Müller "Briq-S E", 60 Lux
- Front rotor TRP "TR-25", Ø 180 mm, Centerlock
- Front tire CONTINENTAL "eContact Plus", 62-406, Reflex
- Front wheel brake TRP "C1.8 HD-EU817", Post Mount
- Grips HERRMANS "Nucore Town", wave
- Handlebar ergotec "Lady Town", 620 mm, Ø 31.8 mm, 30° backsweep
- Headset TOKEN "TK255E-HJ04", IS52/40 / IS52/44
- Pedals UNION "SP-153", foldable
- Rear carrier "MIK HD 2.0" for MIK Side
- Rear hub ENVIOLO "TR", stepless, 6-hole
- Rear light Busch + Müller "Dart E Brex "
- Rear rotor TRP "RS02M", Ø 160 mm, 6-hole
- Rear tire CONTINENTAL "eContact Plus", 62-406, Reflex
- Rear wheel brake TRP "C1.8 HD-EU817"
- Remote BOSCH "BRC3600", LED Remote
- Rims DT SWISS "U 663", 36 hole, eyeletted, tubeless ready
- Saddle Selle Royal "On", Moderate Wide
- Seatpost by,schulz "G.2 ST", Ø 34.9 mm, 400 mm long, 30 mm travel, 12 mm offset
- Sensor Pedal pressure measuring im Motor + speed sensor
- Shifting lever ENVIOLO "Twist Pure Display", stepless
- Spokes DT-Swiss ELEMENTAL, schwarz
- Sprocket / pulley Gates "CDC", 22 teeth
- Stands URSUS "R78 - King Mini"
- Stem BY.SCHULZ "Stem SDS", 1 1/8", 31.8 mm handlebar clamps, 70 mm long, angle 7°, black
- Supplier Article Number: 01723570
- EAN 4251971163980
- MSRP: €4,499.00
- Fedas-Code 159021
- DST-Code 1A01
- WEEE registration number DE92509320
- SB-Article No
- Bidex-Code 123040
- Brand/Supplier QiO
- Unit of measure: PIECE
- Weight 27.3 kg
| Article | Price | |
|---|---|---|
 Out of Stock unisex, 20", sweet lavender matt, enviolo "TR", 48 cm Read more Read less
| PU 1 |
| Article | Price | |
|---|---|---|
 Scarves: blackCover: dark gray Read more Read less
| PU 1 | |
 | PU 1 | |
 | PU 1 | |
 | PU 1 | |
 | PU 1 | |
 | PU 10 | |
 | PU 1 | |
 for night black matt frame colour Read more Read less
| PU 1 | |
 | PU 1 | |
 | PU 1 | |
 for imola red matt frame colour Read more Read less
| PU 1 | |
 | PU 5 | |
 | PU 1 | |
 | PU 1 | |
 | PU 1 | |
 | PU 1 | |
 | PU 1 | |
 for lead metal frame colour Read more Read less
| PU 1 | |
 | PU 1 | |
 for ice blue matt frame colour Read more Read less
| PU 1 | |
 | PU 1 | |
 | PU 25 | |
 | PU 1 | |
 | PU 14 | |
 | PU 10 | |
 "Folding Lock Duo", black, incl. one short and one long XPlus Lock Cylinder Read more Read less
| PU 1 | |
 black, AZ Standard, removable keys, with Battery Lock for PowerPack BES 3 Read more Read less
| PU 480 | |
 | PU 1 | |
 | PU 10 | |
 | PU 5 | |
 | PU 1 | |
 | PU 1 | |
 | PU 1 | |
 for forest green frame colour Read more Read less
| PU 1 | |
 for light olive matt frame colour Read more Read less
| PU 1 | |
 | PU 50 | |
 | PU 10 | |
 | PU 1 | |
 | PU 10 | |
 | PU 1 | |
 | PU 1 | |
 for crystal white frame colour Read more Read less
| PU 1 | |
 | PU 16 | |
 for sweet lavender matt frame colour Read more Read less
| PU 1 | |
 | PU 10 | |
 | PU 1 | |
 | PU 1 | |
 | PU 10 | |
 | PU 3 |
The QiO "EINS P-E" compact e-bike is ideal for city rides and shopping. With the Bosch Smart System (BES3), it always stays up to date. The eBike Flow app connects the "Performance Line" engine, the 545 Wh Battery and the Operating Unit, allowing you to select riding modes, plan routes and record tours. The results can be synchronized with health apps, for example.The continuously variable Enviolo "TR" gear hub is perfect for hilly terrain and overland tours. Together with the Bosch engine, you can reach speeds of up to 25 km/h. The Gates CDC Straps The compact design, foldable pedals and folding Handlepost make it easy to stow away in small spaces or in a camper van.With 62 mm wide tires on 20" wheels and the Parallelogramm Suspension Seatposts, the compact e-bike offers a high level of comfort on paved paths. The by,schulz seatpost is also theft-proof.
