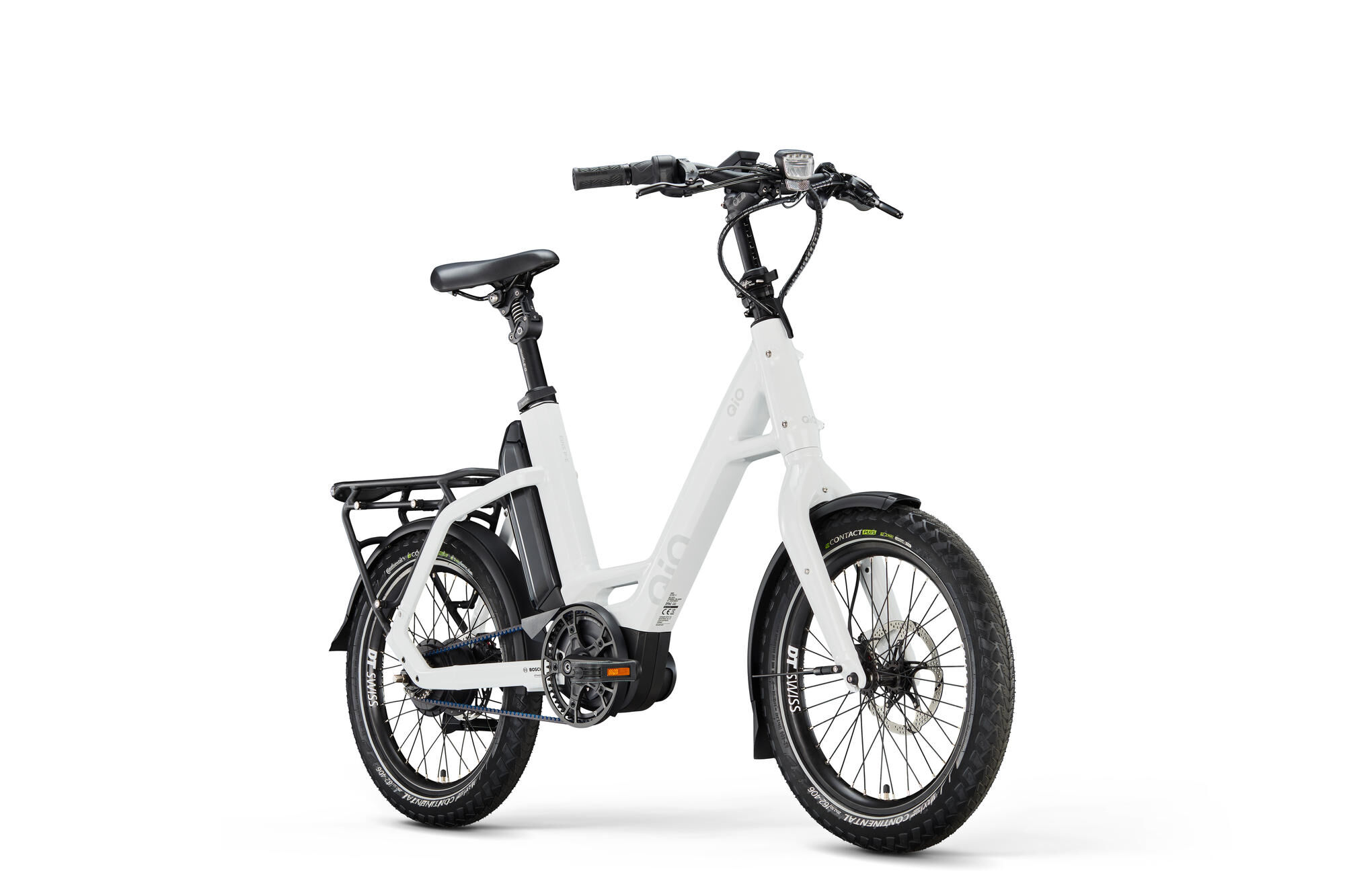

QiO Electric compact bike "EINS P-E" (#1)
unisex, 20", crystal white, enviolo "TR", 48 cm
Read more Read less - Article number: 02652049
- Original number: 01723519
The bike has an aluminum frame. Drives are provided by a BOSCH mid-motor with a motor output of 250 W. The battery capacity is 545.0 Wh. The gear type is a hub gear with the gear name enviolo "TR". The drives use a belt drive. The braking system consists of hydraulic disc brakes. The wheel size is 20 ". The permissible total weight is 180 kg. It is equipped with suspension seatposts.
Product information
- Access height 182 mm
- Battery capacity 545.0 Wh
- Bosch Smart System yes
- Brake system hydraulic disc brake
- Category compact bike
- Chainstay 451 mm
- Colour designation crystal white
- Drive belt drive
- Drive system BOSCH Performance Line
- Drive version middle motor
- E-bike yes
- Engine power 250 W
- Features fender
- Frame height 48 cm
- Frame shape unisex
- Gears stepless
- Gender unisex
- Length 1685 mm
- Main colour white
- Material 1 aluminium
- Passage width 190 mm
- Reach 408 mm
- Seat angle 70.5 °
- Seat tube 48 mm
- Shifting name enviolo "TR"
- Shifting type internal gear shifting
- Stack 541 mm
- Steering tube 220 mm
- Steering tube angle 71.0 °
- Stem length 70.0 mm
- Support up to 25km/h
- Toptube 576 mm
- Wheel distance 1108 mm
- Wheel size 20 "
- Battery: BOSCH Powerpack 545, Li-Ionen, 36 V / 14,4 Ah / 545 Wh
- Battery Lock: ABUS 40973 T82 DT3.1, BES3
- Bottom bracket: BOSCH
- Brake lever: TRP HD-EU817
- Bremse H.R.: TRP Scheibenbremse HD-EU817
- Bremse V.R.: TRP Scheibenbremse HD-EU817
- Chain / belt: GATES "CDC", 122Z.
- Chain guard: CURANA "C+" zweiteilig, 55Z.
- Chain ring / pulley: GATES "CDC", 55Z.
- Charger: Bosch 4 Ah
- Crank: STRONGLIGHT "Magan"
- Derailleur hanger: QIO Slider Dropout
- Display: BOSCH "Kiox 300", Multifunktion, Remote Control, Schiebehilfe, eBike Flow App
- Engine: BOSCH Mittelmotor "Performance", 36 V, 250 W, das smarte System
- Fender: CURANA "Apollo Orbit 70", Aluminium, 20 Zoll, schwarz matt
- Fork: Alu 6061 Disc
- Frame: QIO EINS, Alu 6061
- Front hub: SHIMANO "HB-M5100", 36 Loch, schwarz
- Front light: BUSCH&MÜLLER "BRIQ-S" 60 LUX, DC 9-15V
- Front rotor: 180mm Centerlock
- Front tire: CONTINENTAL "E Contact" Plus, 62-406
- Grips: HERRMANS "Nucore Town Wave", schwarz, Rechts 90MM, Links 123MM
- Handlebar: ERGOTEC "Lady Town" Level 4, Ø 31,8 mm
- Headset: TOKEN "TK255E-HJ04"
- Pedals: UNION "SP-153" Faltpedal
- Rear carrier: QIO "MIK-HD" und "MIK-SIDE" Systemträger, B&M Rücklicht integriert
- Rear hub: ENVIOLO "TR" Stufenlos
- Rear light: BUSCH&MÜLLER "TOPLIGHT DART BREX", 6-50V, DC, mit Notbremslichtfunktion
- Rear rotor: TRP RS02M 160mm 6Loch
- Rear tire: CONTINENTAL "E Contact" Plus, 62-406
- Remote: BOSCH LED Remote, das smarte System, Schiebehilfe
- Rims: DT Swiss "U663", Disc, schwarz
- Saddle: SELLE ROYAL "ON"
- Seatpost: BY,SCHULZ "G.2" Federsattelstütze, antitheft 34,9mm x 400mm, Medium
- Sensor: Pedal pressure measuring im Motor + speed sensor
- Shifting lever: ENVIOLO "TR", "Twist Display pure", Drehgriff grau, stufenlos
- Spokes: DT-Swiss ELEMENTAL, schwarz
- Sprocket / pulley: GATES, "CDC", 22Z.
- Stands: URSUS "King-EVO" 40mm schwarz
- Stem: BY,SCHULZ "SDS" 70mm, 7°, 31,8mm
- Supplier Article Number: 01723519
- EAN: 4251971163928
- MSRP: €4,499.00
- DST-Code: 1A01
- Bidex-Code: 123040
- Brand/Supplier QiO
- Unit of measure: PIECE
- Weight: 27.3 kg
The QiO "EINS P-E" compact e-bike is ideal for city rides and shopping. With the Bosch Smart System (BES3), it is always up to date. The eBike Flow app connects the "Performance Line" motor, the 545 Wh battery and the control unit, allowing you to select riding modes, plan routes and record tours. The results can be synchronized with health apps, for example.The continuously variable Enviolo "TR" gear hub is perfect for hilly terrain and overland tours. Together with the Bosch motor, you can reach speeds of up to 25 km/h. The Gates CDC belt The compact design, foldable pedals and folding steering column make it easy to stow away in small spaces or in a camper van.With 62 mm wide tires on 20" wheels and the parallelogram suspension seat post, the compact e-bike offers a high level of comfort on paved paths. The by,schulz seat post is also theft-proof.
