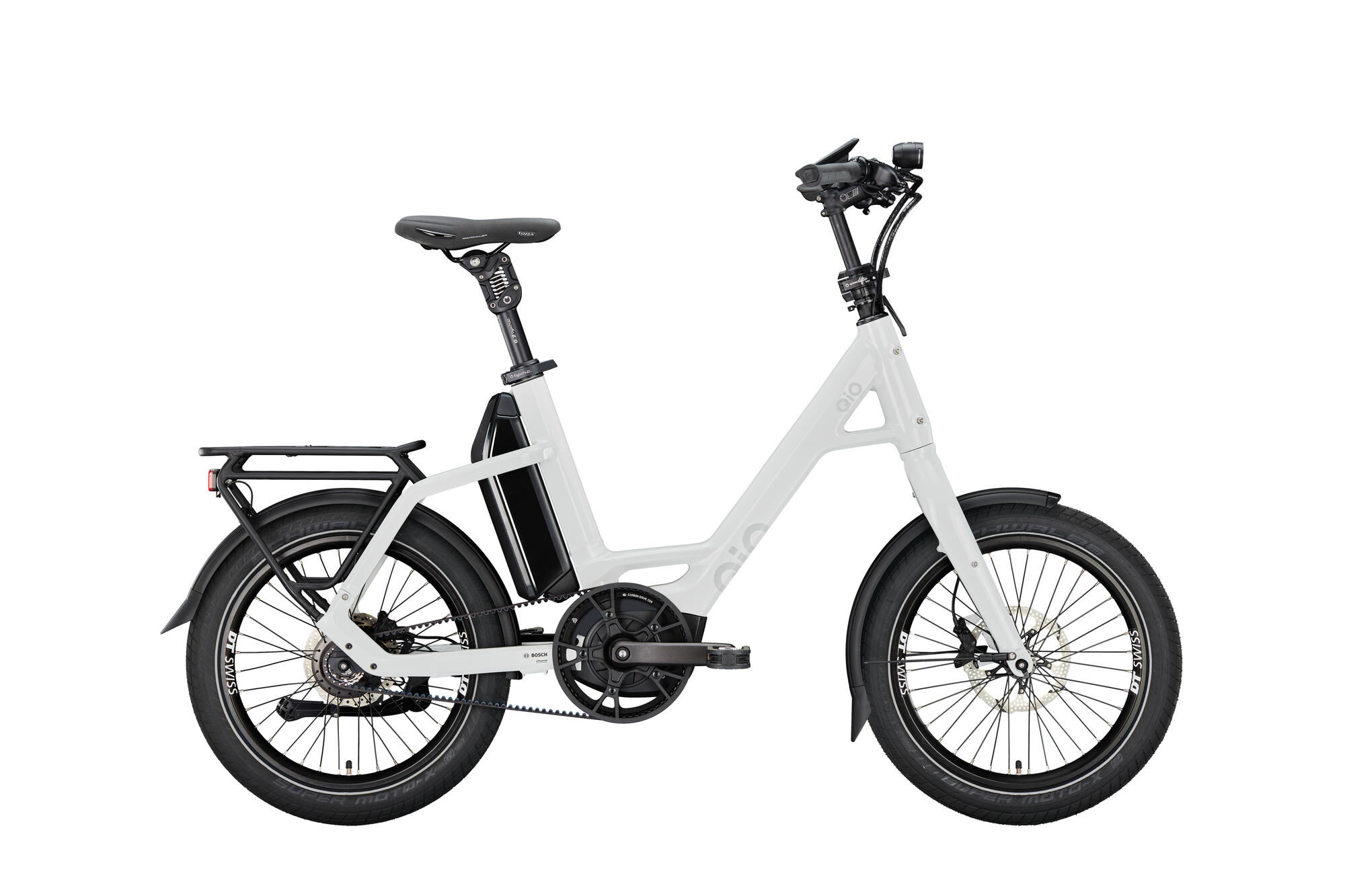

QiO Electric compact bike "EINS P-R" (#1)
unisex, 20", crystal white, Rohloff 14 G "E-14", 48 cm
Read more Read less - Article number: 02652089
- Original number: 01723584
The electric compact bike is equipped with a BOSCH Performance Line mid-motor, which delivers 250 W of motor power. A battery with a capacity of 800 Wh is integrated into the frame. It has a Rohloff 14-speed gear hub to enable gear selection. Drives are provided by a belt drive. Hydraulic disc brakes are installed for the braking system. A suspension seatposts and a low step-through are included in the equipment. The permissible system weight is 180 kg and the wheel size is 20 inches.
PU 1
Product information
- Access height 182 mm
- Battery capacity 800.0 Wh
- Bosch Smart System yes
- Brake system hydraulic disc brake
- Chainstay 451 mm
- Colour designation crystal white
- Drive belt
- Drive system BOSCH Performance Line
- Drive version middle motor
- E-bike yes
- Engine power 250 W
- Features chain guard , deep entry , electronic sliding aid , fender , suspension seatpost , system carrier
- Frame height 48 cm
- Frame shape unisex
- Gears 14-speed
- Gender unisex
- Length 1685 mm
- Main colour white
- Material 1 aluminium
- Model series EINS
- Passage width 190 mm
- Permissible system weight 180 kg
- Reach 408 mm
- Seat angle 70.5 °
- Seat tube 48 mm
- Shifting name Rohloff 14 G "E-14"
- Shifting type internal gear shifting
- Stack 541 mm
- Steering tube 220 mm
- Steering tube angle 71.0 °
- Stem length 70.0 mm
- Support up to 25km/h
- Toptube 576 mm
- Type compact bike
- Wheel distance 1108 mm
- Wheel size 20 "
- Battery BOSCH "Active Line Plus", max. 50 Nm
- Battery Lock ABUS Akkuschloss
- Bottom bracket BOSCH
- Brake lever TRP HD-EU832
- Chain / belt GATES "CDX"
- Chain guard Rohloff belt guard
- Chain ring / pulley Gates "CDX", 63 teeth, belt line 57.7 mm
- Charger BOSCH 4 A
- Crank Stronglight "Magan 3B", 170 mm
- Derailleur hanger QIO Slider Dropout Rohloff
- Display BOSCH "Kiox 500", 4-stages, Remote Control, push-aid
- Engine BOSCH "Performance Line" engine, max. 75 Nm
- Fender curana "Apollo Orbit 70"
- Fork Aluminum, tapered 1 1/4" - 1.5"
- Frame QIO EINS, Bosch Gen. 3, BES3, aluminum, 49.5 cm
- Front hub URSUS "RD30", Center Lock, QR
- Front light Busch + Müller "IQ-XS E Highbeam", 100 Lux
- Front rotor TRP "TR-25", Ø 180 mm, Centerlock
- Front tire CONTINENTAL "eContact Plus", 62-406, Reflex
- Front wheel brake TRP "C2.3 HD-EU832", Post Mount
- Grips HERRMANS "Nucore Town", wave
- Handlebar ergotec "Lady Town", 620 mm, Ø 31.8 mm, 30° backsweep
- Headset TOKEN "TK255E-HJ04", IS52/40 / IS52/44
- Pedals UNION "SP-153", foldable
- Rear carrier "MIK HD 2.0" for MIK Side
- Rear hub ROHLOFF "E-14", 4-hole
- Rear light Busch + Müller "Dart E Brex "
- Rear rotor MAGURA "STORM SL", Ø 160mm, 4-hole, for Rohloff speedhub
- Rear tire CONTINENTAL "eContact Plus", 62-406, Reflex
- Rear wheel brake TRP "C1.8 HD-EU817"
- Remote BOSCH "BRC3600", LED Remote
- Rims DT SWISS "U 663", 36 hole, eyeletted, tubeless ready
- Saddle Selle Royal "On", Moderate Wide
- Seatpost by,schulz "G.2 ST", Ø 34.9 mm, 400 mm long, 30 mm travel, 12 mm offset
- Sensor Pedal pressure measuring im Motor + speed sensor
- Shifting lever Rohloff, 14-speed
- Spokes DT-Swiss ELEMENTAL, schwarz
- Sprocket / pulley Gates "CDX", 20 teeth
- Stands URSUS "R78 - King Mini"
- Stem BY.SCHULZ "Stem SDS", 1 1/8", 31.8 mm handlebar clamps, 70 mm long, angle 7°, black
- Supplier Article Number: 01723584
- EAN 4251971164246
- MSRP: €6,499.00
- Fedas-Code 159021
- DST-Code 1A01
- WEEE registration number DE92509320
- SB-Article No
- Bidex-Code 123040
- Brand/Supplier QiO
- Unit of measure: PIECE
- Weight 27.7 kg
| Article | Price | |
|---|---|---|
 for ice blue matt frame colour Read more Read less
| PU 1 | |
 | PU 1 | |
 | PU 1 | |
 | PU 1 | |
 | PU 1 | |
 | PU 10 | |
 Scarves: blackCover: dark gray Read more Read less
| PU 1 | |
 | PU 1 | |
 "Folding Lock Duo", black, incl. one short and one long XPlus Lock Cylinder Read more Read less
| PU 1 | |
 for night black matt frame colour Read more Read less
| PU 1 | |
 | PU 1 | |
 | PU 1 | |
 | PU 10 | |
 for lead metal frame colour Read more Read less
| PU 1 | |
 for crystal white frame colour Read more Read less
| PU 1 | |
 | PU 1 | |
 | PU 1 | |
 | PU 1 | |
 | PU 1 | |
 | PU 1 | |
 for light olive matt frame colour Read more Read less
| PU 1 | |
 for forest green frame colour Read more Read less
| PU 1 | |
 | PU 10 | |
 | PU 25 | |
 | PU 1 | |
 | PU 5 | |
 | PU 1 | |
 for sweet lavender matt frame colour Read more Read less
| PU 1 | |
 | PU 16 | |
 | PU 1 | |
 for imola red matt frame colour Read more Read less
| PU 1 | |
 | PU 1 | |
 | PU 5 | |
 | PU 10 | |
 | PU 50 | |
 | PU 1 | |
 | PU 10 | |
 | PU 10 | |
 | PU 1 | |
 | PU 1 | |
 | PU 1 | |
 | PU 1 | |
 | PU 3 | |
 black, AZ Standard, removable keys, with Battery Lock for PowerPack BES 3 Read more Read less
| PU 480 | |
 | PU 1 | |
 | PU 14 | |
 | PU 1 | |
 | PU 1 | |
 | PU 10 |
| Article | Price | |
|---|---|---|
 Out of Stock unisex, 20", crystal white, Rohloff 14 G "E-14", 48 cm Read more Read less
| PU 1 |
The QiO "EINS P-R" offers you a particularly intelligent riding experience. Thanks to the Bosch Smart System (BES3), all drive components of the compact e-bike are networked and controlled via the eBike Flow app. This means your bike is always up to date, as updates and new features are installed automatically.The 14-speed Rohloff gear hub is perfect for e-bikes with powerful drives - like this one. All gear changes are displayed on the Bosch "Kiox 500" Display. It also helps you select the right drive level for the powerful "Performance Line" engine. The 800 Wh Battery makes the compact e-bike ideal for long tours.With 62 mm wide tires on 20" wheels and the Parallelogramm Suspension Seatposts, the bike offers a high level of comfort on various surfaces. The hydraulic disc brakes and the high-quality Busch + Müller "IQ-XS high beam" lighting, including rear lights with stop light function integrated into the Carrier, round off the e-bike. Perfect for everyday use in the city and in the countryside.
Product variants
Using the search field, you can refine the selection of product variants.
| Article | Price | |
|---|---|---|
 unisex, 20", crystal white, Rohloff 14 G "E-14", 48 cm Read more Read less
| PU 1 | |

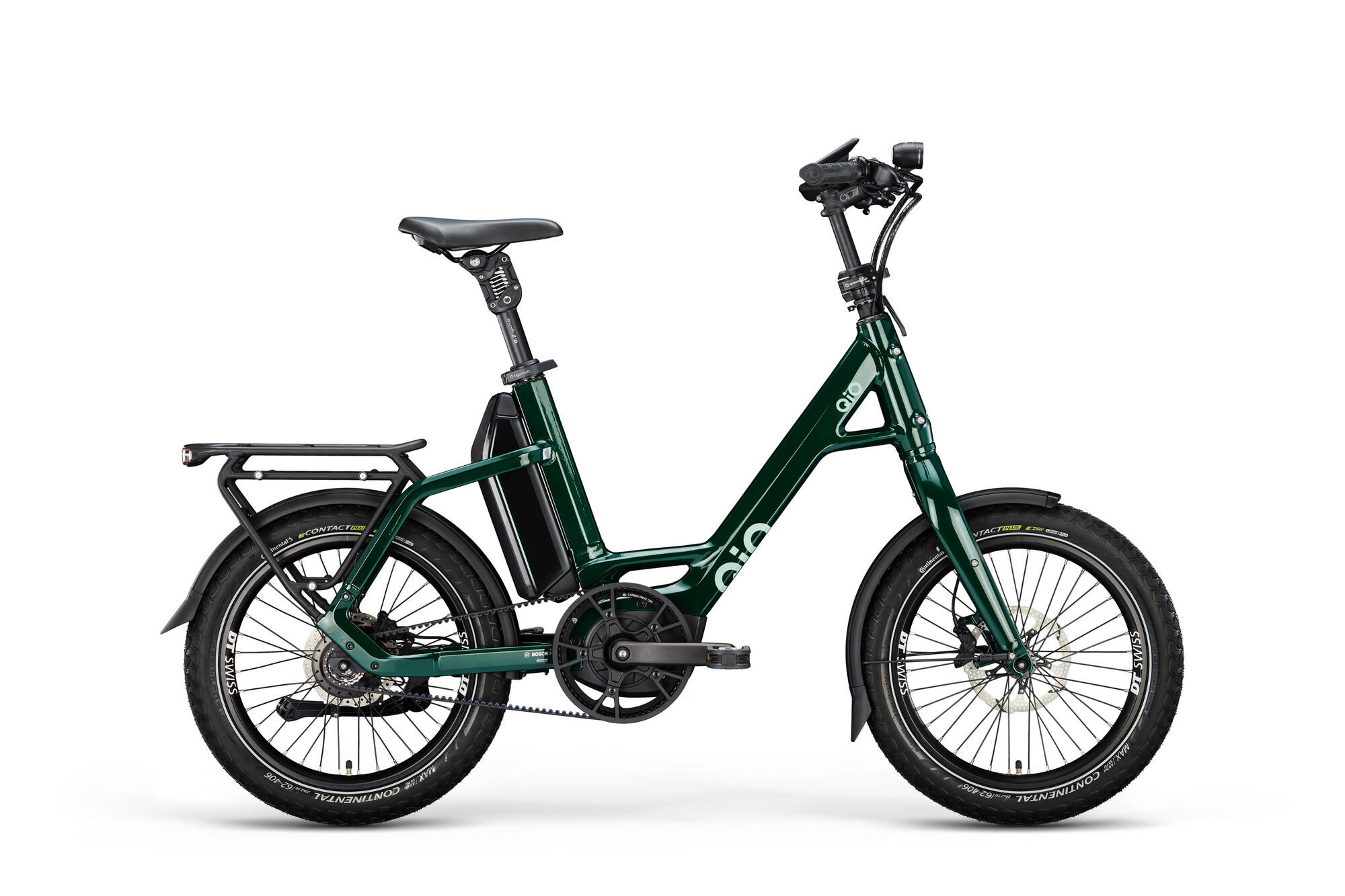

 unisex, 20", forest green, Rohloff 14 G "E-14", 48 cm Read more Read less
| PU 1 | |
 unisex, 20", ice blue matt, Rohloff 14 G "E-14", 48 cm Read more Read less
| PU 1 | |
 unisex, 20", imola red matt, Rohloff 14 G "E-14", 48 cm Read more Read less
| PU 1 | |

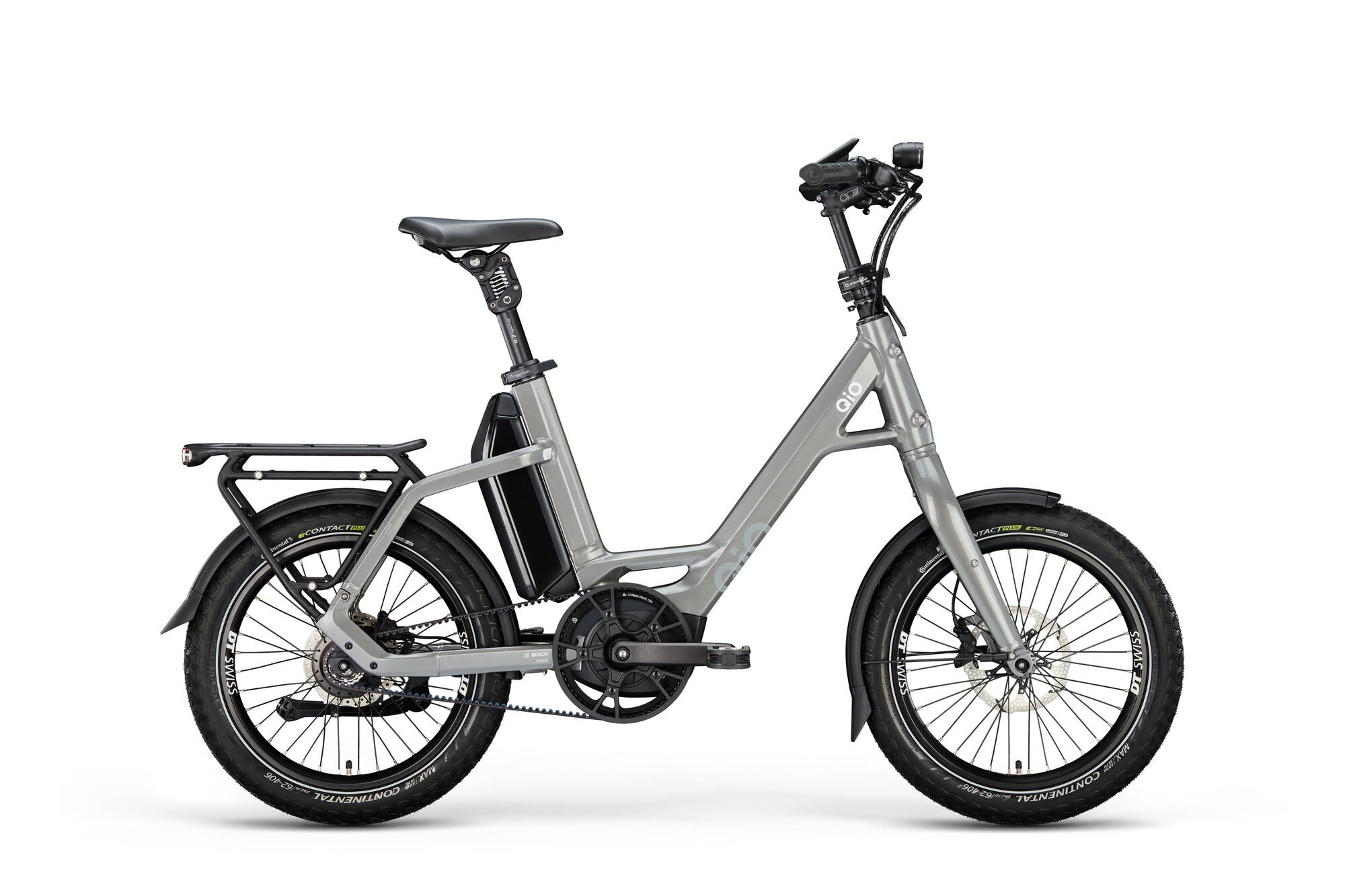

 Out of Stock unisex, 20", lead metal, Rohloff 14 G "E-14", 48 cm Read more Read less
| PU 1 | |

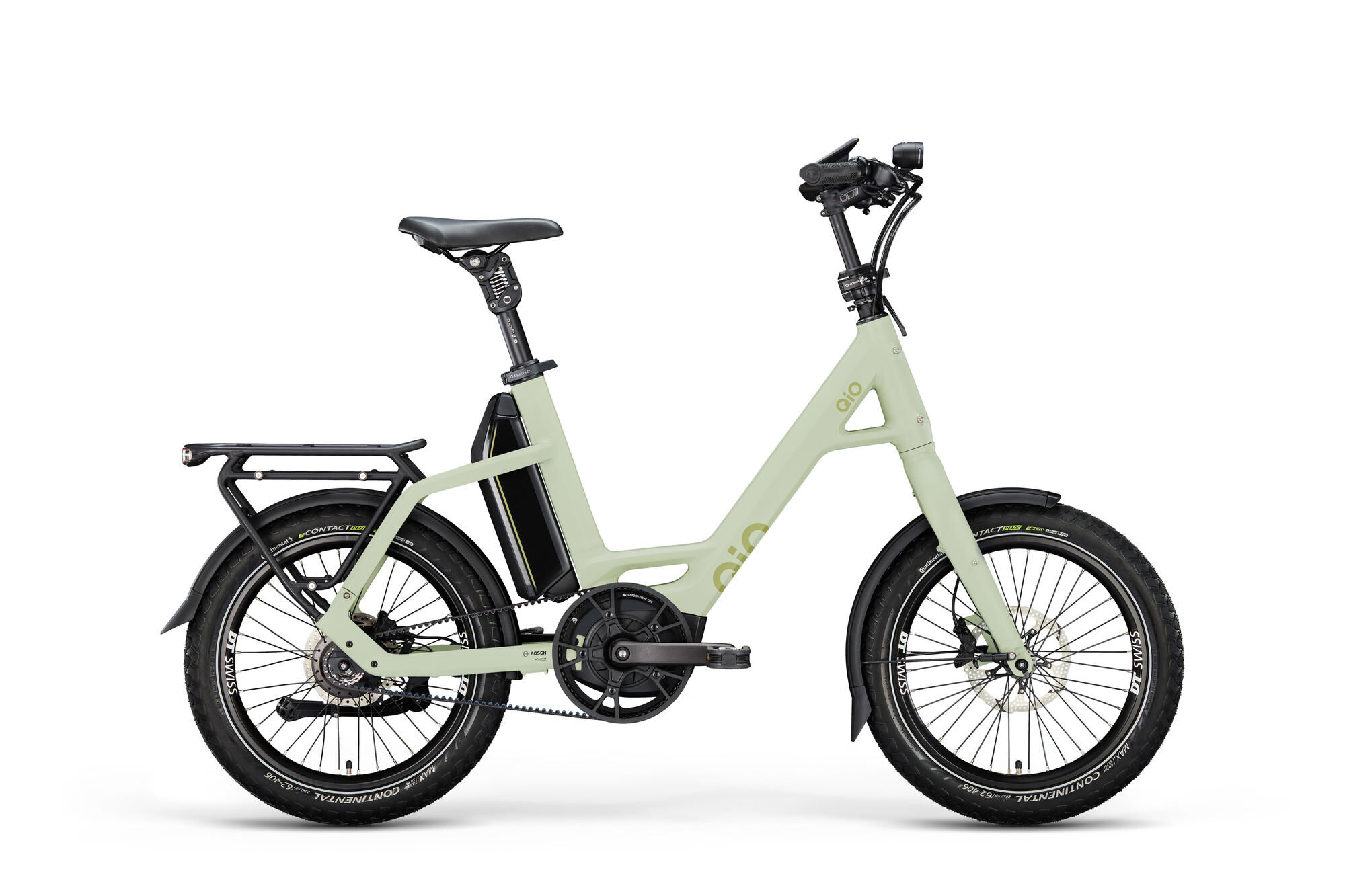

 unisex, 20", light olive matt, Rohloff 14 G "E-14", 48 cm Read more Read less
| PU 1 | |

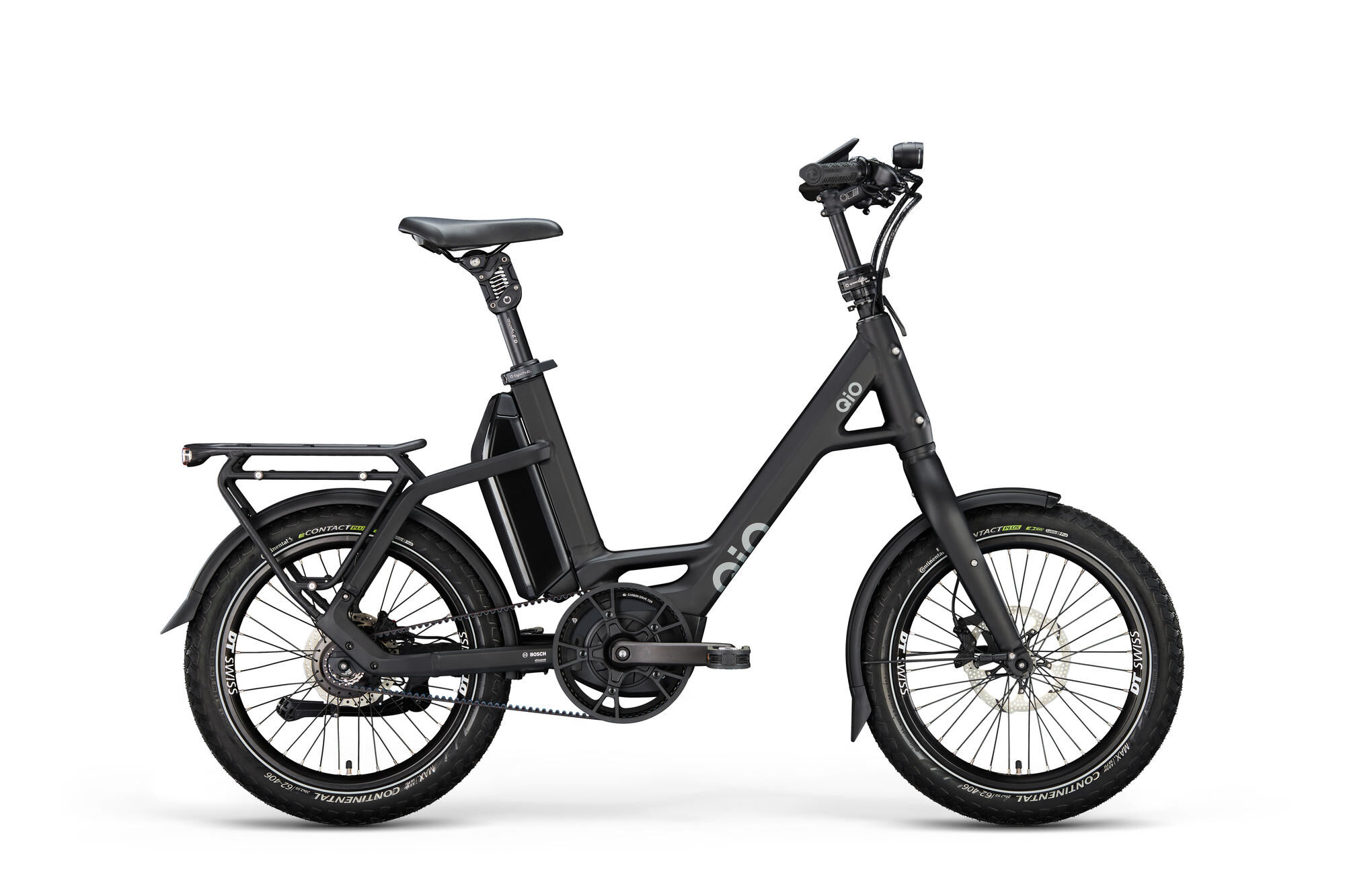

 Out of Stock unisex, 20", night black matt, Rohloff 14 G "E-14", 48 cm Read more Read less
