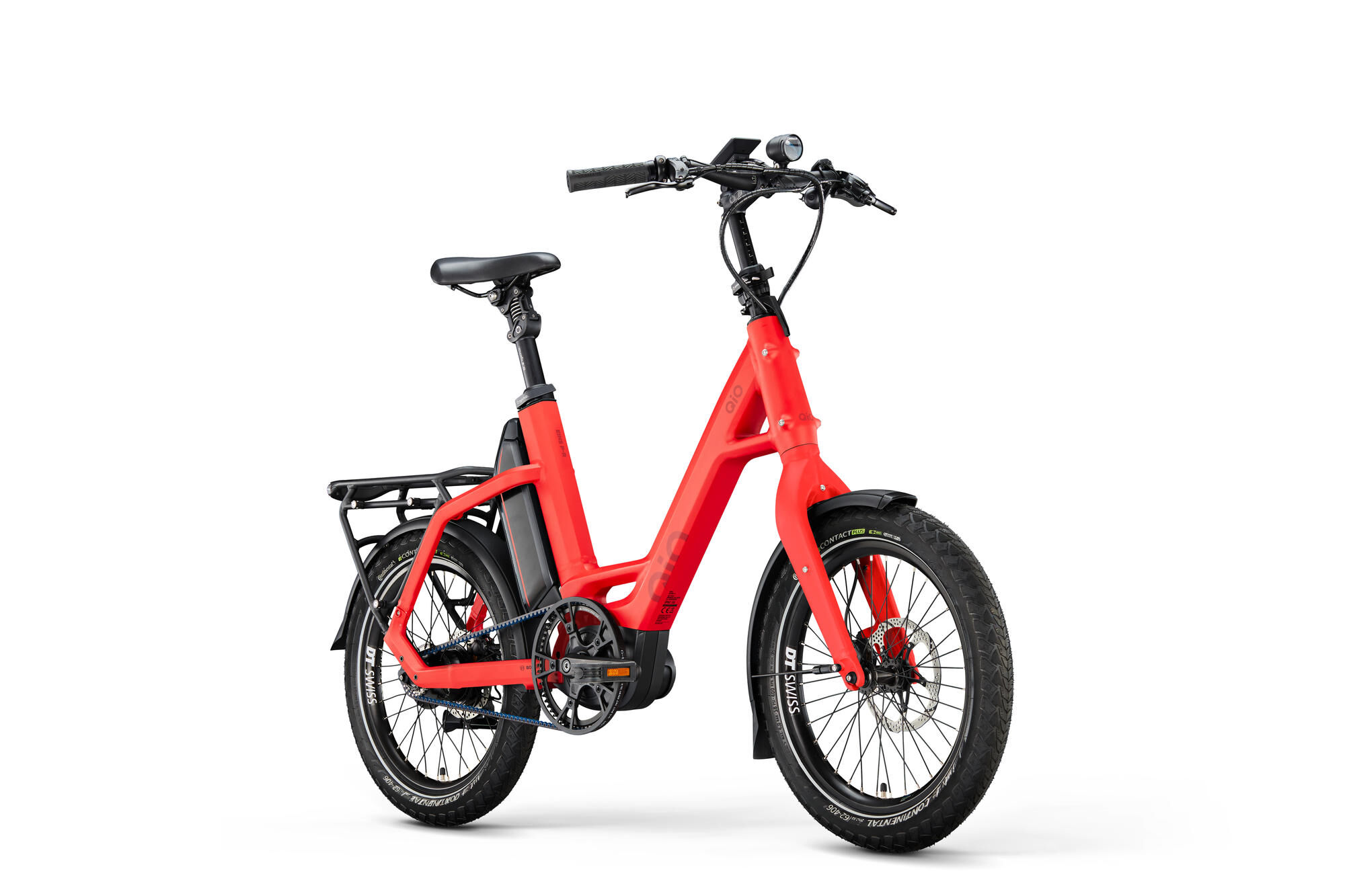

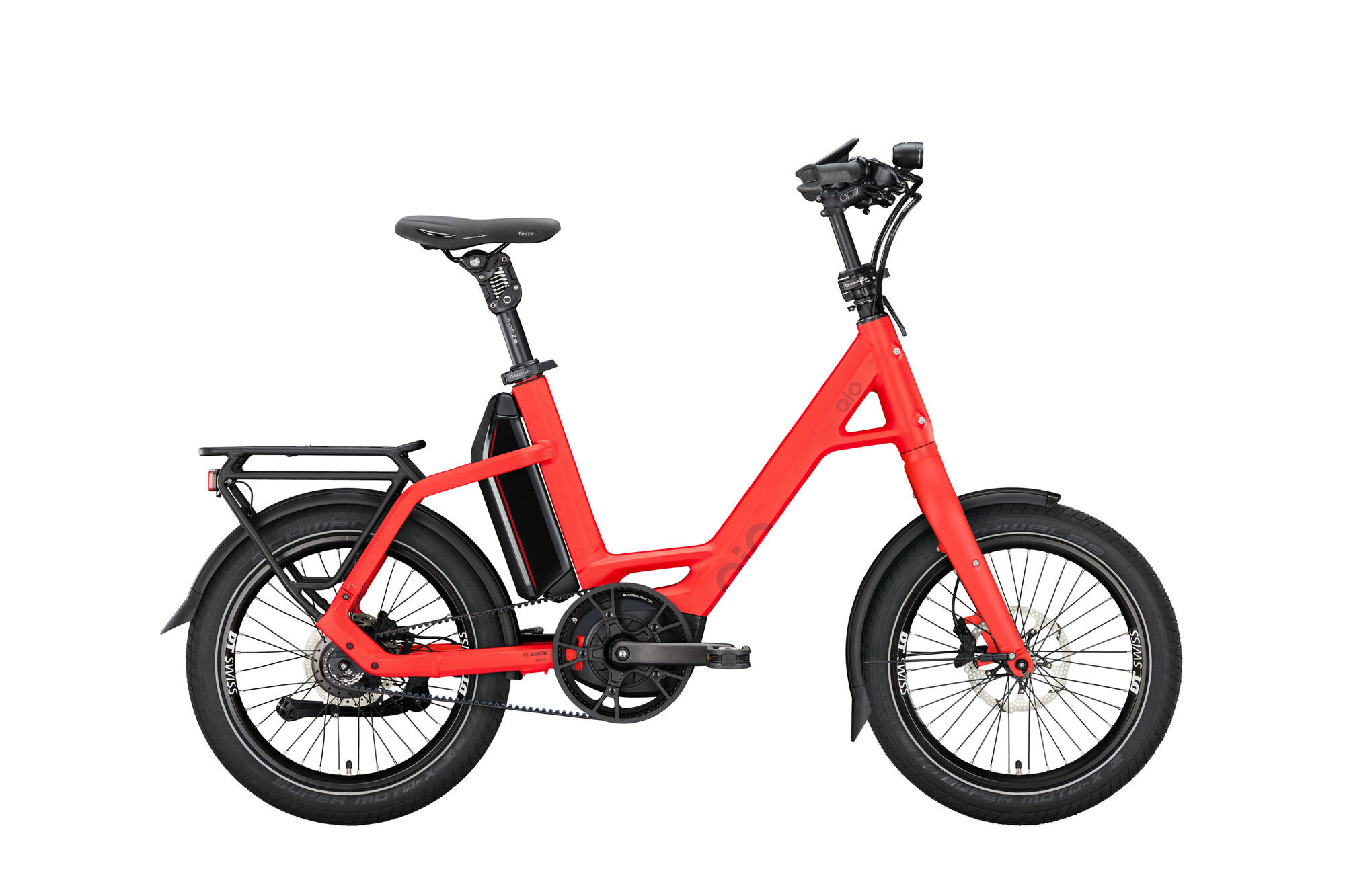

QiO Electric compact bike "EINS P-R" (#1)
unisex, 20", imola red matt, Rohloff 14 G "E-14", 48 cm
Read more Read less - Article number: 02652094
- Original number: 01723634
The electric compact bike is equipped with a BOSCH Performance Line mid-motor, which delivers 250 W of motor power. A battery with a capacity of 800 Wh is integrated into the frame. It has a Rohloff 14-speed gear hub to enable gear selection. Drives are provided by a belt drive. Hydraulic disc brakes are installed for the braking system. A suspension seatposts and a low step-through are included in the equipment. The permissible system weight is 180 kg and the wheel size is 20 inches.
BEC Showroom
Product information
- Access height 182 mm
- Battery capacity 800.0 Wh
- Bosch Smart System yes
- Brake system hydraulic disc brake
- Category compact bike
- Chainstay 451 mm
- Colour designation imola red matt
- Drive belt drive
- Drive system BOSCH Performance Line
- Drive version middle motor
- E-bike yes
- Engine power 250 W
- Features chain guard , deep entry , electronic sliding aid , fender , suspension seatpost , system carrier
- Frame height 48 cm
- Frame shape unisex
- Gears 14-speed
- Gender unisex
- Length 1685 mm
- Main colour red
- Material 1 aluminium
- Passage width 190 mm
- Permissible system weight 180 kg
- Reach 408 mm
- Seat angle 70.5 °
- Seat tube 48 mm
- Shifting name Rohloff 14 G "E-14"
- Shifting type internal gear shifting
- Stack 541 mm
- Steering tube 220 mm
- Steering tube angle 71.0 °
- Stem length 70.0 mm
- Support up to 25km/h
- Toptube 576 mm
- Wheel distance 1108 mm
- Wheel size 20 "
- Battery: BOSCH Powerpack 800, Li-Ionen, 36 V / 22,2 Ah / 800 Wh
- Battery Lock: ABUS 40973 T82 DT3.1, BES3
- Bottom bracket: BOSCH
- Brake lever: TRP HD-EU832
- Bremse H.R.: TRP Scheibenbremse HD-EU817
- Bremse V.R.: TRP Scheibenbremse HD-EU832
- Chain / belt: GATES "CDX", 125 Z.
- Chain guard: QiO Riemenschutz - Rohloff
- Chain ring / pulley: GATES "CDX", 63Z.
- Charger: Bosch 4 Ah
- Crank: STRONGLIGHT "Magan"
- Derailleur hanger: QIO Slider Dropout Rohloff
- Display: BOSCH "Kiox 500", Multifunktion, Remote Control, Schiebehilfe, eBike Flow App
- Engine: BOSCH Mittelmotor "Performance", 36 V, 250 W, das smarte System
- Fender: CURANA "Apollo Orbit 70", Aluminium, 20 Zoll, schwarz matt
- Fork: Alu 6061 Disc
- Frame: QIO EINS, Alu 6061
- Front hub: URSUS "RD30", 36 Loch, schwarz
- Front light: BUSCH&MÜLLER "IQ-XS High Beam" 100 LUX, inkl. 150 LUX Fernlicht
- Front rotor: 180mm Centerlock
- Front tire: CONTINENTAL "E Contact" Plus, 62-406
- Grips: HERRMANS "Nucore Town Wave", schwarz, Rechts 123MM, Links 123MM
- Handlebar: ERGOTEC "Lady Town" Level 4, Ø 31,8 mm
- Headset: TOKEN "TK255E-HJ04"
- Pedals: UNION "SP-153" Faltpedal
- Rear carrier: QIO "MIK-HD" und "MIK-SIDE" Systemträger, B&M Rücklicht integriert
- Rear hub: ROHLOFF "E-14"
- Rear light: BUSCH&MÜLLER "TOPLIGHT DART BREX", 6-50V, DC, mit Notbremslichtfunktion
- Rear rotor: ROHLOFF MAGURA, 160MM
- Rear tire: CONTINENTAL "E Contact" Plus, 62-406
- Remote: BOSCH LED Remote, das smarte System, Schiebehilfe
- Rims: DT Swiss "U663", Disc, schwarz
- Saddle: SELLE ROYAL "ON"
- Seatpost: BY,SCHULZ "G.2" Federsattelstütze, antitheft 34,9mm x 400mm, Medium
- Sensor: Pedal pressure measuring im Motor + speed sensor
- Shifting lever: ROHLOFF, E-14
- Spokes: DT-Swiss ELEMENTAL, schwarz
- Sprocket / pulley: GATES "CDX", 20 Z.
- Stands: URSUS "King-EVO" 40mm schwarz
- Stem: BY,SCHULZ "SDS" 70mm, 7°, 31,8mm
- Supplier Article Number: 01723634
- EAN: 4251971164291
- MSRP: €6,499.00
- Fedas-Code: 159021
- DST-Code: 1A01
- WEEE registration number: DE92509320
- SB-Article: No
- Bidex-Code: 123040
- Brand/Supplier QiO
- Unit of measure: PIECE
- Weight: 27.7 kg
| Article | Price | |
|---|---|---|
 unisex, 20", imola red matt, Rohloff 14 G "E-14", 48 cm Read more Read less
|
The QiO "EINS P-R" offers you a particularly intelligent riding experience. Thanks to the Bosch Smart System (BES3), all drive components of the compact e-bike are networked and controlled via the eBike Flow app. This means your bike is always up to date, as updates and new features are installed automatically.The 14-speed Rohloff gear hub is perfect for e-bikes with powerful drives - like this one. All gear changes are displayed on the Bosch "Kiox 500" Display. It also helps you select the right drive level for the powerful "Performance Line" engine. The 800 Wh Battery makes the compact e-bike ideal for long tours.With 62 mm wide tires on 20" wheels and the Parallelogramm Suspension Seatposts, the bike offers a high level of comfort on various surfaces. The hydraulic disc brakes and the high-quality Busch + Müller "IQ-XS high beam" lighting, including rear lights with stop light function integrated into the Carrier, round off the e-bike. Perfect for everyday use in the city and in the countryside.
