Out of Stock

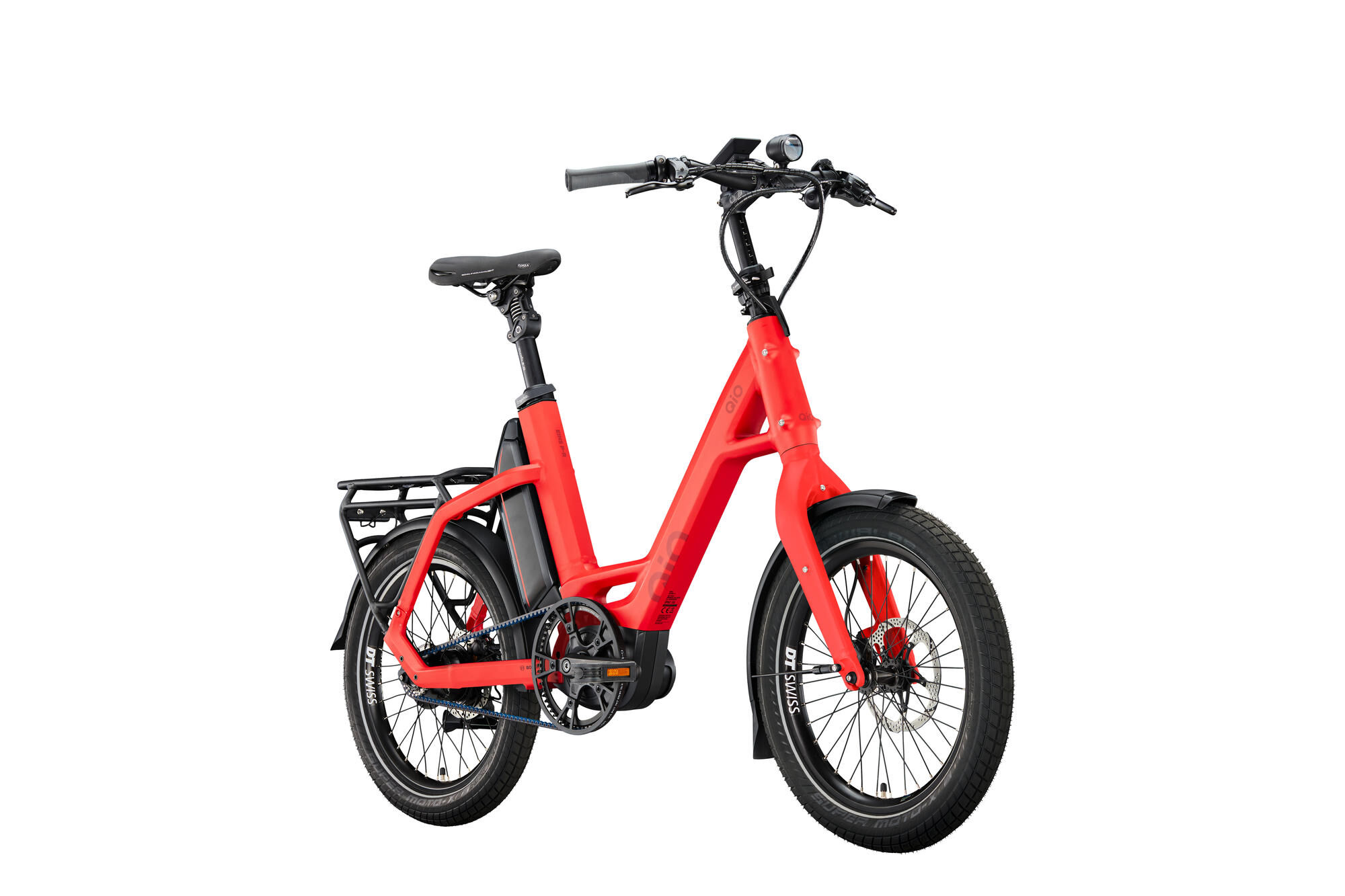

QiO Electric compact bike "EINS P-R" Mod. 24
unisex, 20", imola red matt, Rohloff 14 G "E-14", 48 cm
Read more Read less - Article number: 02651638
- Original number: 01722630
- Electric compact bike with a 250 W mid-drive motor and a 725.0 Wh battery capacity.
- Rohloff 14-speed "E-14" hub gear system and Straps.
- Hydraulic Disc Brakes.
- 20-inch wheels.
- Chain Guard, suspension seatpost, low step-through frame, Electronic Pushing Help, integrated luggage rack, fenders.
- Aluminum frame.
- Maximum system weight: 180 kg.
PU 1
Product information
- Battery capacity 725.0 Wh
- Bosch Smart System yes
- Brake system hydraulic disc brake
- Colour designation imola red matt
- Drive belt
- Drive system BOSCH Performance Line
- Drive version middle motor
- E-bike yes
- Engine power 250 W
- Features chain guard , deep entry , electronic sliding aid , fender , suspension seatpost , system carrier
- Frame height 48 cm
- Frame shape unisex
- Gears 14-speed
- Gender unisex
- Main colour red
- Material 1 aluminium
- Model range EINS
- Permissible system weight 180 kg
- Shifting name Rohloff 14 G "E-14"
- Shifting type internal gear shifting
- Support up to 25km/h
- Type compact bike
- Wheel size 20 "
- Battery BOSCH "PowerPack 725", 725 Wh
- Battery Lock CONTEC "PowerLoc"
- Chain / belt GATES "CDX"
- Chain guard Rohloff belt guard
- Chain ring / pulley Gates "CDX", 63 teeth, belt line 57.7 mm
- Charger BOSCH 4 A
- Crank Stronglight "Magan 3B", 170 mm
- Derailleur hanger QIO Slider Dropout Rohloff
- Display BOSCH "Kiox 500", 4-stages, Remote Control, push-aid
- Engine BOSCH "Performance Line" engine, max. 75 Nm
- Fender SKS "A 69 R"
- Fork Aluminum, tapered 1 1/4" - 1.5"
- Frame QIO EINS, Bosch Gen. 3, BES3, aluminum, 49.5 cm
- Front brake TRP "C1.8 HD-EU817", Post Mount
- Front hub URSUS "RD30", Center Lock, QR
- Front light Busch + Müller "IQ-XS E Highbeam", 100 Lux
- Front rotor TRP "TR-25", Ø 180 mm, Centerlock
- Front tire SCHWALBE "Super Moto-X", 62-406, Reflex
- Grips HERRMANS "Clik Original DD37"
- Handlebar ergotec "Lady Town", 620 mm, Ø 31.8 mm, 30° backsweep
- Handlepost BY.SCHULZ "Twist", Ø 28.6 mm, 1 1/4", T17
- Headset TOKEN "TK255E-HJ01", IS52/40 / IS52/44
- Pedals UNION "SP-153", foldable
- Rear brake TRP "C1.8 HD-EU817"
- Rear carrier QIO "MIK HD"
- Rear hub ROHLOFF "Speedhub 500/14", 4-hole, QR
- Rear light CONTEC "TL-335 E-Stop", stop light
- Rear rotor MAGURA "STORM SL", Ø 160mm, 4-hole, for Rohloff speedhub
- Rear tire SCHWALBE "Super Moto-X", 62-406, Reflex
- Remote BOSCH "BRC3600", LED remote
- Rims DT SWISS "U 663", 36 hole, eyeletted, tubeless ready
- Saddle Selle Royal "Nuvola 5060", Relaxed
- Seatpost by,schulz "G.2 ST", Ø 34.9 mm, 400 mm long, 30 mm travel, 12 mm offset
- Sensor Pedal pressure measuring im Motor + speed sensor
- Shifting lever Rohloff, 14-speed
- Spokes Niro, schwarz
- Sprocket / pulley Gates "CDX", 20 teeth
- Stands URSUS "R78 - King Mini"
- Stem BY.SCHULZ "Stem SDS", 1 1/8", 31.8 mm handlebar clamps, 70 mm long, angle 7°, black
- Supplier Article Number: 01722630
- EAN 4251971142459
- MSRP: €6,499.00
- Fedas-Code 159021
- DST-Code 1A01
- WEEE registration number DE92509320
- SB-Article No
- Bidex-Code 123040
- Brand/Supplier QiO
- Unit of measure: PIECE
- Weight 27.7 kg
| Article | Price | |
|---|---|---|
 | PU 16 | |
 | PU 1 | |
 | PU 10 | |
 | PU 10 | |
 | PU 1 | |
 Out of Stock workshop package with 10 pcs. Read more Read less
| PU 1 | |
 | PU 14 | |
 | PU 1 | |
 | PU 1 | |
 | PU 1 | |
 | PU 3 | |
 | PU 10 | |
 | PU 1 | |
 | PU 4 | |
 | PU 4 |
| Article | Price | |
|---|---|---|
 unisex, 20", imola red matt, Rohloff 14 G "E-14", 48 cm Read more Read less
| PU 1 |
The QiO "EINS P-R" is even smarter with the Bosch Smart System. All of the compact e-bike’s drive components are interconnected and controlled via the eBike Flow app. This ensures the bike is always up to date, as new features and updates are installed automatically.The compact one-size frame is suitable for riders between 1.60 and 1.90 m tall. The Handlepost and Seatpost can be fine-tuned for the ideal riding experience. The “EINS P-R” impresses not only with its compact size but also with its high-quality features.The bike is equipped with a 14-speed Rohloff hub gear system, which is ideal for e-bikes with powerful drives. In addition, the Bosch “Kiox 500” Display shows all gear changes and helps you select the right drive level for the powerful “Performance Line” engine. The 725-Wh battery makes this compact e-bike perfect for long rides.With 62-mm-wide tires on 20-inch wheels and a Parallelogramm Suspension Seatpost, the bike offers a high level of comfort on various surfaces. The hydraulic disc brakes and high-quality Busch + Müller lighting round out the e-bike, providing everything you need for everyday use in the city and the countryside.
