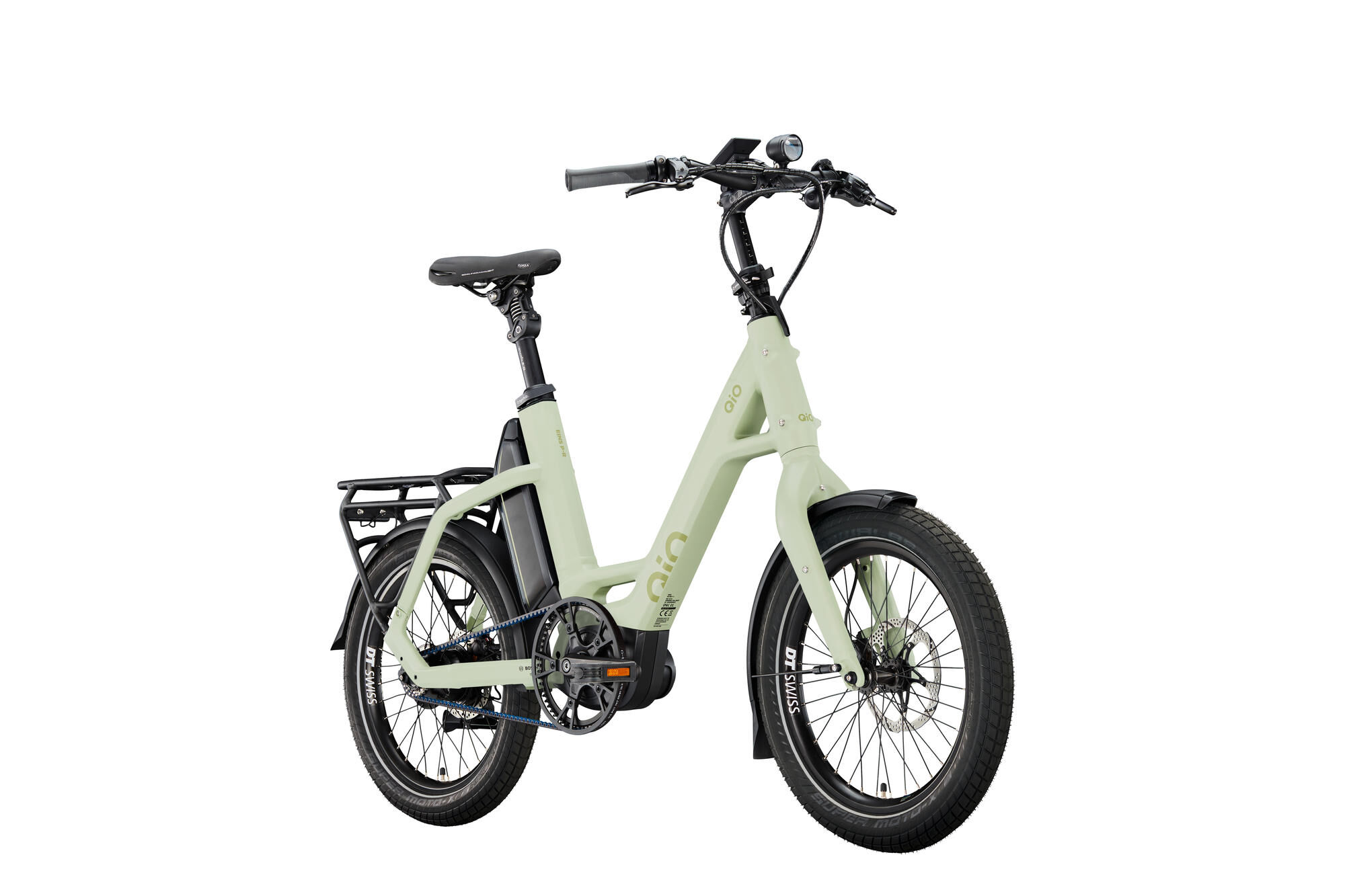

QiO Electric compact bike "EINS P-R" Mod. 24

unisex, 20", light olive matt, Rohloff 14 G "E-14", 48 cm

Article number: 02651612
Original number: 01722614

This item is available in 8 variants. All in Accessories All in Alternative articles

The electric compact bike is equipped with a BOSCH Performance Line mid-motor that offers 250 W of power. A battery with a capacity of 725 Wh is located in the down tube. The Rohloff 14 G "E-14" gear hub enables gear selection. Drives are provided by a belt drive. The bike has hydraulic disc brakes on both wheels. It has a suspension seatposts and a chain guard as well as a system luggage rack and Fenders. The wheel size is 20 inches and the permissible system weight is designed for 180 kg.

Product information

Battery capacity 725.0 Wh
Bosch Smart System yes
Brake system hydraulic disc brake
Colour designation light olive matt
Drive belt
Drive system BOSCH Performance Line
Drive version middle motor
E-bike yes
Engine power 250 W
Features fender
Frame height 48 cm
Frame shape unisex
Gears 14-speed
Gender unisex
Main colour green
Material 1 aluminium
Permissible system weight 180 kg
Shifting name Rohloff 14 G "E-14"
Shifting type internal gear shifting
Support up to 25km/h
Type compact bike
Wheel size 20 "

Battery: BOSCH "PowerPack 725", 725 Wh
Battery Lock: CONTEC "PowerLoc"
Chain guard: Rohloff belt guard
Chain ring / pulley: GATES "CDX", 63 teeth, belt line 57.7 mm
Charger: BOSCH 4 A
Crank: Stronglight "Magan 3B", 170 mm
Derailleur hanger: QIO Slider Dropout Rohloff
Display: BOSCH "Kiox 500", 4-stages, Remote Control, push-aid
Engine: BOSCH "Performance Line" engine, max. 75 Nm
Fender: SKS "A 69 R"
Fork: QIO EINS 20", aluminum, tapered 1 1/4" - 1.5", 313.5 mm shaft, post mount, lead metal glossy
Frame: QIO EINS, Bosch Gen. 3, BES3, aluminum, 49.5 cm, light olive matt
Front hub: URSUS "RD30", Center Lock, QR
Front light: Busch + Müller "IQ-XS E Highbeam", 100 Lux
Front rotor: TRP "TR-25", Ø 180 mm, Centerlock
Front tire: SCHWALBE "Super Moto-X", 62-406, Reflex
Grips: HERRMANS "Clik Original DD37"
Handlebar: ergotec "Lady Town", 620 mm, Ø 31.8 mm, 30° backsweep
Handlepost: BY.SCHULZ "Twist", Ø 28.6 mm, 1 1/4", T17
Headset: TOKEN "TK255E-HJ01", IS52/40 / IS52/44
Pedals: UNION "SP-153", foldable
Rear carrier: QIO "MIK HD"
Rear hub: ROHLOFF "Speedhub 500/14", 4-hole, QR
Rear light: CONTEC "TL-335 E-Stop", stop light
Rear rotor: MAGURA "STORM HC", Ø 160mm, Center Lock, incl. 6-hole adapter
Rear tire: SCHWALBE "Super Moto-X", 62-406, Reflex
Remote: BOSCH "BRC3600", LED Remote
Rims: DT SWISS "U 663", 36 hole, eyeletted, tubeless ready
Saddle: Selle Royal "Nuvola 5060", Relaxed
Seatpost: by,schulz "G.2 ST", Ø 34.9 mm, 400 mm long, 30 mm travel, 12 mm offset
Sensor: Pedal pressure measuring im Motor + speed sensor
Spokes: Niro, schwarz
Stands: URSUS "R78 - King Mini"
Stem: BY.SCHULZ "Stem SDS", 1 1/8", 31.8 mm handlebar clamps, 70 mm long, angle 7°, black

Supplier Article Number: 01722614
EAN: 4251971142435
MSRP: €6,499.00
Fedas-Code: 159021
DST-Code: 1A01
WEEE registration number: DE92509320
SB-Article: No
Bidex-Code: 123040
Brand/Supplier QiO
Unit of measure: PIECE
Weight: 27.7 kg
