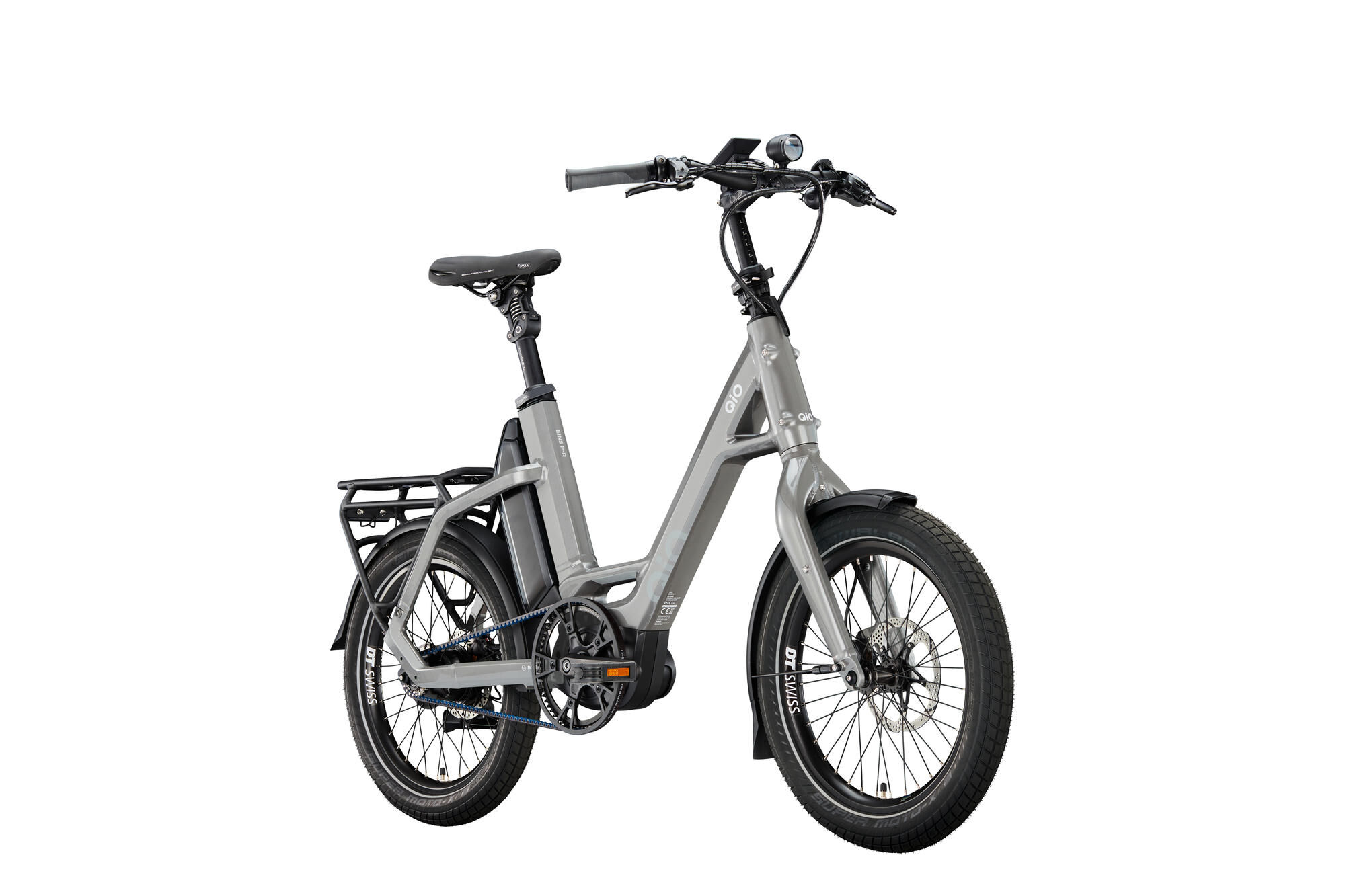

QiO Electric compact bike "EINS P-R" Mod. 24
unisex, 20", lead metal, Rohloff 14 G "E-14", 48 cm
- Article number: 02651570
- Original number: 01722572
Product information
- Battery capacity: 725.0 Wh
- Bosch Smart System: yes
- Brake system: hydraulic disc brake
- Category: compact bike
- Colour designation: lead metal
- Drive: belt drive
- Drive system: BOSCH
- Drive version: middle motor
- E-bike: yes
- Engine power: 250 W
- Features: fender
- Frame height: 48 cm
- Frame shape: unisex
- Gears: 14-speed
- Gender: unisex
- Main colour: grey
- Material 1: aluminium
- Permissible total weight: 180 kg
- Shifting name: Rohloff 14 G "E-14"
- Shifting type: internal gear shifting
- Support: up to 25km/h
- Wheel size: 20 "
- Battery: BOSCH "PowerPack 725", 725 Wh, BES3
- Battery Lock: CONTEC "PowerLoc", BES3
- Bremse H.R.: TRP "C1.8 HD-EU817", hydraulic, 2 pistons, for 1.8 mm brake rotors
- Bremse V.R.: TRP "C1.8" HD-EU817, hydraulic, 2 pistons, post mount, for 1,8mm rotors
- Chain / belt: GATES "CDX", 125 teeth
- Chain guard: Rohloff belt guard, aluminum, black
- Chain ring / pulley: GATES "CDX", 63 teeth, for Bosch Gen.3, 5-arm, incl. spider and protection
- Charger: BOSCH 4 A, BES3
- Crank: Stronglight "Mangan 3", 170 mm, for Bosch Gen. 3, BNI, aluminum, black
- Derailleur hanger: QIO Slider Dropout Rohloff
- Display: BOSCH "Kiox 500", 4-stages, Remote Control, push-aid
- Engine: BOSCH engine "Performance Line", Gen. 3, BES3
- Fender: SKS "A 69 R", plastic, 65 mm, black matt
- Fork: QIO EINS 20", aluminum, tapered 1 1/4" - 1.5", 313.5 mm stem, post mount, light olive matt
- Frame: QIO EINS, Bosch Gen. 3, BES3, aluminum, 49.5 cm, lead metal glossy
- Front hub: URSUS "RD30", Center Lock, 36 hole, QR, black
- Front light: BUSCH & MÜLLER "IQ-XS E Highbeam" 100 Lux, incl. high beam 150 Lux
- Front rotor: TRP "TR-25", Ø 180mm, Center Lock, thickness: 1,8mm
- Front tire: SCHWALBE "Super Moto-X" Performance Line, 62-406, Green Guard, Addix, 67 TPI, E-50, reflex
- Grips: HERRMANS "Clik Original DD37", 123/123 mm, handlebar clamps, black
- Handlebar: ERGOTEC "Lady Town", 620mm, Ø 31,8mm, 30° backsweep, rise 16mm, Level 4, black
- Handlepost: BY.SCHULZ "Twist", Ø 28.6 mm, 1 1/4", T17
- Headset: TOKEN "TK255E-HJ01", IS52/40 / IS52/44, 1 1/4" - 1.5" tapered
- Pedals: UNION "SP-153", foldable
- Rear carrier: QIO "MIK HD", integrated, black
- Rear hub: ROHLOFF "Speedhub 500/14", 4-hole, 32 hole, QR, black
- Rear light: CONTEC "TL-335 E-Stop", 50 mm screw spacing, stop light function
- Rear rotor: MAGURA "STORM SL", Ø 160mm, 4-hole, for Rohloff speedhub
- Rear tire: SCHWALBE "Super Moto-X" Performance Line, 62-406, Green Guard, Addix, 67 TPI, E-50, reflex
- Remote: BOSCH "BRC3600", LED remote
- Rims: DT SWISS "U 663", 30-406, 36 hole, Disc Brakes, single eyelet, tubeless ready, black
- Saddle: SELLE ROYAL "Nuvola 5060", Unisex, Relaxed, black
- Seatpost: BY.SCHULZ "G.2 ST", aluminum, Ø 34.9 mm, 400 mm long, 30 mm travel, medium, 7 mm clamping, 12 mm offset, anti-theft protection, black
- Sensor: Pedal pressure measuring im Motor + speed sensor
- Shifting lever: ROHLOFF, for Speedhub 500/14, 14-speed
- Spokes: Niro, schwarz
- Sprocket / pulley: GATES "CDX", for Rohloff, 20 teeth
- Stands: URSUS "R78 - King Mini", adjustable, 40 mm hole spacing, black
- Stem: BY.SCHULZ "Stem SDS", 1 1/8", 31.8 mm handlebar clamps, 70 mm long, angle 7°, black
- Supplier Article Number:: 01722572
- EAN: 4251971142398
- MSRP: €6,499.00
- Brand/Supplier QiO
- Unit of measure: PIECE
| Article | Price | |
|---|---|---|
 unisex, 20", lead metal, Rohloff 14 G "E-14", 48 cm
|
The QiO "EINS P-R" is with the Bosch Smart System even more intelligent. All drive components of the compact e-bike are integrated with each other and are controlled via the eBike Flow app. This means that the bike is always up-to-date, as new features and updates are installed automatically.The compact one-size frame is suitable for people between 1,60 and 1,90 m tall. The steering column and seatpost can be fine-tuned for the ideal riding experience. The "EINS P-R" not only impresses with its compact size, but also with its high-quality equipment.The bike is equipped with a 14-speed Rohloff IGH, which is ideal for e-bikes with powerful drives. The bike is equipped with a 14-speed gear hub from Rohloff, which is ideal for e-bikes with powerful drives. The Bosch "Kiox 500" display shows all gear changes and helps you select the right speed for the powerful "Performance Line" motor. The 725 Wh battery makes the compact e-bike perfect for long tours.With 62mm wide tires on 20'' wheels and the parallelogram suspension seatpost, the bike offers a high level of comfort on various surfaces. The hydraulic disc brakes and high-quality Busch + Müller lighting round off the e-bike with everything you need for everyday use in the city and countryside.
Product variants
Using the search field, you can refine the selection of product variants.
| Article | Price | |
|---|---|---|
 unisex, 20", night black matt, Rohloff 14 G "E-14", 48 cm
| ||
 unisex, 20", lead metal, Rohloff 14 G "E-14", 48 cm
| ||
 unisex, 20", forest green, Rohloff 14 G "E-14", 48 cm
| ||
 unisex, 20", crystal white, Rohloff 14 G "E-14", 48 cm
| ||
 unisex, 20", sweet lavender matt, Rohloff 14 G "E-14", 48 cm
| ||
 unisex, 20", ice blue matt, Rohloff 14 G "E-14", 48 cm
| ||
 unisex, 20", imola red matt, Rohloff 14 G "E-14", 48 cm
| ||
 unisex, 20", light olive matt, Rohloff 14 G "E-14", 48 cm
|
