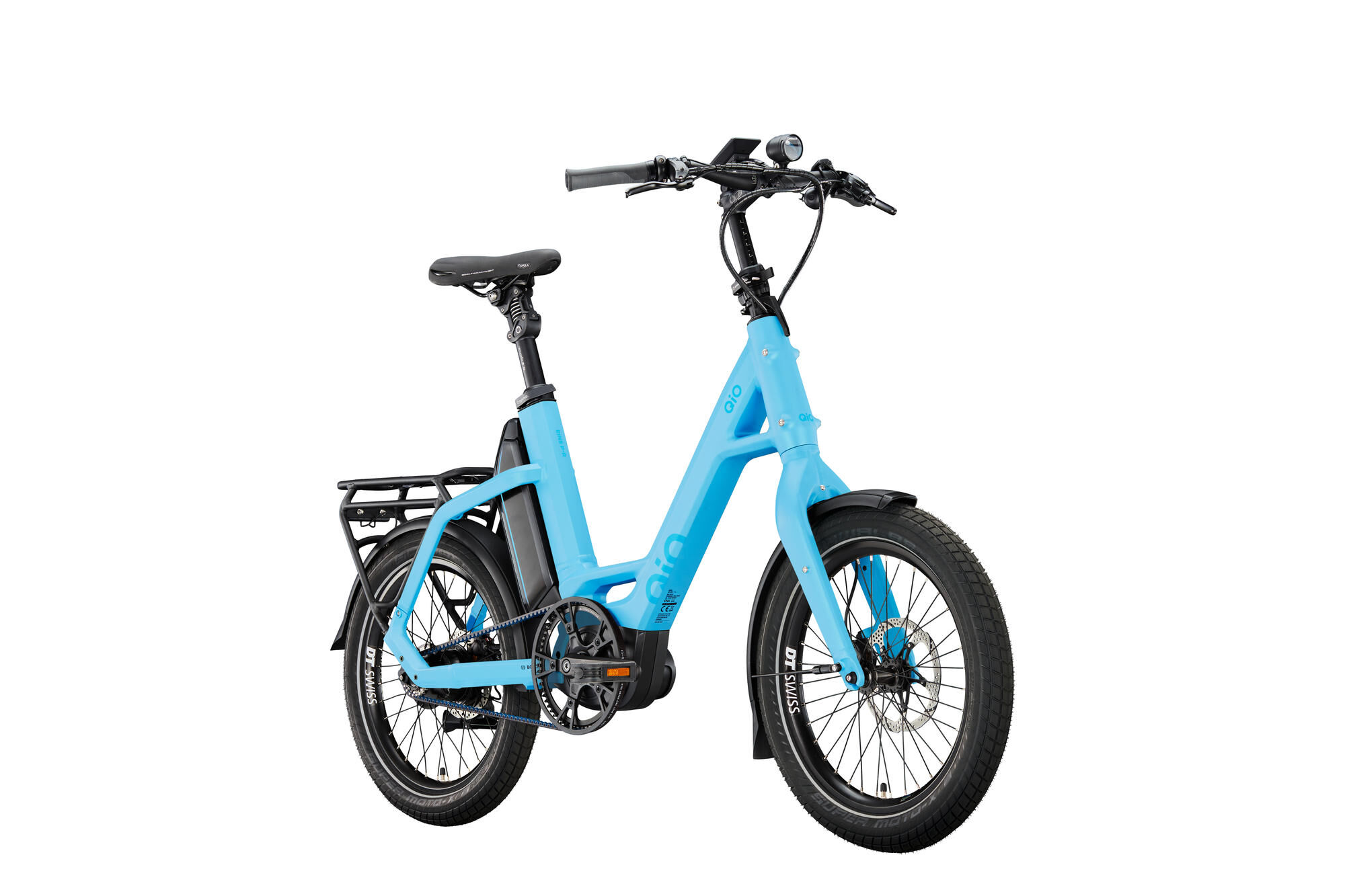

QiO Electric compact bike "EINS P-R" Mod. 24

unisex, 20", ice blue matt, Rohloff 14 G "E-14", 48 cm

Article number: 02651620
Original number: 01722622

This item is available in 8 variants. All in Accessories All in Alternative articles

The electric compact bike is equipped with a BOSCH Performance Line mid-motor that offers 250 W of power. A battery with a capacity of 725 Wh is located in the down tube. The Rohloff 14 G "E-14" gear hub enables gear selection. Drives are provided by a belt drive. The bike has hydraulic disc brakes on both wheels. It has a suspension seatposts and a chain guard as well as a system luggage rack and Fenders. The wheel size is 20 inches and the permissible system weight is designed for 180 kg.

BEC Showroom

Product information

Battery capacity 725.0 Wh
Bosch Smart System yes
Brake system hydraulic disc brake
Colour designation ice blue matt
Drive belt
Drive system BOSCH Performance Line
Drive version middle motor
E-bike yes
Engine power 250 W
Features fender
Frame height 48 cm
Frame shape unisex
Gears 14-speed
Gender unisex
Main colour blue
Material 1 aluminium
Permissible system weight 180 kg
Shifting name Rohloff 14 G "E-14"
Shifting type internal gear shifting
Support up to 25km/h
Type compact bike
Wheel size 20 "

Battery: BOSCH "PowerPack 725", 725 Wh
Battery Lock: CONTEC "PowerLoc"
Chain guard: Rohloff belt guard
Chain ring / pulley: GATES "CDX", 63 teeth, belt line 57.7 mm
Charger: BOSCH 4 A
Crank: Stronglight "Magan 3B", 170 mm
Derailleur hanger: QIO Slider Dropout Rohloff
Display: BOSCH "Kiox 500", 4-stages, Remote Control, push-aid
Engine: BOSCH "Performance Line" engine, max. 75 Nm
Fender: SKS "A 69 R"
Fork: QIO EINS 20", aluminum, tapered 1 1/4" - 1.5", 313.5 mm stem, post mount, ice blue matt
Frame: QIO EINS, Bosch Gen. 3, BES3, aluminum, 49.5 cm, ice blue matt
Front hub: URSUS "RD30", Center Lock, QR
Front light: Busch + Müller "IQ-XS E Highbeam", 100 Lux
Front rotor: TRP "TR-25", Ø 180 mm, Centerlock
Front tire: SCHWALBE "Super Moto-X", 62-406, Reflex
Grips: HERRMANS "Clik Original DD37"
Handlebar: ergotec "Lady Town", 620 mm, Ø 31.8 mm, 30° backsweep
Handlepost: BY.SCHULZ "Twist", Ø 28.6 mm, 1 1/4", T17
Headset: TOKEN "TK255E-HJ01", IS52/40 / IS52/44
Pedals: UNION "SP-153", foldable
Rear carrier: QIO "MIK HD"
Rear hub: ROHLOFF "Speedhub 500/14", 4-hole, QR
Rear light: CONTEC "TL-335 E-Stop", stop light
Rear rotor: MAGURA "STORM HC", Ø 160mm, Center Lock, incl. 6-hole adapter
Rear tire: SCHWALBE "Super Moto-X", 62-406, Reflex
Remote: BOSCH "BRC3600", LED Remote
Rims: DT SWISS "U 663", 36 hole, eyeletted, tubeless ready
Saddle: Selle Royal "Nuvola 5060", Relaxed
Seatpost: by,schulz "G.2 ST", Ø 34.9 mm, 400 mm long, 30 mm travel, 12 mm offset
Sensor: Pedal pressure measuring im Motor + speed sensor
Spokes: Niro, schwarz
Stands: URSUS "R78 - King Mini"
Stem: BY.SCHULZ "Stem SDS", 1 1/8", 31.8 mm handlebar clamps, 70 mm long, angle 7°, black

Supplier Article Number: 01722622
EAN: 4251971142442
MSRP: €6,499.00
Fedas-Code: 159021
DST-Code: 1A01
WEEE registration number: DE92509320
SB-Article: No
Bidex-Code: 123040
Brand/Supplier QiO
Unit of measure: PIECE
Weight: 27.7 kg

	Article	Price
Select article	QiO Mud Flap "Mud Flap" black Read more Read less Article number: 03431004 Original number: 2116	Quantity
Select article	QiO Reflective Sticker "Reflective Sticker" for ice blue matt frame colour Read more Read less Article number: 08198312 Original number: ICE BLUE MATT	Quantity
Select article	BASIL Wire Space Frame black Read more Read less Article number: 07380637 Original number: 74067	Quantity
Select article	by,schulz Protective Cover "Mudcover" for G.series ST Read more Read less Article number: 03283116 Original number: 10189	Quantity
Select article	QiO Basket "Martje" black Read more Read less Article number: 07386999 Original number: 11402	Quantity
Select article	QiO Lock Set "One Key Solution" black, AZ Standard, removable keys, with Battery Lock for PowerPack BES 3 Read more Read less Article number: 03528000 Original number: 8006219	Quantity
Select article	QiO Carrier Bag "Noah" black Read more Read less Article number: 07292030 Original number: 18020	Quantity
Select article	QiO Carrier Bag "Mattis" black / anthracite Read more Read less Article number: 07292022 Original number: 18021	Quantity
Select article	QiO Saddle Bag "Lilly" black Read more Read less Article number: 07292110 Original number: 2415	Quantity
Select article	QiO Transport box "Crate Box Fred" black Read more Read less Article number: 07386981 Original number: 21189	Quantity
Select article	QiO Saddle Cover "SADDLE COVER" black Read more Read less Article number: 03272507 Original number: 2277	Quantity
Select article	QiO Reflective Sticker "Reflective Sticker" for lead metal frame colour Read more Read less Article number: 08198314 Original number: LEAD METAL	Quantity
Select article	QiO Reflective Sticker "Reflective Sticker" for night black matt frame colour Read more Read less Article number: 08198316 Original number: NIGHT BLACK MATT	Quantity
Select article	QiO Carrier Adapter anodized black Read more Read less Article number: 07387070	Quantity
Select article	Polisport Child Seat "Bubbly Maxi Plus MIK HD" Scarves: blackCover: dark gray Read more Read less Article number: 07265549 Original number: 8406300001	Quantity
Select article	QiO Trailer Coupling "Bob" for QiO EINS / EINS+ Read more Read less Article number: 03585000 Original number: QIO KUPPLUNG	Quantity
Select article	QiO Fixture Strap "Mini Strap" black Read more Read less Article number: 07387080 Original number: 2285	Quantity
Select article	QiO Reflective Sticker "Reflective Sticker" for forest green frame colour Read more Read less Article number: 08198311 Original number: FOREST GREEN	Quantity
Select article	QiO Adapter workshop package with 10 pcs. Read more Read less Article number: 08199788 Original number: ***	Quantity
Select article	QiO Bag "Universal Bag Kurt" black Read more Read less Article number: 07292063 Original number: 2274	Quantity
Select article	QiO Backpack "Mika" black Read more Read less Article number: 07292055 Original number: 18024	Quantity
Select article	QiO Double Leg Kickstand "Finn" 20", 260mm long Read more Read less Article number: 03400000 Original number: 1251-4120-260E-CT	Quantity
Select article	QiO Basket Bag "Basket Bag Luis" black Read more Read less Article number: 07292101 Original number: 2321	Quantity
Select article	QiO Carrier Bag "Pina" black / anthracite Read more Read less Article number: 07292014 Original number: 18022	Quantity
Select article	QiO Single Bag "Gabriel" black Read more Read less Article number: 07292048 Original number: 18023	Quantity
Select article	QiO Reflective Sticker "Reflective Sticker" for crystal white frame colour Read more Read less Article number: 08198310 Original number: CRYSTAL WHITE	Quantity
Select article	QiO Folding Lock "Folding Lock" "Folding Lock", black Read more Read less Article number: 03528410 Original number: 64548	Quantity
Select article	QiO Battery Protection for PowerPack 400/500 Read more Read less Article number: 03295037 Original number: 2112	Quantity
Select article	QiO Battery Protection for PowerPack 725/800 Read more Read less Article number: 03295150 Original number: 2318	Quantity
Select article	QiO Contact Protection black Read more Read less Article number: 03295045 Original number: 2113	Quantity
Select article	BASIL Animal Basket "Buddy MIK 2.0" faded denim Read more Read less Article number: 07380641 Original number: 20029	Quantity
Select article	QiO Basket Bag "Basket Bag Lena" black Read more Read less Article number: 07292090 Original number: 2320	Quantity
Select article	QiO Smartphone Bracket "Smartphone Mount" black Read more Read less Article number: 03211200 Original number: 2319	Quantity
Select article	QiO Reflective Sticker "Reflective Sticker" for imola red matt frame colour Read more Read less Article number: 08198313 Original number: IMOLA RED MATT	Quantity
Select article	QiO Reflective Sticker "Reflective Sticker" for light olive matt frame colour Read more Read less Article number: 08198315 Original number: LIGHT OLIVE MATT	Quantity
Select article	QiO Reflective Sticker "Reflective Sticker" for sweet lavender matt frame colour Read more Read less Article number: 08198317 Original number: SWEET LAVENDER MATT	Quantity
Select article	QiO Fixture Strap "Maxi Strap" black Read more Read less Article number: 07387046 Original number: 2278	Quantity
Select article	QiO Transport Carrier "Ben" matt black Read more Read less Article number: 07387020 Original number: HA-009 CARRIER BEN	Quantity
Select article	QiO Basket "Basket Karl" black Read more Read less Article number: 07387061 Original number: 2330	Quantity
Select article	QiO Transport Carrier "Luk" matt black Read more Read less Article number: 07387038 Original number: HA-011 CARRIER LUK	Quantity
Select article	QiO Shoulder Bag "Pocket Bag Tom" black Read more Read less Article number: 07292080 Original number: 2276	Quantity
Select article	QiO Battery Protection for PowerPack 545 Read more Read less Article number: 03295140 Original number: 2317	Quantity
Select article	QiO Dislay Protection Bag black Read more Read less Article number: 03295052 Original number: 2114	Quantity
Select article	QiO Carrier Bag "Lisa" black Read more Read less Article number: 07292006 Original number: 2115	Quantity
Select article	BASIL Animal Basket "Buddy MIK 2.0" biscoti brown Read more Read less Article number: 07380640 Original number: 20028	Quantity
Select article	CONTEC Rearview Mirror "E-View" left Read more Read less Article number: 03229135 Original number: ME002 LEFT	Quantity
Select article	QiO Bottle Cage "Bottle Cage" black Read more Read less Article number: 08199796 Original number: CL-095	Quantity
Select article	QiO Folding Lock "Folding Lock" "Folding Lock Duo", black, incl. one short and one long XPlus Lock Cylinder Read more Read less Article number: 03528411 Original number: 64549	Quantity
Select article	QiO Motor Protection black Read more Read less Article number: 03295029 Original number: 2111	Quantity

	Article	Price
Select article	QiO Electric compact bike "EINS P-R" (#1) unisex, 20", ice blue matt, Rohloff 14 G "E-14", 48 cm Read more Read less Article number: 02652093 Original number: 01723626	Quantity

The QiO "EINS P-R" is even more intelligent with the Bosch Smart System. All drive components of the compact e-bike are networked with each other and are controlled via the eBike Flow app. This means that the bike is always up-to-date, as new features and updates are installed automatically.The compact one-size frame is suitable for people between 1.60 and 1.90 m tall. The Handlepost and Seatpost can be fine-tuned for the ideal riding experience. The "EINS P-R" not only impresses with its compact size, but also with its high-quality equipment.The bike is equipped with a 14-speed gear hub from Rohloff, which is ideal for e-bikes with powerful drives. The Bosch "Kiox 500" Display shows all gear changes and helps you select the right drive level for the powerful "Performance Line" engine. The 725 Wh Battery makes the compact e-bike perfect for long tours.With 62 mm wide tires on 20'' wheels and the Parallelogramm Suspension Seatposts, the bike offers a high level of comfort on various surfaces. The hydraulic Disc Brakes and high-quality Busch + Müller lighting round off the e-bike with everything you need for everyday use in the city and countryside.

Product variants

Using the search field, you can refine the selection of product variants.

	Article	Price
Select article	QiO Electric compact bike "EINS P-R" Mod. 24 unisex, 20", crystal white, Rohloff 14 G "E-14", 48 cm Read more Read less Article number: 02651588 Original number: 01722580
Select article	QiO Electric compact bike "EINS P-R" Mod. 24 unisex, 20", forest green, Rohloff 14 G "E-14", 48 cm Read more Read less Article number: 02651604 Original number: 01722599
Select article	QiO Electric compact bike "EINS P-R" Mod. 24 unisex, 20", ice blue matt, Rohloff 14 G "E-14", 48 cm Read more Read less Article number: 02651620 Original number: 01722622
Select article	QiO Electric compact bike "EINS P-R" Mod. 24 unisex, 20", imola red matt, Rohloff 14 G "E-14", 48 cm Read more Read less Article number: 02651638 Original number: 01722630

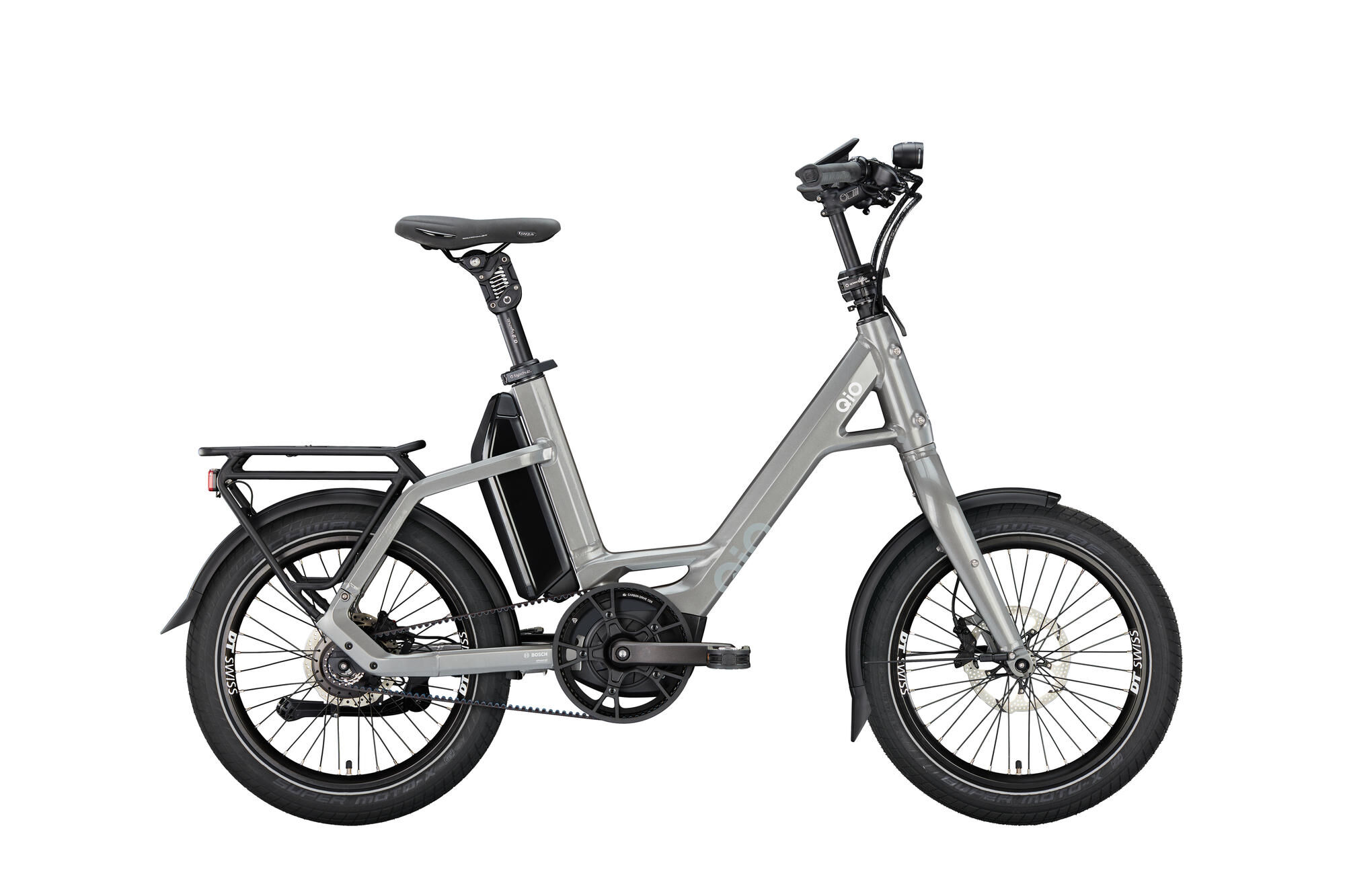

Select article	QiO Electric compact bike "EINS P-R" Mod. 24 unisex, 20", lead metal, Rohloff 14 G "E-14", 48 cm Read more Read less Article number: 02651570 Original number: 01722572
