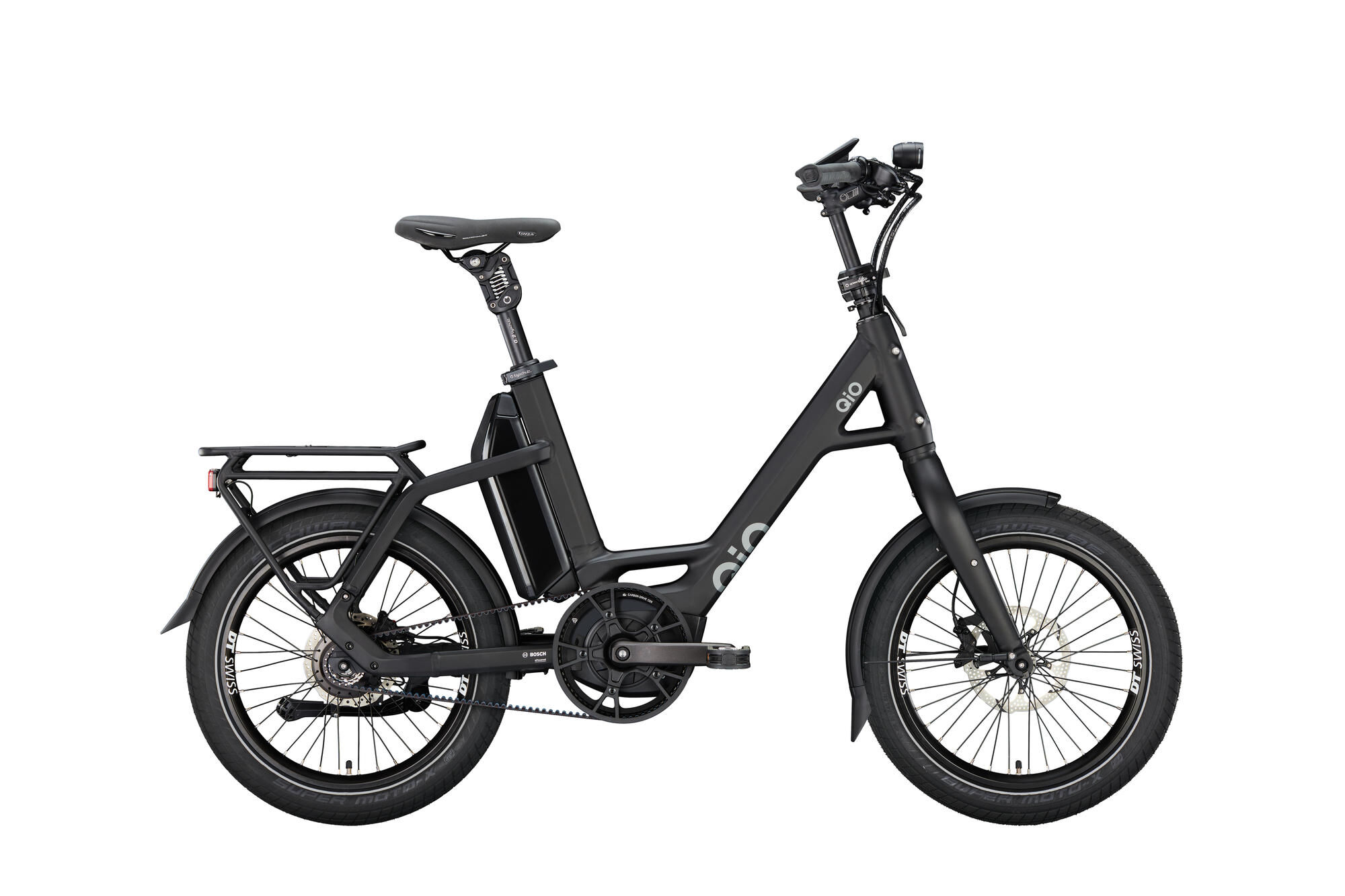

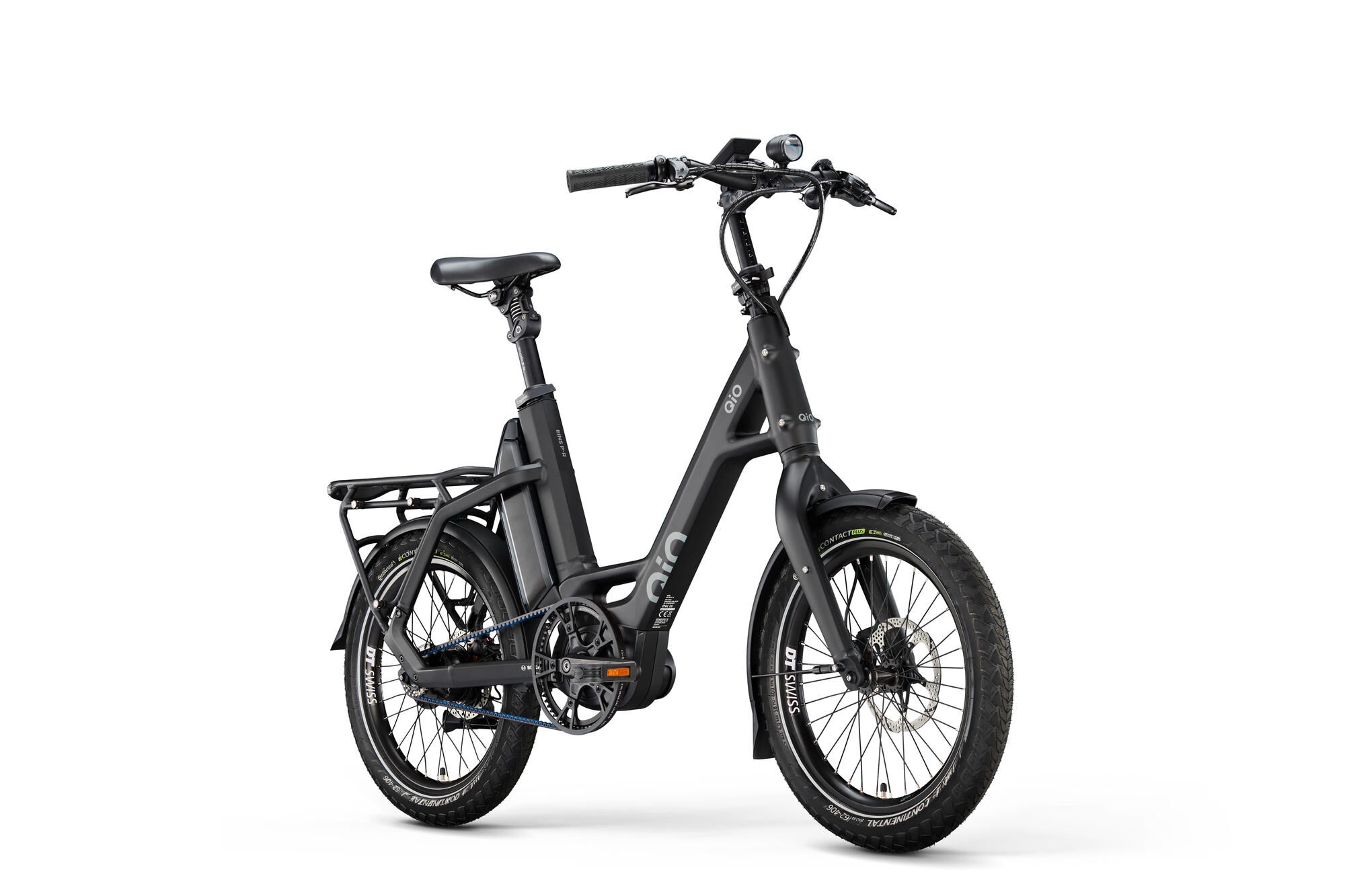

QiO Electric compact bike "EINS P-R" (#1)
unisex, 20", night black matt, Rohloff 14 G "E-14", 48 cm
Read more Read less - Article number: 02652090
- Original number: 01723600
The electric compact bike is equipped with a BOSCH Performance Line mid-motor, which delivers 250 W of motor power. A battery with a capacity of 800 Wh is integrated into the frame. It has a Rohloff 14-speed gear hub to enable gear selection. Drives are provided by a belt drive. Hydraulic disc brakes are installed for the braking system. A suspension seatposts and a low step-through are included in the equipment. The permissible system weight is 180 kg and the wheel size is 20 inches.
Product information
- Access height 182 mm
- Battery capacity 800.0 Wh
- Bosch Smart System yes
- Brake system hydraulic disc brake
- Chainstay 451 mm
- Colour designation night black matt
- Drive belt
- Drive system BOSCH Performance Line
- Drive version middle motor
- E-bike yes
- Engine power 250 W
- Features fender
- Frame height 48 cm
- Frame shape unisex
- Gears 14-speed
- Gender unisex
- Length 1685 mm
- Main colour black
- Material 1 aluminium
- Passage width 190 mm
- Permissible system weight 180 kg
- Reach 408 mm
- Seat angle 70.5 °
- Seat tube 48 mm
- Shifting name Rohloff 14 G "E-14"
- Shifting type internal gear shifting
- Stack 541 mm
- Steering tube 220 mm
- Steering tube angle 71.0 °
- Stem length 70.0 mm
- Support up to 25km/h
- Toptube 576 mm
- Type compact bike
- Wheel distance 1108 mm
- Wheel size 20 "
- Battery: BOSCH "Active Line Plus", max. 50 Nm
- Battery Lock: ABUS Akkuschloss
- Bottom bracket: BOSCH
- Brake lever: TRP HD-EU832
- Bremse H.R.: TRP "C1.8 HD-EU817"
- Bremse V.R.: TRP "C2.3 HD-EU832", Post Mount
- Chain / belt: GATES "CDX"
- Chain guard: Rohloff belt guard
- Chain ring / pulley: GATES "CDX", 63 teeth, belt line 57.7 mm
- Charger: BOSCH 4 A
- Crank: Stronglight "Magan 3B", 170 mm
- Derailleur hanger: QIO Slider Dropout Rohloff
- Display: BOSCH "Kiox 500", 4-stages, Remote Control, push-aid
- Engine: BOSCH "Performance Line" engine, max. 75 Nm
- Fender: curana "Apollo Orbit 70"
- Fork: QIO EINS 20", aluminum, tapered 1 1/4" - 1.5", 313.5 mm stem, post mount, night black matt
- Frame: QIO EINS, Bosch Gen. 3, BES3, aluminum, 49.5 cm, night black matt
- Front hub: URSUS "RD30", Center Lock, QR
- Front light: Busch + Müller "IQ-XS E Highbeam", 100 Lux
- Front rotor: TRP "TR-25", Ø 180 mm, Centerlock
- Front tire: CONTINENTAL "eContact Plus", 62-406, Reflex
- Grips: HERRMANS "Nucore Town", wave
- Handlebar: ergotec "Lady Town", 620 mm, Ø 31.8 mm, 30° backsweep
- Headset: TOKEN "TK255E-HJ04", IS52/40 / IS52/44
- Pedals: UNION "SP-153", foldable
- Rear carrier: QIO "MIK HD 2.0" mit MIK STUDS
- Rear hub: ROHLOFF "E-14", 4-Loch
- Rear light: Busch + Müller "Dart E Brex "
- Rear rotor: MAGURA "STORM HC", Ø 160mm, Center Lock, incl. 6-hole adapter
- Rear tire: CONTINENTAL "eContact Plus", 62-406, Reflex
- Remote: BOSCH "BRC3600", LED Remote
- Rims: DT SWISS "U 663", 36 hole, eyeletted, tubeless ready
- Saddle: Selle Royal "On", Moderate Wide
- Seatpost: by,schulz "G.2 ST", Ø 34.9 mm, 400 mm long, 30 mm travel, 12 mm offset
- Sensor: Pedal pressure measuring im Motor + speed sensor
- Shifting lever: Rohloff, 14-speed
- Spokes: DT-Swiss ELEMENTAL, schwarz
- Sprocket / pulley: GATES "CDX", 20 teeth
- Stands: URSUS "R78 - King Mini"
- Stem: BY.SCHULZ "Stem SDS", 1 1/8", 31.8 mm handlebar clamps, 70 mm long, angle 7°, black
- Supplier Article Number: 01723600
- EAN: 4251971164253
- MSRP: €6,499.00
- Fedas-Code: 159021
- DST-Code: 1A01
- WEEE registration number: DE92509320
- SB-Article: No
- Bidex-Code: 123040
- Brand/Supplier QiO
- Unit of measure: PIECE
- Weight: 27.7 kg
| Article | Price | |
|---|---|---|
 | ||
 for light olive matt frame colour Read more Read less
| ||
 | ||
 | ||
 for sweet lavender matt frame colour Read more Read less
| ||
 | ||
 | ||
 Scarves: blackCover: dark gray Read more Read less
| ||
 | ||
 for imola red matt frame colour Read more Read less
| ||
 "Folding Lock Duo", black, incl. one short and one long XPlus Lock Cylinder Read more Read less
| ||
 | ||
| ||
 | ||
 | ||
 | ||
 | ||
 black, AZ Standard, removable keys, with Battery Lock for PowerPack BES 3 Read more Read less
| ||
 | ||
 | ||
 | ||
 | ||
 | ||
 | ||
 | ||
 | ||
 | ||
 | ||
 for night black matt frame colour Read more Read less
| ||
 | ||
 | ||
 | ||
| ||
 for ice blue matt frame colour Read more Read less
| ||
 for lead metal frame colour Read more Read less
| ||
 | ||
 | ||
 for forest green frame colour Read more Read less
| ||
 | ||
 | ||
| ||
 | ||
 | ||
 | ||
 | ||
 | ||
 for crystal white frame colour Read more Read less
| ||
 | ||
 |
| Article | Price | |
|---|---|---|
 unisex, 20", night black matt, Rohloff 14 G "E-14", 48 cm Read more Read less
|
The QiO "EINS P-R" offers you a particularly intelligent riding experience. Thanks to the Bosch Smart System (BES3), all drive components of the compact e-bike are networked and controlled via the eBike Flow app. This means your bike is always up to date, as updates and new features are installed automatically.The 14-speed Rohloff gear hub is perfect for e-bikes with powerful drives - like this one. All gear changes are displayed on the Bosch "Kiox 500" Display. It also helps you select the right drive level for the powerful "Performance Line" engine. The 800 Wh Battery makes the compact e-bike ideal for long tours.With 62 mm wide tires on 20" wheels and the Parallelogramm Suspension Seatposts, the bike offers a high level of comfort on various surfaces. The hydraulic disc brakes and the high-quality Busch + Müller "IQ-XS high beam" lighting, including rear lights with stop light function integrated into the Carrier, round off the e-bike. Perfect for everyday use in the city and in the countryside.
