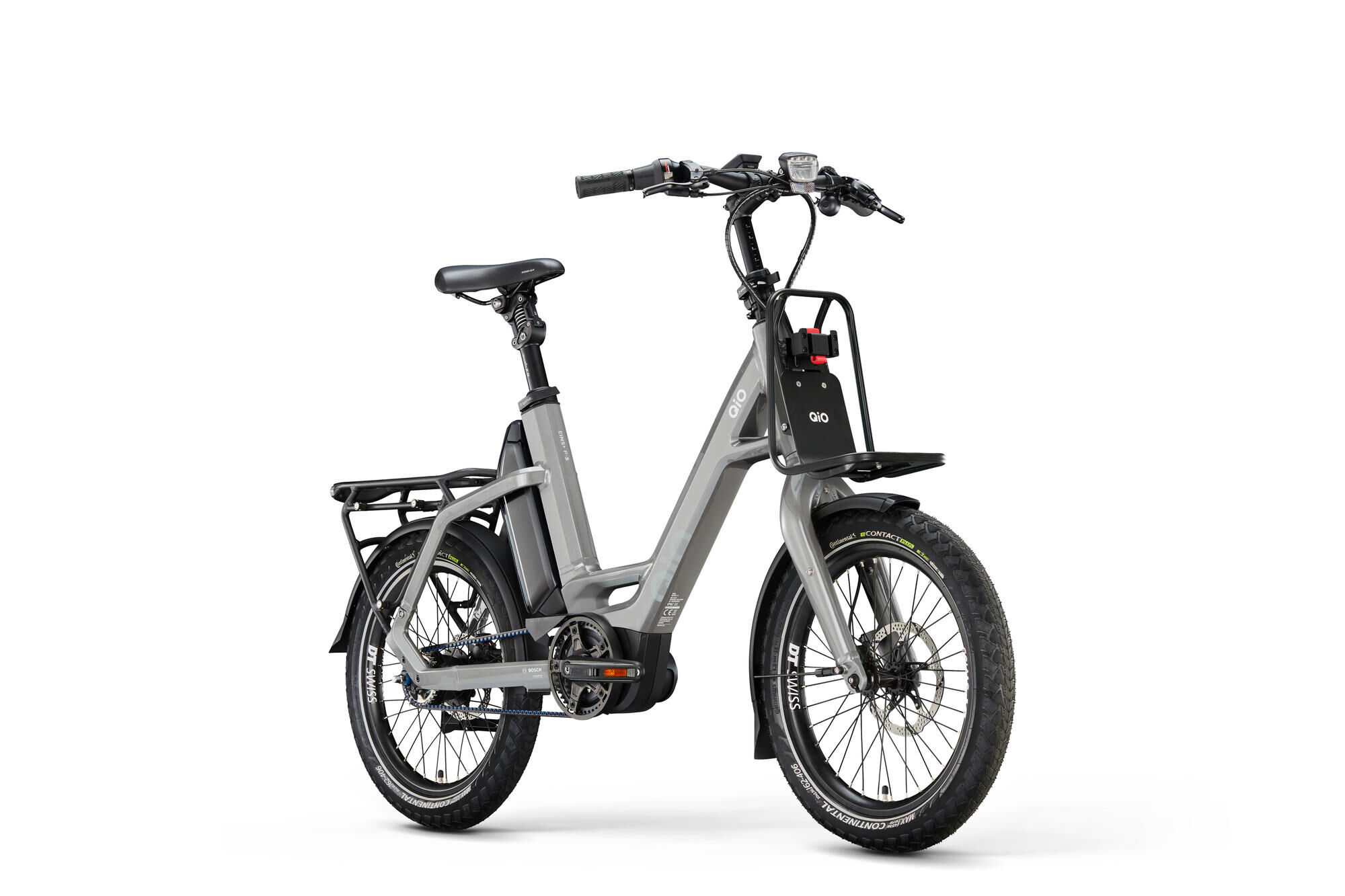

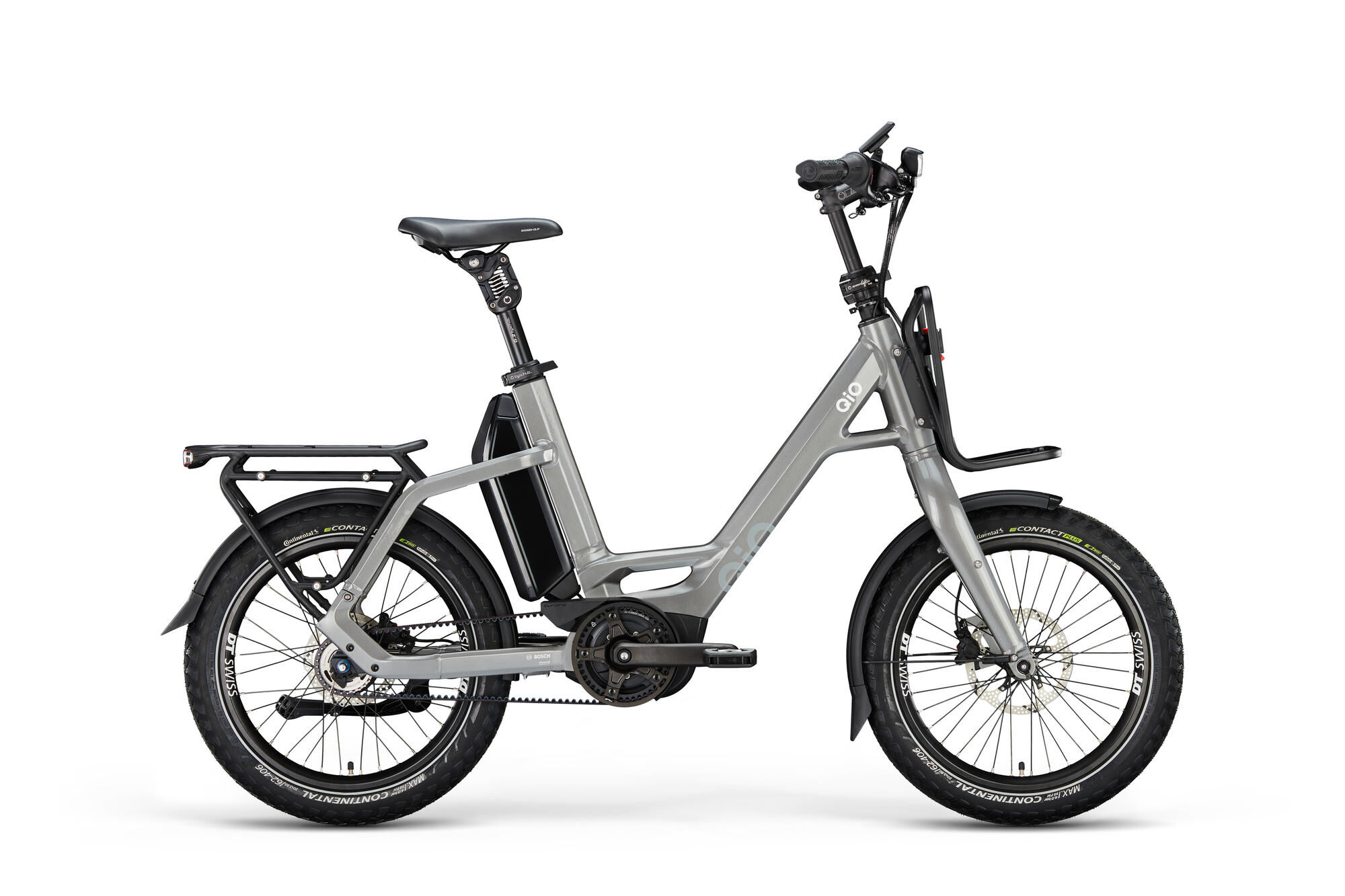

QiO Electric compact bike "EINS+ P-5" (#1)
unisex, 20", lead metal, 5-speed SHIMANO "Nexus" freewheel, 48 cm
Read more Read less - Article number: 02652056
- Original number: 01723006
The electric compact bike is equipped with a Bosch Performance Line mid-motor, which has a motor output of 250 W. A Battery with a capacity of 800.0 Wh is located in the frame. The gear hub allows easy gear selection. The wheel size is 20". Drives are provided by a belt drive. The permissible system weight is 180 kg. It is equipped with a low step-through, Fenders, suspension seatposts, a front carrier, a chain guard and a system luggage rack. It also includes an electronic Pushing Help.
PU 1
Product information
- Access height 182 mm
- Battery capacity 800.0 Wh
- Bosch Smart System yes
- Brake system hydraulic disc brake
- Chainstay 451 mm
- Colour designation lead metal
- Drive belt
- Drive system BOSCH Performance Line
- Drive version middle motor
- E-bike yes
- Engine power 250 W
- Features chain guard , deep entry , electronic sliding aid , fender , front carrier , suspension seatpost , system carrier
- Frame height 48 cm
- Frame shape unisex
- Gears 5-speed
- Gender unisex
- Length 1685 mm
- Main colour grey
- Material 1 aluminium
- Model series EINS
- Passage width 190 mm
- Permissible system weight 180 kg
- Reach 408 mm
- Seat angle 70.5 °
- Seat tube 48 mm
- Shifting name 5-Gang SHIMANO "Nexus" Leerlauf
- Shifting type internal gear shifting
- Stack 541 mm
- Steering tube 220 mm
- Steering tube angle 71.0 °
- Stem length 70.0 mm
- Support up to 25km/h
- Toptube 576 mm
- Type compact bike
- Wheel distance 1108 mm
- Wheel size 20 "
- Battery BOSCH "Active Line Plus", max. 50 Nm
- Battery Lock ABUS Akkuschloss
- Bottom bracket BOSCH
- Brake lever TRP HD-EU817
- Chain / belt GATES "CDX"
- Chain guard CURANA "C+", 46 teeth
- Chain ring / pulley Gates "CDX", 46 teeth, belt line 45.5 mm
- Charger BOSCH 4 A
- Crank Stronglight "Magan 3B", 170 mm
- Derailleur hanger QIO Slider Dropout
- Display BOSCH "Kiox 300", 4-stages, remote control, push aid
- Engine BOSCH "Performance Line" engine, max. 75 Nm
- Fender curana "Apollo Orbit 70"
- Fork Aluminum, tapered 1 1/4" - 1.5"
- Frame QIO EINS, Bosch Gen. 3, BES3, aluminum, 49.5 cm
- Front carrier QIO "Ben"
- Front hub URSUS "RD30", Center Lock, QR
- Front light Busch + Müller "Briq-S E", 60 Lux
- Front rotor TRP "TR-25", Ø 180 mm, Centerlock
- Front tire CONTINENTAL "eContact Plus", 62-406, Reflex
- Front wheel brake TRP "C1.8 HD-EU817", Post Mount
- Grips HERRMANS "Nucore Town", wave
- Handlebar ergotec "Lady Town", 650 mm, Ø 31.8 mm, 30° backsweep
- Headset TOKEN "TK255E-HJ04", IS52/40 / IS52/44
- Pedals UNION "SP-157", faltbar
- Rear carrier "MIK HD 2.0" for MIK Side
- Rear hub SHIMANO "Nexus SG-C7000-5D", 5-speed, Center Lock
- Rear light Busch + Müller "Dart E Brex "
- Rear rotor TRP "TR-25", Ø 160 mm, Centerlock
- Rear tire CONTINENTAL "eContact Plus", 62-406, Reflex
- Rear wheel brake TRP "C1.8 HD-EU817"
- Remote BOSCH "BRC3600", LED Remote
- Rims DT SWISS "U 663", 36 hole, eyeletted, tubeless ready
- Saddle SELLE ROYAL "Essenza Heavy Duty", Moderate Wide
- Seatpost by,schulz "G.2 ST", Ø 34.9 mm, 400 mm long, 30 mm travel, 12 mm offset
- Sensor Pedal pressure measuring im Motor + speed sensor
- Shifting lever SHIMANO "Nexus SL-C7000-5"
- Spokes DT-Swiss ELEMENTAL, schwarz
- Sprocket / pulley Gates "CDX", 28 teeth
- Stands URSUS "R78 - King Mini"
- Stem BY.SCHULZ "Stem SDS", 1 1/8", 31.8 mm handlebar clamps, 70 mm long, angle 7°, black
- Supplier Article Number: 01723006
- EAN 4251971163997
- MSRP: €4,599.00
- Fedas-Code 159021
- DST-Code 1A01
- WEEE registration number DE92509320
- SB-Article No
- Bidex-Code 123040
- Brand/Supplier QiO
- Unit of measure: PIECE
The QiO "EINS+ P-5" offers you state-of-the-art technology and user-friendliness in an elegant design. With enhanced functions and improved performance, it is the ideal choice for anyone who values quality and reliability. The compact e-bike impresses with a maximum possible rider weight of 150 kg and a permissible total load of 180 kg. Thanks to the Gates CDX Straps, the e-bike is virtually maintenance-free, making it ideal for every day and relaxed tours.Experience faster and smoother use thanks to the latest processors and optimized software. Enjoy more independence with the Bosch "Performance Line" engine and a longer battery life thanks to the 800 Wh power pack. The intuitive Interface and ergonomic design make operation easy and pleasant. The "Fron Rack BEN" Carrier is already integrated as standard and tastefully rounds off the functionality.
Product variants
Using the search field, you can refine the selection of product variants.
| Article | Price | |
|---|---|---|

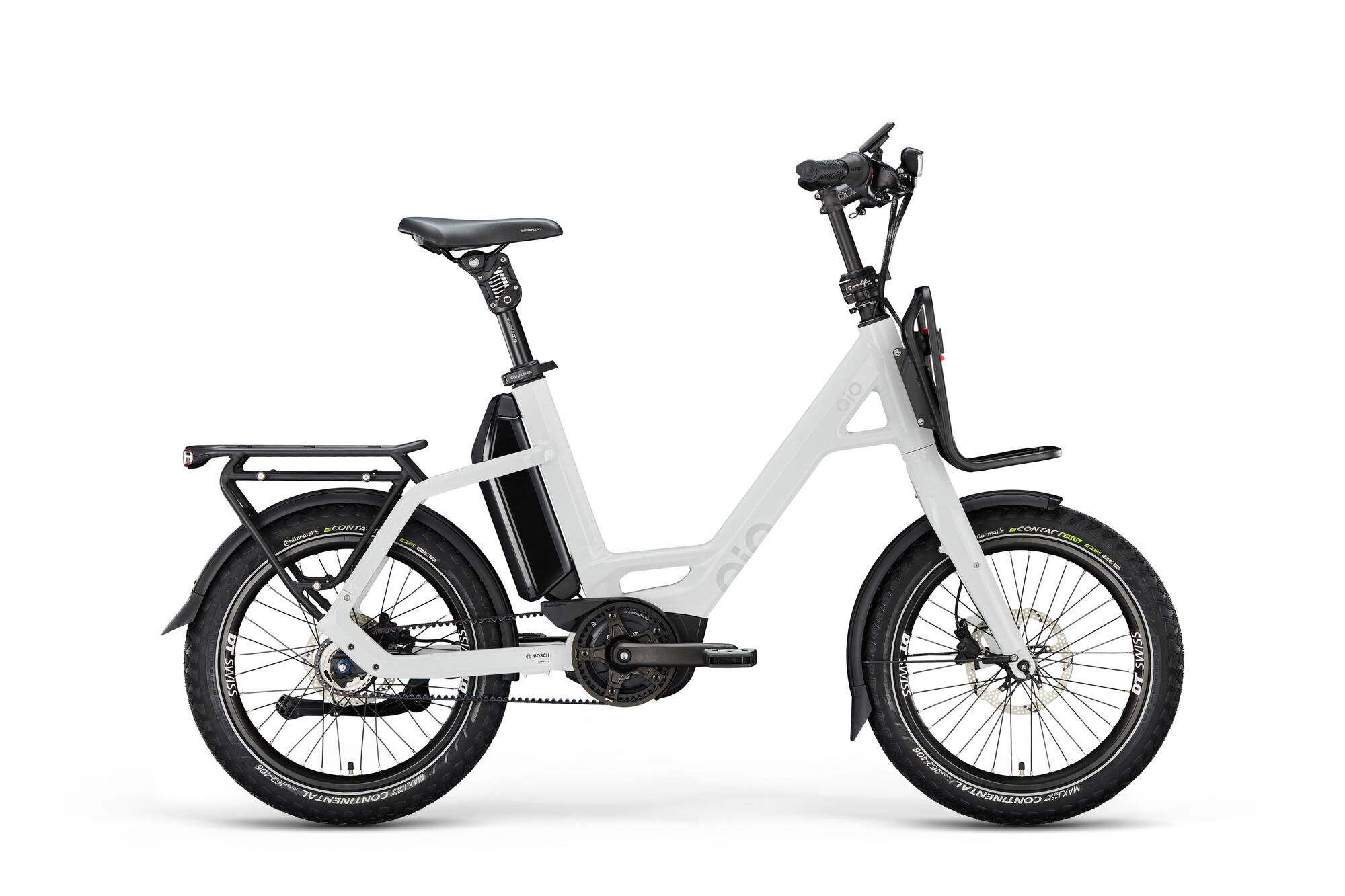

 unisex, 20", crystal white, 5-speed SHIMANO "Nexus" coaster brake, 48 cm Read more Read less
| PU 1 | |
 unisex, 20", crystal white, 5-speed SHIMANO "Nexus" freewheel, 48 cm Read more Read less
| PU 1 | |
 unisex, 20", forest green, 5-speed SHIMANO "Nexus" coaster brake, 48 cm Read more Read less
| PU 1 | |
 unisex, 20", forest green, 5-speed SHIMANO "Nexus" freewheel, 48 cm Read more Read less
| PU 1 | |
 unisex, 20", ice blue matt, 5-speed SHIMANO "Nexus" coaster brake, 48 cm Read more Read less
| PU 1 | |
 unisex, 20", ice blue matt, 5-speed SHIMANO "Nexus" freewheel, 48 cm Read more Read less
| PU 1 | |

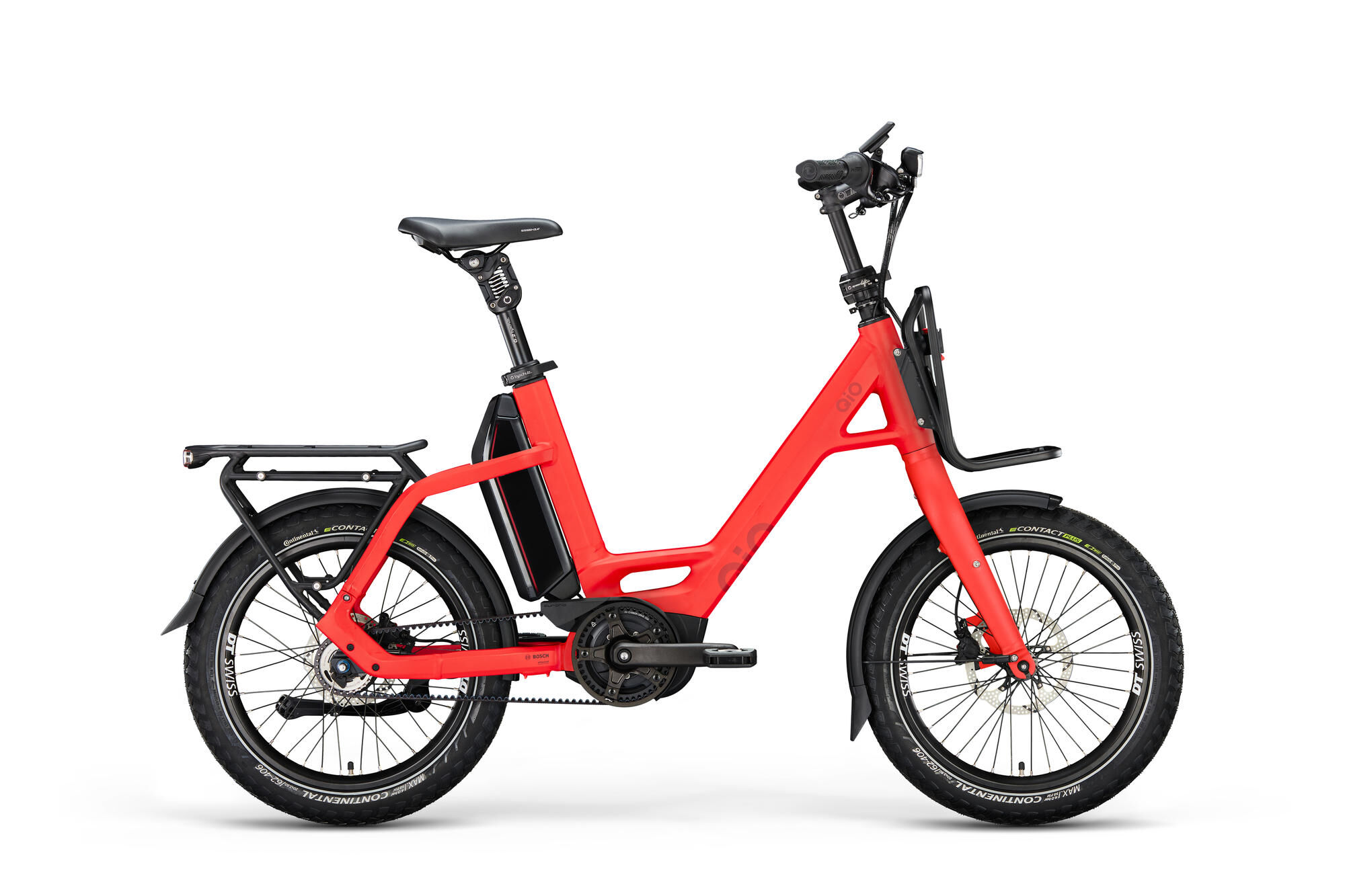

 unisex, 20", imola red matt, 5-speed SHIMANO "Nexus" coaster brake, 48 cm Read more Read less
| PU 1 | |
 unisex, 20", imola red matt, 5-speed SHIMANO "Nexus" freewheel, 48 cm Read more Read less
| PU 1 | |
 unisex, 20", lead metal, 5-speed SHIMANO "Nexus" coaster brake, 48 cm Read more Read less
| PU 1 | |
 unisex, 20", lead metal, 5-speed SHIMANO "Nexus" freewheel, 48 cm Read more Read less
| PU 1 | |

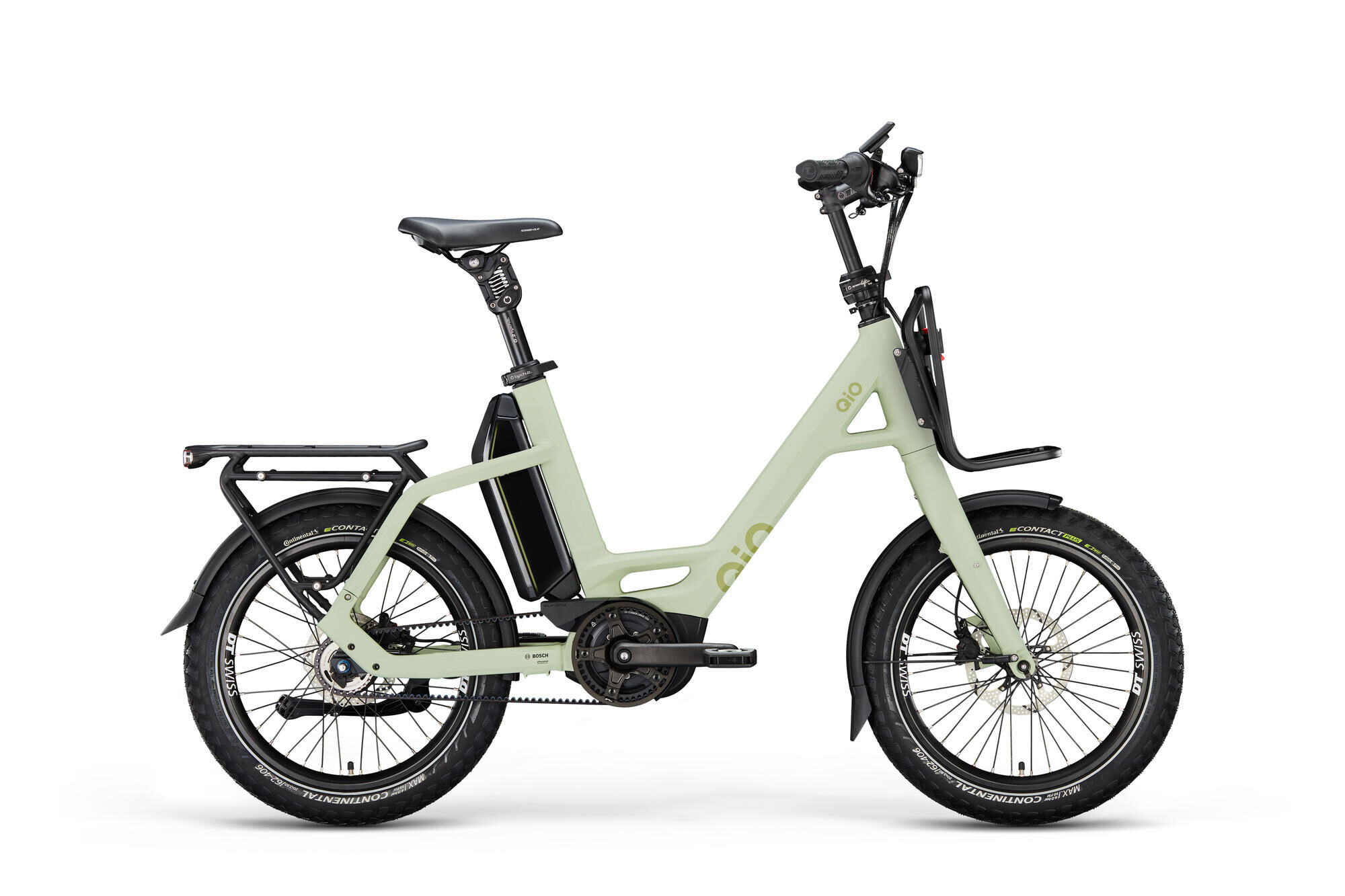

 unisex, 20", light olive matt, 5-speed SHIMANO "Nexus" coaster brake, 48 cm Read more Read less
| PU 1 | |
 unisex, 20", light olive matt, 5-speed SHIMANO "Nexus" freewheel, 48 cm Read more Read less
| PU 1 | |

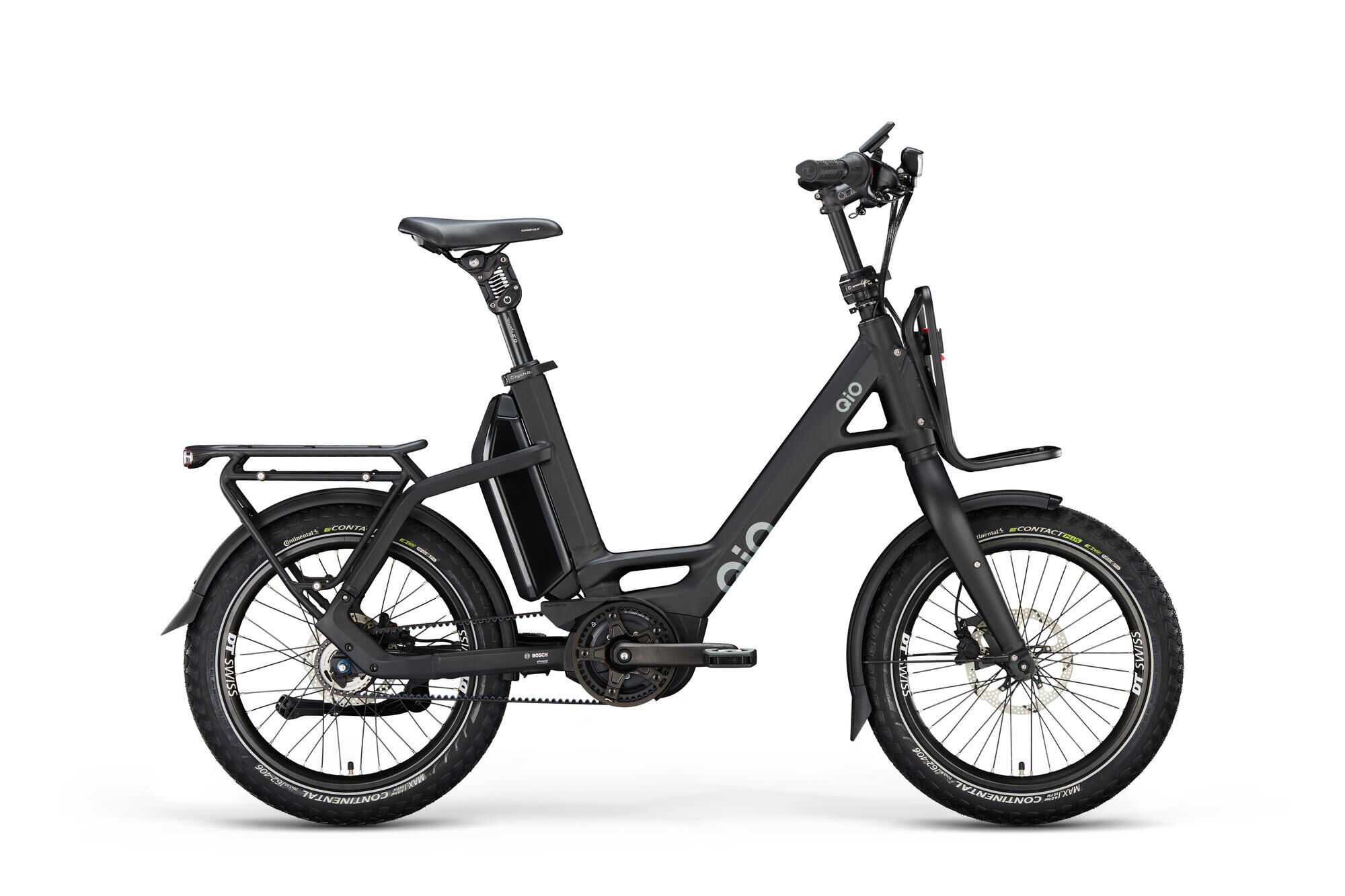

 unisex, 20", night black matt, 5-speed SHIMANO "Nexus" coaster brake, 48 cm Read more Read less
