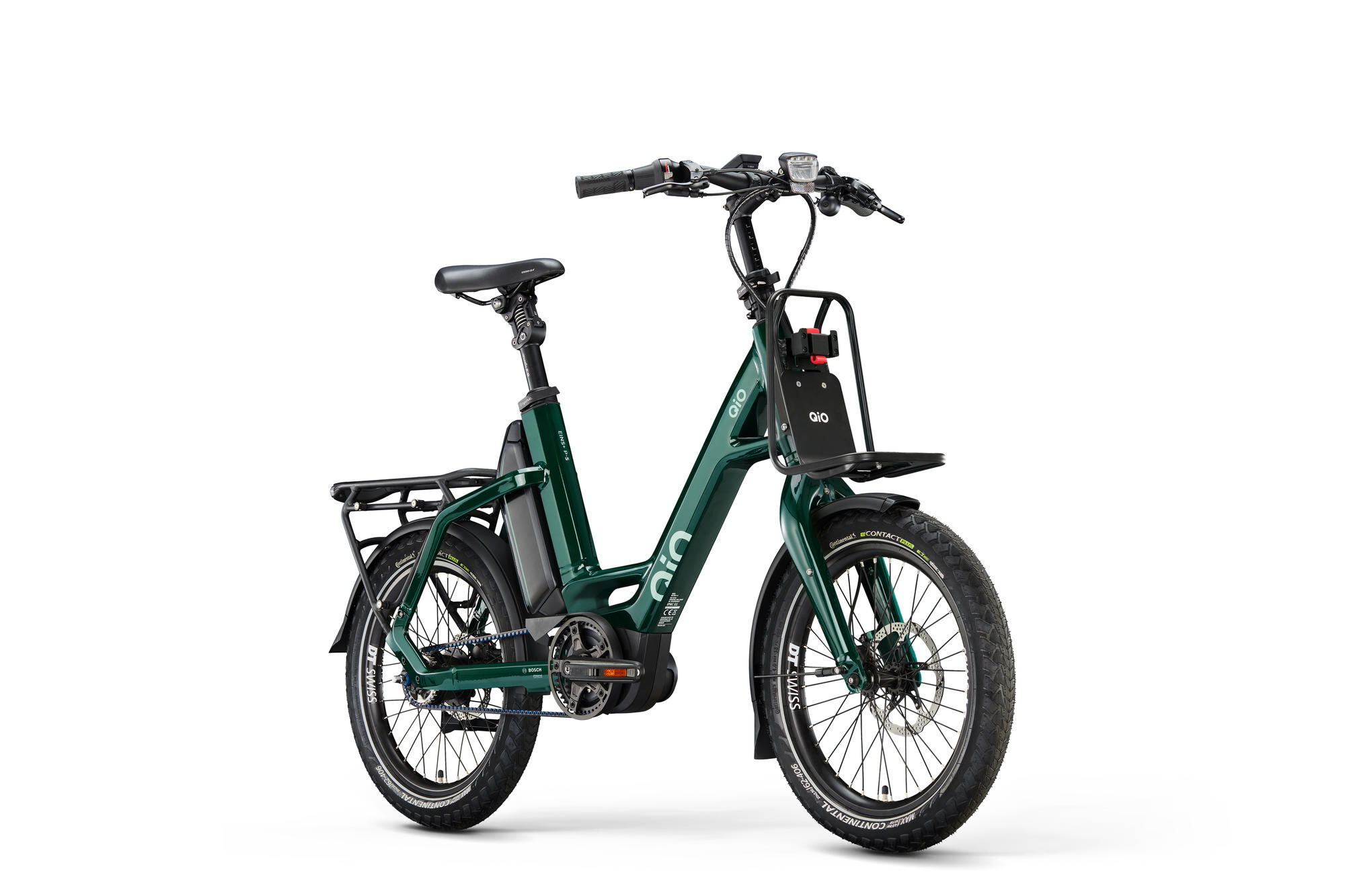

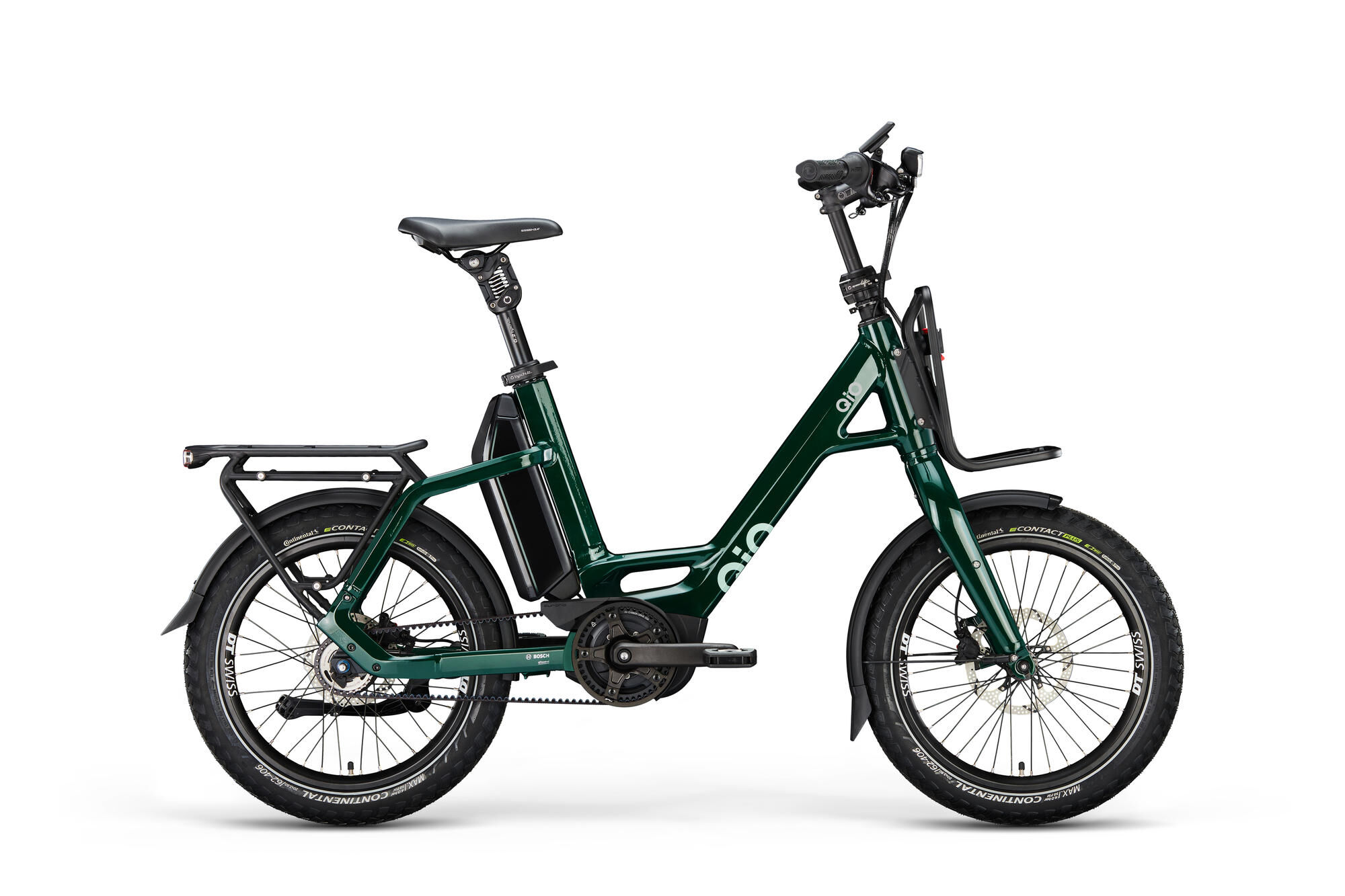

QiO Electric compact bike "EINS+ P-5" (#1)
unisex, 20", forest green, 5-speed SHIMANO "Nexus" freewheel, 48 cm
Read more Read less - Article number: 02652059
- Original number: 01723022
- Electric compact bike with a 250 W mid-drive motor and an 800.0 Wh battery capacity.
- Hub gears and Straps.
- 20" wheels.
- Low step-through frame, Fenders, suspension seatposts, front rack, Chain Guard, modular luggage rack, Pushing Help.
- Aluminum frame.
- Maximum system weight: 180 kg.
PU 1
Product information
- Battery capacity 800.0 Wh
- Bosch Smart System yes
- Brake system hydraulic disc brake
- Colour designation forest green
- Drive belt
- Drive system BOSCH Performance Line
- Drive version middle motor
- E-bike yes
- Engine power 250 W
- Features chain guard , deep entry , electronic sliding aid , fender , front carrier , suspension seatpost , system carrier
- Frame height 48 cm
- Frame shape unisex
- Gears 5-speed
- Gender unisex
- Main colour green
- Material 1 aluminium
- Model range EINS
- Permissible system weight 180 kg
- Shifting name 5-Gang SHIMANO "Nexus" Leerlauf
- Shifting type internal gear shifting
- Support up to 25km/h
- Type compact bike
- Wheel size 20 "
- Access height 182 mm
- Chainstay 451 mm
- Length 1685 mm
- Passage width 190 mm
- Reach 408 mm
- Seat angle 70.5 °
- Seat tube 48 mm
- Stack 541 mm
- Steering tube 220 mm
- Steering tube angle 71.0 °
- Stem length 70.0 mm
- Toptube 576 mm
- Wheel distance 1108 mm
- Battery BOSCH "Active Line Plus", max. 50 Nm
- Battery Lock ABUS Battery Lock
- Bottom bracket BOSCH
- Brake lever TRP HD-EU817
- Chain / belt GATES "CDX"
- Chain guard CURANA "C+", 46 teeth
- Chain ring / pulley Gates "CDX", 46 teeth, belt line 45.5 mm
- Charger BOSCH 4 A
- Crank Stronglight "Magan 3B", 170 mm
- Derailleur hanger QIO Slider Dropout
- Display BOSCH "Kiox 300", 4-stages, remote control, push aid
- Engine BOSCH "Performance Line" engine, max. 75 Nm
- Fender curana "Apollo Orbit 70"
- Fork Aluminum, tapered 1 1/4" - 1.5"
- Frame QIO EINS, Bosch Gen. 3, BES3, aluminum, 49.5 cm
- Front brake TRP "C1.8 HD-EU817", Post Mount
- Front carrier QIO "Ben"
- Front hub URSUS "RD30", Center Lock, QR
- Front light Busch + Müller "Briq-S E", 60 lux
- Front rotor TRP "TR-25", Ø 180 mm, Centerlock
- Front tire CONTINENTAL "eContact Plus", 62-406, Reflex
- Grips HERRMANS "Nucore Town", wave
- Handlebar ergotec "Lady Town", 650 mm, Ø 31.8 mm, 30° backsweep
- Headset TOKEN "TK255E-HJ04", IS52/40 / IS52/44
- Pedals UNION "SP-157", faltbar
- Rear brake TRP "C1.8 HD-EU817"
- Rear carrier "MIK HD 2.0" for MIK Side
- Rear hub SHIMANO "Nexus SG-C7000-5D", 5-speed, Center Lock
- Rear light Busch + Müller "Dart E Brex "
- Rear rotor TRP "TR-25", Ø 160 mm, Centerlock
- Rear tire CONTINENTAL "eContact Plus", 62-406, Reflex
- Remote BOSCH "BRC3600", LED remote
- Rims DT SWISS "U 663", 36 hole, eyeletted, tubeless ready
- Saddle SELLE ROYAL "Essenza Heavy Duty", Moderate Wide
- Seatpost by,schulz "G.2 ST", Ø 34.9 mm, 400 mm long, 30 mm travel, 12 mm offset
- Sensor Pedal pressure measuring im Motor + speed sensor
- Shifting lever SHIMANO "Nexus SL-C7000-5"
- Spokes DT-Swiss ELEMENTAL, schwarz
- Sprocket / pulley Gates "CDX", 28 teeth
- Stands URSUS "R78 - King Mini"
- Stem BY.SCHULZ "Stem SDS", 1 1/8", 31.8 mm handlebar clamps, 70 mm long, angle 7°, black
- Supplier Article Number: 01723022
- EAN 4251971164024
- MSRP: €4,599.00
- Fedas-Code 159021
- DST-Code 1A01
- WEEE registration number DE92509320
- SB-Article No
- Bidex-Code 123040
- Brand/Supplier QiO
- Unit of measure: PIECE
- Weight 26.9 kg
- product data sheet QiO Electric compact bike EINS+ P-5 DA
- product data sheet QiO Electric compact bike EINS+ P-5 DE
- product data sheet QiO Electric compact bike EINS+ P-5 EN
- product data sheet QiO Electric compact bike EINS+ P-5 ES
- product data sheet QiO Electric compact bike EINS+ P-5 FR
- product data sheet QiO Electric compact bike EINS+ P-5 IT
- product data sheet QiO Electric compact bike EINS+ P-5 NL
- instruction manual
- declaration of conformity
- declaration of conformity DK
- declaration of conformity EN
- declaration of conformity FR
- declaration of conformity NL
The QiO "EINS+ P-5" offers you state-of-the-art technology and user-friendliness in an elegant design. With advanced features and improved performance, it’s the ideal choice for anyone who values quality and reliability. This compact e-bike impresses with a maximum rider weight of 150 kg and a total permissible load of 180 kg. Thanks to the Gates CDX belt drive, the e-bike is virtually maintenance-free, making it ideal for everyday use and leisurely rides.Experience a faster and smoother ride thanks to the latest processors and optimized software. Enjoy greater independence with the Bosch “Performance Line” engine and longer battery life thanks to the 800 Wh Powerpack. The intuitive Interface and ergonomic design make operation simple and comfortable. The “Front Rack BEN” Carrier comes standard and tastefully rounds out the bike’s functionality.
