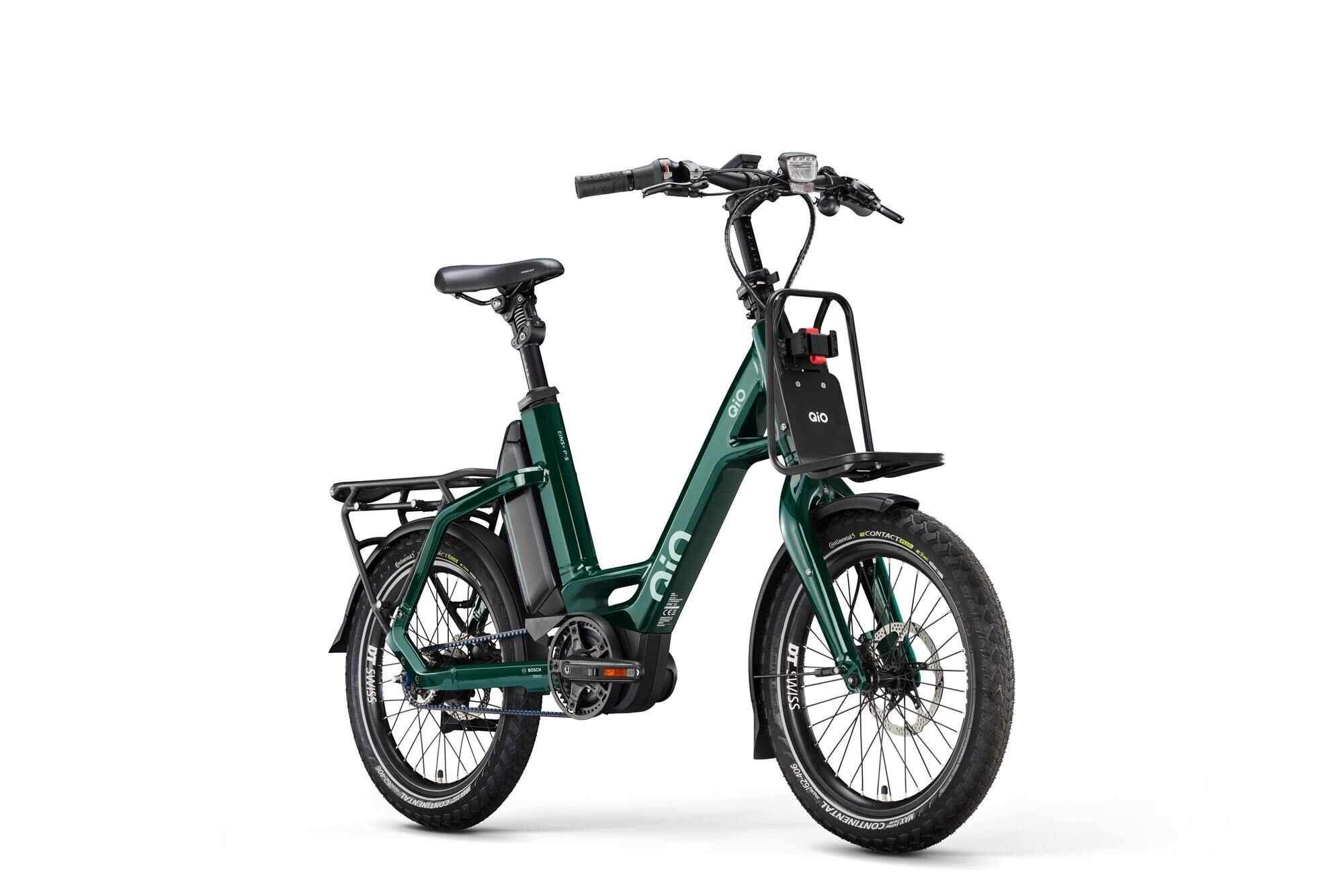

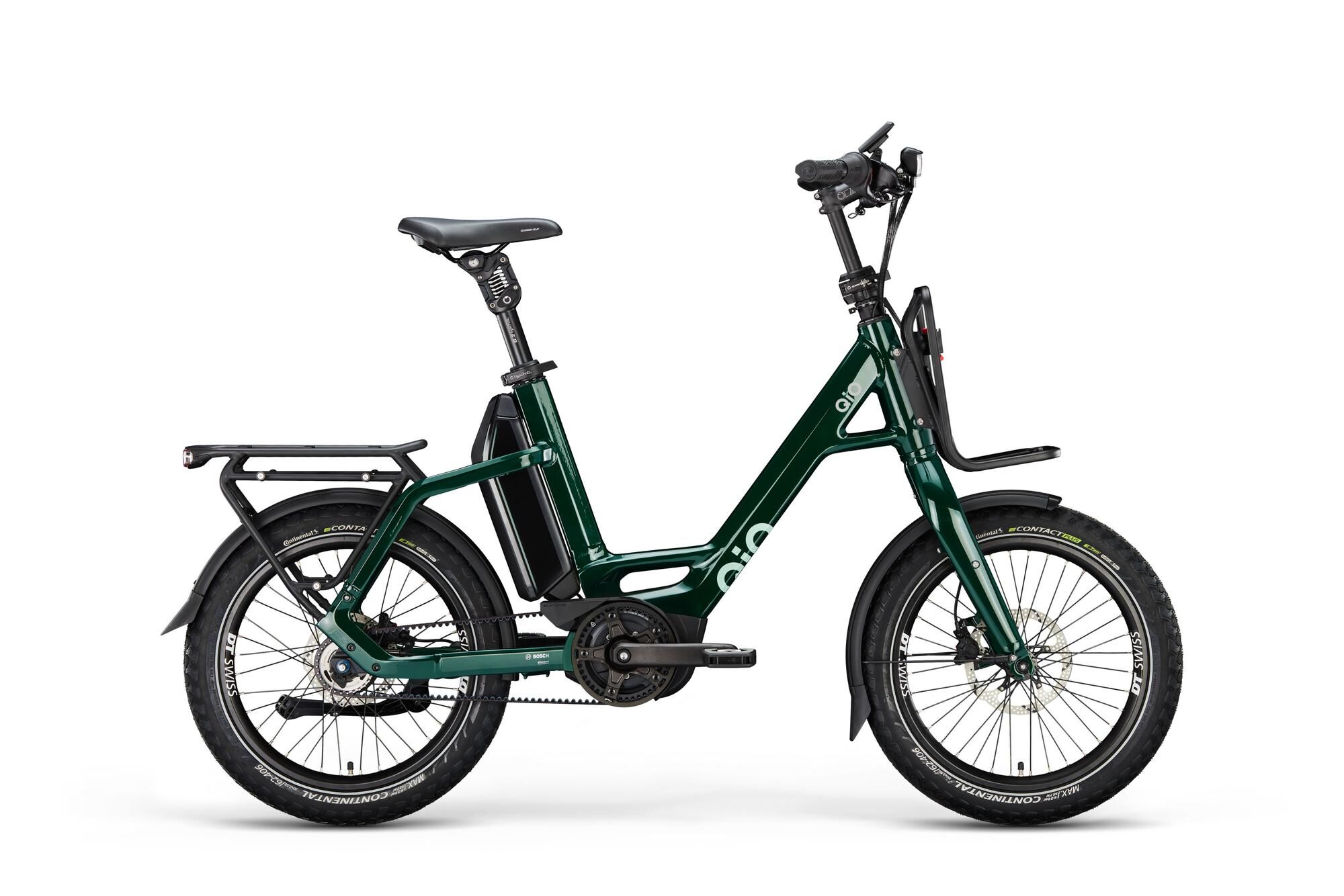

QiO Electric compact bike "EINS+ P-5" (#1)
unisex, 20", forest green, 5-speed SHIMANO "Nexus" coaster brake, 48 cm
Read more Read less - Article number: 02652067
- Original number: 01723105
The electric compact bike is equipped with a Bosch Performance Line mid-motor, which has a motor output of 250 W. A Battery with a capacity of 800.0 Wh is located in the frame. The gear hub allows easy gear selection. The wheel size is 20". Drives are provided by a belt drive. The permissible system weight is 180 kg. It is equipped with a low step-through, Fenders, suspension seatposts, a front carrier, a chain guard and a system luggage rack. It also includes an electronic Pushing Help.
Product information
- Access height 182 mm
- Battery capacity 800.0 Wh
- Bosch Smart System yes
- Brake system hydraulic disc brake
- Chainstay 451 mm
- Colour designation forest green
- Drive belt
- Drive system BOSCH Performance Line
- Drive version middle motor
- E-bike yes
- Engine power 250 W
- Features fender
- Frame height 48 cm
- Frame shape unisex
- Gears 5-speed
- Gender unisex
- Length 1685 mm
- Main colour green
- Material 1 aluminium
- Passage width 190 mm
- Permissible system weight 180 kg
- Reach 408 mm
- Seat angle 70.5 °
- Seat tube 48 mm
- Shifting name 5-Gang SHIMANO "Nexus" Rücktritt
- Shifting type internal gear shifting
- Stack 541 mm
- Steering tube 220 mm
- Steering tube angle 71.0 °
- Stem length 70.0 mm
- Support up to 25km/h
- Toptube 576 mm
- Type compact bike
- Wheel distance 1108 mm
- Wheel size 20 "
- Battery: BOSCH "Active Line Plus", max. 50 Nm
- Battery Lock: ABUS Akkuschloss
- Bottom bracket: BOSCH
- Brake lever: TRP HD-EU817
- Bremse H.R.: TRP "C1.8 HD-EU817"
- Bremse V.R.: TRP "C1.8 HD-EU817", Post Mount
- Chain / belt: GATES "CDX"
- Chain guard: CURANA "C+", 46 teeth
- Chain ring / pulley: GATES "CDX", 46 teeth, belt line 45.5 mm
- Charger: BOSCH 4 A
- Crank: Stronglight "Magan 3B", 170 mm
- Derailleur hanger: QIO Slider Dropout
- Display: BOSCH "Kiox 300", 4-stages, remote control, push aid
- Engine: BOSCH "Performance Line" engine, max. 75 Nm
- Fender: curana "Apollo Orbit 70"
- Fork: QIO EINS 20", aluminum, tapered 1 1/4" - 1.5", 313.5 mm stem, post mount, forest green glossy
- Frame: QIO EINS, Bosch Gen. 3, BES3, aluminum, 49.5 cm, forest green glossy
- Front carrier: QIO "Ben"
- Front hub: URSUS "RD30", Center Lock, QR
- Front light: Busch + Müller "Briq-S E", 60 Lux
- Front rotor: TRP "TR-25", Ø 180 mm, Centerlock
- Front tire: CONTINENTAL "eContact Plus", 62-406, Reflex
- Grips: HERRMANS "Nucore Town", wave
- Handlebar: ergotec "Lady Town", 650 mm, Ø 31.8 mm, 30° backsweep
- Headset: TOKEN "TK255E-HJ04", IS52/40 / IS52/44
- Pedals: UNION "SP-157", faltbar
- Rear carrier: QIO "MIK HD 2.0" mit MIK STUDS
- Rear hub: SHIMANO "Nexus SG-C7002-5CD", 5-speed, 5-hole
- Rear light: Busch + Müller "Dart E Brex "
- Rear rotor: TEKTRO "TR160-47", Ø 160 mm, 5-hole
- Rear tire: CONTINENTAL "eContact Plus", 62-406, Reflex
- Remote: BOSCH "BRC3600", LED Remote
- Rims: DT SWISS "U 663", 36 hole, eyeletted, tubeless ready
- Saddle: SELLE ROYAL "Essenza Heavy Duty", Moderate Wide
- Seatpost: by,schulz "G.2 ST", Ø 34.9 mm, 400 mm long, 30 mm travel, 12 mm offset
- Sensor: Pedal pressure measuring im Motor + speed sensor
- Shifting lever: SHIMANO "Nexus SL-C7000-5"
- Spokes: DT-Swiss ELEMENTAL, schwarz
- Sprocket / pulley: GATES "CDX", 28 teeth
- Stands: URSUS "R78 - King Mini"
- Stem: BY.SCHULZ "Stem SDS", 1 1/8", 31.8 mm handlebar clamps, 70 mm long, angle 7°, black
- Supplier Article Number: 01723105
- EAN: 4251971164109
- MSRP: €4,599.00
- Fedas-Code: 159021
- DST-Code: 1A01
- WEEE registration number: DE92509320
- SB-Article: No
- Bidex-Code: 123040
- Brand/Supplier QiO
- Unit of measure: PIECE
The QiO "EINS+ P-5" offers you state-of-the-art technology and user-friendliness in an elegant design. With enhanced functions and improved performance, it is the ideal choice for anyone who values quality and reliability. The compact e-bike impresses with a maximum possible rider weight of 150 kg and a permissible total load of 180 kg. Thanks to the Gates CDX Straps, the e-bike is virtually maintenance-free, making it ideal for every day and relaxed tours.Experience faster and smoother use thanks to the latest processors and optimized software. Enjoy more independence with the Bosch "Performance Line" engine and a longer battery life thanks to the 800 Wh power pack. The intuitive Interface and ergonomic design make operation easy and pleasant. The "Fron Rack BEN" Carrier is already integrated as standard and tastefully rounds off the functionality.
