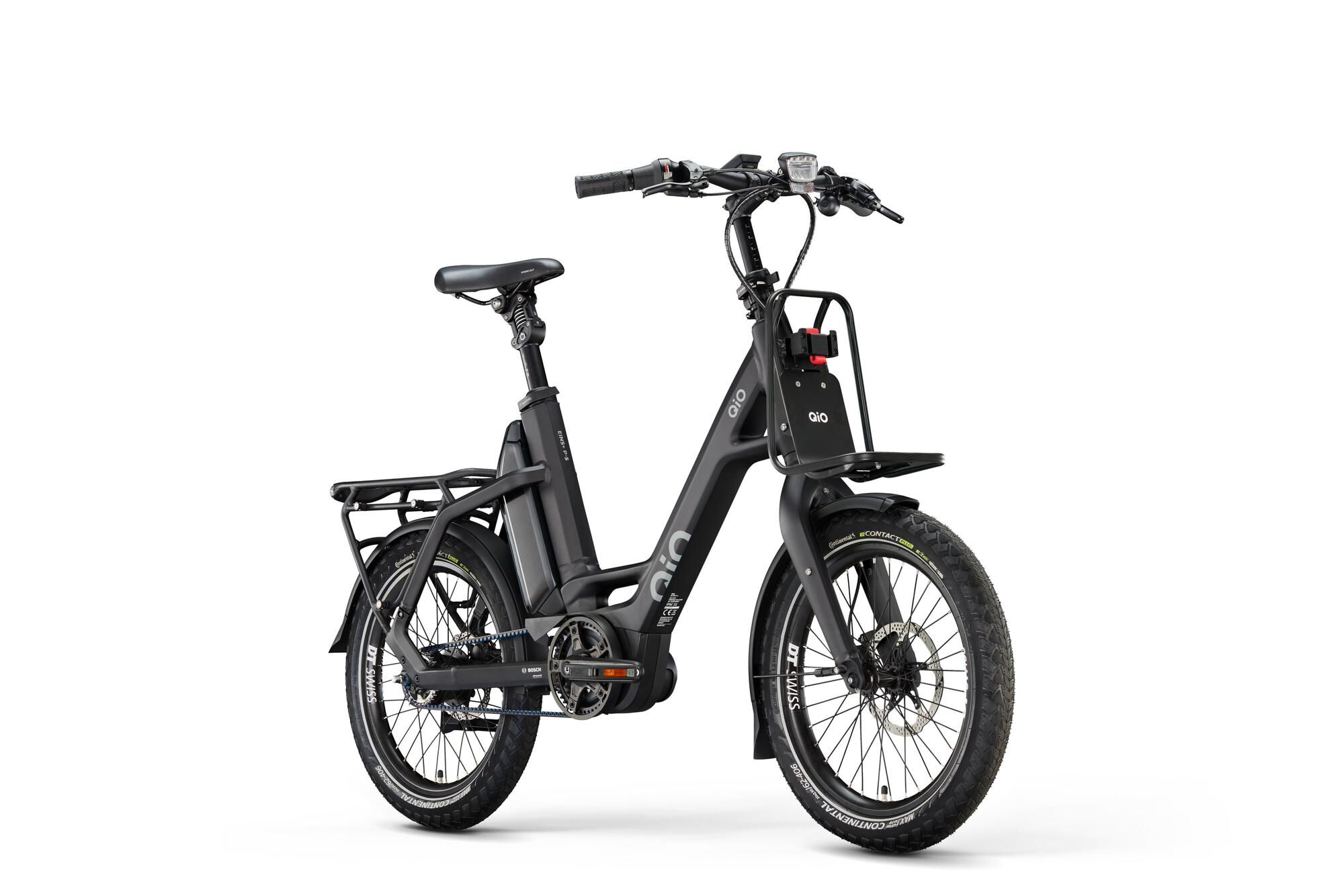

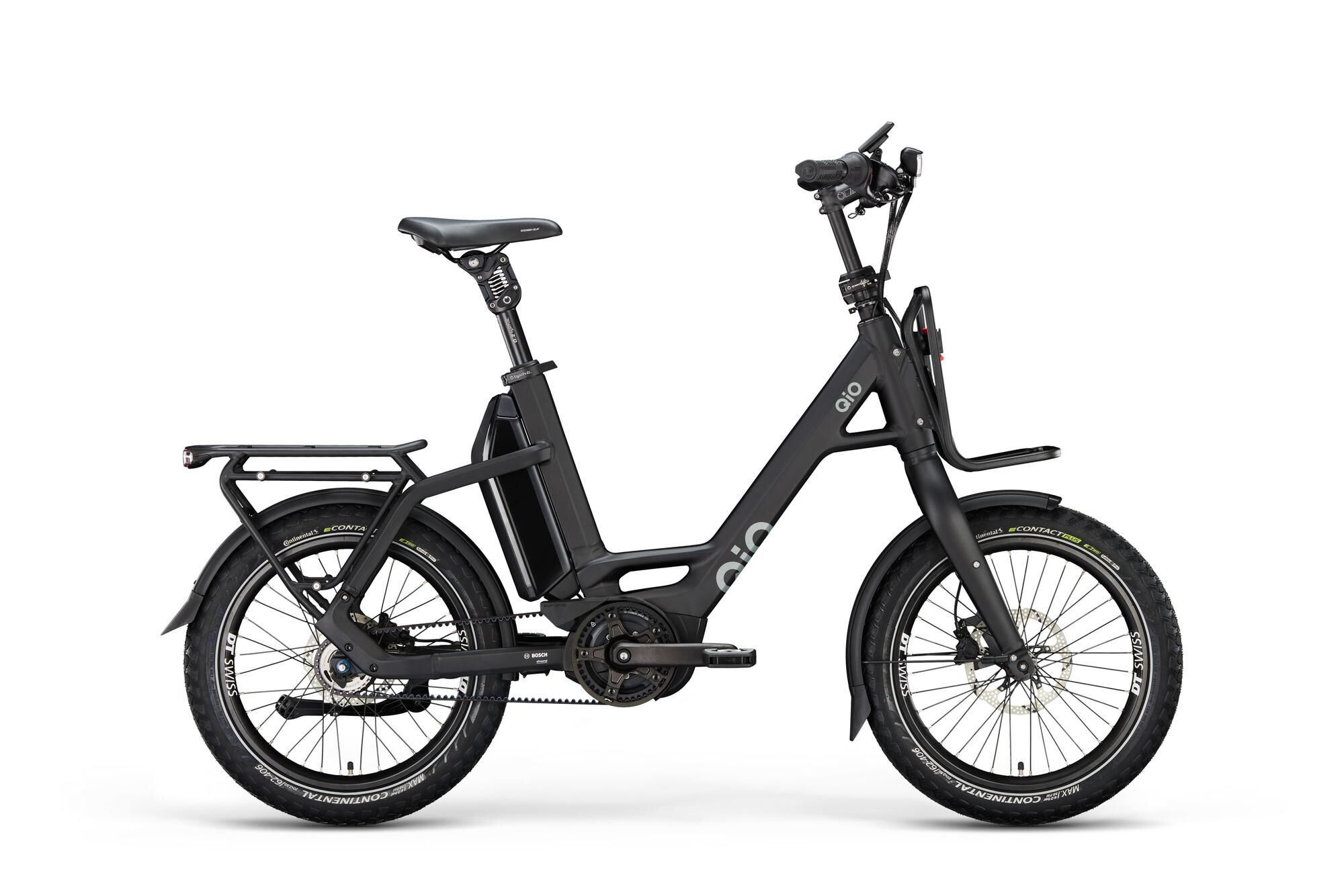

QiO Electric compact bike "EINS+ P-5" (#1)
unisex, 20", night black matt, 5-speed SHIMANO "Nexus" coaster brake, 48 cm
Read more Read less - Article number: 02652066
- Original number: 01723113
The bike is made of aluminum and has a wheel size of 20". The permissible total weight is 180 kg. Drives are provided by a belt drive with a mid-motor. The motor power is 250 W. The bike is equipped with hub gears. It also has a suspension seatposts. The battery capacity is 800.0 Wh.
Product information
- Access height 182 mm
- Battery capacity 800.0 Wh
- Bosch Smart System yes
- Brake system hydraulic disc brake
- Category compact bike
- Chainstay 451 mm
- Colour designation night black matt
- Drive belt drive
- Drive version middle motor
- E-bike yes
- Engine power 250 W
- Features fender
- Frame height 48 cm
- Frame shape unisex
- Gears 5-speed
- Gender unisex
- Length 1685 mm
- Main colour black
- Material 1 aluminium
- Passage width 190 mm
- Reach 408 mm
- Seat angle 70.5 °
- Seat tube 48 mm
- Shifting name 5-Gang SHIMANO "Nexus" Rücktritt
- Shifting type internal gear shifting
- Stack 541 mm
- Steering tube 220 mm
- Steering tube angle 71.0 °
- Stem length 70.0 mm
- Support up to 25km/h
- Toptube 576 mm
- Wheel distance 1108 mm
- Wheel size 20 "
- Battery: BOSCH Powerpack 800, Li-Ionen, 36 V / 22,2 Ah / 800 Wh
- Battery Lock: ABUS 40973 T82 DT3.1, BES3
- Bottom bracket: BOSCH
- Brake lever: TRP HD-EU817
- Bremse H.R.: TRP Scheibenbremse HD-EU817
- Bremse V.R.: TRP Scheibenbremse HD-EU817
- Chain / belt: GATES "CDX", 120Z.
- Chain guard: CURANA "C+" zweiteilig, 46Z.
- Chain ring / pulley: GATES "CDX", 46Z.
- Charger: Bosch 4 Ah
- Crank: STRONGLIGHT "Magan"
- Derailleur hanger: QIO Slider Dropout
- Display: BOSCH "Kiox 300", Multifunktion, Remote Control, Schiebehilfe, eBike Flow App
- Engine: BOSCH Mittelmotor "Performance", 36 V, 250 W, das smarte System
- Fender: CURANA "Apollo Orbit 70", Aluminium, 20 Zoll, schwarz matt
- Fork: Alu 6061 Disc
- Frame: QIO EINS, Alu 6061
- Front carrier: QIO VR-Gepäckträger "BEN" inkl. Klickfix Adapter
- Front hub: URSUS "RD30", 36 Loch, schwarz
- Front light: BUSCH&MÜLLER "BRIQ-S" 60 LUX, DC 9-15V
- Front rotor: 180mm Centerlock
- Front tire: CONTINENTAL "E Contact" Plus, 62-406
- Grips: HERRMANS "Nucore Town Wave", schwarz, Rechts 90MM, Links 123MM
- Handlebar: ERGOTEC "Lady Town" Level 6, Ø 31,8 mm
- Headset: TOKEN "TK255E-HJ04"
- Pedals: Cargo-Pedale bis 150kg Fahrergewicht
- Rear carrier: QIO "MIK-HD" und "MIK-SIDE" Systemträger, B&M Rücklicht integriert
- Rear hub: SHIMANO "Nexus" 8-Gg. RBN
- Rear light: BUSCH&MÜLLER "TOPLIGHT DART BREX", 6-50V, DC, mit Notbremslichtfunktion
- Rear rotor: TEKTRO TR-47, 160mm 5 Loch (RBN)
- Rear tire: CONTINENTAL "E Contact" Plus, 62-406
- Remote: BOSCH LED Remote, das smarte System, Schiebehilfe
- Rims: DT Swiss "U663", Disc, schwarz
- Saddle: SELLE ROYAL "ESSENZA HD"
- Seatpost: BY,SCHULZ "G.2" Federsattelstütze, antitheft 34,9mm x 400mm, Hard
- Sensor: Pedal pressure measuring im Motor + speed sensor
- Shifting lever: SHIMANO "Nexus", 5-Gg.
- Spokes: DT-Swiss ELEMENTAL, schwarz
- Sprocket / pulley: GATES, "CDX", 28Z.
- Stands: URSUS "King-EVO" 40mm schwarz
- Stem: BY,SCHULZ "SDS" 70mm, 7°, 31,8mm
- Supplier Article Number: 01723113
- EAN: 4251971164093
- MSRP: €4,599.00
- Brand/Supplier QiO
- Unit of measure: PIECE
The QiO "EINS+ P-5" offers you state-of-the-art technology and user-friendliness in an elegant design. With enhanced functions and improved performance, it is the ideal choice for anyone who values quality and reliability. The compact e-bike impresses with a maximum possible rider weight of 150 kg and a permissible total load of 180 kg. Thanks to the Gates CDX belt, the e-bike is virtually maintenance-free, making it ideal for every day and relaxed tours.Experience faster and smoother use thanks to the latest processors and optimized software. Enjoy more independence with the Bosch "Performance Line" motor and a longer battery life thanks to the 800 Wh power pack. The intuitive interface and ergonomic design make operation simple and pleasant. The "Fron Rack BEN" pannier rack is already integrated as standard and tastefully rounds off the functionality.
