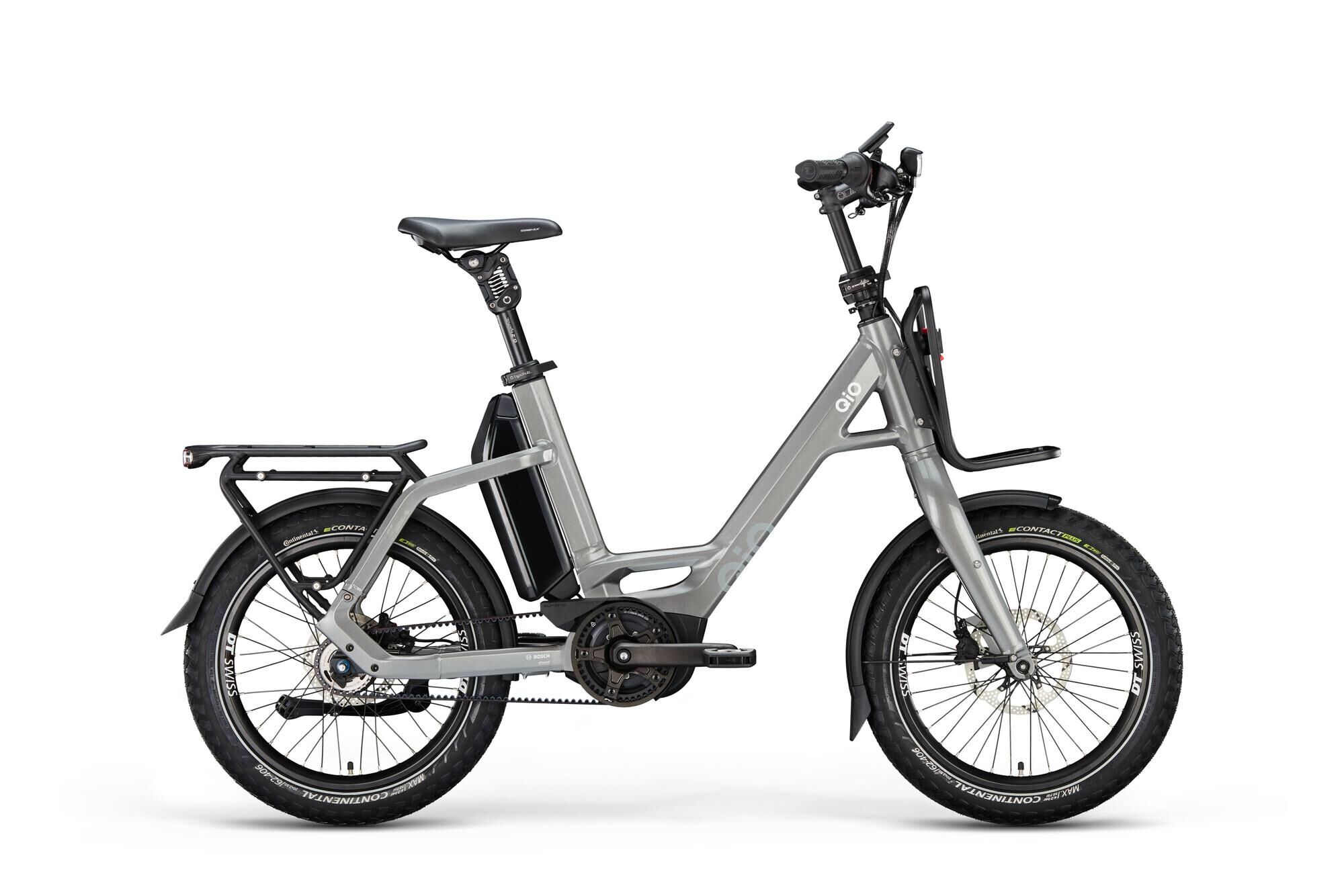

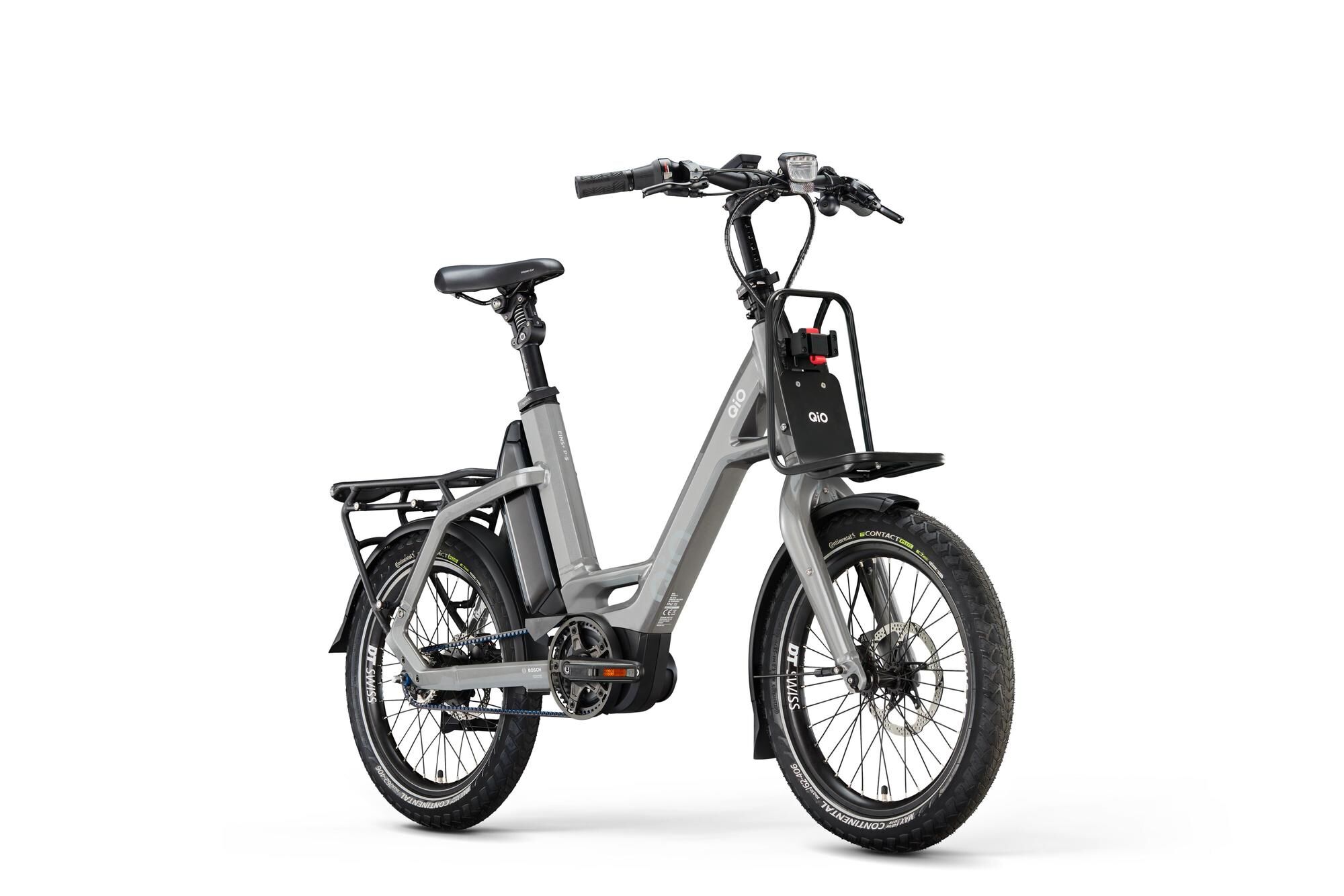

QiO Electric compact bike "EINS+ P-5" (#1)
unisex, 20", lead metal, 5-speed SHIMANO "Nexus" coaster brake, 48cm
- Article number: 02652064
- Original number: 01723089
Product information
- Access height: 182 mm
- Battery capacity: 800.0 Wh
- Bosch Smart System: yes
- Brake system: hydraulic disc brake
- Category: compact bike
- Chainstay: 451 mm
- Colour designation: lead metal
- Drive: belt drive
- Drive system: BOSCH
- Drive version: middle motor
- E-bike: yes
- Engine power: 250 W
- Features: fender
- Frame height: 48 cm
- Frame shape: unisex
- Gears: 5-speed
- Gender: unisex
- Length: 1685 mm
- Main colour: grey
- Material 1: aluminium
- Passage width: 190 mm
- Permissible total weight: 180 kg
- Reach: 408 mm
- Seat angle: 70.5 °
- Seat tube: 48 mm
- Shifting name: 5-Gang SHIMANO "Nexus" Rücktritt
- Shifting type: internal gear shifting
- Stack: 541 mm
- Steering tube: 220 mm
- Steering tube angle: 71.0 °
- Stem length: 70.0 mm
- Support: up to 25km/h
- Toptube: 576 mm
- Wheel distance: 1108 mm
- Wheel size: 20 "
- Battery: BOSCH Powerpack 800, Li-Ionen, 36 V / 22,2 Ah / 800 Wh
- Battery Lock: ABUS 40973 T82 DT3.1, BES3
- Bottom bracket: BOSCH
- Brake lever: TRP HD-EU817
- Bremse H.R.: TRP Scheibenbremse HD-EU817
- Bremse V.R.: TRP Scheibenbremse HD-EU817
- Chain / belt: GATES "CDX", 120Z.
- Chain guard: CURANA "C+" zweiteilig, 46Z.
- Chain ring / pulley: GATES "CDX", 46Z.
- Charger: Bosch 4 Ah
- Crank: STRONGLIGHT "Magan"
- Derailleur hanger: QIO Slider Dropout
- Display: BOSCH "Kiox 300", Multifunktion, Remote Control, Schiebehilfe, eBike Flow App
- Engine: BOSCH Mittelmotor "Performance", 36 V, 250 W, das smarte System
- Fender: CURANA "Apollo Orbit 70", Aluminium, 20 Zoll, schwarz matt
- Fork: Alu 6061 Disc
- Frame: QIO EINS, Alu 6061
- Front carrier: QIO VR-Gepäckträger "BEN" inkl. Klickfix Adapter
- Front hub: URSUS "RD30", 36 Loch, schwarz
- Front light: BUSCH&MÜLLER "BRIQ-S" 60 LUX, DC 9-15V
- Front rotor: 180mm Centerlock
- Front tire: CONTINENTAL "E Contact" Plus, 62-406
- Grips: HERRMANS "Nucore Town Wave", schwarz, Rechts 90MM, Links 123MM
- Handlebar: ERGOTEC "Lady Town" Level 6, Ø 31,8 mm
- Headset: TOKEN "TK255E-HJ04"
- Pedals: Cargo-Pedale bis 150kg Fahrergewicht
- Rear carrier: QIO "MIK-HD" und "MIK-SIDE" Systemträger, B&M Rücklicht integriert
- Rear hub: SHIMANO "Nexus" 8-Gg. RBN
- Rear light: BUSCH&MÜLLER "TOPLIGHT DART BREX", 6-50V, DC, mit Notbremslichtfunktion
- Rear rotor: TEKTRO TR-47, 160mm 5 Loch (RBN)
- Rear tire: CONTINENTAL "E Contact" Plus, 62-406
- Remote: BOSCH LED Remote, das smarte System, Schiebehilfe
- Rims: DT Swiss "U663", Disc, schwarz
- Saddle: SELLE ROYAL "ESSENZA HD"
- Seatpost: BY,SCHULZ "G.2" Federsattelstütze, antitheft 34,9mm x 400mm, Hard
- Sensor: Pedal pressure measuring im Motor + speed sensor
- Shifting lever: SHIMANO "Nexus", 5-Gg.
- Spokes: DT-Swiss ELEMENTAL, schwarz
- Sprocket / pulley: GATES, "CDX", 28Z.
- Stands: URSUS "King-EVO" 40mm schwarz
- Stem: BY,SCHULZ "SDS" 70mm, 7°, 31,8mm
- Supplier Article Number:: 01723089
- EAN: 4251971164079
- MSRP: €4,599.00
- Brand/Supplier QiO
- Unit of measure: PIECE
The QiO "EINS+ P-5" offers you state-of-the-art technology and user-friendliness in an elegant design. With enhanced functions and improved performance, it is the ideal choice for anyone who values quality and reliability. The compact e-bike impresses with a maximum possible rider weight of 150 kg and a permissible total load of 180 kg. Thanks to the Gates CDX belt, the e-bike is virtually maintenance-free, making it ideal for every day and relaxed tours.Experience faster and smoother use thanks to the latest processors and optimized software. Enjoy more independence with the Bosch "Performance Line" motor and a longer battery life thanks to the 800 Wh power pack. The intuitive interface and ergonomic design make operation simple and pleasant. The "Fron Rack BEN" pannier rack is already integrated as standard and tastefully rounds off the functionality.
