travel100mm, steel spring, incl. ahead steering tube 28,6 x 255mm, 1 1/8" thread
9mm quick release dropouts, disc brake mount (Post Mount for max. Ø 180mm), aluminium sliders, steel steering tube, stanchion Ø 28mm

120mm travel, incl. shaft 1 1/8" 200mm, oil right / left lockable steel spring
preload adjustable, hydraulic compression, aluminium black satined bridge, aluminium black sliders, 30mm CrMo polish stanchion, for rim and PM disc brake, max. rotor diameter 180mm, 2,76kg

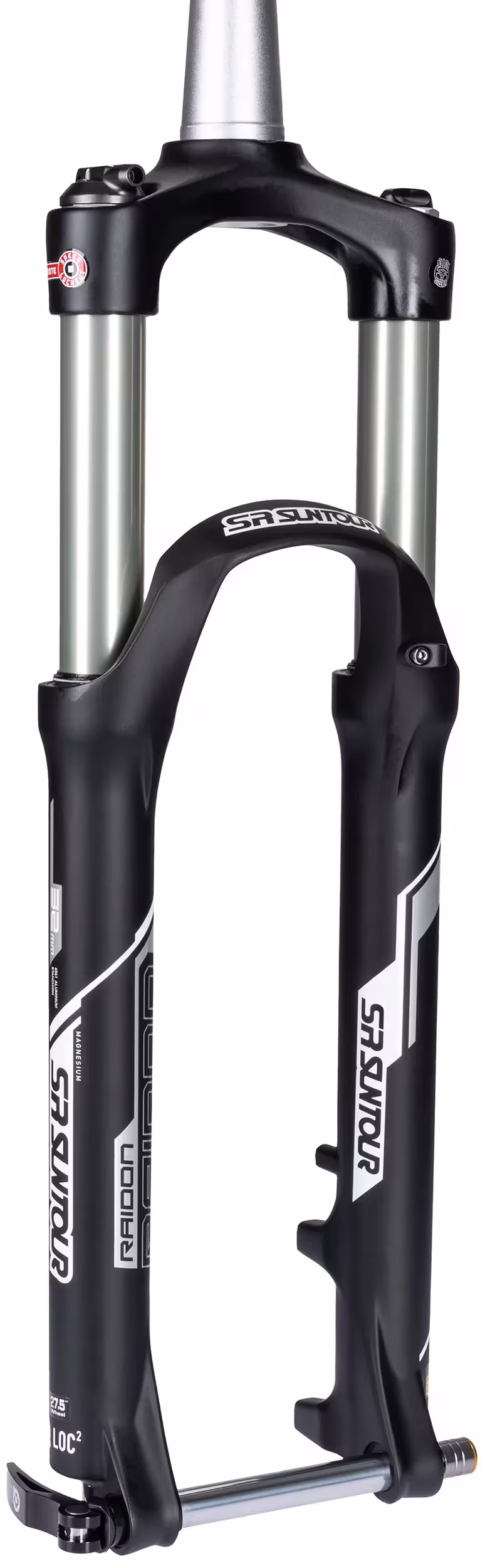

travel100mm, steel spring, incl. ahead steering tube 255mm, tapered 1,5" to 1 1/8", lockable
9mm quick release dropouts, for tires up to 60mm, disc brake mount (Post Mount for max. Ø 180mm), aluminium sliders, steel steering tube, stanchion Ø 32mm, with hydraulic lock out function (NLO)

application: cross country
spring: Solo Air
adjustment: air pressure via Schrader valve
damping: TurnKey Lockout
adjustment: external rebound, external low speed compression up to lockout
steering tube: aluminium, approx. 265mm, 1 1/8" ahead
crown: aluminium, forged
stanchion: steel, 30mm Ø
sliders: magnesium, for PM disc brake 160 up to 185mm Ø, for 9mm QR axle, 42mm offset, max. tire width 62mm
weight: 2545g, 2560g with remote control

travel100mm, air spring, incl. ahead steering tube 255mm, tapered 1,5" to 1 1/8", lockable
9mm quick release dropouts, for tires up to 62mm, disc brake mount (Post Mount for max. Ø 180mm), magnesium sliders, steel steering tube, stanchion Ø 32mm, with remote lockout function (RL), with hole for light bracket, with long fender bracket, suitable for e-bikes and pedelecs

120mm travel, incl. shaft tapered 1,5" to 1 1/8" ahead 200mm, oil right / lockable right air spring
Preload adjustable, hydraulic compression, aluminium black satined bridge, aluminium black sliders, 30mm CrMo polish stanchion, for rim and PM disc brake, max. rotor diameter 180mm, 2,2kg

travel120mm, air spring, incl. ahead steering tube tapered 255mm, 1,5" to 1 1/8", lockable, 15mm thru axle
for tires up to 57mm, disc brake mount (post mount for max. Ø 180mm), rebound adjustment, one-piece magnesium sliders, aluminium steering tube, stanchion Ø 32mm, with Low Speed lockout (RLR), with long fender mount, 2003g

application: cross country
spring: Solo Air
adjustment: air pressure via Schrader valve
damping: Motion Control
adjustment: axternal rebound, external low speed compression up to lockout
steering tube: aluminium, approx. 265mm
crown: hollow forged aluminium
stanchion: steel, 32mm Ø
sliders: magnesium, for PM disc brake 160 up to 220mm Ø, 42mm offset, max. tire width 62mm
accessories: ahead clamp

1,5" to 1 1/8" (tapered),black

application: cross country
spring: Solo Air
adjustment: air pressure via Schrader valve
damping: Motion Control
adjustment: external rebound, external low speed compression up to lockout
steering tube: aluminium, approx. 265mm
crown: aluminium, forged
stanchion: aluminium, 30mm Ø
sliders: magnesium, for PM disc brake 160 up to 185mm Ø, for 9mm QR axle, 42mm offset, max. tire width 62mm
