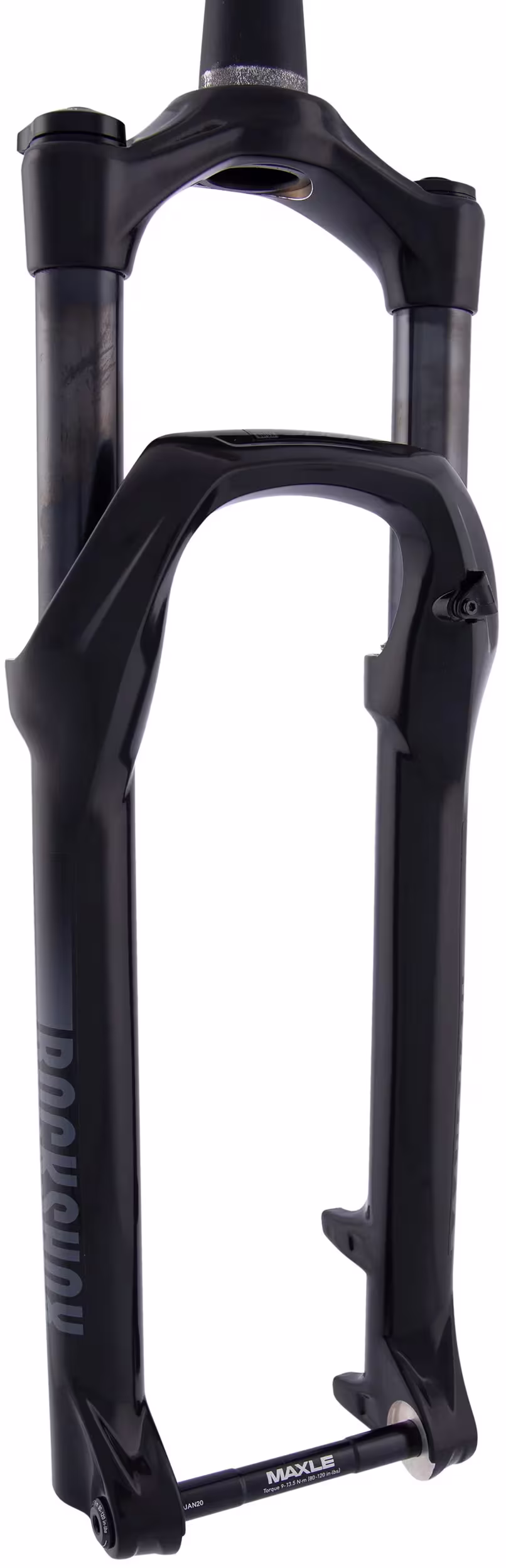

ROCKSHOX suspension fork "Judy Silver TK" 27,5" Boost
application: cross country
spring: Solo Air
adjustment: air pressure via Schrader valve
damping: TurnKey Lockout
adjustment: external rebound, external low speed compression up to lockout
steering tube: aluminium, approx. 265mm, tapered 1,5" to 1 1/8" ahead
crown: aluminium, forged
stanchion: steel, 30mm Ø
sliders: magnesium, for PM disc brake160 up to 185mm Ø, 42mm offset, max. tire width 81mm
accessories: 15 x 110mm Maxle Stealth axle, ahead clamp
black, 100mm travel, with PopLoc, right, 2273g
- Article number: 08052938
- Original number: 00.4020.555.003
black, 120mm travel, with PopLoc, right, 2273g
- Article number: 08052946
- Original number: 00.4020.555.004

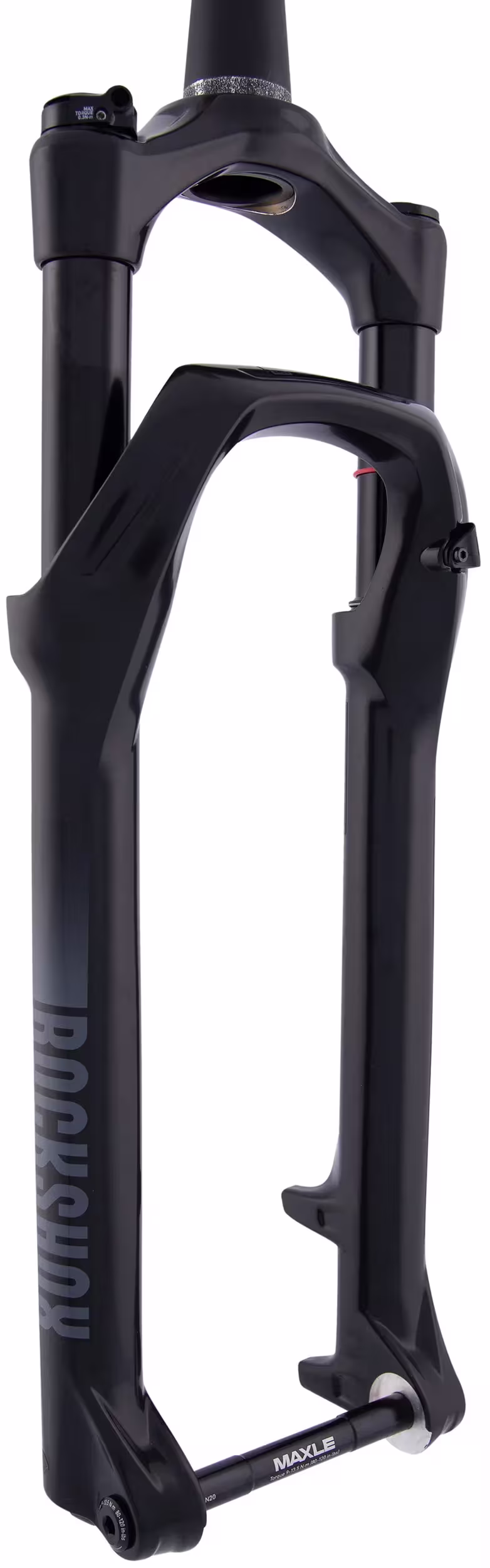

ROCKSHOX suspension fork "Recon RL" 27,5" boost
42mm offset
ROCKSHOX suspension fork "Recon Silver RL" 27,5" Boost
application: cross country
spring: Solo Air
adjustment: air pressure via Schrader valve
damping: Motion Control
adjustment: external rebound, external low speed compression uop to Lockout
steering tube: aluminium, approx. 265mm, tapered 1,5" to 1 1/8" ahead
crown: hollow forged aluminium
stanchion: steel, 32mm Ø
sliders: magnesium, for PM disc brake 160 up to 220mm Ø, 46mm offset, max. tire width 81mm
accessories: 15 x 110mm Maxle Stealth axle, ahead clamp
weight: 2303g 100 - 120mm travel, 2313g 130mm travel
ROCKSHOX suspension fork "Judy Gold RL" 27,5" Boost
application: cross country
spring: Solo Air
adjustment: air pressure via Schrader valve
damping: Motion Control
adjustment: external rebound, external low speed compression up to lockout
steering tube: aluminium, approx. 265mm, tapered 1,5" to 1 1/8" ahead
crown: aluminium, forged
stanchion: aluminium, 30mm Ø
sliders: magnesium, for PM disc brake 160 up to 185mm Ø, 42mm offset, max. tire width 81mm
accessories: 15 x 110mm Maxle Stealth axle, ahead clamp
weight: 1969g, 1984g with remote control

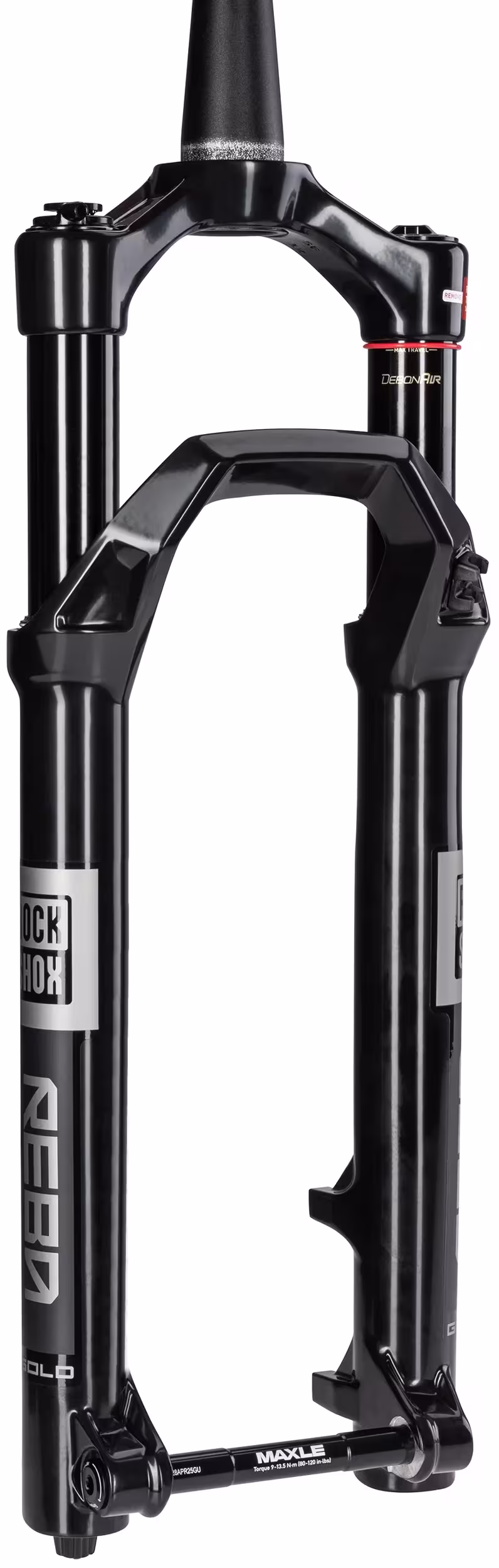

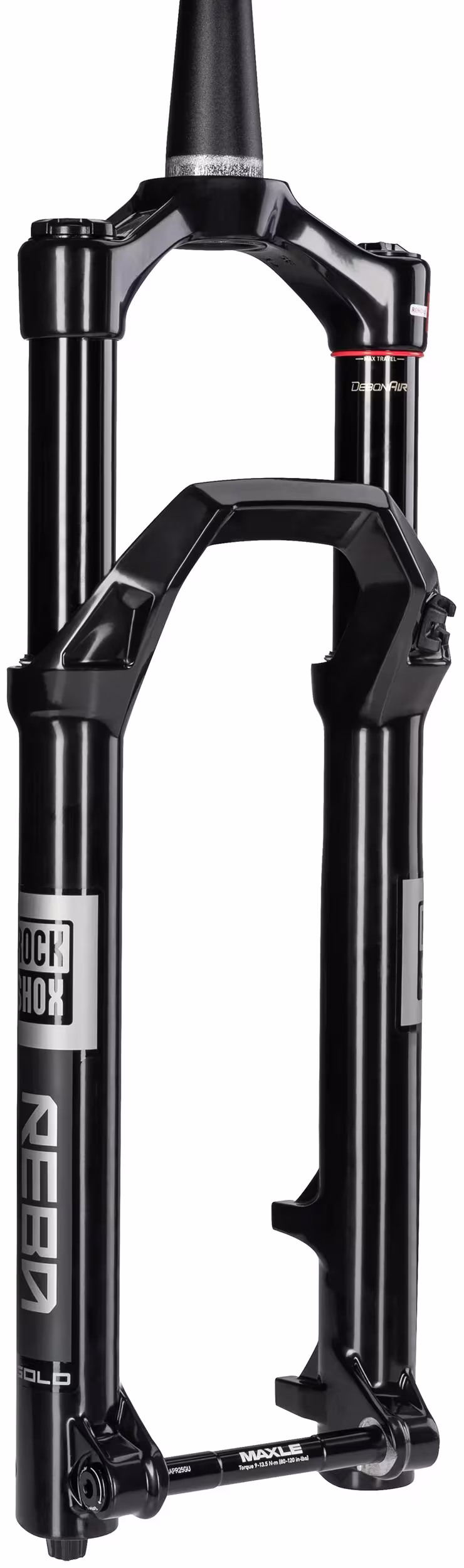

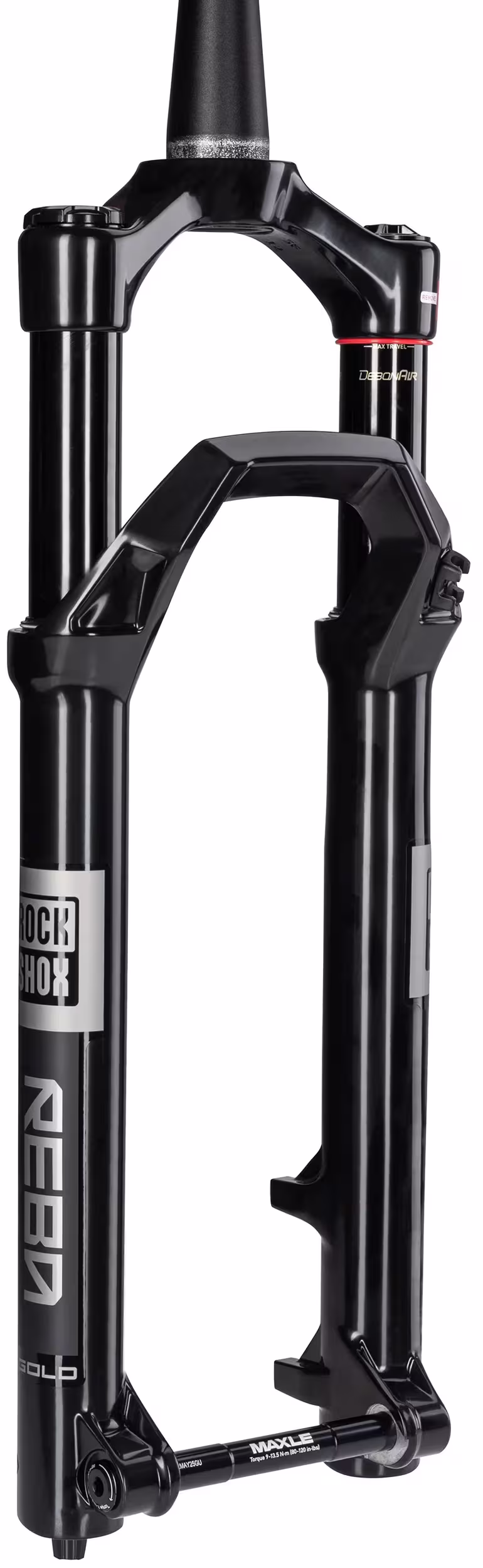

ROCKSHOX suspension fork "Reba RL" 27,5" Boost
application: cross country
spring: Solo Air
adjustment: air pressure via Schrader valve
damping: Motion Control
adjustment: external rebound, external low speed compression up to lockout
steering tube: aluminium, approx. 265mm, tapered 1,5" to 1 1/8" ahead
crown: hollow forged aluminium
stanchion: aluminium, 32mm Ø
sliders: magnesium, for PM disc brake 160 up to 220mm Ø, 42mm offset, max. tire width 81mm
accessories: 15 x 110mm Maxle Stealth axle, ahead clamp
weight: 1585g 100mm travel, 1668g 120mm travel

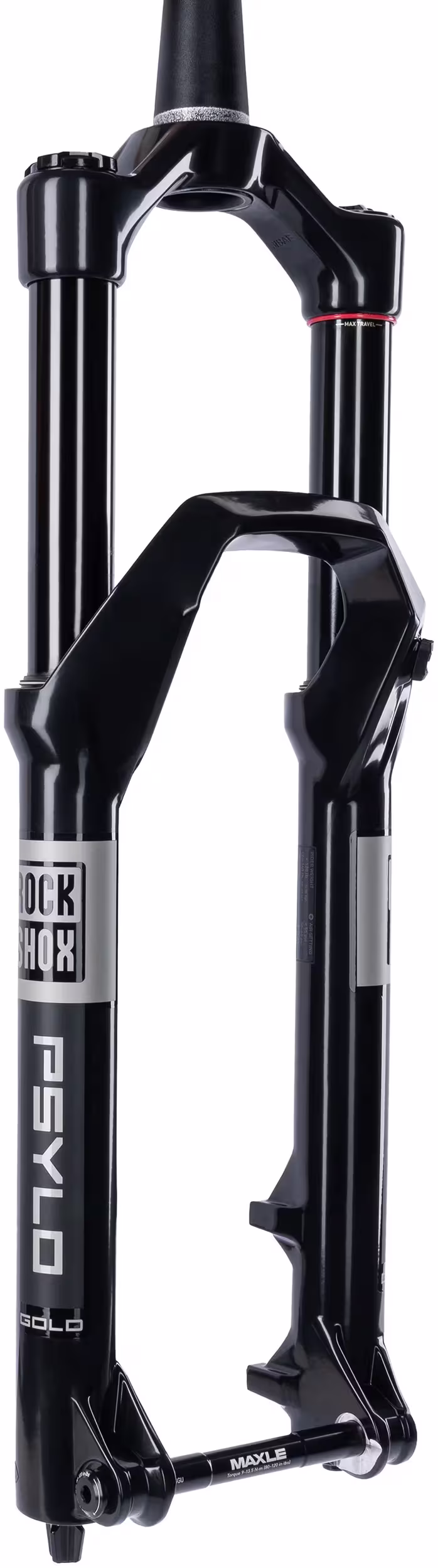

ROCKSHOX suspension fork "Psylo Gold Isolator RC " 27,5" Boost
application: trail / all mountain
spring: DebonAir+
adjustment: air pressure via Schrader valve
damping: Isolator RC
adjustment: external rebound, external compression 3-stage: open/pedal/firm
steering tube: aluminium, approx. 265mm, tapered 1,5" to 1 1/8" ahead
crown: hollow forged aluminium
stanchion: aluminium, 35mm Ø
sliders: aluminium, for PM disc brake 180 up to 220mm Ø, 44mm offset, max. tire width: 81mm
accessories: Maxle Stealth thru axle 15 x 110mm, plug-in fender, 3 bottomless tokens, ahead clamp
ROCKSHOX suspension fork "Psylo Gold Isolator RC" 27,5"+ / 29" Boost
application: trail / all mountain
spring: DebonAir+
adjustment: air pressure via Schrader valve
damping: Isolator RC
adjustment: external rebound, external compression 3-stage: open/pedal/firm
steering tube: aluminium, approx. 265mm, tapered 1,5" to 1 1/8" ahead
crown: hollow forged aluminium
stanchion: aluminium, 35mm Ø
sliders: aluminium, for PM disc brake 180 up to 220mm Ø, 44mm offset, max. tire width: 81mm
accessories: Maxle Stealth thru axle 15 x 110mm, plug-in fender, 3 bottomless tokens, ahead clamp

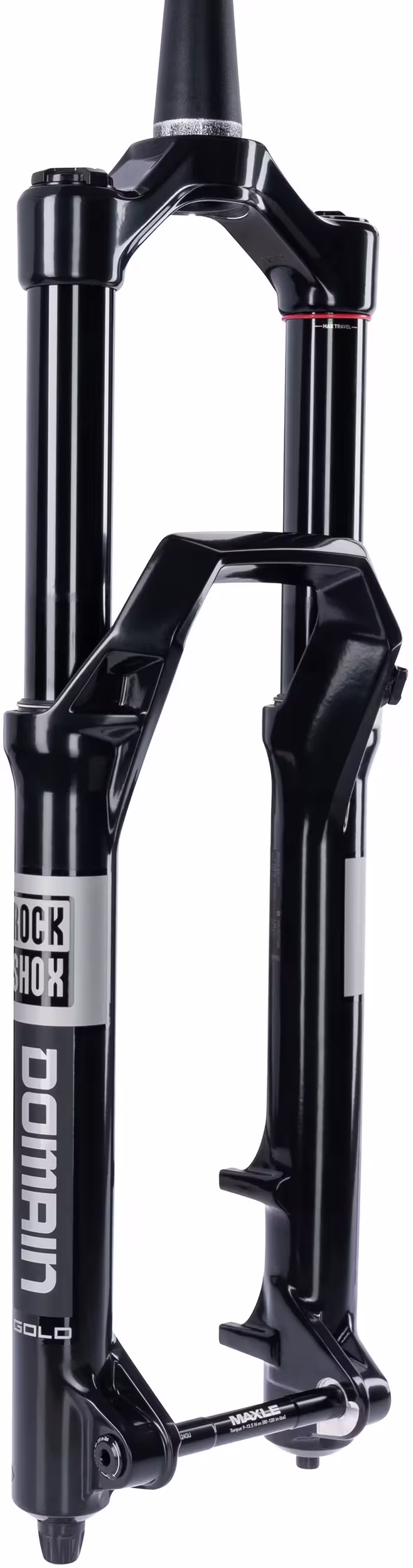

ROCKSHOX suspension fork "Domain Gold Isolator RC3" 27,5" Boost
application: enduro / gravity
spring: DebonAir+
adjustment: air pressure via Schrader valve
damping: Isolator RC
adjustment: external rebound, external compression 3-stage: open/pedal/firm
steering tube: aluminium, approx. 265mm, tapered 1,5" to 1 1/8" ahead
crown: hollow forged aluminium
stanchion: aluminium, 38mm Ø
sliders: aluminium, for PM disc brake 200 up to 220mm Ø, 44mm offset, max. tire width: 81mm
accessories: Maxle Stealth thru axle 15 x 110mm, plug-in fender, 2 bottomless tokens, ahead clamp
ROCKSHOX suspension fork "Domain Gold Isolator RC3" 27,5 +/ 29" Boost
application: enduro / gravity
spring: DebonAir+
adjustment: air pressure via Schrader valve
damping: Isolator RC
adjustment: external rebound, external compression 3-stage: open/pedal/firm
steering tube: aluminium, approx. 265mm, tapered 1,5" to 1 1/8" ahead
crown: hollow forged aluminium
stanchion: aluminium, 38mm Ø
sliders: aluminium, for PM disc brake 200 up to 220mm Ø, 44mm offset, max. tire width: 81mm
accessories: Maxle Stealth thru axle 15 x 110mm, plug-in fender, 2 bottomless tokens ahead clamp

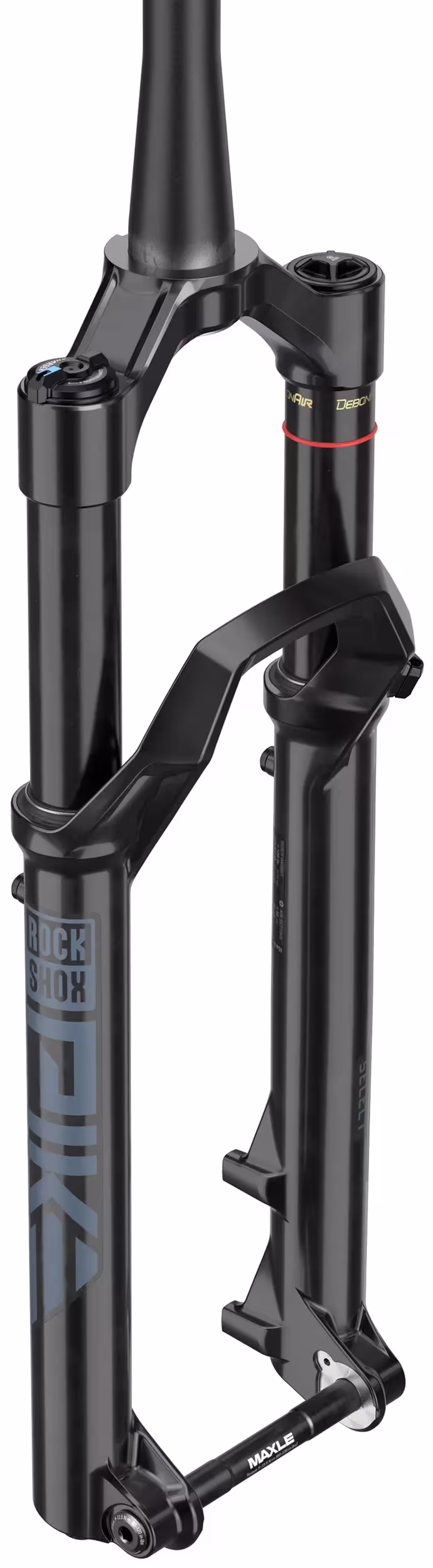

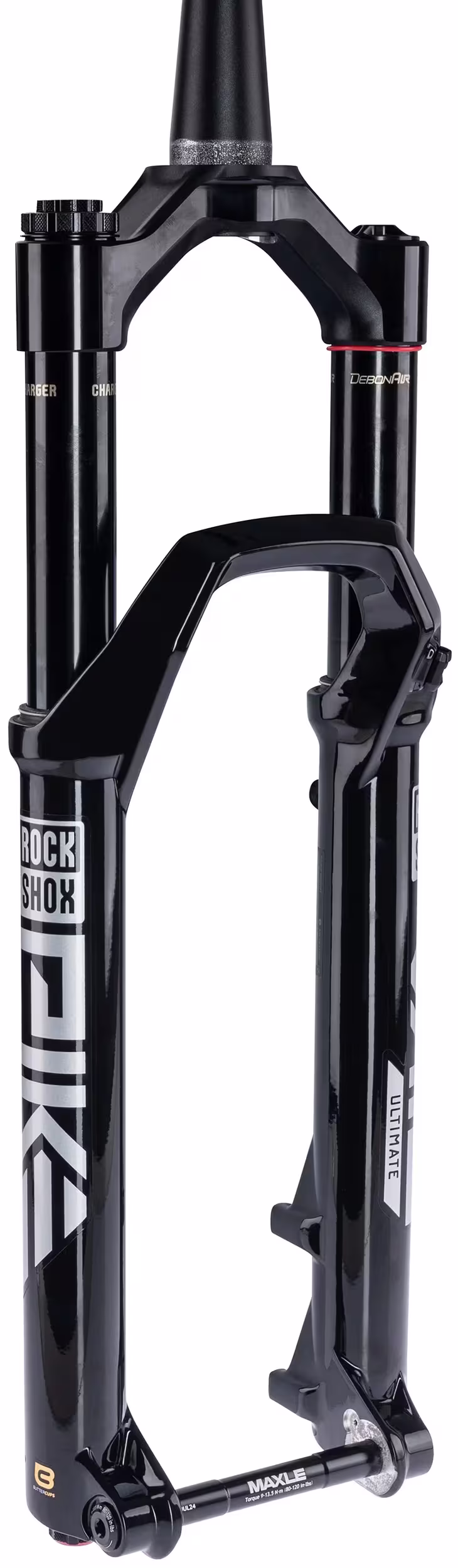

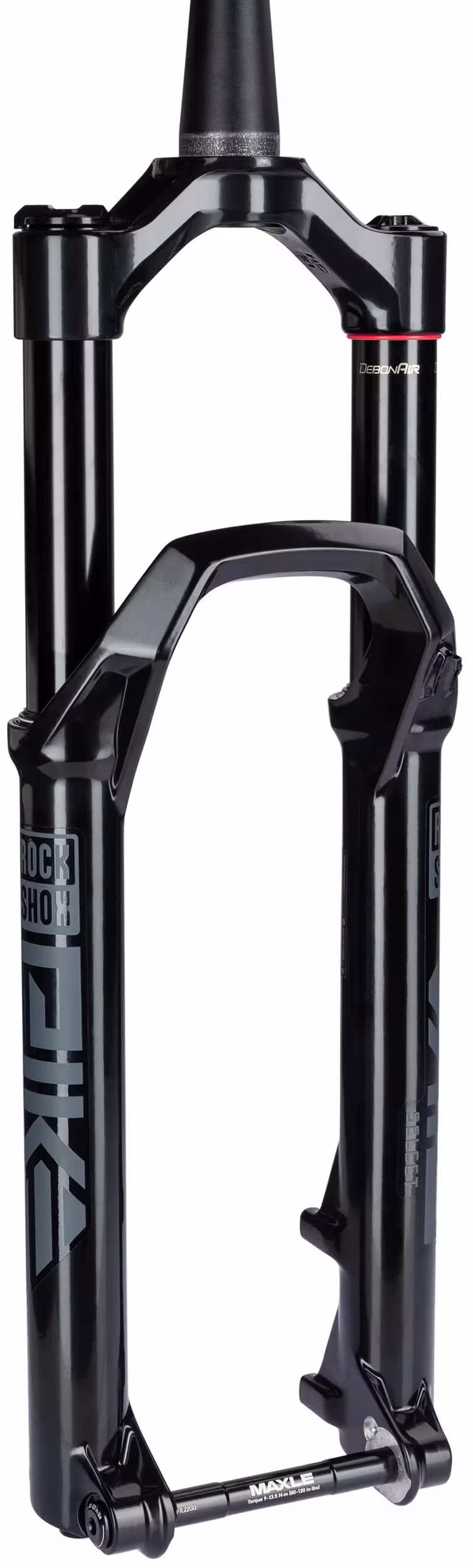

ROCKSHOX suspension fork "Pike Select RC" 27,5" Boost
application: trail / all mountain
spring: DebonAir+
adjustment: air pressure via Schrader valve
damping: Charger RC
adjustment: external rebound, low speed compression
steering tube: aluminium, approx. 265mm, tapered 1,5" to 1 1/8" ahead
crown: hollow forged aluminium
stanchion: aluminium, 35mm Ø
sliders: magnesium, for PM disc brake 180 to 220mm Ø, max. tire width 81mm
accessories: 15 x 110mm Maxle Stealth thru axle, plug-in fender to screw, 2 bottomless tokens, ahead clamp
