aluminium 7075 CNC, fully integrated, black, self-service package
ahead, for road bike, sealed angular contact ball bearings (45° x 45°), stack height: 9,9mm, approx. 90g

1 1/8", with aluminum cover, once usable

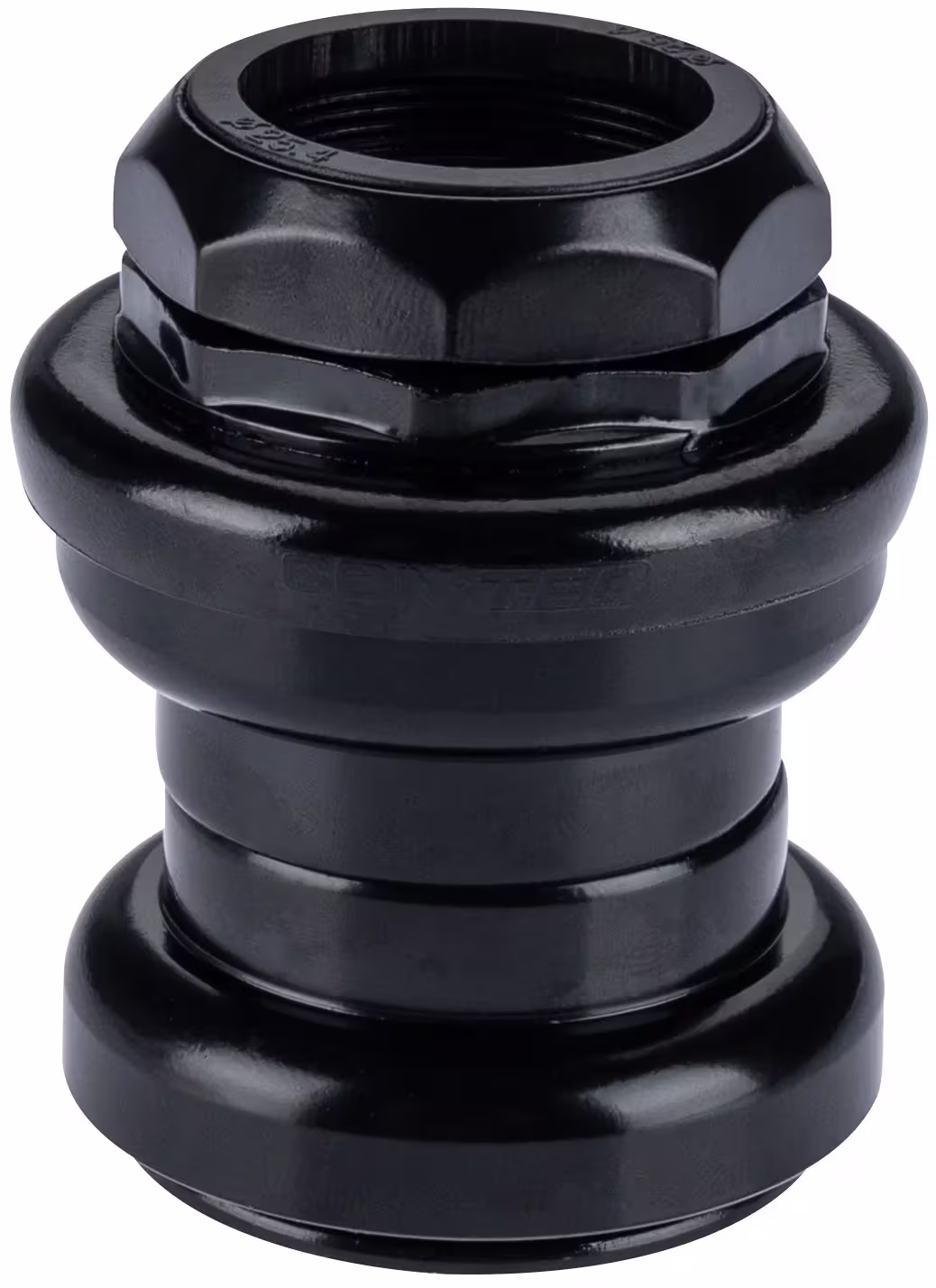

1 1/8", steel, self-service package
sealed cartridge-ball bearings, crown race Ø 30,0mm, stack height: 36,0mm (up: 24,1mm / down: 11,9mm), 160g

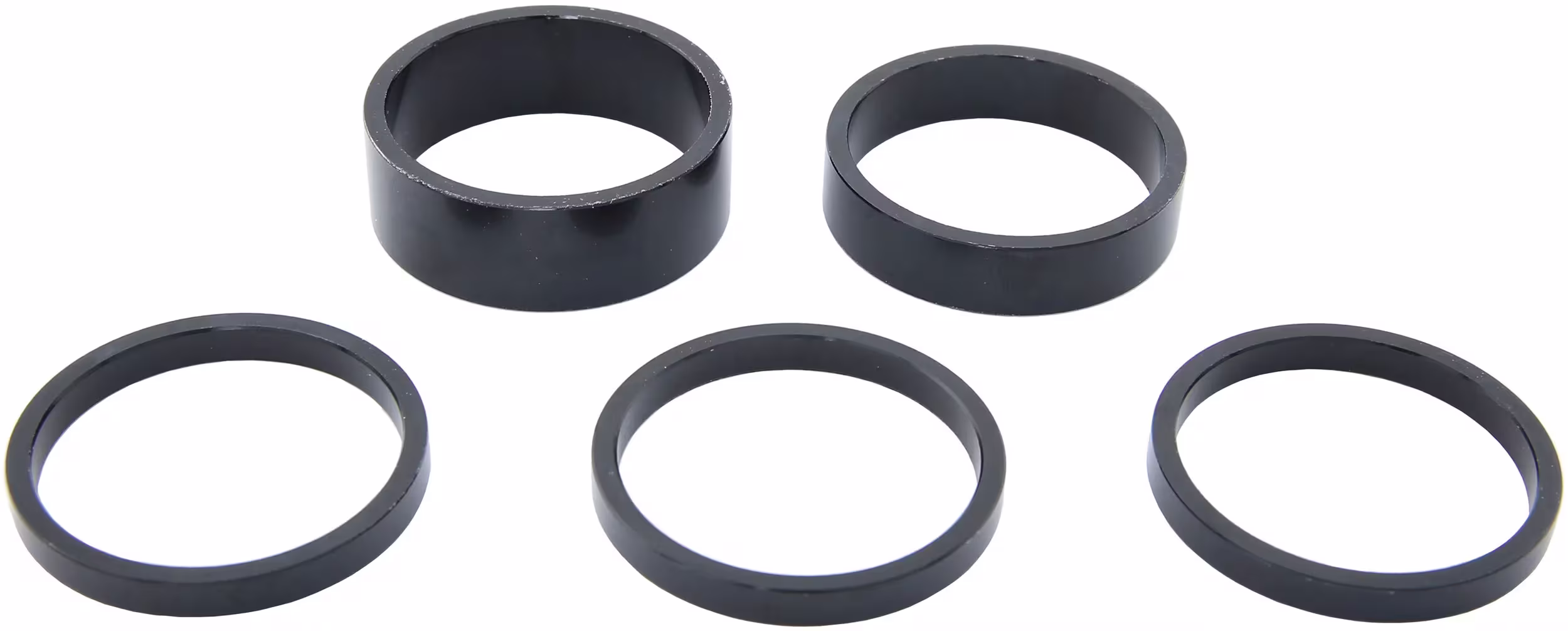

self-service package, with 5 aluminium spacers
3x 5mm, 1x 10mm, 1x 15mm

1 1/8", self-service package, with aluminium cap and screw

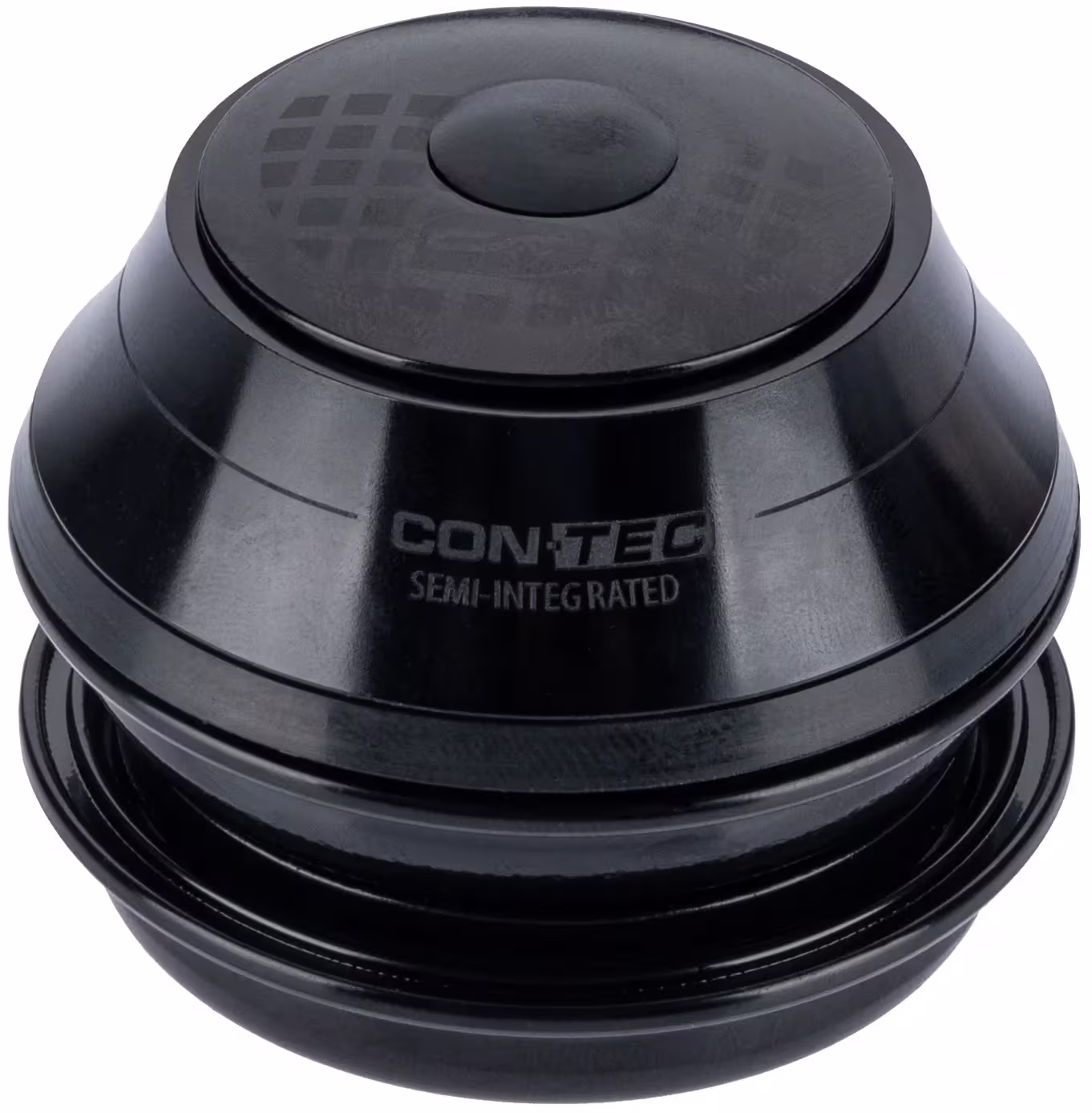

1 1/8", aluminium, semi-integrated, self-service package
ahead, ball bearings, crown race Ø 30,0mm, stack height: 20,9mm (up: 18,3mm / down: 2,6mm), press-fit-Ø 44mm, 98g

1 1/8" - 1,5" (tapered), aluminium, semi-integrated, self-service package, black
ahead, sealed industrial bearings, crown race Ø 39,8mm, stack height: 26,2mm, press-fit Ø 44mm top / 56mm below

1 1/8", aluminium, semi-integrated, self-service package
ahead, sealed industrial bearings, crown race Ø 30,0mm, stack height: 20,6mm (up: 18,6mm / down: 2mm), press-fit-Ø 44mm, 99,5g

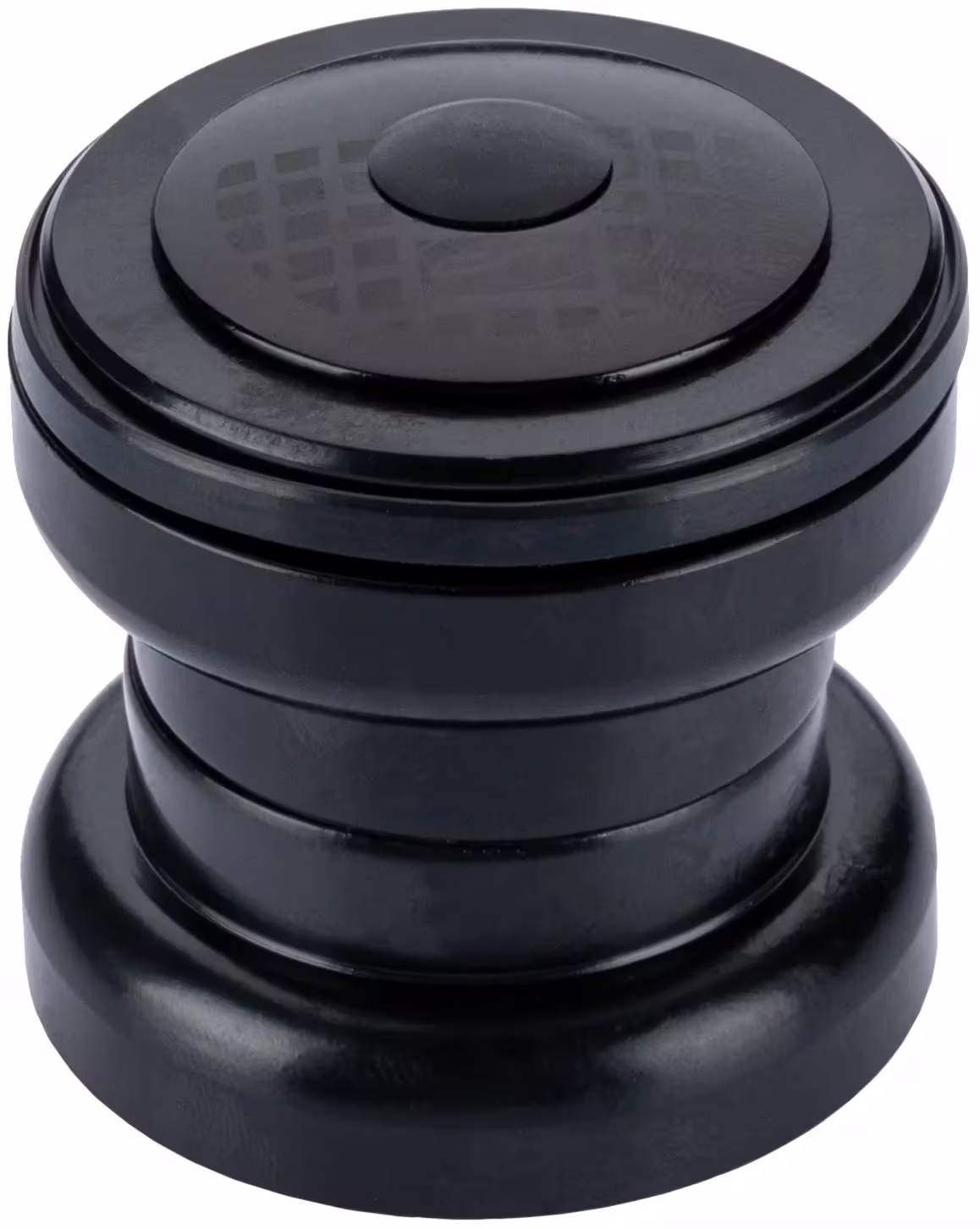

1 1/8", steel, self-service package
ahead, ball bearings, crown race Ø 30,0mm, stack height: 25,7mm (up: 13,7mm / down: 12mm), 112g

1 1/8", steel, semi-integrated, black, self-service package
ahead, for MTB, cartridge-ball bearings, for 44mm inner diameter of the head tube, approx. 98g
