CONTEC "Classic Z19" rims
28" x 1.75, 19-622, max. load up to 150 kg system weight
aluminum, hollow chamber, machined on the side
double eyelet, DV, 21.5 mm high, 19 mm inner width, 24 mm outer width, maximum spoke tension 1200 Nm, suitable for e-bikes / e-bikes, with wear indicator

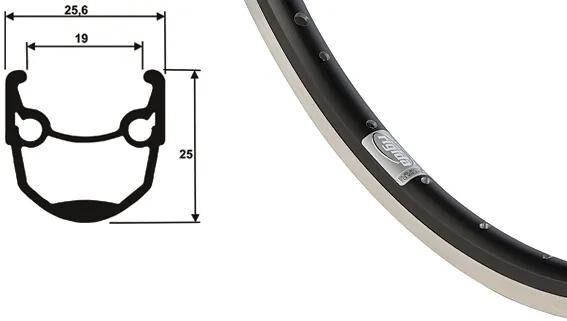

RYDE rim "Andra 10"
19-622 (28" x 1,75)
aluminium, doublewall, CNC sidewall
DV (6,5mm)
bending free spoke image (internally punched), for E-bikes / electric drive and building hubs with large diameters, qualified for high loads
RYDE rim "Sputnik"
19-622 (28" x 1,75), 36 holes
aluminium, doublewall, CNC sidewall, 745g
double eyelets, DV

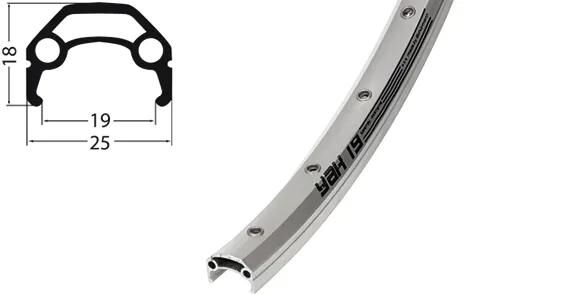

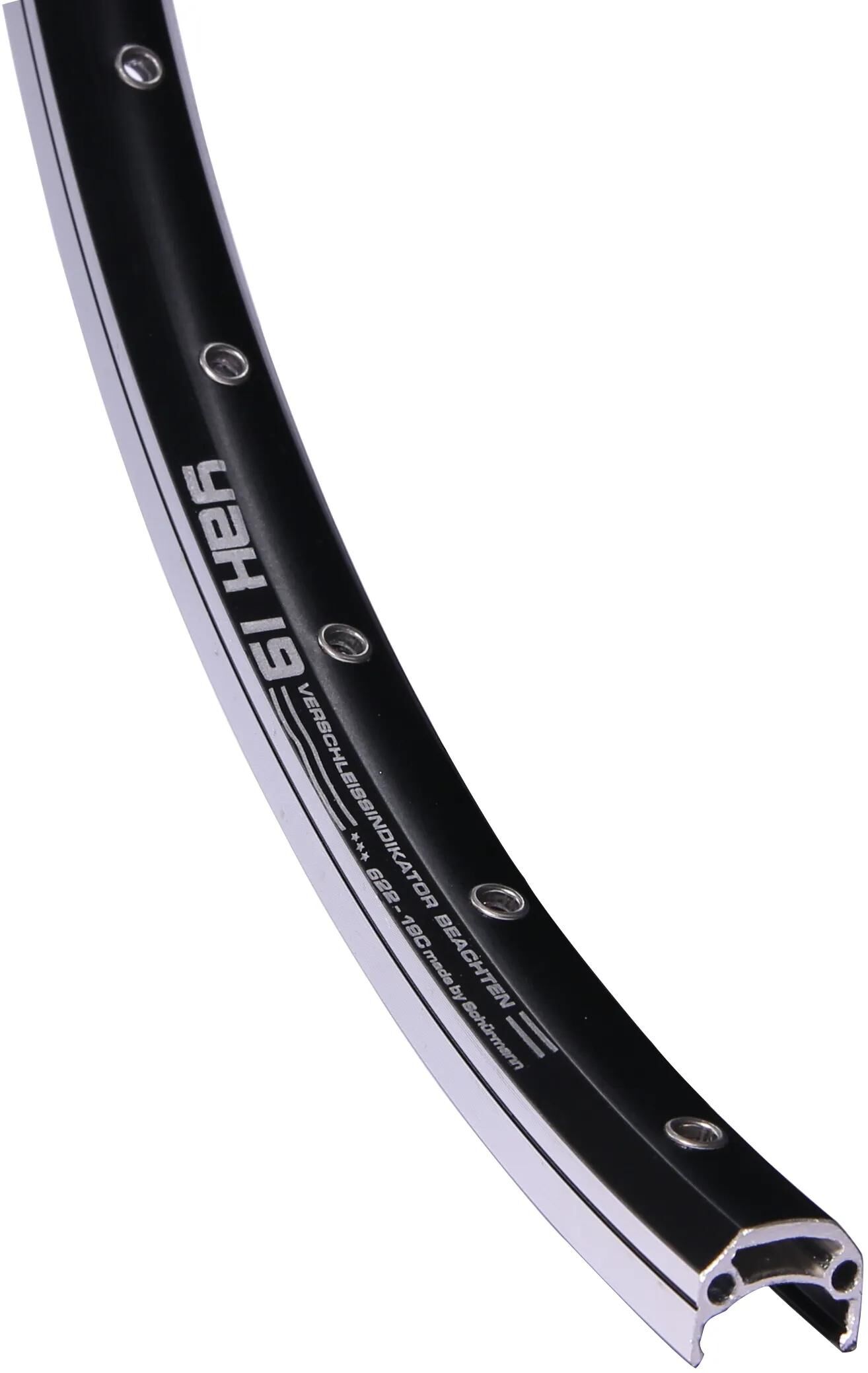

SCHÜRMANN rim "Yak 19"
19-622 (28" x 1,75), 36 holes
aluminium, doublewall
double eyelets, DV

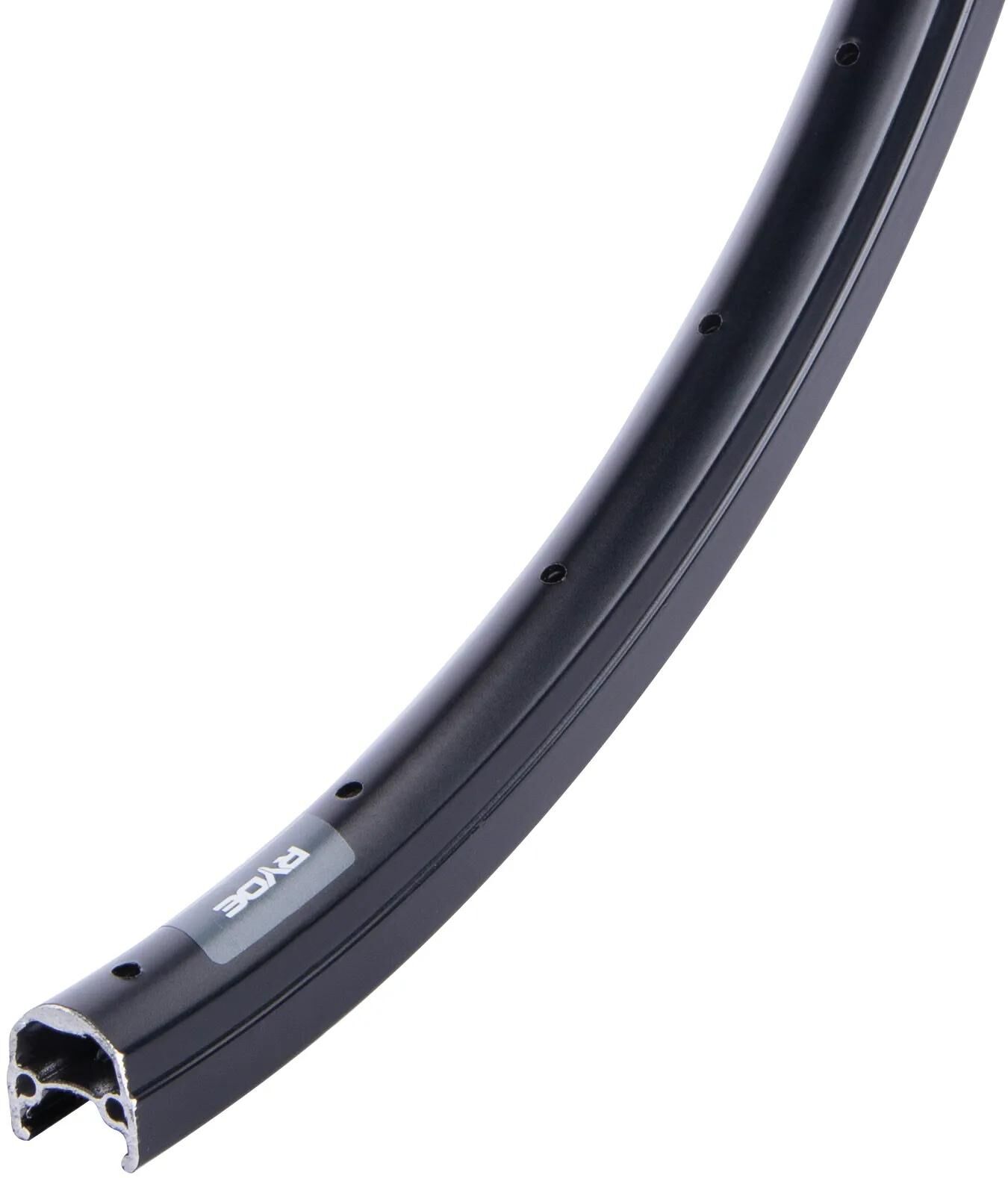

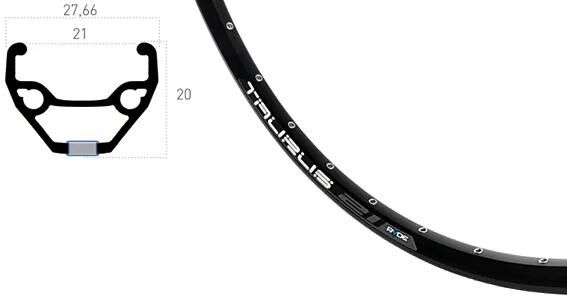

RYDE rim "Taurus 21"
21-622 (700 C)
aluminium, doublewall
easy eyelets, DV
for disc brake
RODI rim "Vision 25"
25-559 (26" x 1,75), 36 holes
aluminium
painted surface, with brake indicator
SCHÜRMANN rim "Yak 19"
19-622 (28" x 1,75), 32 holes
aluminium, doublewall
DV

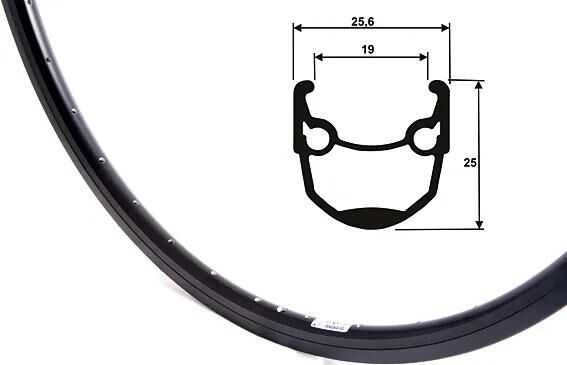

RYDE "Andra 10" rims
19-622 (28" x 1,75)
aluminum, hollow chamber
non-extruded, kink-free spoke pattern (internally punched), for electric drives and mounting of large diameter hubs, suitable for highest loads
ERD 590 mm
for Disc Brakes

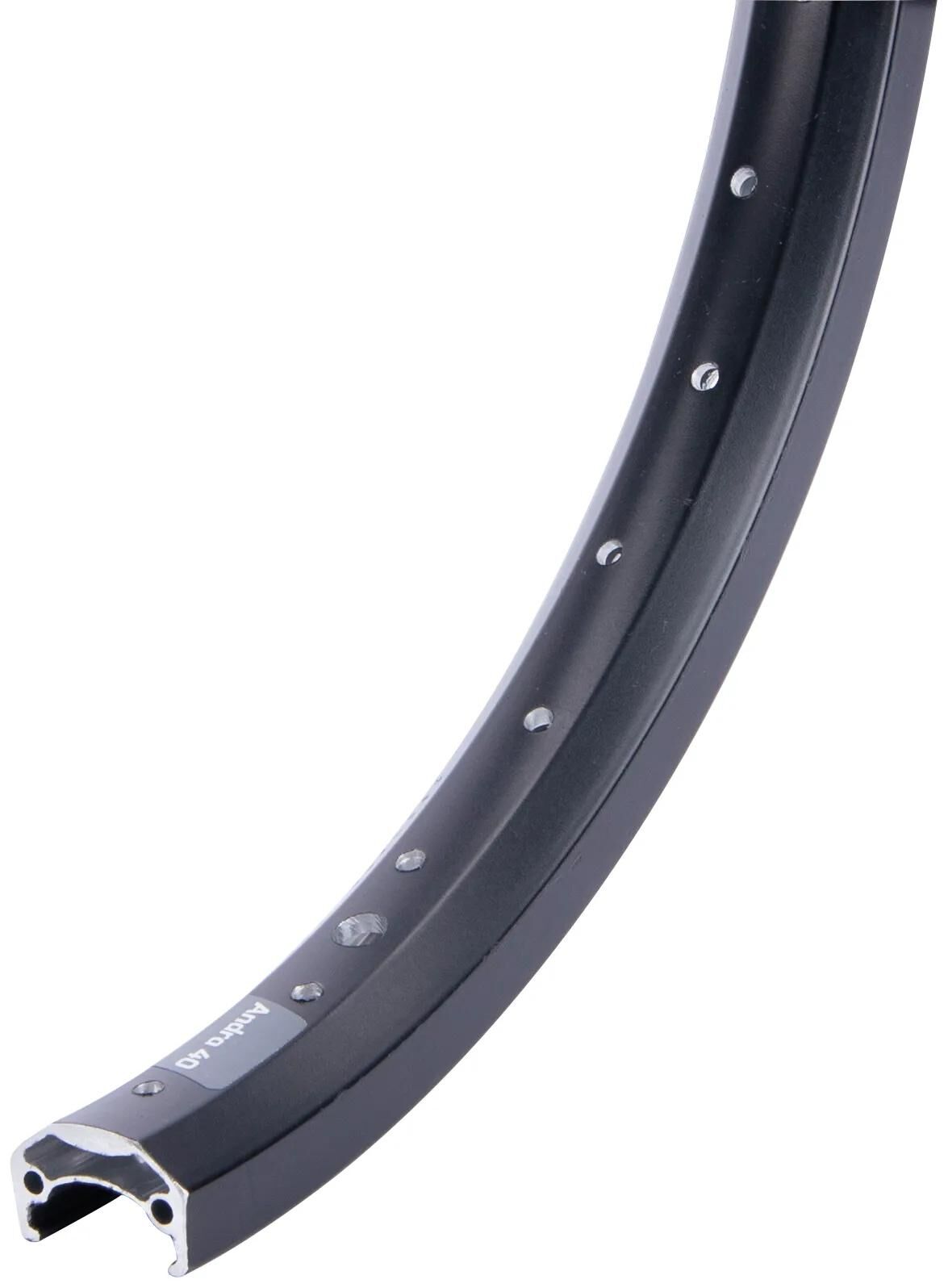

RYDE rim "Andra 40"
25-406 (20" x 1,75)
aluminium, doublewall
DV
bending free spoke image (internally punched), for E-bikes/electric drive and building hubs with large diameters, qualified for high loads

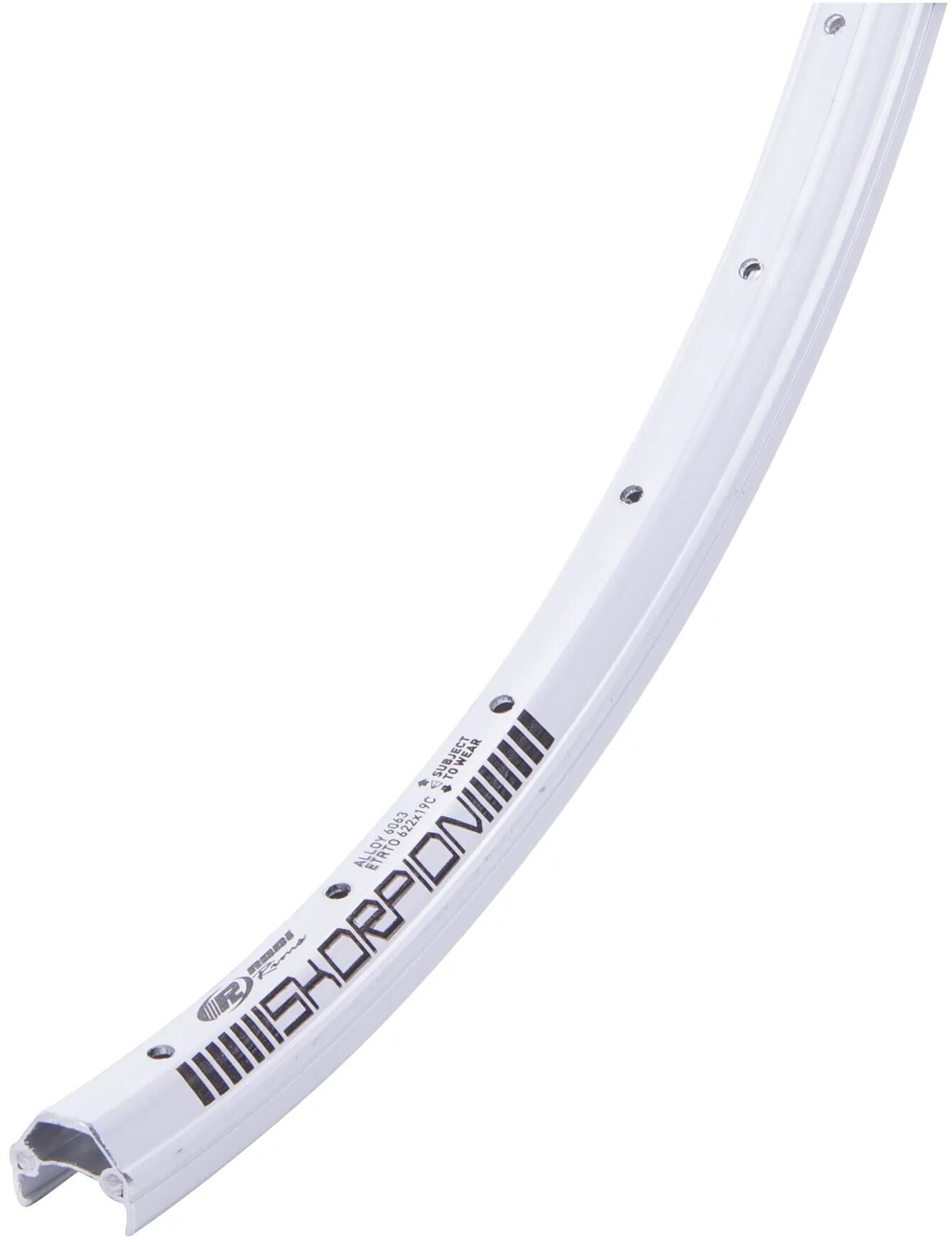

RODI rim "Skorpion"
19-622 (28")
aluminium, doublewall, CNC sidewall
no eyelets, roof profile, DV
with wear indicator
