Fork Connector
isolated crimp connector, according to DIN 46 237, form C
cross section: 0,5 - 1,0mm², Öeyelet hole: 6,5mm / M6, red (HELLA)
- Article number: 24512675
- Original number: 8KW 744 780-003
cross section: 1,5 - 2,5mm², eyelet hole: 5,3mm / M5, blue (HELLA)
- Article number: 24500407
- Original number: 8KW 044 282-003
HELLA crimp connector
solderless, uninsulated, tubular cable lugs/ring connector, for pressing, tin-plated copper, DIN 46234
Note: delivery in package with 25 pieces, price per piece
cross section: 16 - 25mm², bore: 6,5mm, for screw: M6
- Article number: 24511834
- Original number: 8KW 744 724-003
HERTH+BUSS Repair Cable "RepLine"
crimp connector and cable line already crimped, a complete operation is not required
Cable made of high flexible, temperature resistant silicone. Current carrying capacity: 19A, surface: zinc-plated, temperature range: -25 to +185°C, voltage: till 48V, cable length: 300mm
limitation: AMP Tyco JPT, design: blade terminal sleeve, plug width: 2,8mm, plug height: 0,8mm, cable cross section: 0,75mm²
- Article number: 2441209A
- Original number: 51277203
limitation: AMP Tyco JPT, design: blade terminal sleeve, plug width: 2,8mm, plug height: 0,8mm, cable cross section: 1mm²
- Article number: 2455350H
- Original number: 51277216
limitation: AMP Tyco MCP 1,5, design: blade terminal sleeve, plug width: 1,6mm, plug height: 0,6mm, cable cross section: 0,5mm²
- Article number: 24325052
- Original number: 51277214
limitation: AMP Tyco MCP 1,5, design: blade terminal sleeve, plug width: 2,8mm, plug height: 0,8mm, cabe cross section: 0,75mm²
- Article number: 24325060
- Original number: 51277215
limitation: AMP Tyco MCP 2,8, Delphi DCK 2,8, design: blade terminal sleeve, plug width: 2,8mm, plug height: 0,8mm, cable cross section: 1mm²
- Article number: 2455351H
- Original number: 51277217
limitation: AMP Tyco MQS, design: blade terminal sleeve, plug width: 0,6mm, plug height: 0,6mm, cable cross section: 0,75mm²
- Article number: 2441214A
- Original number: 51277207
limitation: AMP Tyco MT II, design: blade terminal sleeve, plug width: 1,6mm, plug height: 0,8mm, cable cross section: 0,75mm²
- Article number: 2441216A
- Original number: 51277209
limitation: AMP Tyco MT II, AMP Tyco MCP 1,5, design: blade terminal, plug width: 1,6mm, plug height: 0,6mm, cable cross section: 0,75mm²
- Article number: 2455282H
- Original number: 51277213
HERTH+BUSS Crimp Connector
uninsulated, brass
blade terminal, asymmetric, cross section: 0,5 - 1mm²
socket width: 2,8mm (TE Connectivity JPT), surface: zinc-plated
- Article number: 2451538H
- Original number: 50251858
blade terminal, cross section: 1,5 - 2,5mm²
socket width: 8mm, socket height: 0,8 mm, surface: blank
- Article number: 2451471H
- Original number: 50251241
flat plug, cross section: 1.5 - 2.5 mm², plug width: 6.3mm, brass
(preformed, with latching nose and latching points)
- Article number: 2451053H
- Original number: 50251522

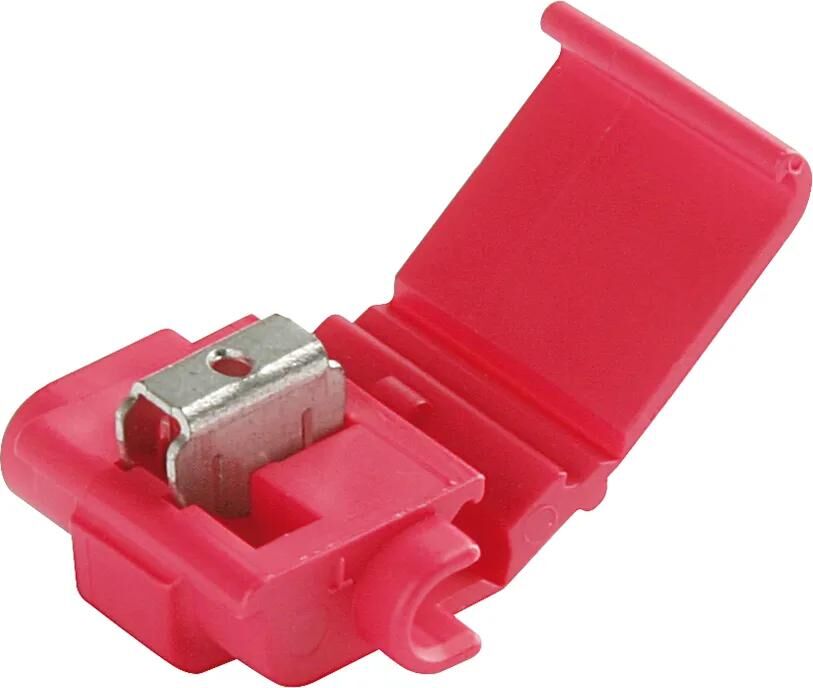

HERTH+BUSS Branch Connector
isolated, till 600V, with double cutting element, temperatur range till 105°C
cross section: 0,5 - 0,75mm², red, 10 pieces in blister
- Article number: 245317RH
- Original number: 50252568066
cross section: 0,5 - 0,75mm², red, PU: 100 pieces/loose items
- Article number: 2452750H
- Original number: 50252568099
HERTH+BUSS Branch Connector
isolated, till 600V, without cutting element, temperature range till 105°C
cross section: 0,5 - 0,75mm², red, PU: 100 pieces/loose items
- Article number: 2452755H
- Original number: 50252575
cross section: 0,75 - 2,5mm², blue, PU: 10 pieces in blister
- Article number: 2452751H
- Original number: 50252569066
cross section: 0,75 - 2,5mm², blue, PU: 100 pieces/loose items
- Article number: 2452752H
- Original number: 50252569099
HERTH+BUSS Branch Connector
yellow, 2-pole, cable diameter till 1,5mm, cross section: 0,13 - 0,35mm
sealed design, with gel filling, double cutting element (cutting-clamping technology), splashwater protection, test mark: UL94 V0, voltage: till 500V, temeprature range: -40°C to 125°C, blade material: brass, corrosion resistant, dimensions (WxDxH): 12,5 x 8,8 x 8mm
HERTH+BUSS Branch Connector
red, 3-pole, cable diameter till 1,7mm, cross section: 0,13 - 0,35mm
sealed design, with gel filling, double cutting lement (cutting-clamping technology), splashwater protection, voltage: till 500V, test mark: UL94 V0, temperature range: -40°C to 125°C, blade material: brass, corrosion resistant, dimensions (WxDxH): 19,5 x 12,5 x 8,5mm
HERTH+BUSS Branch Connector
blue, 3-pole, cable diameter: 3,8mm, cross section: 0,5 - 2,5mm
sealed design, with gel filling, double cutting element (cutting-clamping technology), with splashwater protection, voltage: till 600V, temperature range: -30°C to 105°C, corrosion resistant, dimensions (WxDxH): 25 x 23 x 17mm
HELLA ring connector
Insulated crimp connectors, according to DIN 46 237, form A
Cross-section: 0.5 - 1.0 mm², Eyelet hole: 3.2 mm / M3, red (pack of 100 pieces)
- Article number: 24500258
- Original number: 8KW 044 275-003
Cross-section: 0.5 - 1.0 mm², Eyelet hole: 4.3 mm / M4, red (pack of 100 pieces)
- Article number: 24500266
- Original number: 8KW 044 276-003
Cross-section: 0.5 - 1.0 mm², Eyelet hole: 5.3 mm / M5, red (pack of 100 pieces)
- Article number: 24500274
- Original number: 8KW 044 291-003
Cross-section: 0.5 - 1.0 mm², Eyelet hole: 6.5 mm / M6, red (pack of 100 pieces)
- Article number: 24512469
- Original number: 8KW 744 772-003
Cross-section: 0.5 - 1.0 mm², Eyelet hole: 8.4 mm / M8, red (pack of 50 pieces)
- Article number: 24512477
- Original number: 8KW 744 773-003
Cross-section: 1.5 - 2.5 mm², Eyelet hole: 4.3 mm / M4, blue (pack of 100 pieces)
- Article number: 24500316
- Original number: 8KW 044 028-003
Cross-section: 1.5 - 2.5 mm², Eyelet hole: 5.3 mm / M5, blue (pack of 100 pieces)
- Article number: 24500308
- Original number: 8KW 044 027-003
Cross-section: 1.5 - 2.5 mm², Eyelet hole: 6.5 mm / M6, blue (pack of 100 pieces)
- Article number: 24500282
- Original number: 8KW 044 039-003
Cross-section: 1.5 - 2.5 mm², Eyelet hole: 8.4 mm / M8, blue (pack of 50 pieces)
- Article number: 24500324
- Original number: 8KW 044 277-003
Cross-section: 1.5 - 2.5 mm², Eyelet hole: 10.5 mm / M10, blue (pack of 50 pieces)
- Article number: 24512493
- Original number: 8KW 744 775-003
