HELLA Accessory
contact for superseal plug sleeve housing, 1,0 - 1,5 mm²
HELLA Rack
to attach the blade terminals 6,3mm
HELLA Rack
to adapts blade terminal sleeves 6,3mm
HELLA Line Connector Assortment "Superseal"
waterproof, according to IEC 529 and DIN ISO 40 050, protection class: IP67
application by e.g. sensors, oleograph parts or monitoring of the water temperature
2-pole
consisting of:
1 pin housing
1 bushing housing
3 pin contact 1,0-1,5mm²
3 bushing contact 1,0-1,5mm²
4 individual cable sealing Ø 1,8-2,4mm
4 individual cable sealing Ø 2,6-3,3mm
2 blind plugs
- Article number: 24513749
- Original number: 8KW 744 806-801
3-pole
consisting of:
1 pin housing
1 bushing housing
4 pin contact 1,0-1,5mm²
4 bushing contact 1,0-1,5mm²
6 individual cable sealing Ø 1,8-2,4mm
6 individual cable sealing Ø 2,6-3,3mm
4 blind plugs
- Article number: 24513756
- Original number: 8KW 744 807-801
4-pole
consisting of:
1 pin housing
1 bushing housing
5 pin contact 1,0-1,5mm²
5 bushing contact 1,0-1,5mm²
8 individual cable sealing Ø 1,8-2,4mm
8 individual cable sealing Ø 2,6-3,3mm
6 blind plugs
- Article number: 24513764
- Original number: 8KW 744 808-801
5-pole
consisting of:
1 pin housing
1 bushing housing
6 pin contact 1,0-1,5mm²
6 bushing contact 1,0-1,5mm²
10 individual cable sealing Ø 1,8-2,4mm
10 individual cable sealing Ø 2,6-3,3mm
8 blind plugs
- Article number: 24513772
- Original number: 8KW 744 809-801
6-pole
consisting of:
1 pin housing
1 bushing housing
7 pin contact 1,0-1,5mm²
7 bushing contact 1,0-1,5mm²
12 individual cable sealing Ø 1,8-2,4mm
12 individual cable sealing Ø 2,6-3,3mm
10 blind plugs
- Article number: 24513780
- Original number: 8KW 744 810-801
HELLA socket housing
branch/plug connectors for flat blade terminal sleeves, socket size: 6,3 x 0,8mm, transparent, PVC, package with 10 pcs.
HELLA Rack
line connectors for blade terminal sleeves, socket size: 6,3 x 0,8mm, transparent
1-pole, dimensions: 28,0 x 11,5 x 7,3mm, delivery only in package with 25 pieces, price per piece
- Article number: 24500456
- Original number: 8KW 044 035-003
2-pole, dimensions: 50,0 x 20,0 x 6,4mm, delivery in package with 10 pieces / price per package
- Article number: 24509697
- Original number: 8KV 003 124-811
12-pole, dimensions: 142,0 x 42,0 x 7,0mm, delivery in package with 10 pieces / price per piece
- Article number: 24509689
- Original number: 8KV 002 133-001
HELLA Rack
for mini relays, with SAE-plug, made of black plastic
9 pin, to adapts 5 blade terminals 6,3mm and 4 blade terminals 2,8mm
- Article number: 16300402
- Original number: 8JA 003 526-001

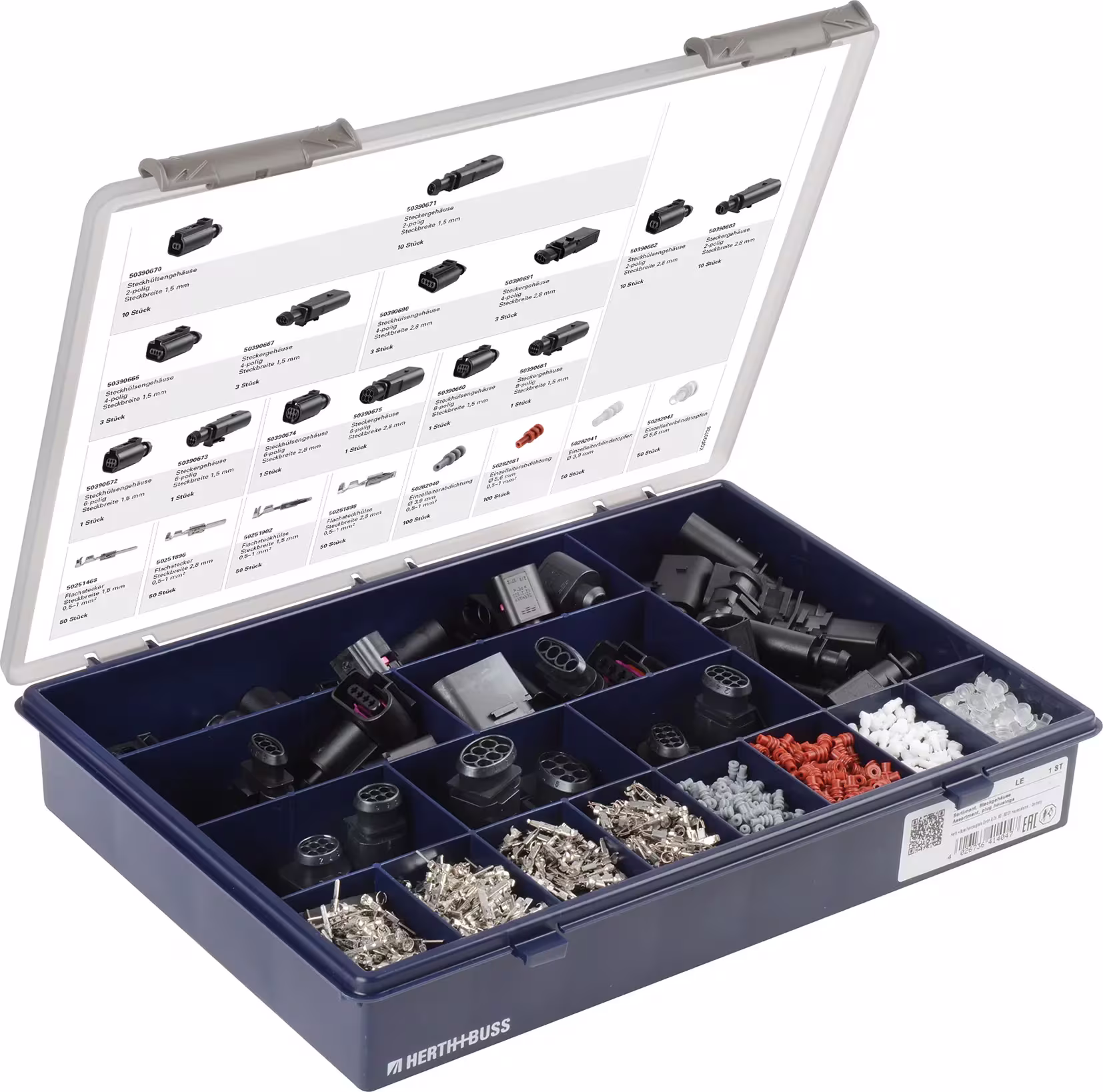

HERTH+BUSS Line Connector Assortment
rack, universal, type of protection (IP-Code): IP X7, 558 pieces
The plug housings for connecting flat plugs or blade receptacles in sizes 1,5 and 2,8mm facilitate electrical connection between the cable harnesses and a variety of electronic components. A safety slider which works in both directions (even for designs with two rows) is integrated into the housing. Through simple and safe handling, this allows the secondary lock of the contacts to be realised and thereby also guarantees the safety of the electrical contacting. It is only possible to connect the plug if the secondary lock is active. The plug housings can be used in all areas of a vehicle (engine bay, interior, areas exposed to splash water etc.). With these housings (in a neutral version), we offer a reliable coupling connection for vehicle construction.
content:
50 x crimp connector (AMP Tyco JPT AMP Tyco MCP 2,8): 0,5 to 1mm, #50251896
50 x crimp connector (AMP Tyco JPT): 0,5 to 1mm, #50251899
50 x crimp connector (AMP Tyco MCP 1,5 AMP Tyco MT II): 0,5 to 1mm, #50251468
50 x crimp connector (AMP Tyco MT II): 0,5 to 1mm, #50251902
100 x seal/prot. plugs individual cable sealing ELA (AMP Tyco MCP 1,5 | AMP Tyco MT II): 0,5 to 0,75mm, #100 50282040
50 x seal/prot. plugs individual blind plugs ELB (AMP Tyco JPT): 0,5 to 1mm, #50282043
50 x seal/prot. plugs individual blind plugs ELB (AMP Tyco MCP 1,5 | AMP Tyco MT ll): 0,5 bis 1 mm, #50282041
100 x seal/prot. plugs ELA (AMP Tyco JPT | AMP Tyco MCP 2,8): 0,5 to 1,5mm, #50282081
plug housing:
10 x 2 pin #50390663
10 x 2 pin #50390671
3 x 4 pin #50390667
3 x 4 pin #50390691
1 x 6 pin #50390673
1 x 6 pin #50390675
1 x 8 pin #50390661
plug sleeve housing:
10 x 2 pin #50390662
10 x 2 pin #50390670
3 x 4 pin #50390666
pin 3 x 4 pin #50390690
1 x 6 pin #50390672
1 x 6 pin #50390674
1 x 8 pin #50390660
1 x assortment case #99994522
HERTH+BUSS Rack Assortment
superseal series, with sealings and crimp connectors, 314 pieces
Meets higher demands with regard to water resistance and reliability. The Superseal 1,5 series complies with the international standards of IEC 529, DIN/ISO 40050 standard, as well as the protection class IP67 and is therefore suitable for use in the automotive industry, agriculture and engineering industry. Can also be used on sensors. The included 1- to 4-pin racks are resistant to ozone, salts, gasoline, diesel, brake fluid and engine oil.
HELLA Rack
for light sosckets, made of black plastic
