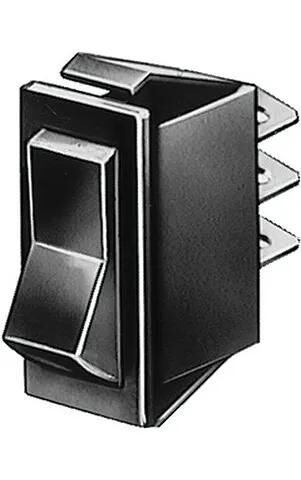

HELLA Rocker Switch
on/off switch with 12V bulb and 3 flat connectors 6,3mm
2 switch positions: 0 = off, 1 = on, capacity: 10A at 12V
HELLA Rocker Switch
universal, insert switch, latching, 1-stage, with 1 circuit
plastic, black, suitable for interior space after IP6X (DIN 40050), panel thickness: 1-2,5mm, bonding: flat plug 6,3mm (DIN 46 244) led out from metal housing
HELLA Pull Switch
on/off switch, 3 flat connectors 6,3mm
with safety button made of soft plastic, switch on control or location control of terminals 15 and K, 2 switch positions: 0 = off, 1 = on, capacity: 8A at 12V, 4A at 24V
green control light, incl. each 1x lens in red and orange and 12V bulb
- Article number: 20710265
- Original number: 6ED 004 778-001
HELLA Rocker Switch
universal, insert switch, 2 actuation locks
toggle switch, 8 connectors, rquipment varaints I-O, safety switch with comfort function
HELLA Label
symbol disc for Hella switches
suitable for the series 3 100 / 4 100 / 007 832 / 008 948 / 004 570 / 008 910
HELLA Rocker Switch
universal, insert switch, latching, 2-pole, plastic, black, suitable for interior space, 8 connectors
HELLA Rocker Switch
universal, insert switch, latching, 2-stage, with 1 circuit
The series use the common standards in the automotive industry. Plastic, grained black, interior space suited after IP6X (DIN 40050), panel thickness: 1 - 2,5mm, contacting: flat plug 6,3mm (DIN 46 244) led out from the switch housing
HELLA Rocker Switch
universal, insert switch, latching, 1-pole, plastic, black, suitable for interior space, 5 connectors
HELLA Toggle Switch
with 3 screw connectors
2 switch positions: 1 and 2, capacity: 5A at 12V, 2A at 24V
HELLA Toggle Switch
on/off switch with 12V bulb, 3 flat connectors 6,3mm
2 switch positions: 0 = off, 1 = on, capacity: 10A at 12V
