COHLINE Fuel Hose
DIN 73379 type A (Stand 08/52), without braid, for unpressurized use as a vent hose

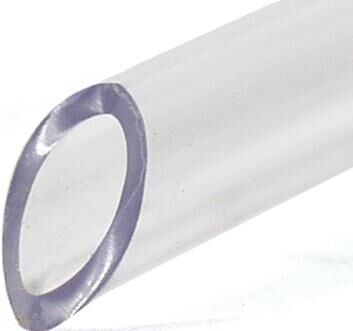

ABS STUTE Fuel Hose
soft PVC, transparent, without fabric insert, flame retardant and self-extinguishing after removal of the flame
Can be used as a fuel hose for small engines and lawn mowers as well as windscreen washer hose (with ethylene glycol addition). The hose is silicone-free and fulfills the requirements of 202/95/EC (RoHS) and the 1907/2006/EC (REACH).
DRESSELHAUS Hose Connector
plastic, connector and reduction nozzle
resistant to E10, fuels and lubricants and acetone and brake fluid
DRESSELHAUS fuel hose "4715"
top rubber with textile insert
repair / gasoline hose according to DIN 73379, black, on spool in carton or polybag, various Ø and lengths
Note: Not suitable for biodiesel and rapeseed oil!

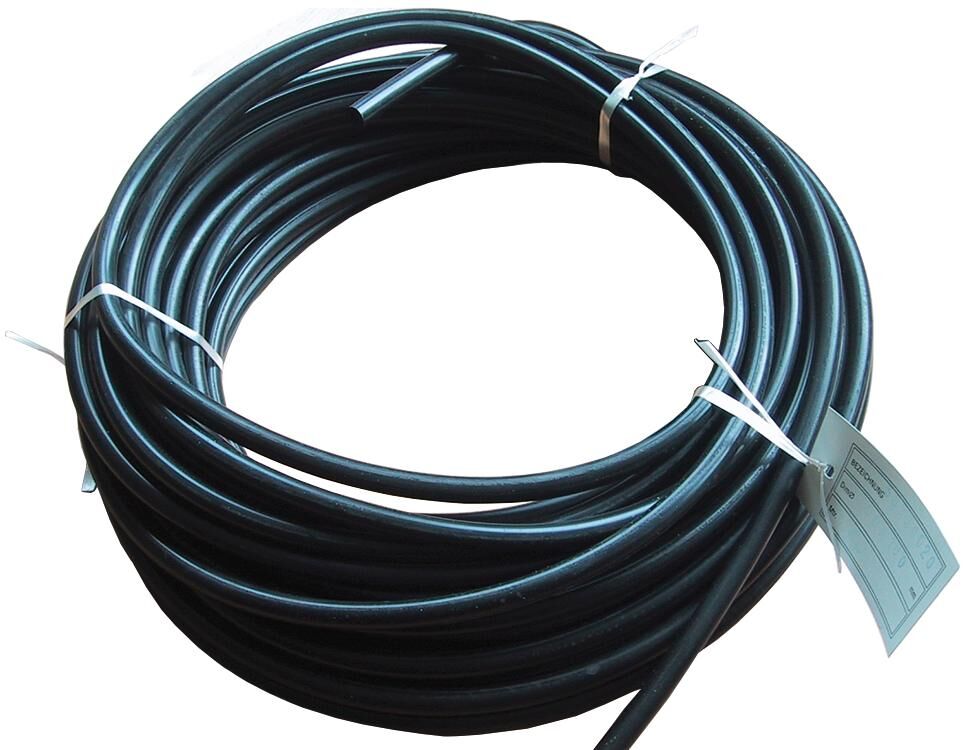

ABS STUTE Vacuum Hose
type C, connecting and vacuum hose, vacuum hose for control purposes in vehicles, fuel hose for two-wheeled vehicles
Technical data: inner tube: NBR compound; color/marking: black/material, dimension; working temperature: constant temperature till 50°C; peak temperature: short-term till 90°C; coldness behavior: till -30°C; working pressure: pressureless; fuel and oil resistance: sufficient
Supplier notice It is the task of the car repair workshop as a qualified motor vehicle repair to check whether the tube regarding the materials and technical data can replace the original parts of the manufacturer.

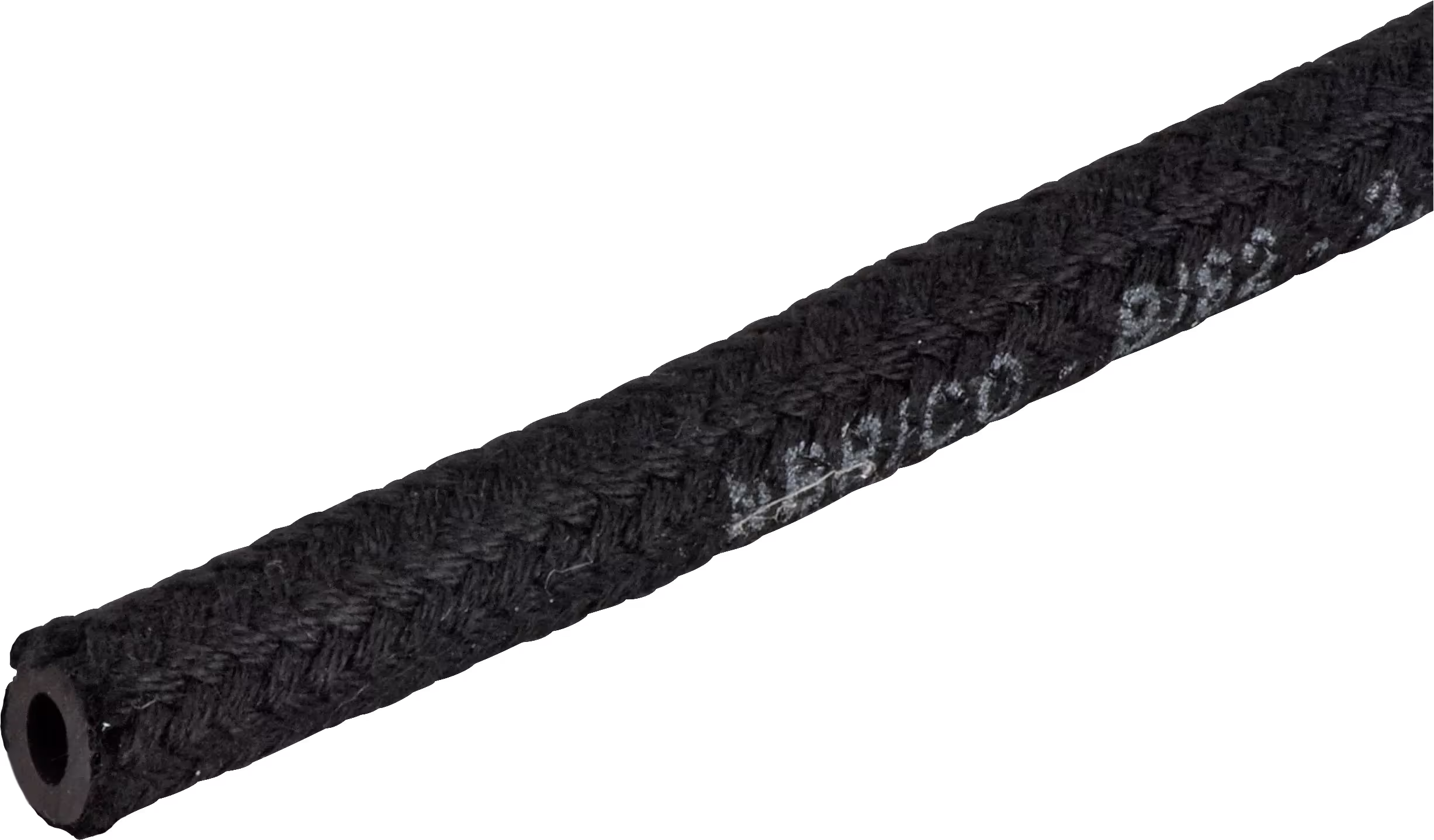

DRESSELHAUS fuel hose "4707"
yarn mesh type B
repair / gasoline hose according to DIN 73379, black, on spool in carton or polybag, various Ø and lengths
Note: Not suitable for biodiesel and rapeseed oil!
DRESSELHAUS fuel hose "4706"
PVC, crystal clear, flexible, without fabric insert
Only suitable for small engines, mopeds and lawn mowers.
DRESSELHAUS vacuum hose "4716"
for exhaust tester, DIN 4798, type C, pressureless
usable as connecting and vacuum hose, Vacuum hose for control purposes in motor vehicles and as a fuel hose for two-wheeled vehicles. May be installed in the tank according to the manufacturer, NBR hose core, color: black, temperature resistant till 70°C (short-term till 90°C)
Note: Not suitable for biodiesel and rapeseed oil!
5,0 x 10,0 x 2,2mm (20m coil in carton)
- Article number: 42627059
- Original number: 471600006 5x10x2,5
3,5 x 8,0 x 2,25mm (20m coil in carton)
- Article number: 42627034
- Original number: 471600006 3,5x8x2,25
ABS STUTE Fuel Hose
type B, E10, vulcanized textile braids, not only suitable for biodiesel and biodiesel additive
connecting and vacuum hose, NBR compound hose core, cotton mesh from CO (cotton), color: black
Technical data: temperature resistant: permanent tepmerature from -35°C to 90°C, short-term peak temperature till 110°C, working pressure: up to 10 bar; burst pressure: according to DIN 53758, tolerancy: according to EN / ISO 1307/97
ABS STUTE Fuel Hose
type D, with metal braiding, low pressure hose
comparable design C DIN 73379 (Stand 08/1952). For fuels, heating oils, mineral oil and glycol based fluids, lubricants and cooling water. Hose inner tube NBR compound, zinc-coated aluminum wire outer layer, working pressure up to 20 bar, burst pressure according to DIN 53758
