ABS STUTE Fuel Hose
soft PVC, transparent, without fabric insert, flame retardant and self-extinguishing after removal of the flame
Can be used as a fuel hose for small engines and lawn mowers as well as windscreen washer hose (with ethylene glycol addition). The hose is silicone-free and fulfills the requirements of 202/95/EC (RoHS) and the 1907/2006/EC (REACH).

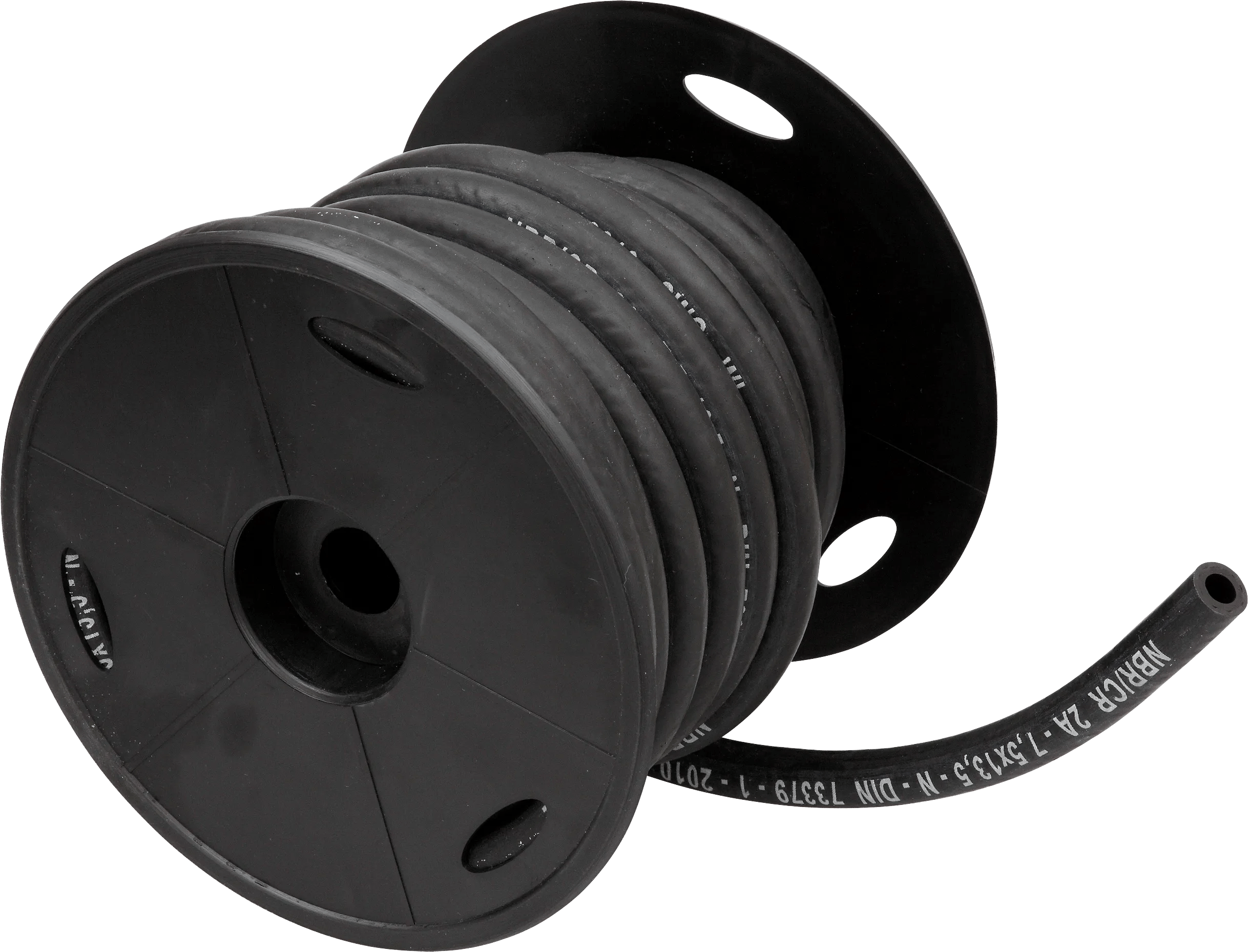

ABS STUTE Fuel Hose
type 2 A, E10, smooth, with braided textile interlining, according to DIN 73379/ 1997
Pressure tube for the support of containing of lead/unleaded fuels and diesels, but not for biodiesel. Additives of biodiesel or additive of bioethanol (ETBE till max 7 till 10%)
Technical data: inner tube: NBR compound, fuel and oil resistant (nitrile rubber), insert: textile braid (CV/ viscose), outer layer: CR-compound (chloroprene rubber), color/marking: black/label DIN standard, temperature resistance: constant temperature -35 till 90°C, peak temperature: short-term till 110°C; coldness behavior: filled with FAM-test fuel and 180° bending till -35°C, (not for hoses with > 15mm outer diameter), test pressure (tightness): air: 4 bar over 60 seconds, water: 20 bar over 30 till 40 seconds, working pressure: < 10 bar, burst pressure: according to DIN 53758, tolerances: according to EN/ ISO 1307/97

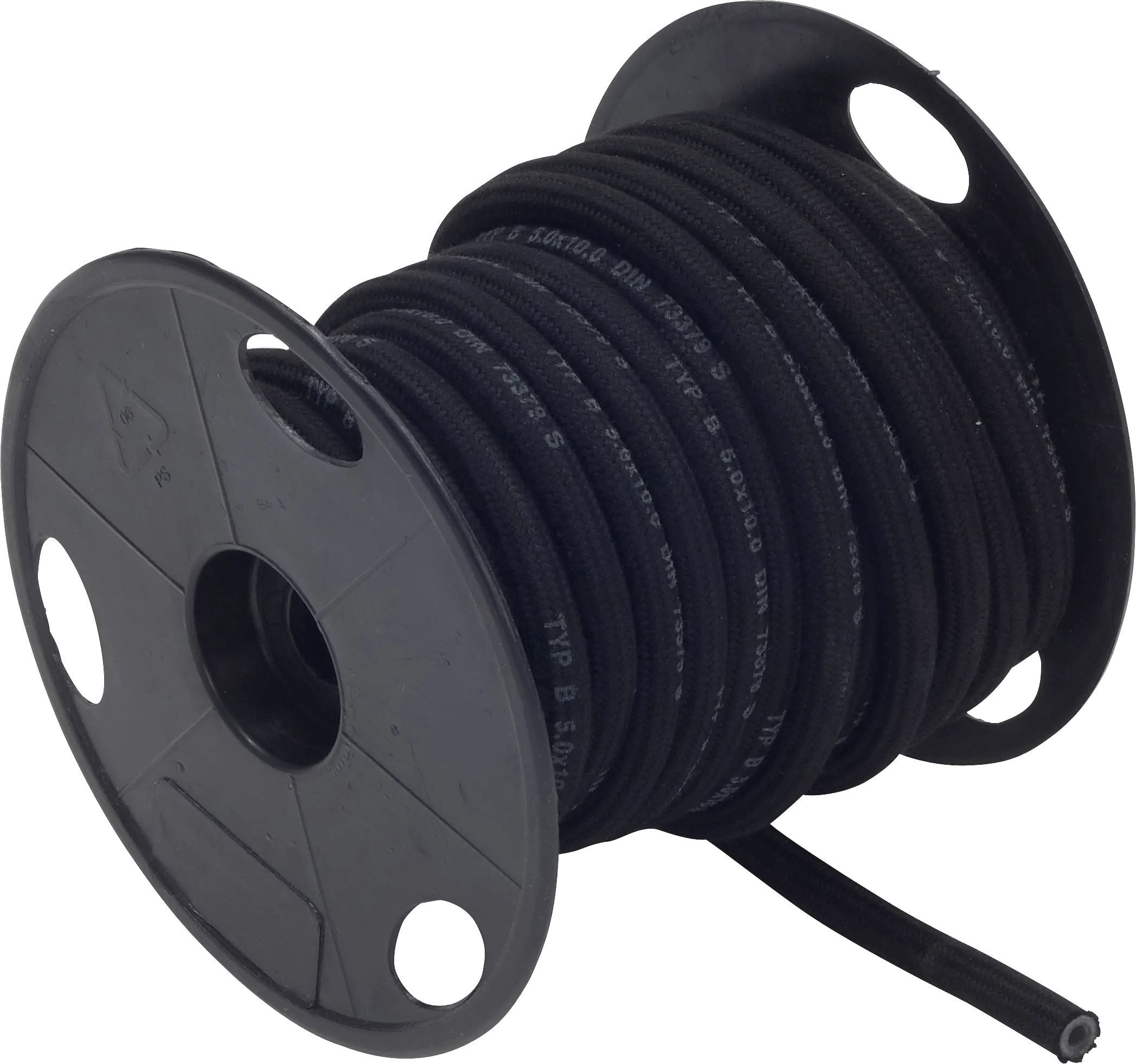

ABS STUTE Fuel Hose
type B, E10, vulcanized textile braids, not only suitable for biodiesel and biodiesel additive
connecting and vacuum hose, NBR compound hose core, cotton mesh from CO (cotton), color: black
Technical data: temperature resistant: permanent tepmerature from -35°C to 90°C, short-term peak temperature till 110°C, working pressure: up to 10 bar; burst pressure: according to DIN 53758, tolerancy: according to EN / ISO 1307/97
DRESSELHAUS fuel hose "4715"
top rubber with textile insert
repair / gasoline hose according to DIN 73379, black, on spool in carton or polybag, various Ø and lengths
Note: Not suitable for biodiesel and rapeseed oil!

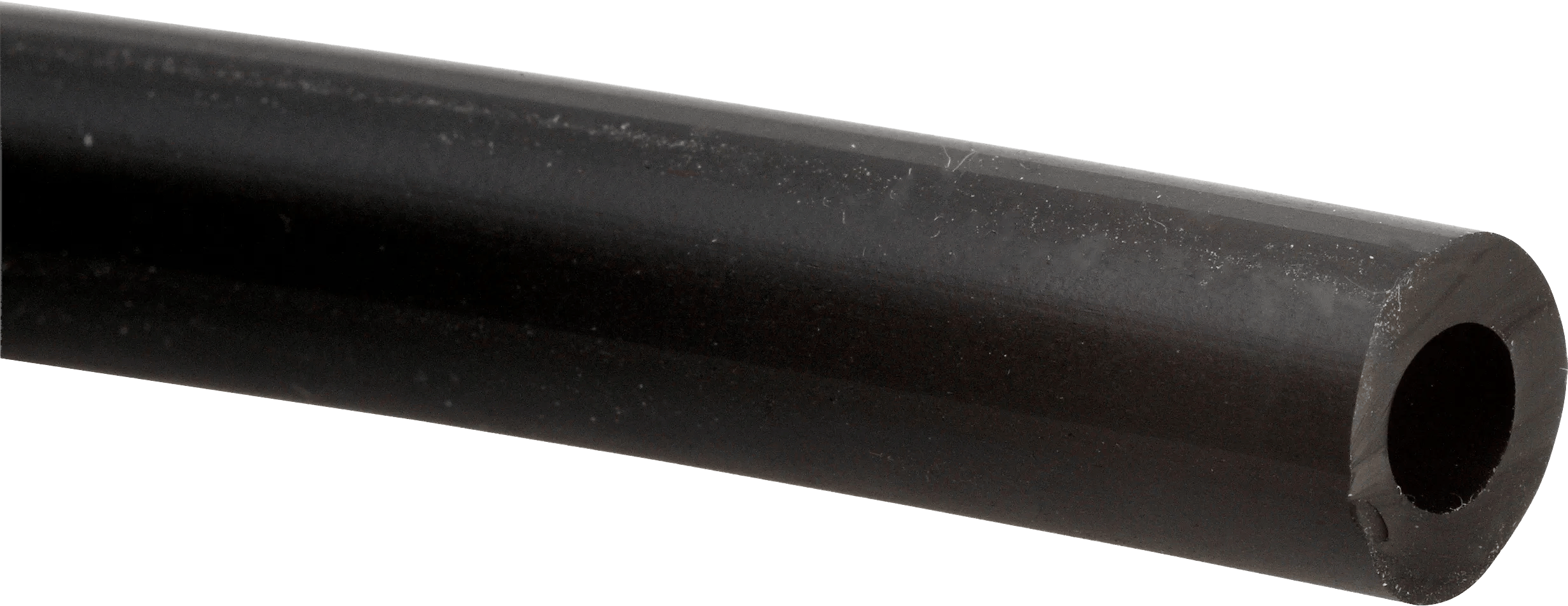

DRESSELHAUS vacuum hose "4716"
for exhaust tester, DIN 4798, type C, pressureless
usable as connecting and vacuum hose, Vacuum hose for control purposes in motor vehicles and as a fuel hose for two-wheeled vehicles. May be installed in the tank according to the manufacturer, NBR hose core, color: black, temperature resistant till 70°C (short-term till 90°C)
Note: Not suitable for biodiesel and rapeseed oil!
5,0 x 10,0 x 2,2mm (20m coil in carton)
- Article number: 42627059
- Original number: 471600006 5x10x2,5
3,5 x 8,0 x 2,25mm (20m coil in carton)
- Article number: 42627034
- Original number: 471600006 3,5x8x2,25
DRESSELHAUS fuel hose "4707"
yarn mesh type B
repair / gasoline hose according to DIN 73379, black, on spool in carton or polybag, various Ø and lengths
Note: Not suitable for biodiesel and rapeseed oil!
DRESSELHAUS fuel hose "4706"
PVC, crystal clear, flexible, without fabric insert
Only suitable for small engines, mopeds and lawn mowers.
