KELLERMANN accessory
for Atto®, Rhombus S and Micro S
mounting plate C, black, universal for diverse motorcycles
- Article number: 04613238
- Original number: 152.751
adapter plate handlebar HD, handlebar attachment on brake/clutch lever, silver
- Article number: 04613246
- Original number: 152.755
mounting sheet 174mm, universal for license plates, chrome
- Article number: 04613253
- Original number: 152.758
mounting sheet 204mm, universal for license plates
- Article number: 04613261
- Original number: 152.759
mounting plate 174mm, universal for license plate, black
- Article number: 04613254
- Original number: 152.756
variable mounting adapter M6, black
The clamping piece can be moved and rotated and can accommodate all luminaires with M5 thread (Atto®, micro S, Rhombus S) at any angle
- Article number: 04613247
- Original number: 152.735
KELLERMANN Turn Signal Cable
for BL 1000 /white /SG
ground cable with small nut (Ø: 1,3cm) for type 2 (handlebar inner diameter from 16,5mm)
- Article number: 04618534
- Original number: 100.912
ground cable with large nut (Ø: 2cm) for type 3 (handlebar inner diameter from 20mm)
- Article number: 04618542
- Original number: 100.922
BAAS Turn Signal Buzzer
KELLERMANN power resistor
When changing the original turn signal light to LED or halogen the turn signal automatically changes the blinking frequency. The parallel power resistors remedy this
by Micro 1000® / Rhombus DF / DF Dark and a control light is required with an 1 additional resistor with 33 Ohm for the tail light and 1 resistor with 7,5 Ohm for the stop light.
Required resistor by conversion to Kellermann turn signal lights (per light) 21 Watt power consumption of the original turn signal light: Micro 1000® halogen - 10 Ohm, Micro 1000® / Micro Rhombus (yellow, white, Dark, DF, PL, Extreme) - 7,5 Ohm, BL 1000 halogen (yellow, white, SG) - no power resistor, BL 1000 LED (LED, Dark, PL) - 7,5 Ohm
Required resistor by conversion to Kellermann turn signal lights (per side) 10 Watt power consumption of the original turn signal light: Micro 1000® halogen - 10 Ohm, Micro 1000® / Micro Rhombus (yellow, white, Dark, DF, PL, Extreme) - 10 Ohm, BL 1000 halogen (yellow, white, SG) - no power resistor, BL 1000 LED (LED, Dark, PL) - 10 Ohm
KELLERMANN Silent Rubber Extension
M8, 30mm, for Micro 1000, Micro Rhombus and Micro Rhombus Titan
KELLERMANN multifunction part
BL 1000 / BL 1000 white (without mounting rubber + nut)
- Article number: 04618047
- Original number: 100.901
KELLERMANN silent rubber adapter "2010"
for Micro 1000®, Micro Rhombus and Micro Rhombus Titan

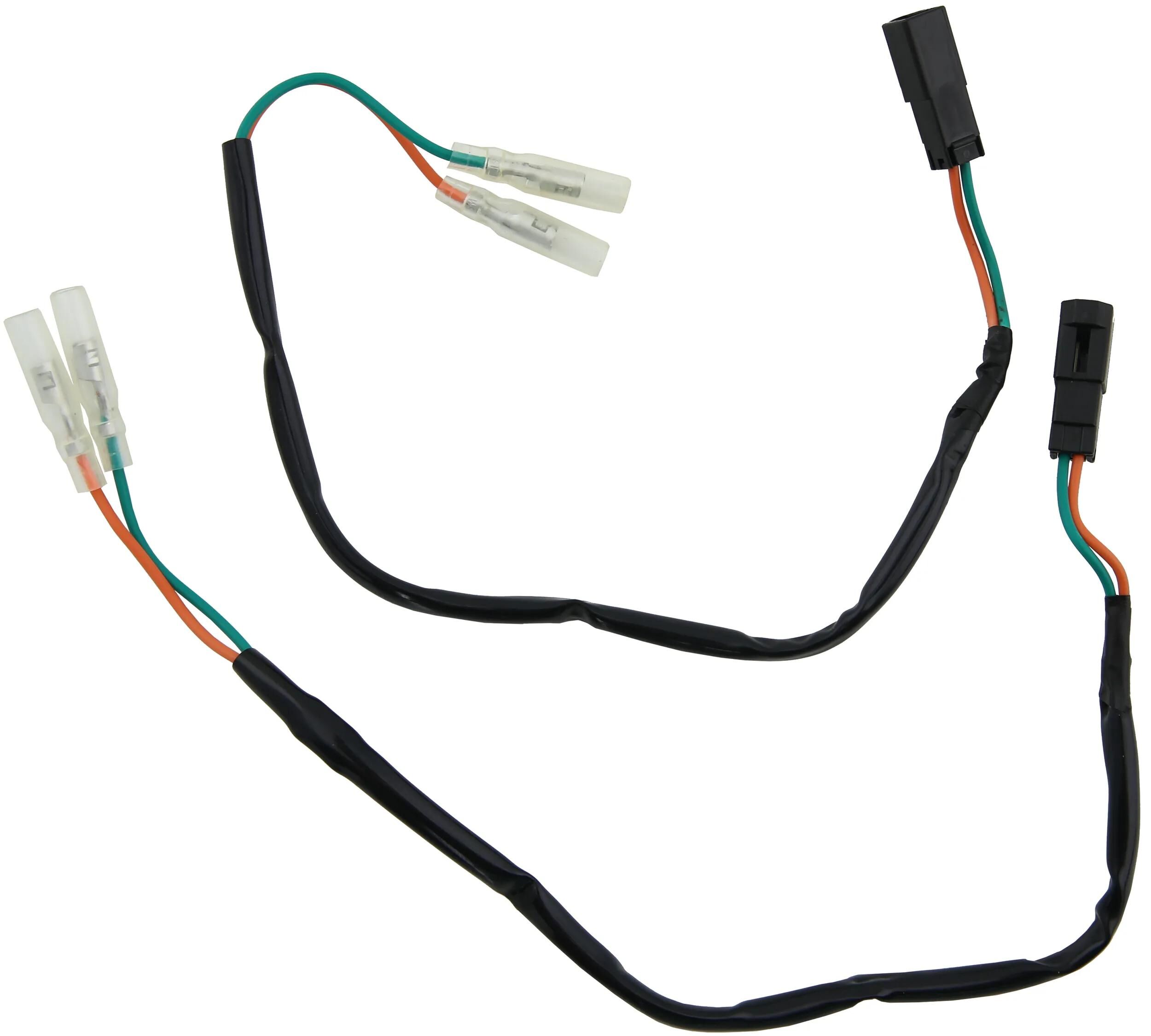

SPEC-X Turn Signal Adapter Cable
self-service package, pair, cable length: 32cm
For converting from original to universal/accessory turn signals. The adapter cable exists in each case of circular connector sleeve and the respective system plug of the manufacturer. Thus the original wiring harness must not be changed and the new indicators can be easily connected to the wiring harness.
KELLERMANN adapter cable "i.BOS"
The i.BOS system (intelligent boxing operation system) provides a remedy if the blinker light lights up too quickly or other indicator lights light up in the cockpit after the blinker conversion. Ensures that the blinker and warning light of DF combinations function perfectly.
Features: The "LED indicators" option may also need to be activated in the software.
1 set is required for 2 indicators / 2 DF indicators (indicators, tail light, brake light)
KELLERMANN Power Resistor "i.LOAD"
When converting the original flashers to LED or halogen turn signals, the flashing frequency changes automatically. The parallel power resistors remedy this. For correcting the turn signal frequency of the flashing indicator light when using Kellermann LED turn signals, e.g. Harley Davidson models with HD LAN
