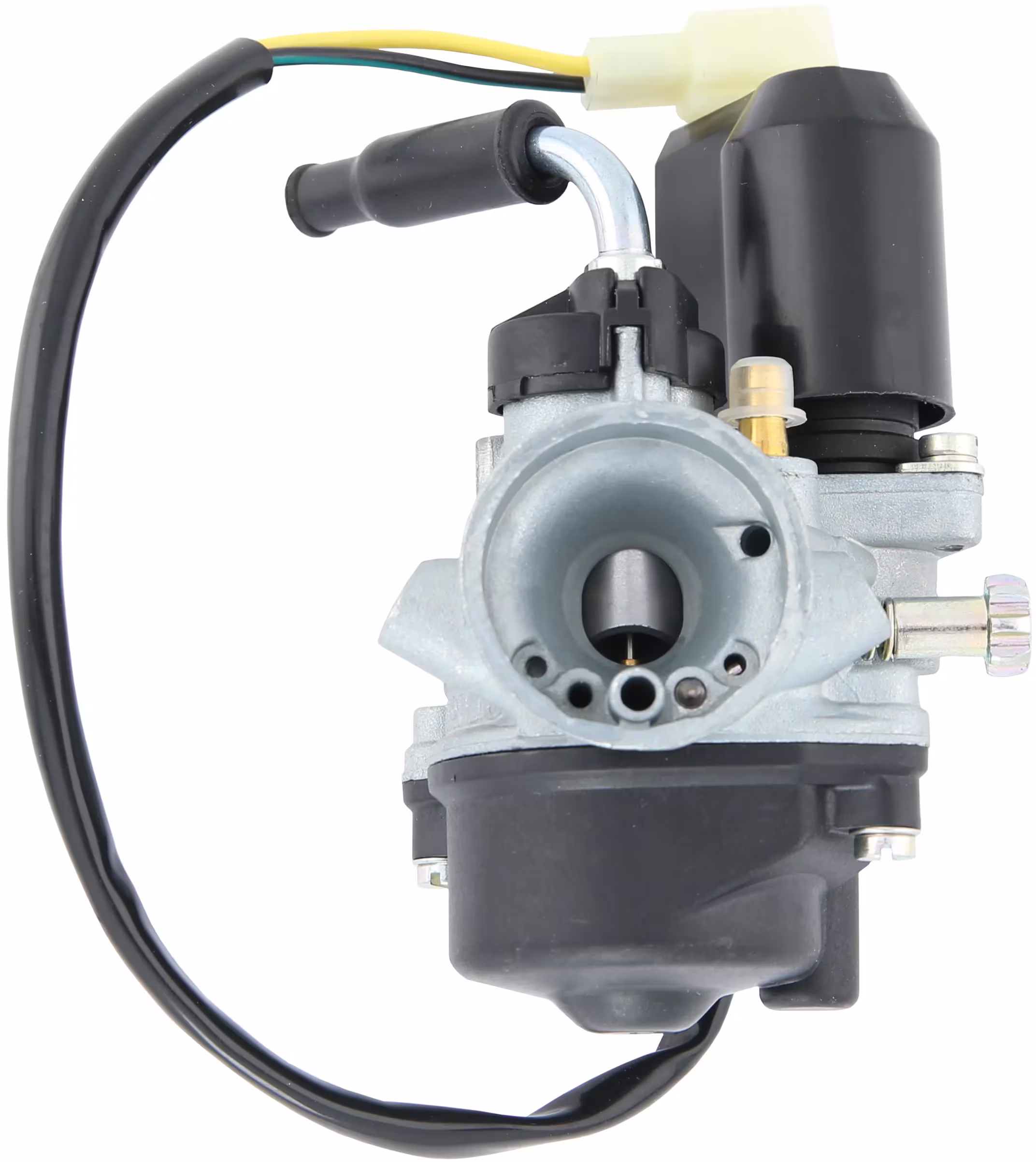

101.OCTANE Carburetor
Mikuni replica, incl. E-choke, for all models with China 2-stroke motor on Minarelli basis, corresponds to the original carburetor, pay attention by mounting the main jet, if this differs take from org. carburetor

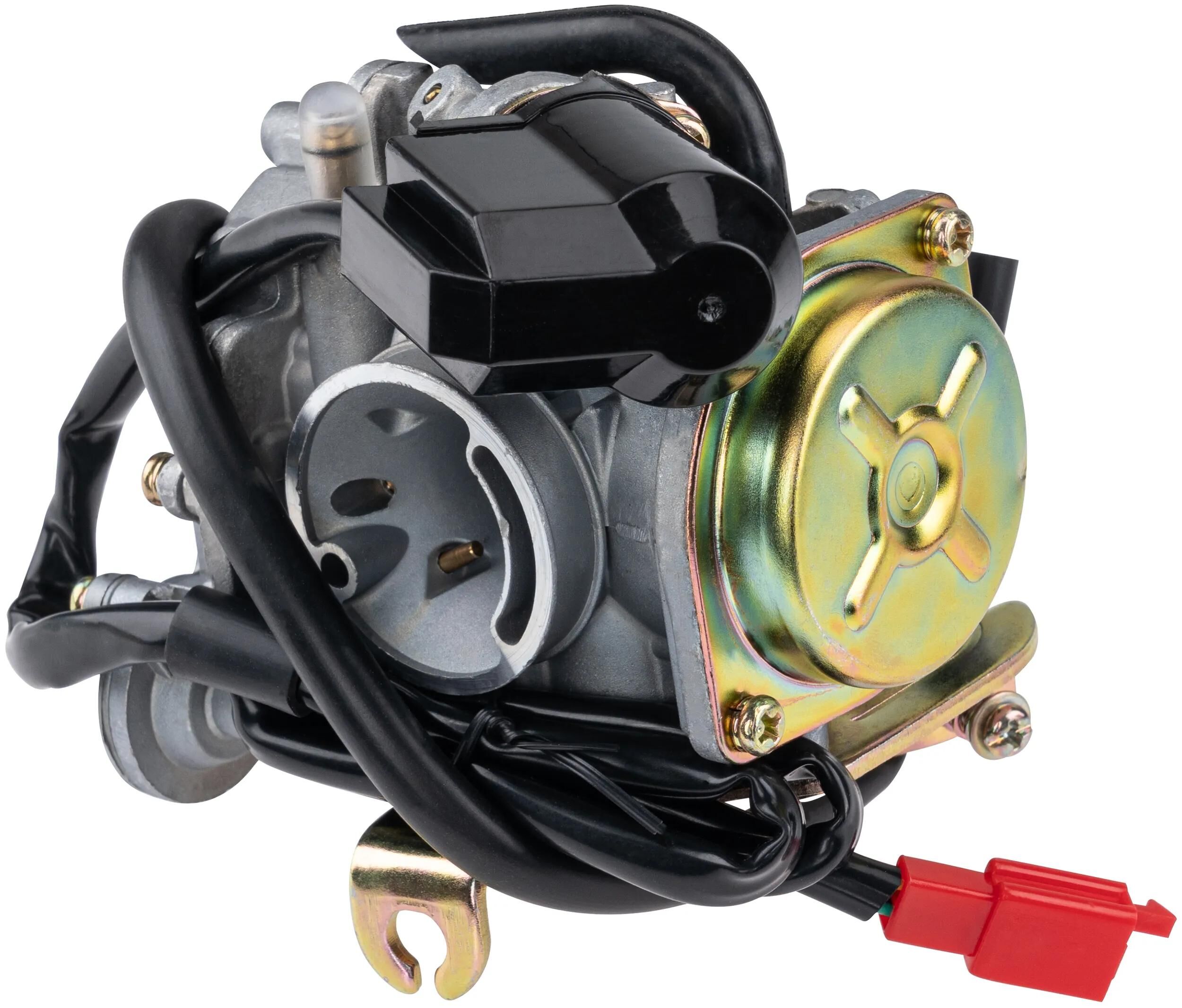

101.OCTANE Carburetor
for 50cc, 4-stroke China scooter 139QMB/QMA
101.OCTANE Carburetor
DELL'ORTO Carburetor
PHF, round slide carburetor with accelerating pump and choke, connection via rubber nozzles
Attention: according to vehicle can be necessary vote work
PHF 30 DS1 (left mount)
slide: 50/3, needle: K23, atomiser: 264AB, main jet: 120, idle jet: 50, starter jet 75, pump jet: 38, needle valve: 250, float: 8,5g
- Article number: 05140579
- Original number: 04621
PHF 30 DD1 (right mount)
slide: 50/3, needle: K23, atomiser: 264AB, main jet: 120, idle jet: 50, starter jet: 75, pump jet: 38, needle valve: 250, float: 8,5g
- Article number: 05140587
- Original number: 04622
PHF 36 DS1 (left mount)
slide: 60/3, needle: K18, atomiser: 268AR, main jet: 130, idle jet: 50, starter jet: 70, pump jet: 33, needle valve: 300, float: 8,5g
- Article number: 05140595
- Original number: 04676
PHF 36 DD1 (right mount)
slide: 60/3, needle: K18, atomiser: 268AR, main jet: 130, idle jet: 50, starter jet: 70, pump jet: 33, needle valve: 300, float: 8,5g
- Article number: 05140603
- Original number: 04677
DELL'ORTO Carburetor
PHM, round slide carburetor with acceleraing pump and choke, connection via rubber nozzles
Attention: according to vehicle can be necessary vote work
PHM 40 NS1 (left mount)
slide: 60/5, needle: K4, atomiser: 260AB, main jet: 165, idle jet: 60, starter jet: 60, pump jet: 38, needle valve: 300, float: 8,5g
- Article number: 05140611
- Original number: 04841
PHM 40 ND1 (right mount)
slide: 60/5, needle: K4, atomiser: 260AB, main jet: 165, idle jet: 60, starter jet: 60, pump jet: 38, needle valve: 300, float: 8,5g
- Article number: 05140629
- Original number: 04842
DELL'ORTO Carburetor
PHM, round slide carburetor without accelerating pump, with choke. Connection via rubber nozzles.
Attention: according to vehicle can be necessary vote work
PHM 38 SD1
slide: 40, needle: K51, atomiser: 272DR, main jet: 195, idle jet: 45, starter jet 45, needle valve 300, float 6,5g
- Article number: 05140637
- Original number: 04929
PHM 40 SD1
slide: 40, needle: K51, atomiser: 266DR, main jet: 150, idle jet: 45, starter jet 45, needle jet 300, float 6,5g
- Article number: 05140645
- Original number: 04922
DELL'ORTO carburetor PHVA

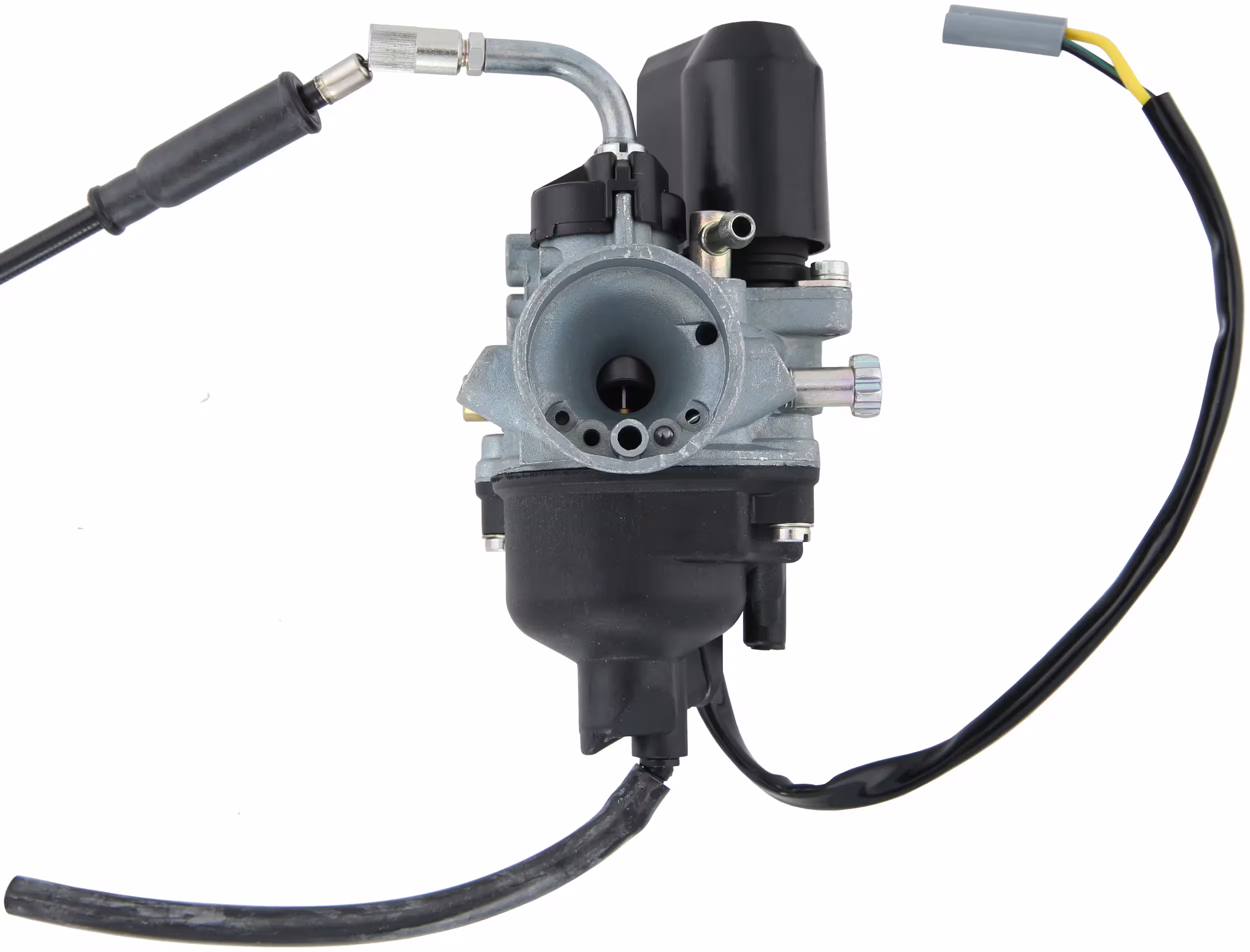

PHVA 10SD, autolube
slide: 40, needle: A15, atomiser: 210FQ, main jet: 74, idle jet: 36
- Article number: 74821315
- Original number: 08356
PHVA 12KS , autolube
throttle slide: 30, needle: A21, atomiser: 208HA, main jet: 46, idle jet: 30
- Article number: 78430295
- Original number: 06332
PHVA 12PS, autolube
throttle slide: 40, needle: A12, atomiser: 211GA, main jet: 78, idle jet: 38
- Article number: 78430246
- Original number: 01138
PHVA 12PS , autolube
throttle slide: 40, needle: A20, atomiser: 211GA, main jet: 74, idle jet: 38
- Article number: 78430287
- Original number: 01391
PHVA 12QD, autolube
slide: 40, needle: A12, atomiser: 210FQ, main jet: 70, idle jet: 38
- Article number: 74841073
- Original number: 08330
PHVA 12QD, autolube
slide: 40, needle: A15, atomiser: 209FQ, main jet: 76, idle jet: 38
- Article number: 74833229
- Original number: 08318

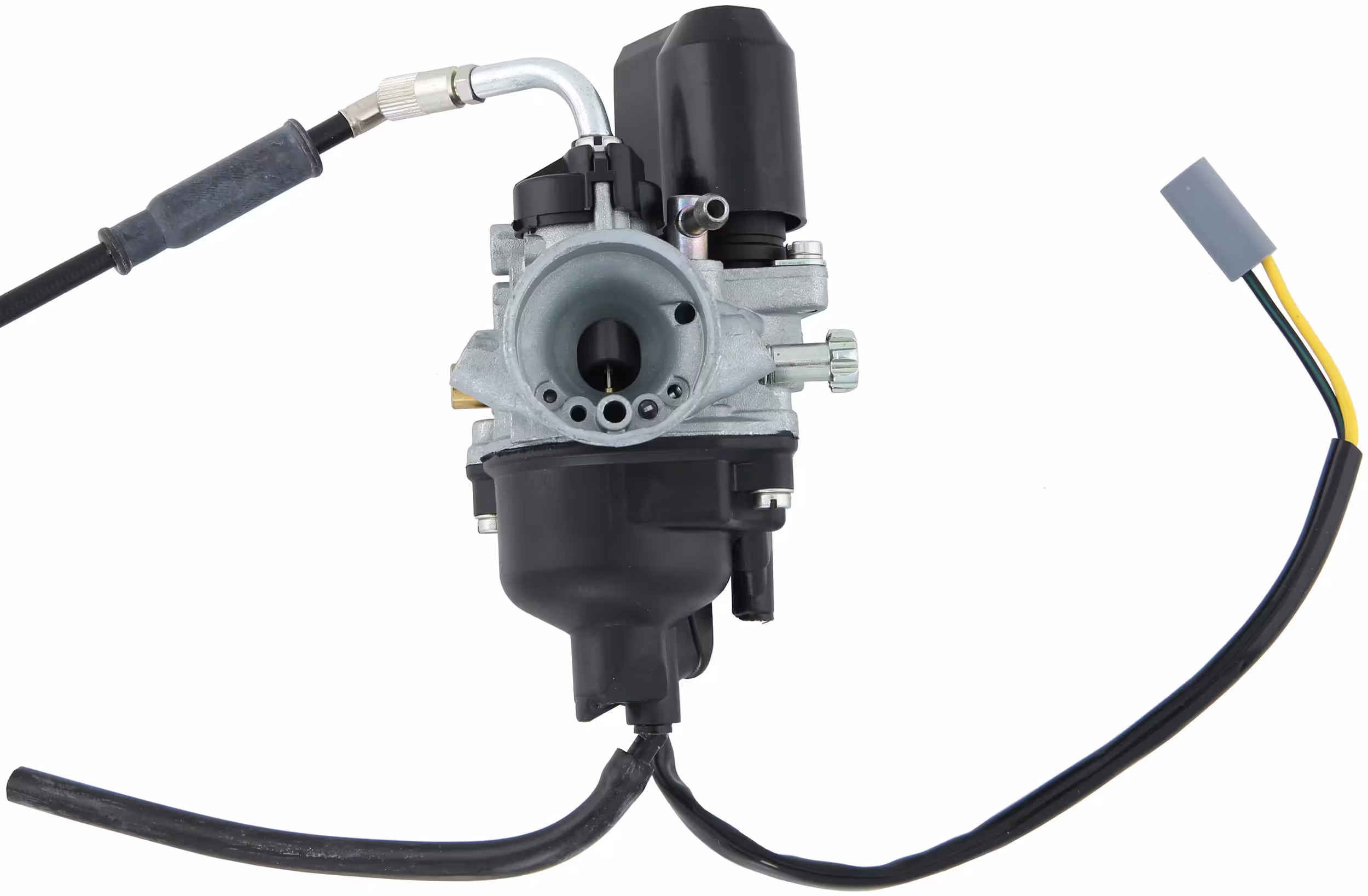

PHVA 12QD, autolube
slide: 40, needle: A15, atomiser: 209FQ, main jet: 66, idle jet: 38
- Article number: 74829391
- Original number: 08355
PHVA 14QD, autolube
throttle slide: 40, needle: A02, atomiser: 211FA, main jet: 60, idle jet: 34
- Article number: 74331794
- Original number: 08328
PHVA 14QD autolube
slide: 40 , needle: A02 , atomiser: 211FA , main jet: 60, idle jet: 34
- Article number: 74327263
- Original number: 08374
DELL'ORTO Carburetor "SHB"
DELL'ORTO Carburetor "SHA"
SHA 13/13
throttle slide: 6, main jet: 66, float: 2,5g
- Article number: 76001502
- Original number: 02044
SHA 14/10
throttle slide: 11, main jet: 55, float: 3,5g
- Article number: 74793720
- Original number: 02272
DELL'ORTO Carburetor "SHBC"
SHBC 18/16P
Gasschieber: 03, Hauptdüse: 56, Leerlaufdüse: 42, Starterdüse: 50, Schwimmer: 3,5 g
- Article number: 7043004Z
- Original number: 00958
SHBC 18/16N
throttle slide: 03, main jet: 60, idle jet: 42, starter jet: 50, float: 3,5g
- Article number: 7286890Z
- Original number: 00938
