Feeler Gauge
6 sheets
0,10 - 0,15 - 0,20 - 0,25 - 0,30 - 0,40mm
- Article number: 05756309
- Original number: O15-6236

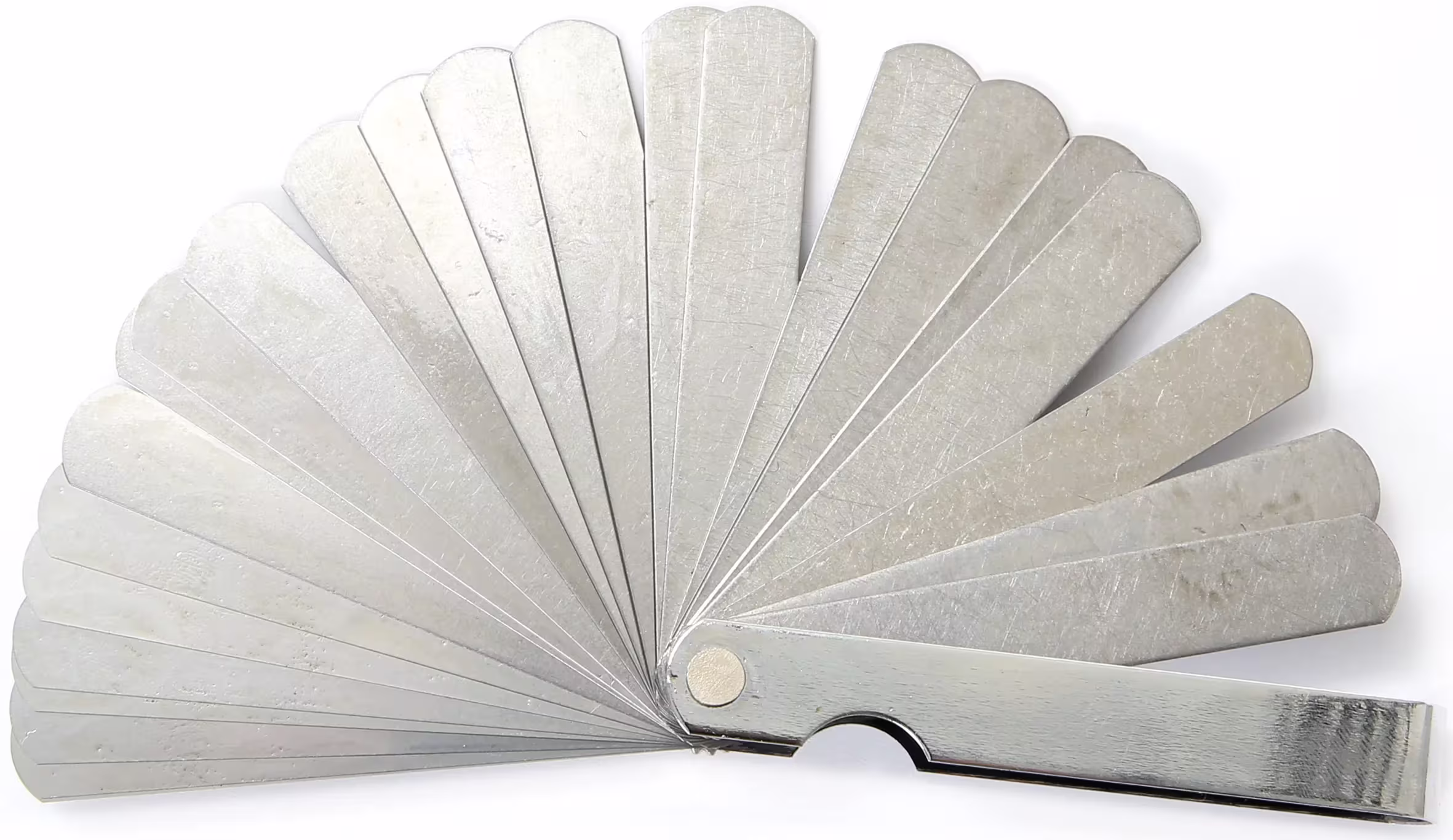

Feeler Gauge
24 sheets
0,04 - 0,05 - 0,07 - 0,08 - 0,09 - 0,10-0,15 - 0,20 - 0,25 - 0,30 - 0,35 - 0,40 - 0,45 - 0,50 - 0,55 - 0,60 - 0,65 - 0,70 - 0,75 - 0,80 - 0,85 - 0,90 - 0,95 - 1,00mm
- Article number: 05758511
- Original number: O15-6211
BIKESERVICE Adjusting Tool
For adjusting the valve clearance by means of the valve adjusting screw. Handwheel material: aluminium, shaft material: steel
3mm, 4-point
Technical data: handwheel Ø: 30mm, total height: 49,5mm
- Article number: 05771035
- Original number: BS2201A
4mm, 4-point
Technical data: handwheel Ø: 30mm, total height: 49,5mm
- Article number: 05771043
- Original number: BS2201B
7x1mm, slot
Technical data: handwheel Ø: 30mm, total height: 49,5mm
- Article number: 05771050
- Original number: BS2201F

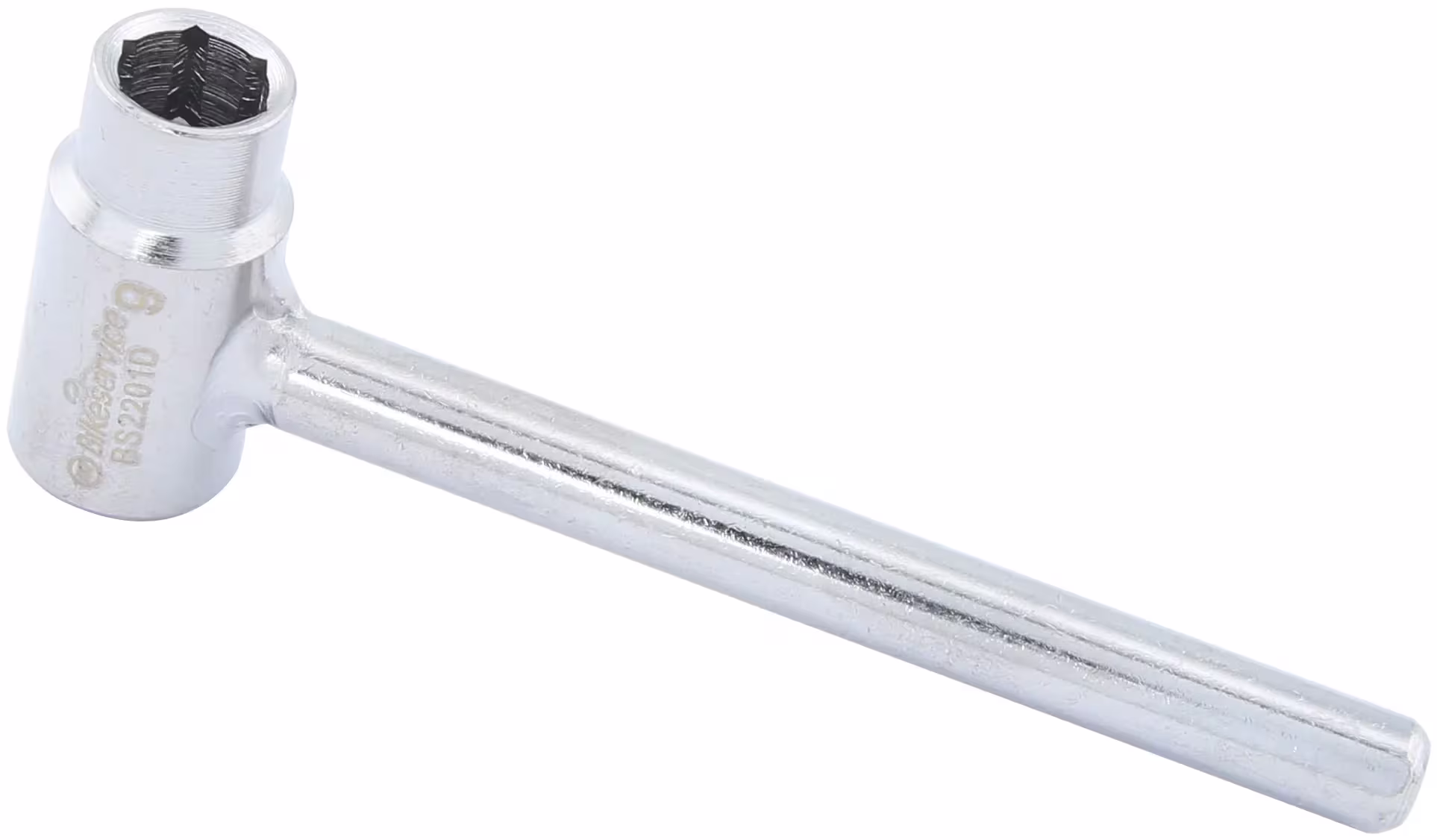

BIKESERVICE Locknut Wrench
For loosening, countering and tightening the locknut of the valve adjusting screw. Material: hardened steel
8mm, 6-point
Technical data: total length: 97mm, total height: 32mm
- Article number: 05771068
- Original number: BS2201C
9mm, 6-point
Technical data: total length: 97mm, total height: 32mm
- Article number: 05771076
- Original number: BS2201D
10mm, 6-point
Technical data: total length: 97mm, total height: 32mm
- Article number: 05771084
- Original number: BS2201E
Compression Pressure Gauge
analog, with bleed valve, measuring range from 0-21 bar, hose length: 300mm, adapter connection over quick coupling

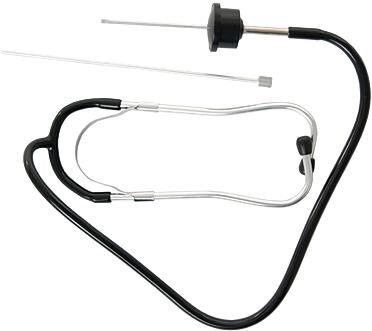

Stethoscope
For monitoring motors for defects on mechanical motor parts (bearings, cams, valves etc.)
BIKESERVICE locking tool
for DUCATI camshafts
Tool for replacing the timing belt and adjust the valves. Material: hardened steel
M5 x 0,8mm, 4 pieces
Technical data:
pins length: 15,5mm
- Article number: 05772249
- Original number: BS30011
M6 x 1mm, 2 pieces
Technical data:
pins length: 42mm
- Article number: 05772256
- Original number: BS30012
M8 x 1,25mm, 2 pieces
Technical data:
pins length: 24mm
- Article number: 05772264
- Original number: BS30013
Impact Adjusting Tool Set
Special tool set to adjust of intake and exhaust valve
content:
1 x 8mm hexagonal
1 x 9mm hexagonal
1 x 10mm hexagonal
1 x 1/8" square
- Article number: 05757356
- Original number: O15-6560
BIKESERVICE Hook Set
Ideal suitable for removing and installation of O-rings and seals. 2-component handle. Incl. storage bag
short, 4 pieces (BS1234)
Technical data:
total length: 162mm
shaft length: 76mm
The set contains following articles:
hooks straight
hooks hook form
hooks 45° double angled
hooks 90° angled
- Article number: 05771753
- Original number: BS1234
long, 4 pieces (BS0230)
Technical data:
total length: 241mm
shaft length: 152mm
The set contains following articles:
hooks straight
hooks hook form
hooks 45° double angled
hooks 90° angled
- Article number: 05771761
- Original number: BS0230
BIKESERVICE Torque Angle Gauge
1/2", with adjustable angle pin as fixed point
Range 360°, division 2°, Ø angle scale: 67mm, angle pin length: 100/50mm
