BIKESERVICE Flywheel Puller
The metal ball tip on shaft reduces friction stress and protects against damage. Material: hardened steel
M14 x 1,5mm, outer thread, right-hand thread
Technical data:
puller drive: 3/8" reversible ratchet, combination spanner (SW 19mm)
thread length: 65mm
- Article number: 05771597
- Original number: BS2401
M16 x 1,5mm, outer thread, right-hand thread
Technical data:
puller drive: 3/8" reversible ratchet, combination spanner (SW 19mm)
thread length: 65mm
- Article number: 05771605
- Original number: BS2402
M18 x 1,5mm, outer thread, right-hand thread
Technical data:
puller drive: 3/8" reversible ratchet, combination spanner (SW 19mm)
thread length: 65mm
- Article number: 05771613
- Original number: BS2403
M20 x 1,5mm, outer thread, right-hand thread
Technical data:
puller drive: 1/2" reversible ratchet, combination spanner (SW 21mm)
thread length: 45mm
- Article number: 05771621
- Original number: BS2404
M22 x 1,5mm, outer thread, right-hand thread
Technical data:
puller drive: 1/2" reversible ratchet, combination spanner (SW 21mm)
thread length: 45mm
- Article number: 05771639
- Original number: BS2405
BIKESERVICE Flywheel Puller
The metal ball tip on shaft reduces friction stress and protects against damage. Material: hardened steel
M24 x 1,0mm, inner thread, right-hand thread
Technical data:
puller drive: 1/2" reversible ratchet, combination spanner (SW 21mm)
puller drive: combination spanner (SW 24mm)
shaft length (inner): 32mm
- Article number: 05771316
- Original number: BS2483
M24 x 1,5mm, inner thread, right-hand thread
Technical data:
puller drive: 1/2" reversible ratchet, combination spanner (SW 21mm)
puller drive: combination spanner (SW 24mm)
shaft length (inner): 45mm
- Article number: 05771324
- Original number: BS2461

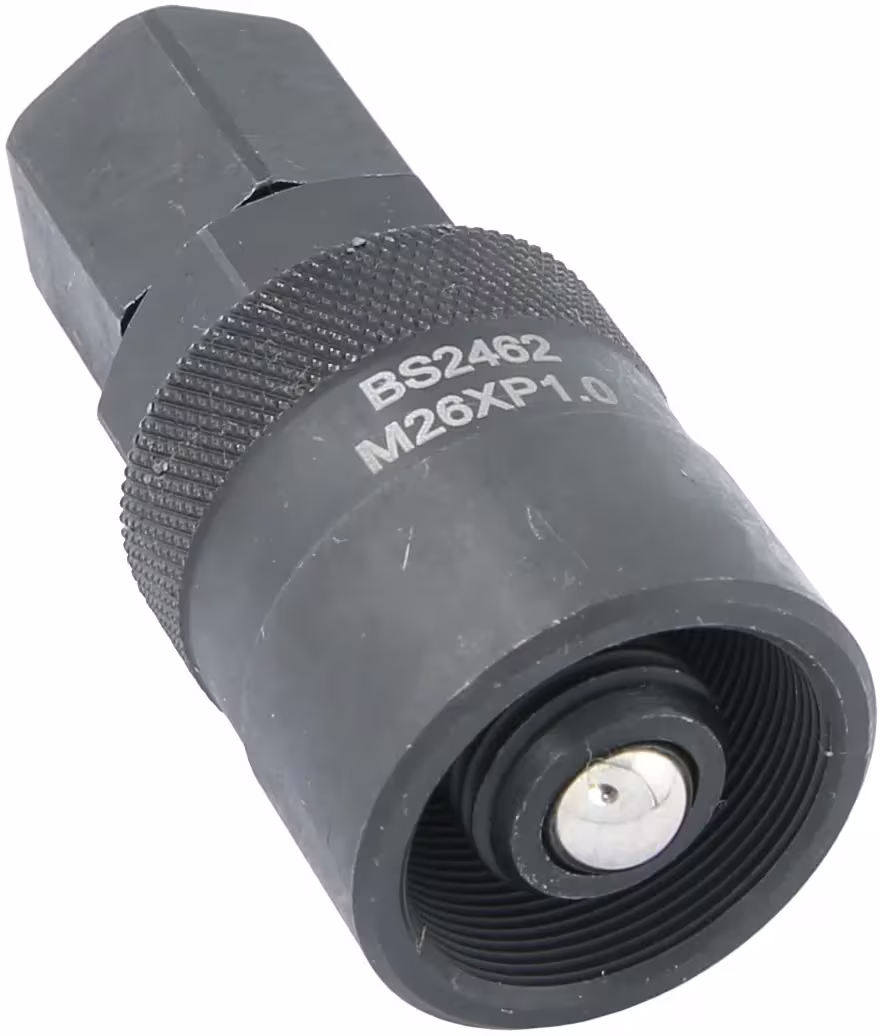

M26 x 1,0mm, inner thread, right-hand thread
Technical data:
puller drive: 1/2" reversible ratchet, combination spanner (SW 21mm)
puller drive: combination spanner (SW 24mm)
shaft length (inner): 35mm
- Article number: 05771332
- Original number: BS2462
M28 x 1,0mm, inner thread, right-hand thread
Technical data:
puller drive: 1/2" reversible ratchet, combination spanner (SW 21mm)
puller drive: combination spanner (SW 24mm)
shaft length (inne): 32mm
- Article number: 05771340
- Original number: BS2484
M30 x 1,0mm, inner thread, right-hand thread
Technical data:
puller drive: 1/2" reversible ratchet, combination spanner (SW 21mm)
puller drive: combination spanner (SW 24mm)
shaft length (inner): 35mm
- Article number: 05771357
- Original number: BS2464

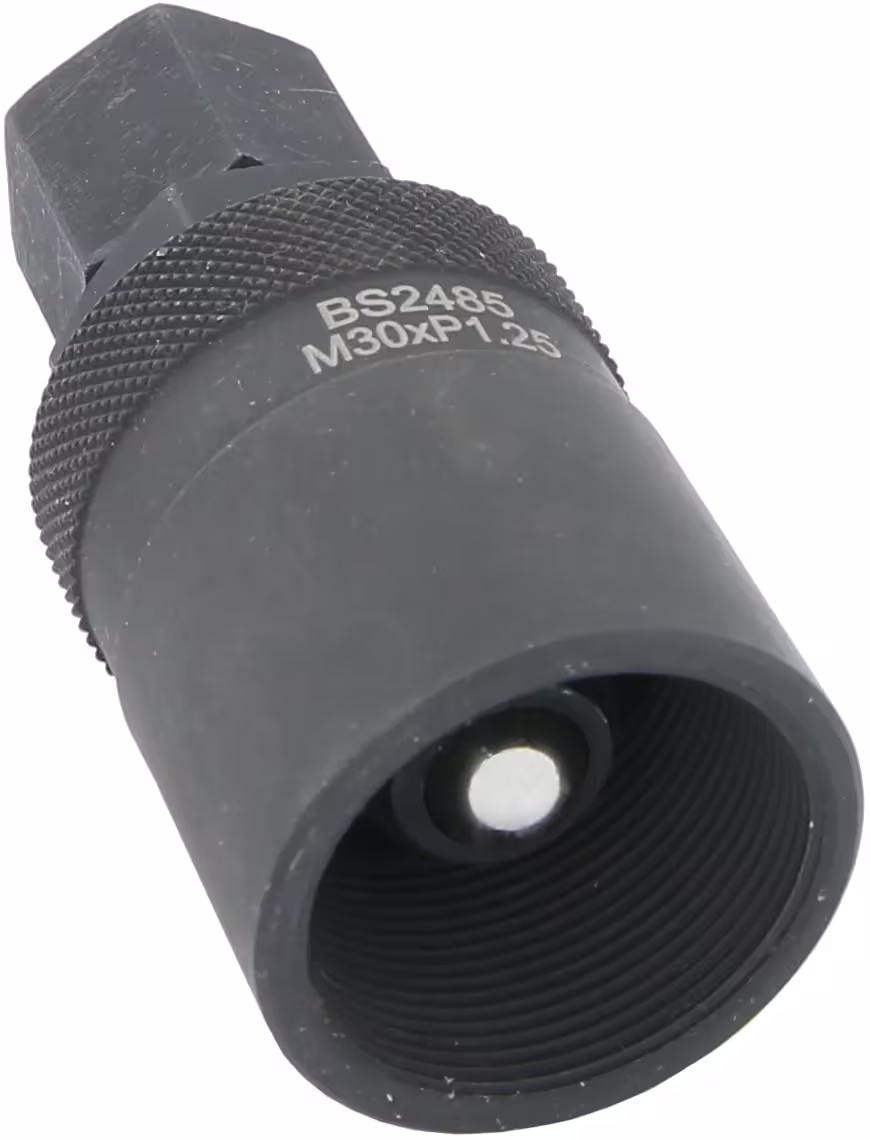

M30 x 1,25mm, inner thread, right-hand thread
Technical data:
puller drive: 1/2" reversible ratchet, combination spanner (SW 21mm)
puller drive: combination spanner (SW 24mm)
shaft length (inner): 36mm
- Article number: 05771365
- Original number: BS2485
M30 x 1,5mm, inner thread, right-hand thread
Technical data:
puller drive: 1/2" reversible ratchet, combination spanner (SW 21mm)
puller drive: combination spanner (SW 27mm)
shaft length (inner): 20mm
- Article number: 05771373
- Original number: BS2463

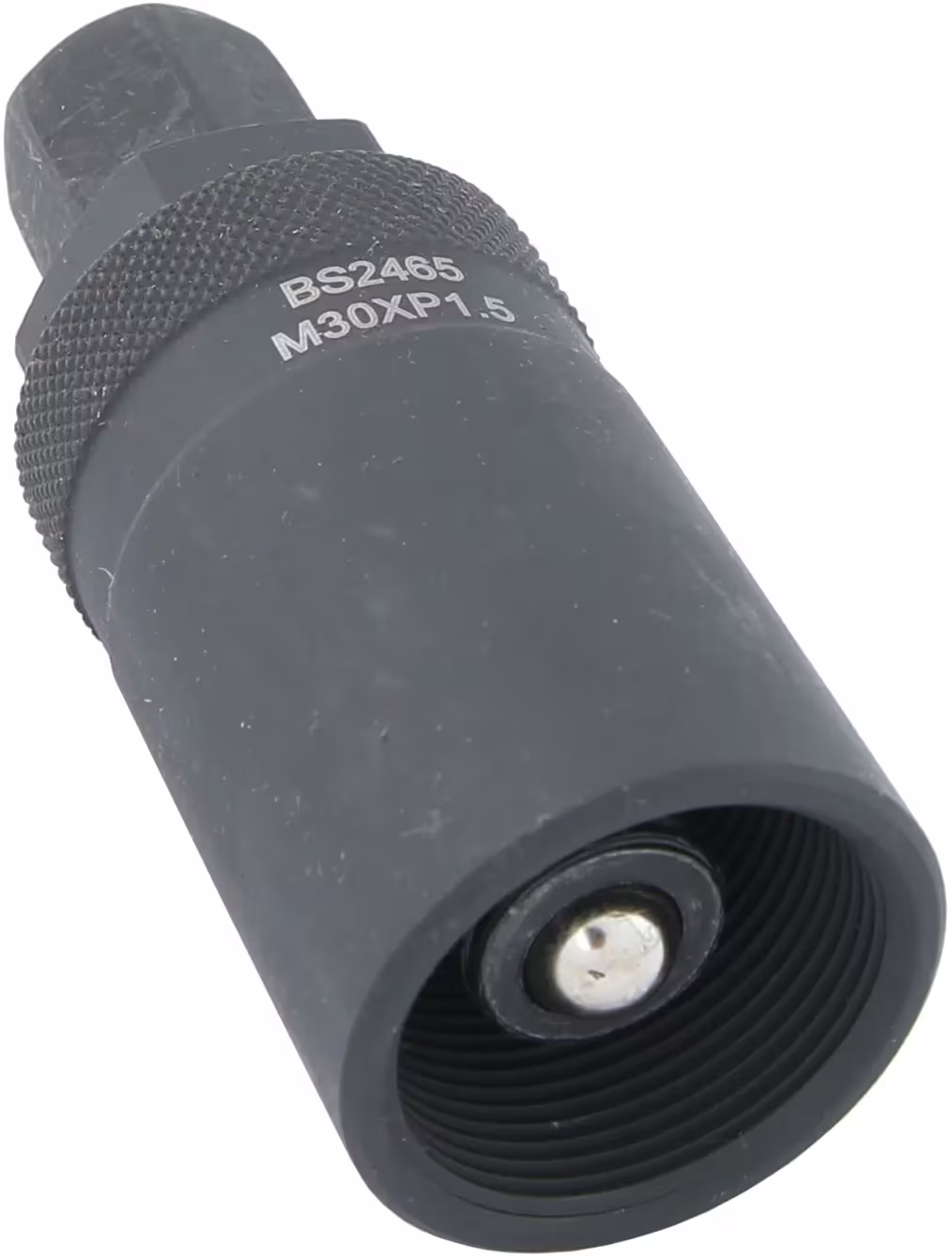

M30 x 1,5mm, inner thread, right-hand thread
Technical data:
puller drive: 3/8" reversible ratchet, combination spanner (SW 19mm)
puller drive: combination spanner (SW 27mm)
shaft length (inner): 53mm
- Article number: 05771381
- Original number: BS2465

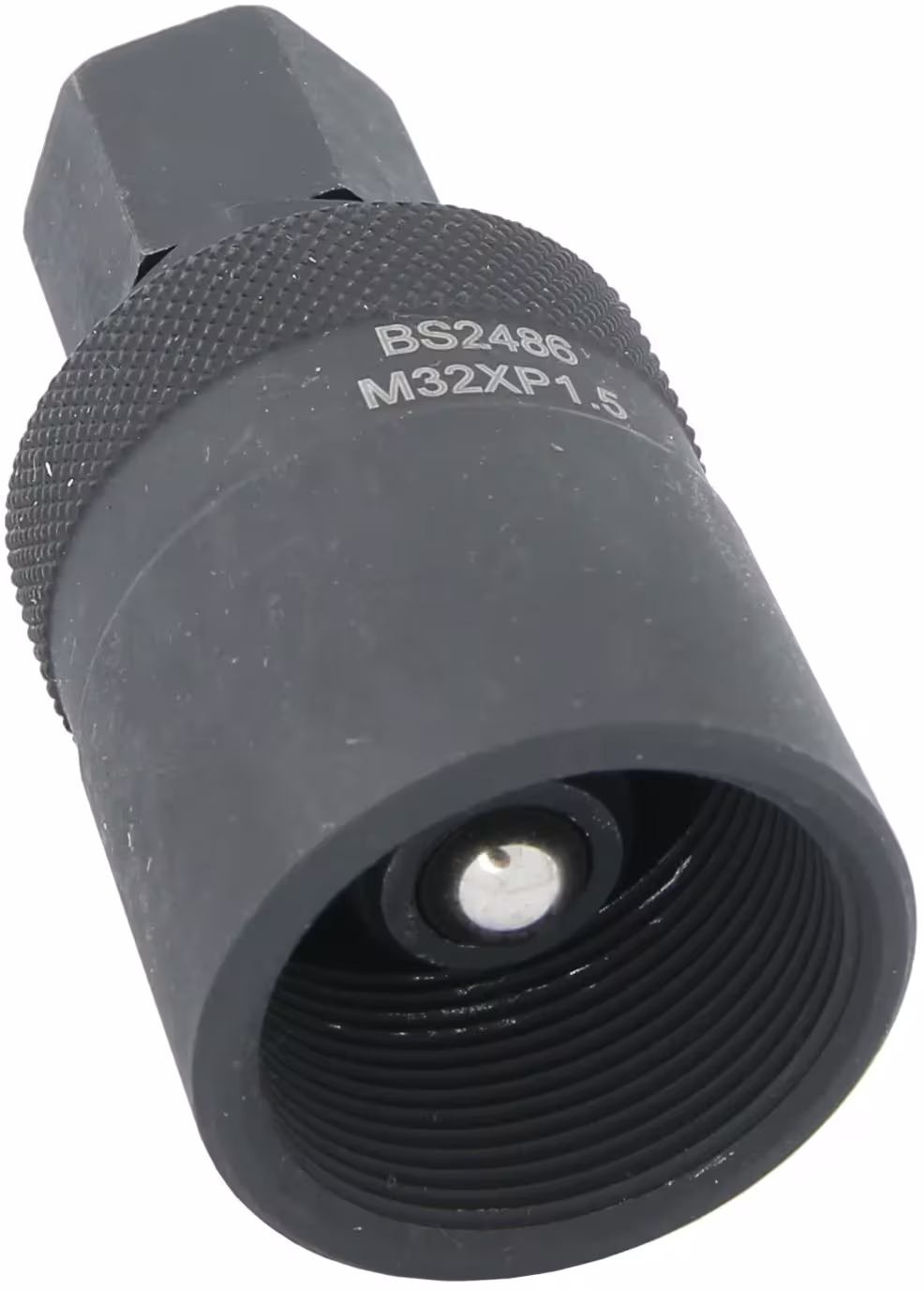

M32 x 1,5mm, inner thread, right-hand thread
Technical data:
puller drive: 1/2" reversible ratchet, combination spanner (SW 21mm)
puller drive combination spanner (SW 24mm)
shaft length (inner): 35mm
- Article number: 05771399
- Original number: BS2486
M33 x 1,5mm, inner thread, right-hand thread
Technical data:
puller drive: 1/2" reversible ratchet, combination spanner (SW 21mm)
puller drive: combination spanner (SW 27mm)
shaft length (inner): 52mm
- Article number: 05771407
- Original number: BS2467
BIKESERVICE Flywheel Puller
The puller can be used with reversible ratchet (1/2") or a combination spanner (SW 21mm). The metal ball on the shaft reduces the friction stress and protects against damage. Thread length: 15mm, material: hardened steel
M19 x 1,0mm, outer thread, right-hand thread
Technical data:
puller drive: combination spanner (SW 19mm)
- Article number: 05771464
- Original number: BS2441
M20 x 1,0mm, outer thread, right-hand thread
Technical data:
puller drive: combination spanner (SW 19mm)
- Article number: 05771472
- Original number: BS2475
M22 x 1,0mm, outer thread, right-hand thread
Technical data:
puller drive: combination spanner (SW 19mm)
- Article number: 05771480
- Original number: BS2476
M22 x 1,5mm, outer thread, right-hand thread
Technical data:
puller drive: combination spanner (SW 19mm)
- Article number: 05771498
- Original number: BS2477
M24 x 1,0mm, outer thread, right-hand thread
Technical data:
puller drive: combination spanner (SW 21mm)
- Article number: 05771993
- Original number: BS2442
M24 x 1,5mm, outer thread, right-hand thread
Technical data:
puller drive: combination spanner (SW 21mm)
- Article number: 05771506
- Original number: BS2478
M26 x 1,0mm, outer thread, right-hand thread
Technical data:
puller drive: combination spanner (SW 24mm)
- Article number: 05771514
- Original number: BS2470
M26 x 1,5mm, outer thread, right-hand thread
Technical data:
puller drive: combination spanner (SW 21mm)
- Article number: 05771522
- Original number: BS2479
M27 x 1,0mm, outer thread, left-hand thread
Technical data:
puller drive: combination spanner (SW 24mm)
- Article number: 05771530
- Original number: BS2443
M27 x 1,25mm, outer thread, right-hand thread
Technical data:
puller drive: combination spanner (SW 24mm)
- Article number: 05771548
- Original number: BS2444

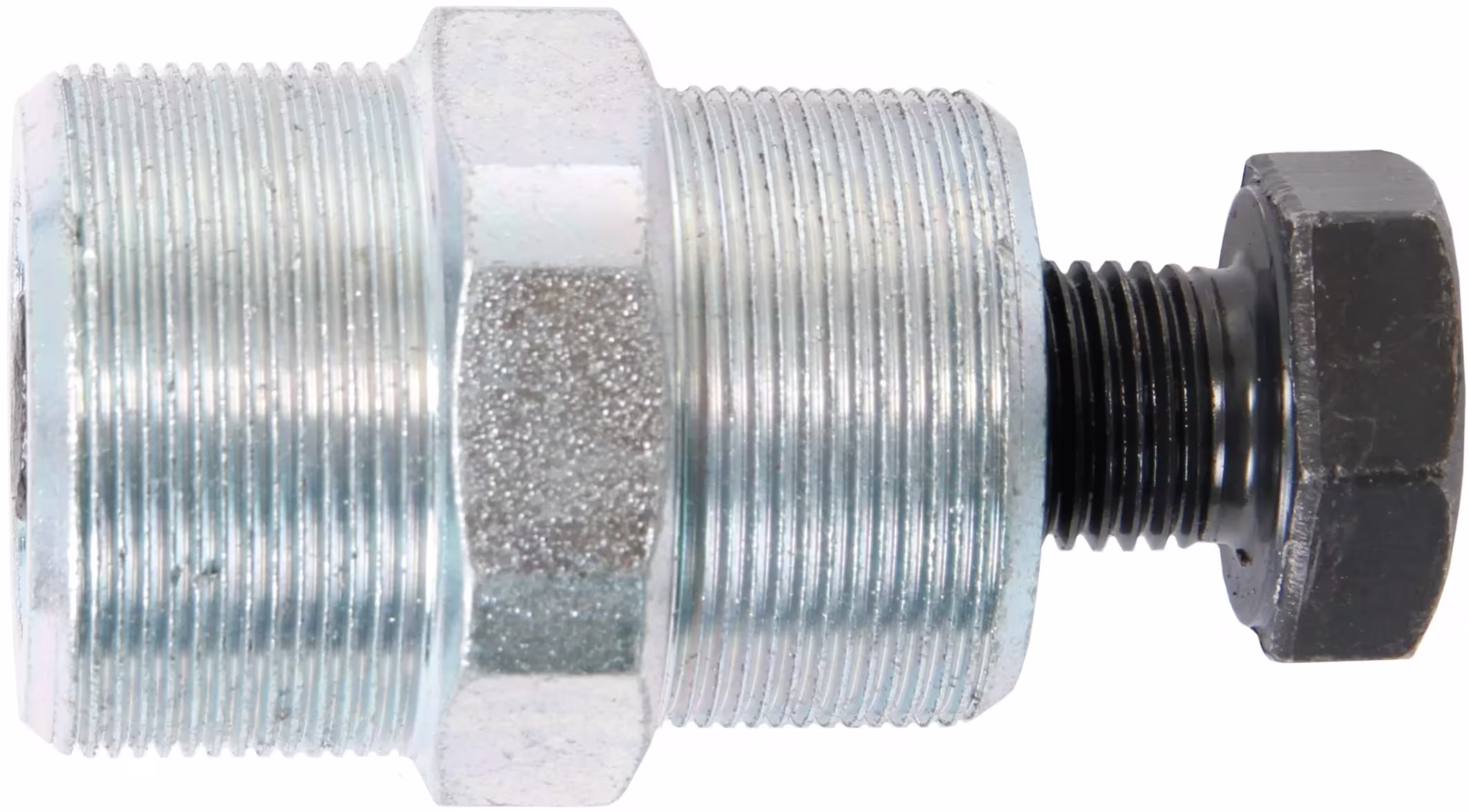

BUZZETTI Flywheel Puller
2 way, outer thread
BIKESERVICE Puller Set
for easy removing of clutch bodies, flywheel and primary gears and many other. Adjusting range: 35-100mm
Technical data:
cassette total dimensions (LxWxH): 160 x 260 x 42mm
The set contains following articles:
universal plate 4 guides, SW 21mm
extractor Ø 19mm, length: 130mm, SW 14mm
extractor mandrel Ø 15mm (conical), length: 13mm
3x screws M6 x 1,0mm, length: 20mm
3x screws M6 x 1,0mm, length: 45mm
3x screws M8 x 1,25mm, length: 45mm
3x screws M8 x 1,25mm, length: 90mm
3x screws M10 x 16G 3,8", length: 125mm
BUZZETTI Puller
Spare part for puller set for deep groove ball bearings (0.575.781/0), material: steel
BIKESERVICE Flywheel Puller
The puller can be used with reversible ratchet (1/2") or a combination spanner (SW 21mm). Material: hardened steel
M18 x 1,5mm, outer thread, right-hand thread
Technical data:
thread length: 16mm
shaft diameter (inner): 12mm
- Article number: 05771647
- Original number: BS2421
M18 x 1,5mm, outer thread, right-hand thread
Technical data:
thread length: 32mm
shaft diameter (inne): 14mm
- Article number: 05771654
- Original number: BS2422
M20 x 1,5mm, outer thread, right-hand thread
Technical data:
thread length: 15mm
shaft diameter (inner): 14mm
- Article number: 05771662
- Original number: BS2423
M20 x 1,5mm, outer thread, right-hand thread
Technical data:
thread length: 38mm
shaft diameter (inner): 14mm
- Article number: 05771670
- Original number: BS2424
BIKESERVICE Puller Set
universal, for easy pulling of e.g. bearings, sprockets etc. Suitable for parts with a outer Ø from 30 - 75mm
Technical data:
case dimensions (LxWxH): 375 x 285 x 60mm
The set contains following articles:
disconnection adapter A - threaded rod distance 62mm, for outer Ø 30 - 50mm, min. adapter distance: 50mm, max. adapter distance: 105mm
disconnection adapter B - threaded rod distance 92mm, for outer Ø 50 - 75 mm, min. adapter distance: 80mm, max. adapter distance: 125mm
puller C - min. adapter distance: 50mm, max. adapter distance: 150mm, puller threaded rod length: 175mm
2x adapter - 14mm hex, length: 60mm
2x extensions - 14mm hex, length: 90mm
2x adapter - 17mm hex, length: 82mm
2x extensions - 17mm hex, length: 110mm
BUZZETTI Puller Set
universal, three claws puller for easy removing of e.g. bearings, sprockets etc. Suitable for parts with outer Ø from 19 - 45mm. Material: steel

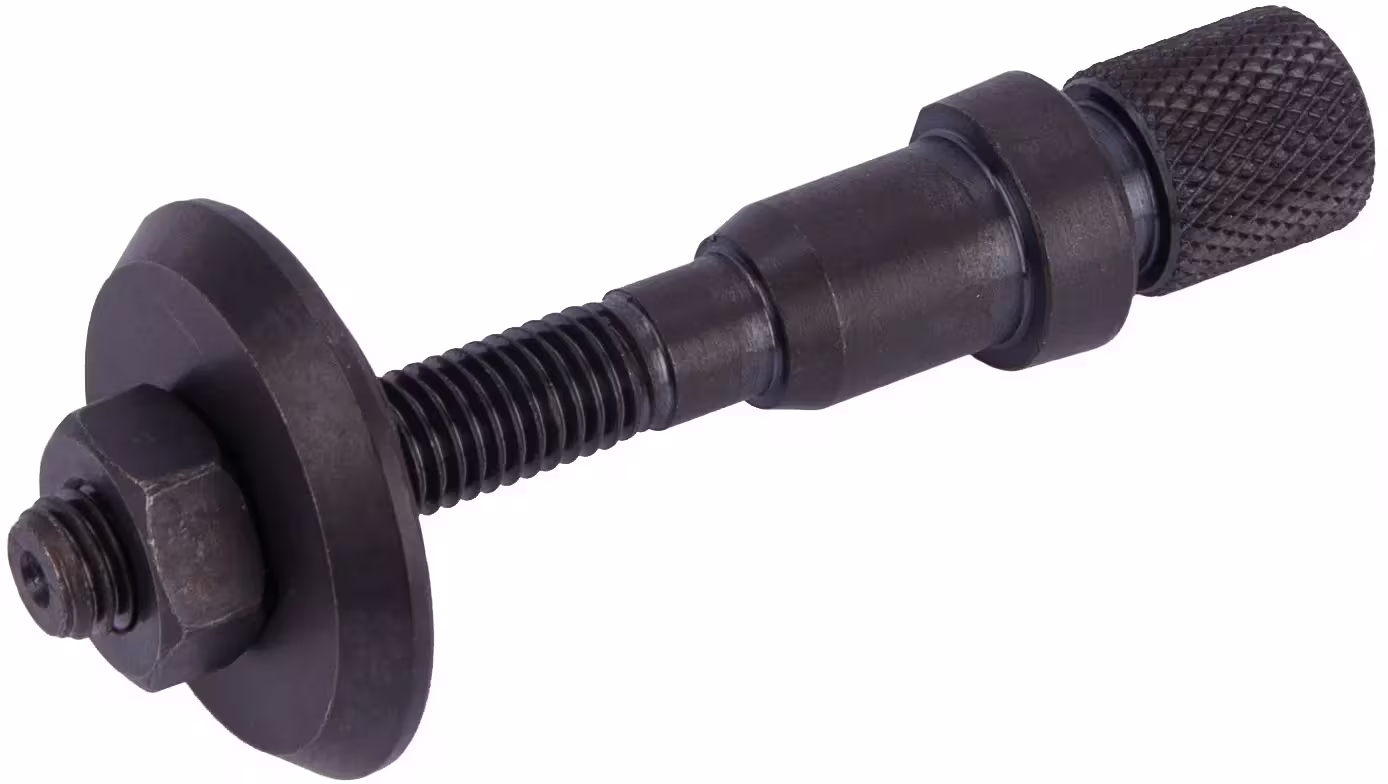

CIF Clutch Press
By pressing the clutch, this can be easily disassembled.
