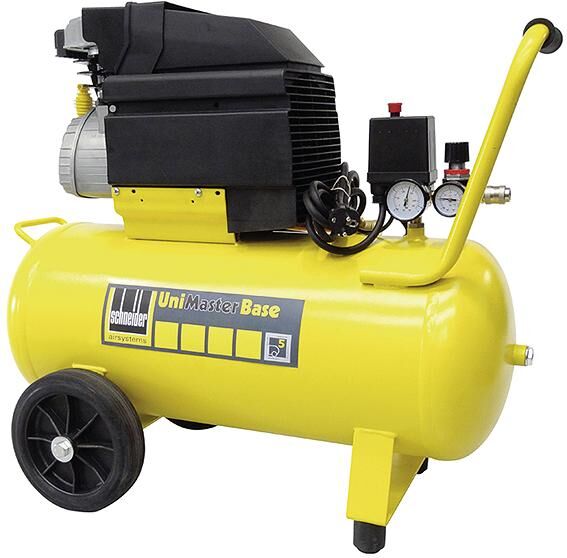

schneider airsystems Compressor "UniMaster UNM 150-8-25 W Base"
"UNM 150-8-25 W Base"
Technical data:
suction capacity: 170 l/min
filling capacity: 80 l/min
on/off switching pressure : 6/8 bar
cylinder/levels: 1/1
tank volume: 24l
voltage: 230 V / 50 Hz
motor power: 1,1 kW
speed: 2850 rpm
sound power level: 95 dB(A)
dimensions (WxDxH): 580 x 245 x 620mm
weight: 22kg
- Article number: 89661433
- Original number: 1129740197
Piston compressor, mobile, with horizontal tank
With all safety fittings, electrical Connecting Cable with plug and Condor pressure switch as standard. Compressed air tank equipped with safety valve, tank pressure gauge and condensate drain valve. The welded-on rear handle improves loading and transportation. Fully automatic operation thanks to pressure switch with start-up relief, engine protection, on/off switch.
Technical data:
Suction capacity: 170 l/min
Filling capacity: 80 l/min
On/off pressure: 6/8 bar
Cylinders/stages: 1/1
Tank volume: 24 l
Voltage: 230 V / 50 Hz
Motor power: 1.1 kW
Speed: 2850 rpm
Sound power level: 95 dB(A)
Dimensions (WxDxH): 580 x 245 x 620 mm
Weight: 22 kg
Product information
- Cylinder / levels 1/1
- Design mobile
- Engine power 1.1 kW
- Filling capacity 80 l/min
- Height 62.0 cm
- Height 620.0 mm
- Length 245.0 mm
- Length 24.5 cm
- Main colour yellow
- Secondary colour black
- Sound power level 95 dB
- Speed 2850.0 rpm
- Suction capacity 170 l/min
- Variant Article
- Width 580.0 mm
- Width 58.0 cm
- Working pressure 8.0 bar
- Supplier Article Number: 1129740197
- MSRP: €267.75
- SB-Article: No
- Brand/Supplier schneider airsystems
- Unit of measure: PIECE
