Ø 50mm with special adapter, outlet 8/6,4mm for motorcycle batteries

battery and start/charging system tester for start-stop EFB / AGM batteries, battery size: 25 - 3000 CCA
Can tests 12V start/stop/recuperation start batteries EFB (Enhanced Flooded Battery), AGM (Absorbent Glass Mat) and 6/12V starter batteries (lead-acid, gel and fleece batteries/AGM). Other options are start/charge system tests for 12/24V systems. The optional application of the current clamp #100653 is supported by the tester and improves, in addition, the test results. Other important functions are volt and temperature measurement. An integrated thermal printer presents all measurement results as text and graphical form in selected menu language. Custom data (customer's name, car signs, vehicle) can be entered separately.
Test norm: JIS, EN, DIN, SAE, IEC

battery and start/charging sytem tester for start-stop EFB / AGM batteries, battery size: 25 - 2400 CCA
Can tests 12V start/stop/recuperation starter batteries EFB (Enhanced Flooded Battery), AGM (Absorbent Glass Mat) and 12V starter batteries (lead-acid, gel and fleece batteries/AGM). Other options are start/charge system tests for 12/24V systems.An integrated thermal printer presents all measurement results as text and graphical form in selected menu language.
Test norm: JIS, EN, DIN, SAE, IEC

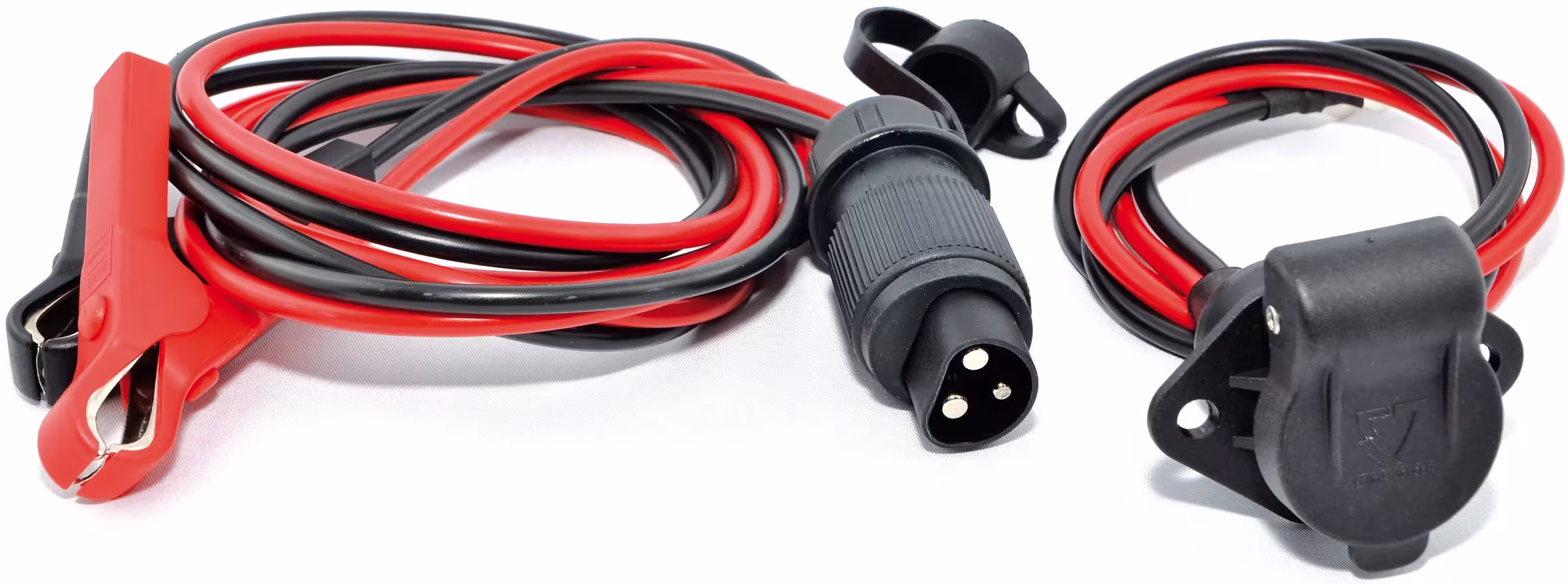

for high frequency chargers with central plug Comfort Connect, 12V
Suitable for: XC 0.8, XS 0.8, MXS 3.8, MXS 5.0, MXS 5.0 Test & Charge, MXS 5.0 Polar, Lithium XS, MXS 7.0 and MXS 10

for 12V batteries, with 15A fuse
For a permanent check of the charge state of batteries. Can be firmly connected to the battery. Display of the charging state via the LED indicator function.
red: The battery voltage is below 12,4 V.
yellow: The battery voltage is between 12,4 and 12,65 V.
green: The battery voltage is above 12,65 V.

Suitable for: XS 0.8, MXS 3.8, MXS 5.0, MXS 7.0, MXS 10

for 12V batteries from 1,2 to 110 Ah, suitable for cold enviroments
For automatic, 8-stage charge / charge maintenance of open, MTF, AGM, GEL and lead-calcium batteries. Possible regeneration of deep discharged batteries, With desulfation function. Temperature compensated, electronics, protection class IP65 (splashwater and dustproof).

Technical data:
power supply: 220 - 240V AC / 50 - 60 Hz
charging voltage: 14,4 / 14,7 / 15,8V
charging current: max. 5A
battery capacity: 1,2 - 110 Ah charging / 1,2 - 160 Ah receive
charging time: 12 hrs.(with a 60 Ah battery)
weight: 0,6kg

for 12V batteries from 14 to 150 Ah
For charging larger batteries in caravans, campers, boats and motor vehicles. Full autamatic 8-stages charger with charging current of 7A for 12 V batteries between 14 Ah and 150 Ah and for the maintenance of batteries up to225 Ah. It has a battery diagnosis that determines if the battery can receceive and retain a charge, a special Recond mode for reconditioning deeply discharged batteries where you could except a stratified acid,a winter program for the charging in cold environments, as well as an option for AGM batteries. Can also be used as a power source to supply 12V devices up to 7A.

Technical data:
battery types: all typesof lead-acid batteries, wet, MTF, Ca/Ca, AGM, GEL
power supply: 220 - 240V AC / 50 - 60 Hz
start voltage: 2,0V
charging voltage: 13,6 / 14,4 / 14,7 / 15,8V
charging current: max. 7A
battery capacity: 14 - 150 Ah charging / 14 - 225 Ah receive
weight: 0,8kg

for 12V batteries from 20 to 300 Ah
Automatic, 8-stages charging/charge retention of open, MTF, AGM, GEL, EFB and lead-calcium batteries. Possible regeneration of discharged batteries, desulfation function avaliable. Temperature-compansated, electronics safe, with supply mode (the device can be used as a power supply when the battery is removed) and visualization of charging process.

Technical data:
power supply: 220 - 240V AC / 50 - 60 Hz
charging voltage: 13,6 / 14,4 / 14,7 / 15,8V, nominal 12V
charging current: max. 10A
protection class: IP65 (splash and dustproof)
battery capacity: 20 - 300 Ah
charging time: 6 hrs. by 60 Ah battery
weight: 0,85kg

for 12V batteries, 40 to 500 Ah, charging current: 25A, charging cable: 6m, incl. wall-mount device and bracket
Portable, flexible or firmly installed on pillars or work bays. For fully automatic charging of 12V batteries of all kind (wet cells, Ca/Ca, gel, AGM, EFB and Lithium-Ion (LiFePO4, Li-Fe, Li-iron, LFP) and to support the battery during diagnostics and troubleshooting. Spark-proof, protected against polarity reversal, with integrated safety functions and temperature sensor and a special re-conditioning program to restore discharged and overtaking exhausted batteries. Acc. to IP44 certified for outdoor use.

Technical data:
input: 220 - 240V (AC), 50 - 60 Hz, 2.9 A max.
output: 14.4V / 15.8V / 13.6V, 25 A max. (lead batteries), 13.8V / 14.4V / 13.3V, 25 A max. (LiFePO4 batteries)
battery power: 40 - 500 Ah (lead batteries), 30 - 450 Ah (LiFePO4 batteries)
start voltage: 2.0V
ripple: less than 4%
charging / supply cable length: 6000mm (DC) / 1900mm (AC)
ambient temperature: -20 to +50°C
temperature compensation: via connected axternal voltage temperature compensation sensor

for 12V batteries from 40 to 500 Ah, charging current: 25A
For fully automatic charging of 12V batteries of all sorts (wet cells, Ca/Ca, gel, AGM, EFB and lithium-ion (LiFePO4) and to support the battery during diagnostics and troubleshooting. Non-sparking, protected against polarity reversal, with integrated safety functions and temperature sensor and aslo a special reconditioning program for restoring discharged and overtaking exhausted batteries. According to IP44 certified for outdoor use.

Technical data:
input: 220 - 240 V AC, 50 - 60 Hz, 2.9 A max.
output: 14.4V / 15.8V / 13.6V, 25 A max. (lead batteries), 13.8V / 14.4V / 13.3V, 25A max. (LiFePO4 batteries)
battery power: 40 - 500 Ah (lead batteries), 30 - 450 Ah (LiFePO4 batteries)
start voltage: 2.0V
ripple: less as 4%
charging/power cable length: 2000mm (DC) / 1900mm (AC)
ambient temperature: -20 to +50°C
