SCHNEIDER Compressed Air Hose
PVC hose with fabric ply, working pressure max. 15 bar at 20°C
For normal operating conditions with compressed air, blue
inner Ø 9mm, outer Ø 15mm, 10m roll
with quick coupling and plug nipple
- Article number: 64115322
- Original number: DGKD740013
SCHNEIDER Compressed Air Hose "Super-Flex"
PVC hose with fabric ply, working pressure max. 15 bar at 20°C
Extremely resistant to compressed air containing oil, resistant to ageing by reinforced outer material, very flexible, also at low temperature, grey
inner Ø 6,3mm, outer Ø 11mm, 10m roll
with quick coupling and plug nipple
- Article number: 64818628
- Original number: DGKD730033
inner Ø 10mm, outer Ø 15,5mm, 10m roll
with quick coupling and plug nipple
- Article number: 64818636
- Original number: DGKD730031
SCHNEIDER Compressed Air Hose
spiral hose, polyamide, with rotary quick coupling (only SSL-SK) and plug nipple
Especially suitable for balancers. Bend protection at the spiral hose ends and high reset force, max. pressure: 8 bar, outer Ø: 8mm, inner Ø: 6mm
SCHNEIDER Quick Coupling
for air passage till 1100 l/min at 6 bar, pressure difference: 0,5 bar
Eurostandard profile, brass, pollution resistant through tight-fitting release bushing, working pressure max. 35 bar and rough vacuum, with oil resistant perbunan seal
SK-NW 7,2 - G1/2a, with outer thread, shut-off at one end
- Article number: 66220195
- Original number: DGKE700003
SK-NW 7,2 - G1/ 4a, with outer thread, shut-off at one end
- Article number: 66220153
- Original number: DGKE700001
SK-NW 7,2 - G3/8a, with outer thread, shut-off at one end
- Article number: 66220179
- Original number: DGKE700002
SK-NW 7,2 - G1/2i, with inner thread, shut-off at one end
- Article number: 66220252
- Original number: DGKE700006
SK-NW 7,2 - G1/4i, with inner thread, shut-off at one end
- Article number: 66220211
- Original number: DGKE700004
SK-NW 7,2 - G3/8i, with inner thread, shut-off at one end
- Article number: 66220237
- Original number: DGKE700005
SCHNEIDER Pipe Clips "RK18"
for dowel assembly in pipes with pipe Ø of 18mm
Installation of the compressed pipe through light pressing, with long hole of screw attachment and centering cone on base, countersunk screw head, cold break proof
SCHNEIDER Hose Clamp
steel, galvanized, for compressed-air hoses, worm thread for cross profile screws, SW 7mm, band width: 9mm
HAZET air blow gun "9040P-1"
standard nozzle, bent pipe, pipe Ø 8mm, max. working pressure 16 bar
For the fast removal of shavings or other foreign objects, especially in areas that are difficult to access. To be used on machinery, in workshops, for wood working, decor and in the home. Handle, trigger and valve made of acetal plastic, seals and O-rings made of nitrile, blast pipeand shaft made of steel, spring made of hardener steel.
Technical data:
air connection inlet: inside thread 12,91mm (1/4)
coupler plug: nominal size 7,2 (incl.)
hose diameter (recom.): 10mm
working pressure: 6 bar
net weight: 0,105kg
air requirement: 290 l/min (4.8 l/sec)
SCHNEIDER Plug Nipple
with male thread, DN 7,2
Standard, brass, without check nipple

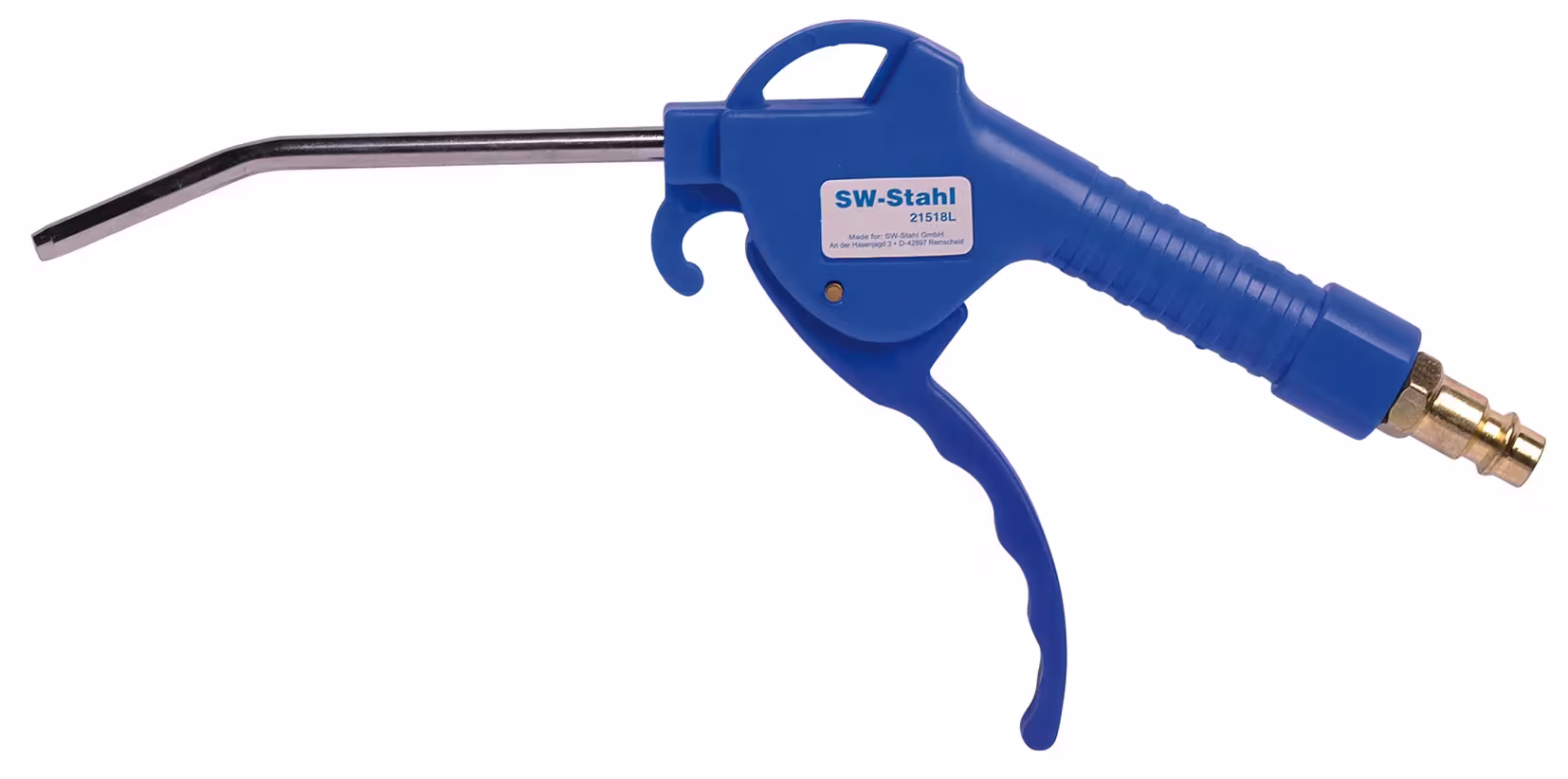

SW-STAHL air blow gun
compressed air, 1/4", incl. compressed air plug nipple, made of seamless, chromed steel tube, handle made of blue nylon fibre
HAZET Compressed Air Hose "9040-7"
spiral hose, polyurethane, with 360° swivel joints on connecting pieces
Inner Ø: 6,35mm, air inlet thread: 12,91mm (1/4"), burst pressure according to DIN: 55,1 bar / 800 PSI, working pressure: 10 bar
