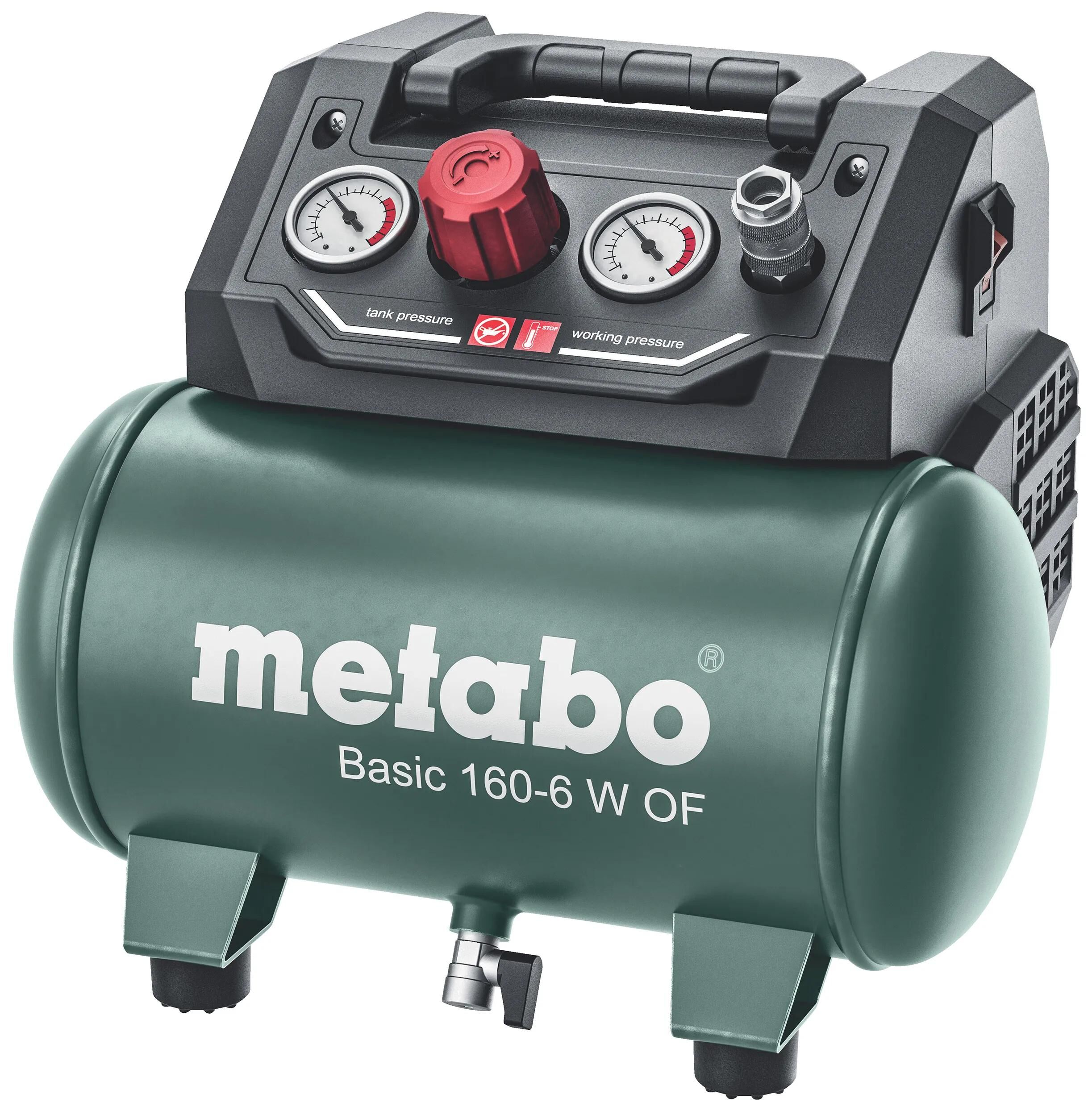

oilless piston compressor, mobile
Handy 6 liter compressor for stapling, nailing, blowing out, filling tires and working with cartridge guns, grease guns and rivet pliers. Instrument panel with easily readable pressure gauges for boiler and working pressure, adjustable, application-specific working pressure through pressure reducer with pressure gauge, overload protection, rubberized feet and condensate drain via ball valve with wing handle. 10 years boiler guarantee against rust penetration.

oil lubricated piston compressor, mobile
Efficient, robust one-phase-AC compressor for easy, professional applications. Adjustable working pressure by pressure reducer with pressure gauge, overload protection, rubber wheels, additional pressure gauge for the display of vessel pressure and rubber handle. 10 year boiler guarantee against rusting.

Technical data:
intake capacity: 200 l/min
filling capacity: 110 l/min
effective delivery rate (at 80% max. pressure): 95 l/min
max. pressure: 8 bar
rated power input: 1,5 kW
max. speed: 2.850/min
boiler size: 50 l
sound pressure level (LpA): 97 dB(A)
dimensions: 830 x 445 x 715mm
weight: 32kg
cable length: 1,5m
Scope of delivery:
universal-quick coupling, pull handle with rubber coating

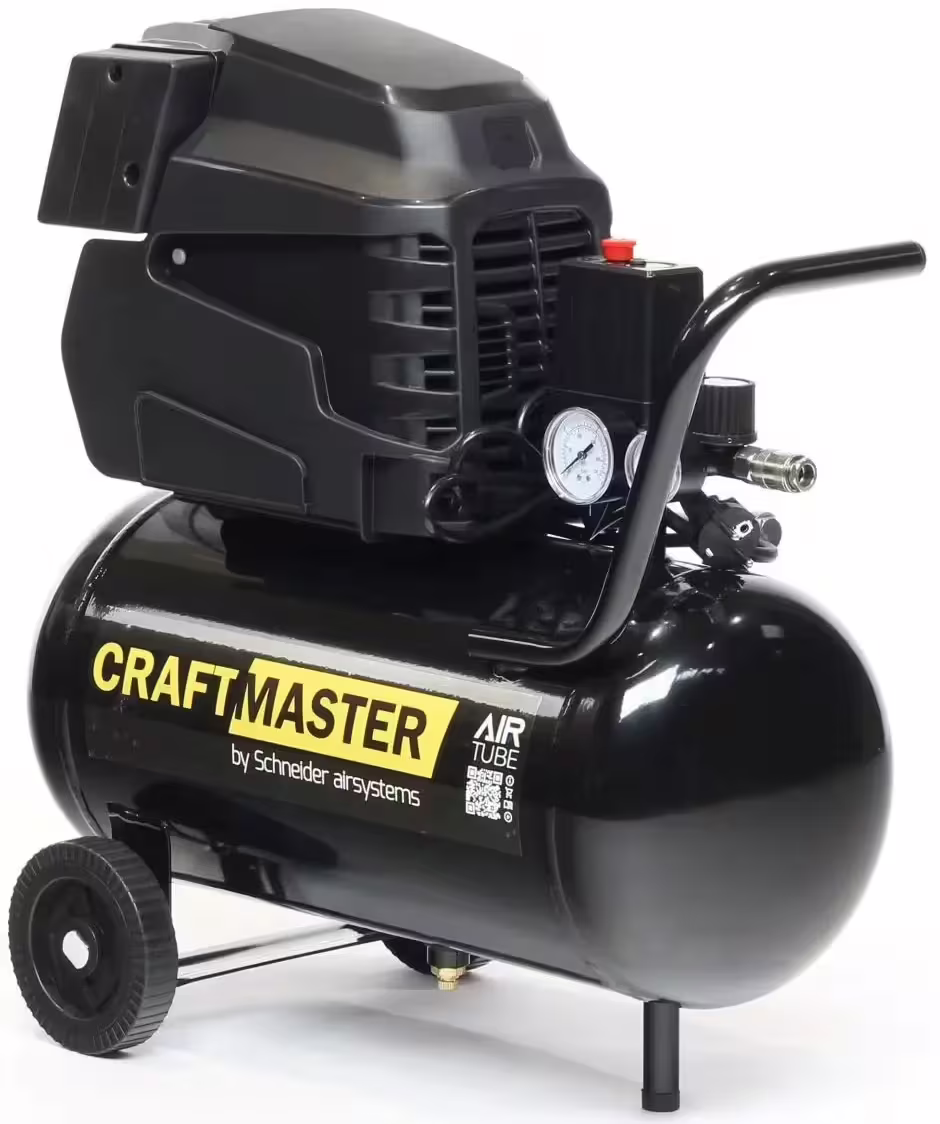

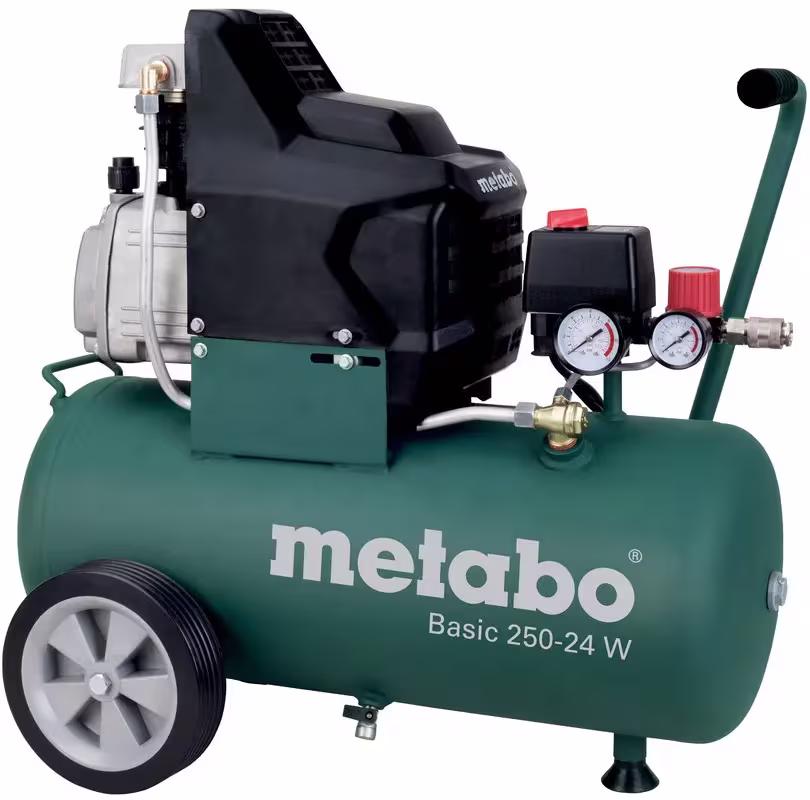

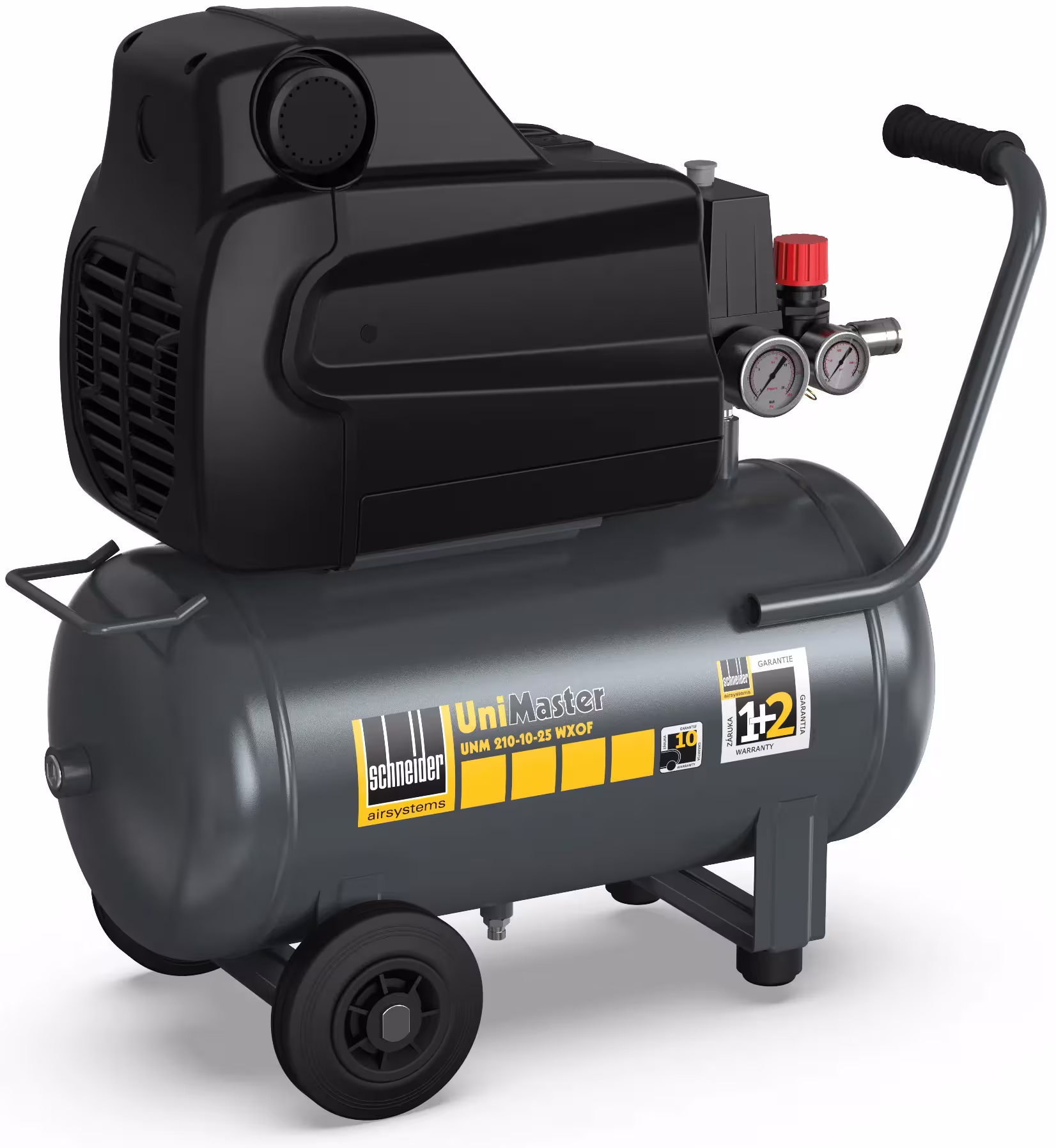

Piston compressor, mobile, with horizontal tank
With all safety fittings, electrical Connecting Cable with plug and Condor pressure switch as standard. Compressed air tank equipped with safety valve, tank pressure gauge and condensate drain valve. The welded-on rear handle improves loading and transportation. Fully automatic operation thanks to pressure switch with start-up relief, engine protection, on/off switch.








Technical data:
Suction capacity: 170 l/min
Filling capacity: 80 l/min
On/off pressure: 6/8 bar
Cylinders/stages: 1/1
Tank volume: 24 l
Voltage: 230 V / 50 Hz
Motor power: 1.1 kW
Speed: 2850 rpm
Sound power level: 95 dB(A)
Dimensions (WxDxH): 580 x 245 x 620 mm
Weight: 22 kg

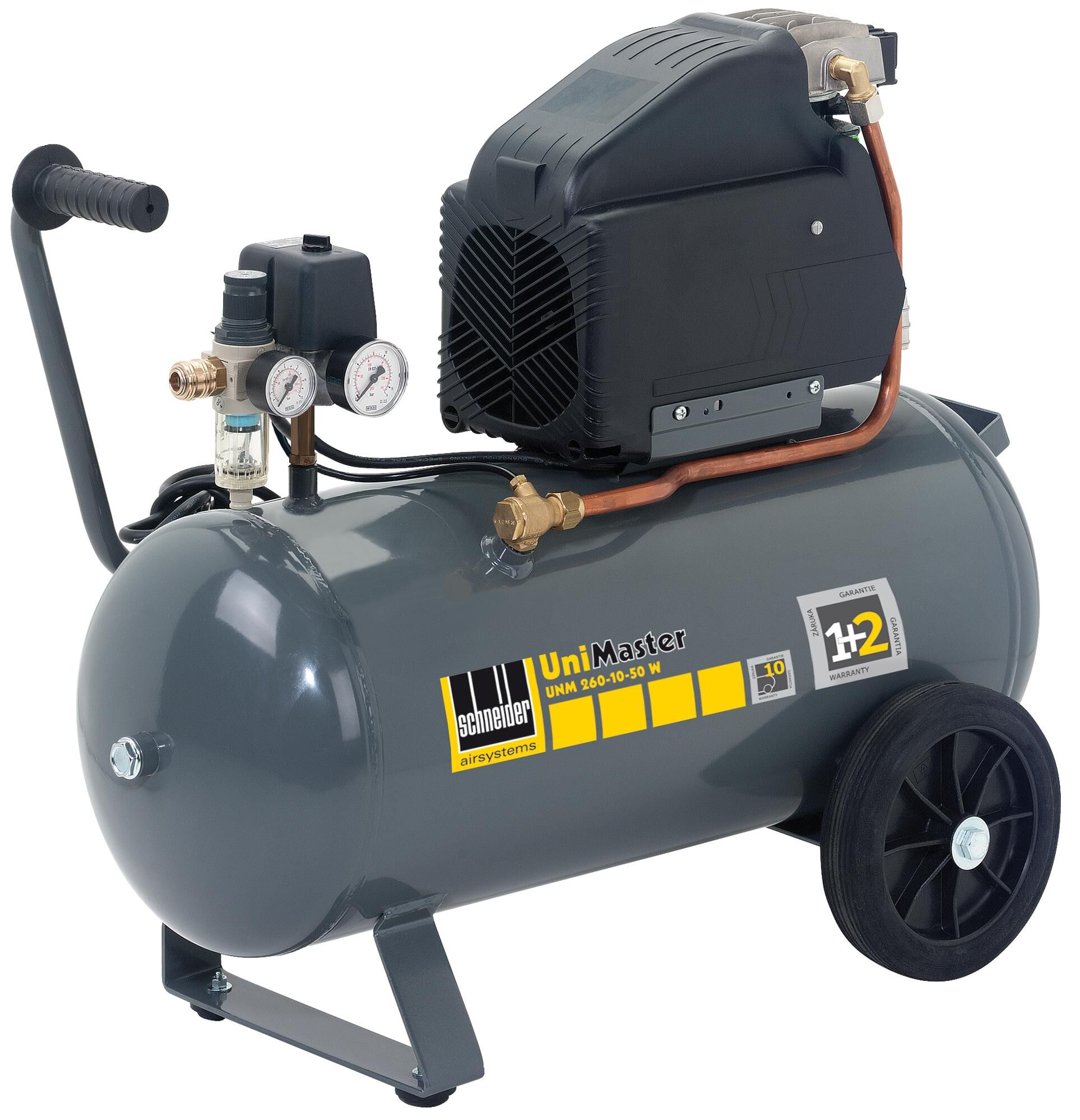

Piston compressor, mobile, with horizontal tank
With all safety fittings, electrical Connecting Cable with plug and Condor pressure switch as standard. Compressed air tank equipped with safety valve, tank pressure gauge and condensate drain valve. The welded-on rear handle improves loading and transportation. Fully automatic operation thanks to pressure switch with start-up relief, engine protection, on/off switch.

Technical data:
Suction capacity: 260 l/min
Filling capacity: 160 l/min
On/off pressure: 8/10 bar
Max. pressure: 10 bar
Cylinders/stages: 1/1
Tank volume: 50 l
Voltage: 230 V / 50 Hz
Motor power: 1.5 kW
Speed: 2850 rpm
Sound power level: 95 db(A)
Dimensions (WxDxH): 770 x 425 x 640 mm
Weight: 32 kg

Piston compressor, mobile, with horizontal tank
With all safety fittings, electrical Connecting Cable with plug and Condor pressure switch as standard. Compressed air tank equipped with safety valve, tank pressure gauge and condensate drain valve. The welded-on rear handle improves loading and transportation. Fully automatic operation thanks to pressure switch with start-up relief, engine protection, on/off switch.

Technical data:
Suction capacity: 410 l/min
Filling capacity: 295 l/min
On/off pressure: 8/10 bar
Max. pressure: 10 bar
Cylinders/stages: 2/1
Tank volume: 50 l
Voltage: 230 V / 50 Hz
Motor power: 2.2 kW
Speed: 1000 rpm
Sound power level: 97 db(A)
Dimensions (WxDxH): 895 x 410 x 890 mm
Weight: 64 kg

Piston compressor, mobile, with horizontal tank
With all safety fittings, electrical Connecting Cable with plug and Condor pressure switch as standard. Compressed air tank equipped with safety valve, tank pressure gauge and condensate drain valve. The welded-on rear handle improves loading and transportation. Fully automatic operation thanks to pressure switch with start-up relief, engine protection, on/off switch.

Technical data:
Suction capacity: 410 l/min
Filling capacity: 295 l/min
On/off pressure: 8/10 bar
Max. pressure: 10 bar
Cylinders/stages: 2/1
Tank volume: 50 l
Voltage: 230 V / 50 Hz
Motor power: 2.2 kW
Speed: 1000 rpm
Sound power level: 96 db(A)
Dimensions (WxDxH): 940 x 370 x 870 mm
Weight: 68 kg

Piston compressor, mobile, with horizontal tank
With all safety fittings, electrical Connecting Cable with plug and Condor pressure switch as standard. Compressed air tank equipped with safety valve, tank pressure gauge and condensate drain valve. The welded-on rear handle improves loading and transportation. Fully automatic operation thanks to pressure switch with start-up relief, engine protection, on/off switch.

Technical data:
Suction capacity: 660 l/min
Filling capacity: 520 l/min
On/off pressure: 8/10 bar
Max. pressure: 10 bar
Cylinders/stages: 2/2
Tank volume: 90 l
Voltage: 400 V / 50 Hz
Motor power: 4.0 kW
Speed: 1000 rpm
Sound power level: 97 db(A)
Dimensions (WxDxH): 1110 x 495 x 1000 mm
Weight: 102 kg

Stationary piston compressor, upright, with sound insulation hood
Smooth-running V-belt driven 2-cylinder unit with two-stage compression for the extension of compressed air systems and to increase reliability.

Technical data:
Suction capacity: 660 l/min
Filling capacity: 520 l/min
On/off pressure: 8/10 bar
Max. pressure: 10 bar
Cylinders/stages: 2/2
Tank volume: 270 l
Voltage: 400 V / 50 Hz
Motor power: 4.0 kW
Speed: 1025 rpm
Sound power level: 69 dB(A)
Dimensions (WxDxH): 775 x 740 x 1905 mm
Connection: 3/4"
Weight: 209 kg

oil-free, portable, direct coupled 1-cylinder piston compressor
For operating smaller staplers and nailers, blow guns, caulking guns, grease guns and rivet guns. Suitable for working up to 8 bar, handy, light, compact design, with pressure reducer, pressure gauge for working and tank pressure as well an air exhaust via quick coupling.

1-cylinder piston compressor, oil-free, fully automatic on/off operation
For operating smaller compressed air tools such as grease guns, rivet guns or blow-out and cartridge guns. Universally applicable, small compact design, electric motor with motor protection switch, compressed air extraction via two one-hand quick-release couplings, pressure reducer for infinitely variable adjustment of the desired working pressure, one pressure gauge each for displaying the container pressure and the working pressure, three suction cups for a secure stand, maximum pressure 8 bar
