industrial version, 4-time, for manual use and single wheel shift

test lane, for cars and transporters, one-piece roller brake tester
With large testing width (850/2320mm), roller distance 445mm, also suitable for twin tires, incl. fully plastic-corundum coated test rollers, Ø 200mm, splash proof, smooth running transmission motor 2x 4,6kW, additional motor protection by external drive, DMS system, automatic start-up and reset, 15m signal cable for roller set connection, cable remote for manual control and single wheel switch with kill switch, chassis tester AHS Easy Swing, open-piece frame design, two vertically oscillating wheel support plates, wheel and axle base scale till 2.000 kg, response process, Original-Boge-Principe, axle tester AHS AT 100 with force guided plastic corundum coated test plate, precision track recorder, mounting frame, galvanized, display- and control cabinet with two large analog displays, measure und display area 0 - 6 kN, DMS-System, 4-timed radio remote control for industry usage, LED display lights, two test devices and opposite runs, four driving direction lights and automatic light, drive in control light, automatic turn off, start blocker, drive out assistance, visual brake control by stop light, brake force difference display, digital display for the track differences (0 - 20 m/ km), three digital displays for suspension performance right/ left, PC-interface, network capable
plus freight and assembly costs

with 3D camera technology and lifting device for camera carrier
Self-explanatory user guidance of the track gauge and user-friendly symbols avoid input errors, vehicle database with nearly all vehicle models of the last 25 years and optionally with a lift-up aid for the lift

Scope of delivery
- PC, hard disc, CD-/DVD-drive, optical mouse, USB 2.0 interface, network card
- operating system: Windows, German keyboard
- Pro 42 Advanced-operating software
- vehicle database
- 19" TFT-widescreen monitor
- infrared remote control
- printer in color DIN A4
- speaker
- 4 reflector screen (2 front / 2 rear)
- Camera crossbar with 3D-sensor electronics
- Steering wheel lock
- Brake lock
- mobile operating panel
- 4 wheel clamps

computerized system with 8 CCD sensors
Data transmission between the measuring heads via infrared, transmission to the console via Bluetooth, circular correction in each position, 3D-guided wheel alignment software. Allows working with electronic turntables as well as automatic reading of the maximum impact angle. The database contains more than 90000 vehicle data sheets that have already been entered, including the possibility of entering further data sheets by the user himself. Customer database for recording 20000 interventions with a search function for customer names or vehicle identification, colour: anthracite / RAL 7016

Scope of delivery:
Media console with PC with Pentium processor, 19" TFT screen, keyboard, printer, automatic battery charger
2 front gauge heads
2 rear gauge heads
2 pair 4-point wheel holder (#STDA33EU) for rims from 10" to 24 "
1 pair mechanischal rotary plate (#S110A7)
bake pedal support
steering wheel lock

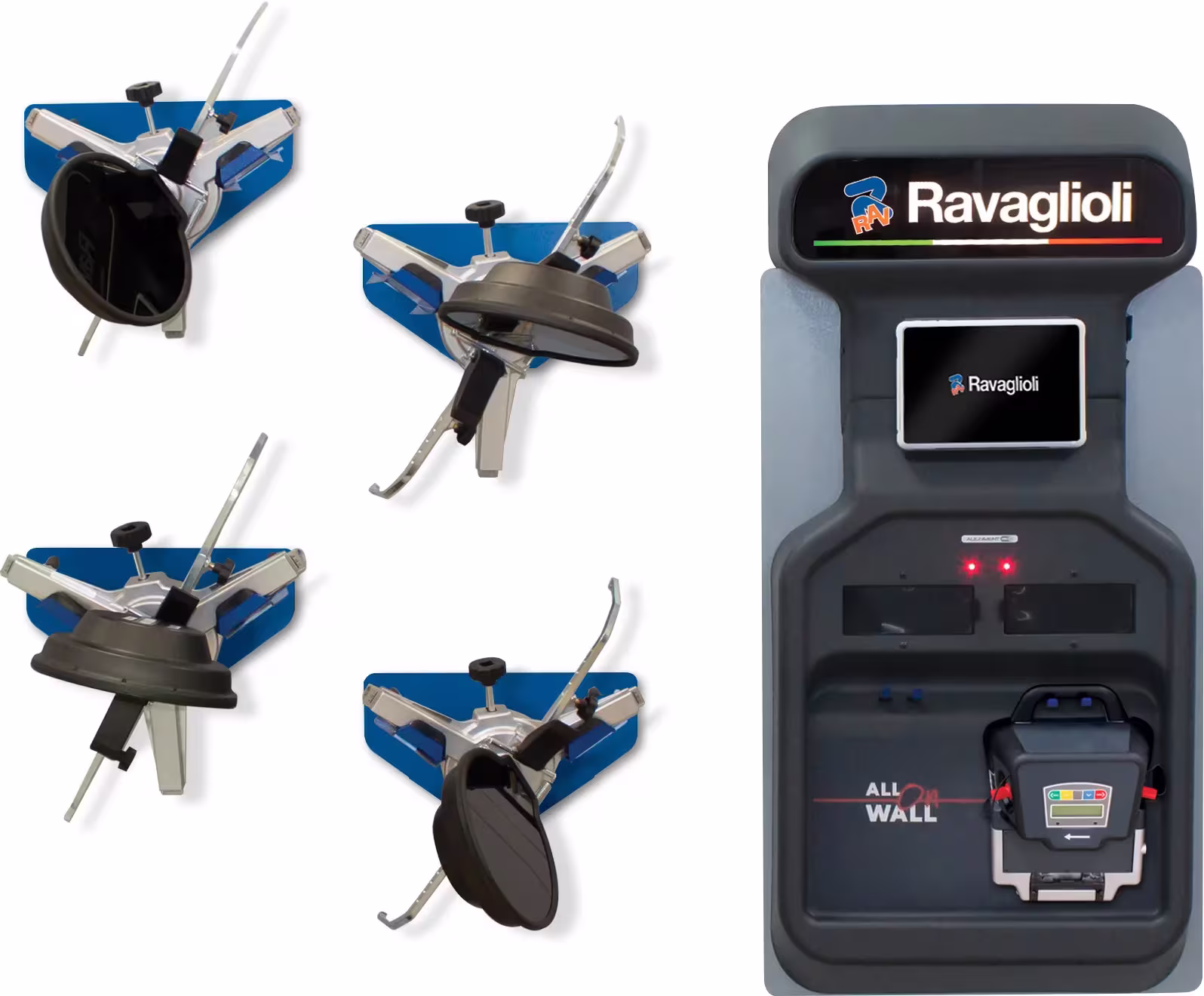

3D system, usable for all 4-post and scissor lifts
Model with fixed cameras. With 3 point clamps to avoid run out compensation. Very quick to use. Remote control located on each sensor. Run out compensation when required. Quick claws approch device. Freely moving upwards to prevents damage when obstacles on departure. Measurement of vehicles up to 4300mm wheel distance, colour: anthracite / RAL 7016

accessory, suitable for RAV wheel aligners

for brake test stands the "RT series"

roller set (4 kw), for passenger cars, incl. LED display
with automatic all-wheel detection, different driving rail kits for the pit and LED display with wall mount bracket. Suitable for testing braking force, difference and wheel runout

Note: plus freight and discharge costs
