computerized system with 8 CCD sensors
Data transmission between the measuring heads via infrared, transmission to the console via Bluetooth, circular correction in each position, 3D-guided wheel alignment software. Allows working with electronic turntables as well as automatic reading of the maximum impact angle. The database contains more than 90000 vehicle data sheets that have already been entered, including the possibility of entering further data sheets by the user himself. Customer database for recording 20000 interventions with a search function for customer names or vehicle identification, colour: anthracite / RAL 7016

Scope of delivery:
Media console with PC with Pentium processor, 19" TFT screen, keyboard, printer, automatic battery charger
2 front gauge heads
2 rear gauge heads
2 pair 4-point wheel holder (#STDA33EU) for rims from 10" to 24 "
1 pair mechanischal rotary plate (#S110A7)
bake pedal support
steering wheel lock

3D system, usable for all 4-post and scissor lifts
Model with fixed cameras. With 3 point clamps to avoid run out compensation. Very quick to use. Remote control located on each sensor. Run out compensation when required. Quick claws approch device. Freely moving upwards to prevents damage when obstacles on departure. Measurement of vehicles up to 4300mm wheel distance, colour: anthracite / RAL 7016

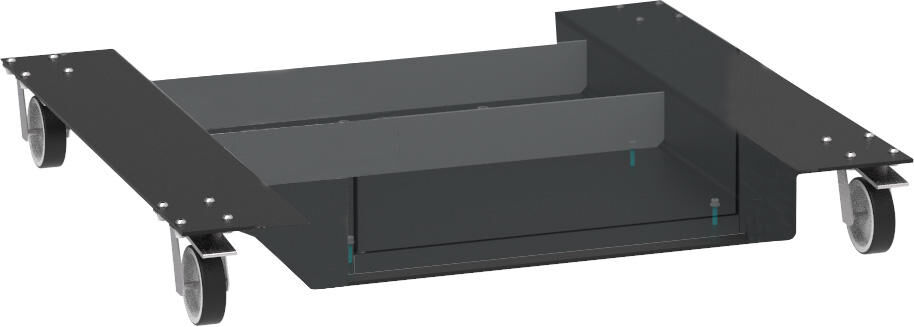

accessory, suitable for RAV wheel aligners

tablet operated, without PC but with Wi-Fi connection
A new concept of CCD wheel aligners as a hi-tech alternative to various product solutions on the market. With a completely new design of the measuring heads and a new storage device for the transducers and wheel clamps.

Scope of delivery:
tablet, magnetic bracket for the tablet, Wi-Fi-Access-Point, wall panels for the measuring heads with USB charging plug, Access-Point and tablet tray, 8-CCD sensors with ball bearing bolts, 1 encoder and quick charging plug, rotary disc set S110A7/P, 1 pedal brake, 1 steering wheel brake, 2 pairs STDA33EU 4-point wheel holder

3D / HD, with moving camera and automatically adjustable lifting height
Targets with reduced dimensions and weight. Advanced software with measurement of toe, pitch and diagonal, single wheel deflection, measurement with 2 targets for long vehicles, caster toe, scuff angle and audit. Premium turntable included.

Equipment / scope of delivery:
Control cabinet, Windows operating system, 27" TFT monitor, color printer, keyboard, speakers, WIFI USB adapter.
Four 4-point clamps 1" - 24" with universal handles and targets.
Two mechanical turntables for cars, movable camera carrier (lift) with 3D sensor technology, brake pedal lock, steering wheel lock.
Wheel alignment software and database for CARS.

3D-system, can be used on various types of lifts, grey
and automatic compensation of flatness. A system with measuring heads that are mounted directly on the lift, eliminating the need for additional setup in front of the lift. Data transmission between measuring cameras and console is done by Bluetooth. Each measuring head is equipped with an LCD display for displaying basic information and with five buttons for remote control of the software (including remote control function). Due to its compact dimensions, the device is also suitable for automotive workshops with limited space.

suitable for "megaline 3500HD" wheel aligner

automatic input measurement of the complete chassis geometry
A rapid inspection system for automated vehicle acceptance. It increases the dynamics of your operation by providing additional services that boost customer confidence and guarantee secure revenue. Accurate, fast and contactless vehicle diagnostics with inspection of the complete wheel geometry. In just a few seconds, the complete wheel geometry, including individual toe-in and steering wheel centering, is measured and the automatic display shows the adjustment errors to be corrected. The check is simple, straightforward and completely contact- and operator-free. Automatic vehicle recognition using a real-time database with the specific vehicle data or by means of license plate recognition (optional). After completion of the vehicle diagnosis, the results, through transparent, easy-to-understand measurement protocols, can be shared directly with the customer to jointly discuss the necessary measures.

measuring head technology with HD cameras and Real 3D targets, wireless transmission via Bluetooth

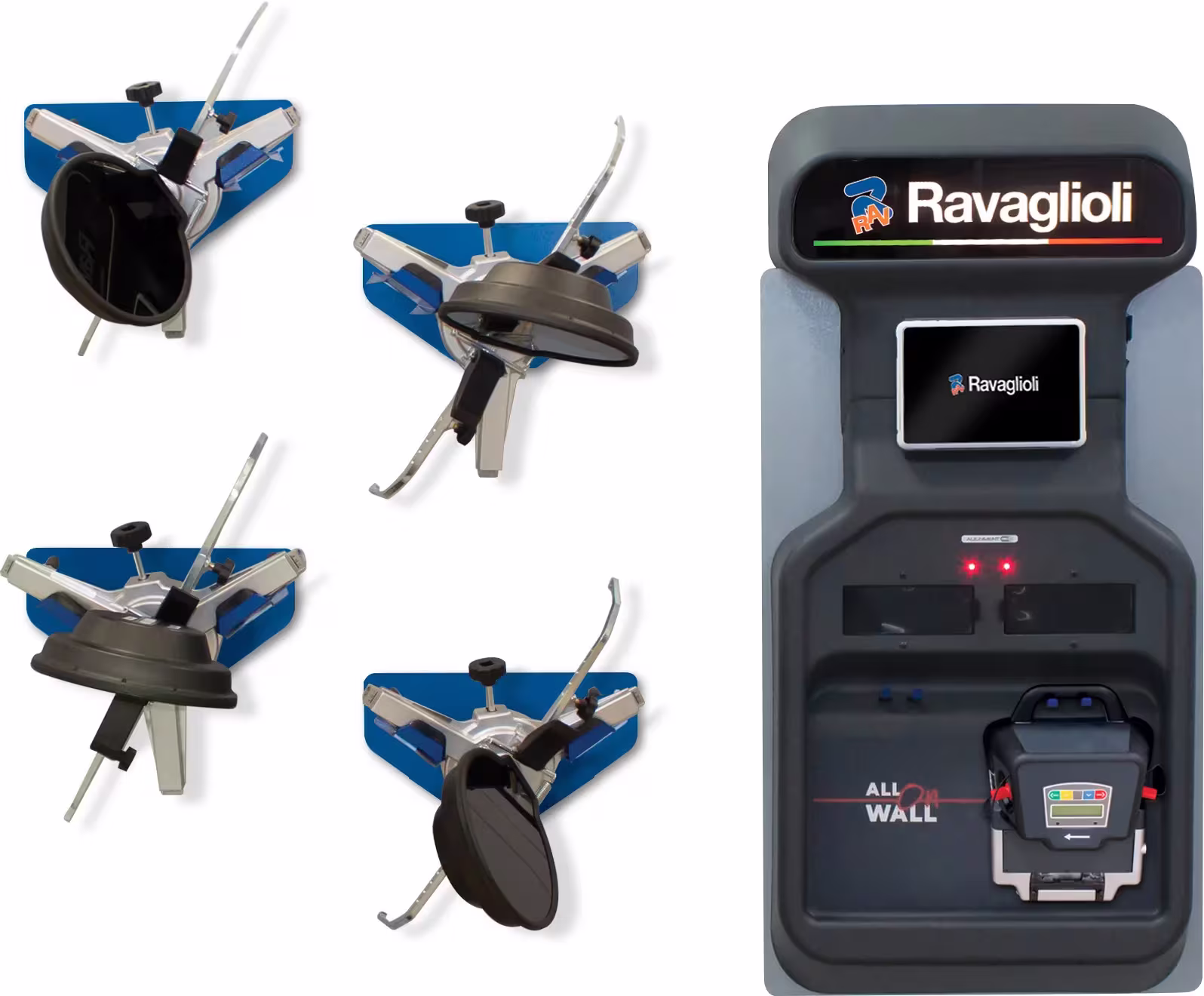

The AllOnWall Series offers everything needed for wheel alignment. With a convenient wall panel, gaining useful space in the workshop. All adjustment work can be controlled via a 10" tablet, which the operator can carry with him or position on the lift during adjustment, using the integrated magnets. The 3D measuring heads detect all the angles of the vehicle within seconds. The targets installed on the wheel clamps in Real 3D structure are extremely light, maintenance-free and without electronic components.

Scope of delivery:
1x tablet with 10" multitouch display (800 x 1280 pixels) and holding magnets (rechargeable on the panel).
1x charging station (with magnets) for positioning two batteries
1x housing with shock protection rubber mat for safe placement of the 3D measuring heads
4x self-centering 3-point quick release wheel clamps
2x standard turntables (Ø 300 mm)
1x steering wheel lock
1x brake pedal clamp
STDAPREMIUM (token for additional functions), STDA110 (vehicle database), STDA162 (set of brackets for mounting on the lift - 2 pieces)

High-tech tread gauge, height 60 mm, for wheel aligner "megaCheck"
For fast and accurate measurement of tire tread depth. The complete integration into the "megaCheck" vehicle acceptance system (8.96 68 37/5) enables a precise condition check of the tire tread and, in conjunction with the measurement of the chassis geometry, offers a comprehensive and fast acceptance diagnosis. Can also be adapted to already installed "megaCheck" systems.

Application:
The vehicle drives onto the contact guides as instructed for correct wheel positioning. The measuring flaps with two 3D laser scanners then open automatically to measure the tire tread at two different height points, excluding possible distortions such as stones jammed in the tread. Once the tread depth and chassis geometry have been measured by "Argos Drivethru", the measuring flaps close again to ensure protection against dust and dirt.
