Suitable for HGS headlight beam adjustment device SEG IV and SEG V
High-quality protection against external influences. Quick and easy assembly, one-person operating. Dust, oil and water repellent

for all headlight systems, meets the new HU headlamp test guideline 2015
With 8,4" touch display, vehicle identification with car history, CMOS camera and USB interface
Technical data: digital luxmeter, wide visor, Fresnel lens, spirit level / eccenter axle for angle adjustment, rotating column for beamsetter box alignment, rail suitable, WLAN preparation, updateable, compatible with CSC tool, roller foot from polymer concrete, calibrateable with manufacturer adjustment device

design certification according to Directive (StVZO § 50, Art. 5), further development from "SEG DLLX"
Allows an analysis of all light distributions including setting future lighting systems from all brands. Suitable for all vehicle types (two-wheeled, trike, cars, commercial vehicles and trucks), all headlight types (low beam, high beam, fog ligh, additional headlight and high beam-assistance system) and all light sources (Bilux, halogen, Xenon, LED and laser). With high mechanical stability, a roller base made of polymer concrete, large-sized wheels, a high-quality Fresnel lens and a hybrid visor (consists of a line laser and an analog sight). Adjustment range in installation height from 250 - 1650mm

for adjusting and calibrating driver assistance systems (ADAS - Advanced Driver Assistance Systems)
Digital radar-reference panel, on flat screen, for all vehicle models. Integrated communication with NEXUS 3.0 BUS-System via WLAN, motorized target height adjustment, adaptive system for automatic adaptation to vehicle positioning, measurement via high-precision laser rangefinder. 80% time savings compared to conventional systems. Dimensions: 2700 x 1500 x 1800mm, 65" full-HD-monitor, integrated control-PC (Windows 10).
Incl. components:
diagnostic device "TechPRO BT": mobile handheld tester, wireless, ready for vehicle diagnosis within 7 seconds
software update "ADAS": duration 12 months
activation tool "ADAS": to establish the connection between the calibration system and the screen

Application:
To recalibrate an assistance system, the TechPRO diagnostic device is connected to the appropriate ECUs via onboard diagnostics. The calibration panel is manufacturer's instructions and automatically adjusted. Subsequently, the diagnostic device shows what is actually to do and leads through all steps. The system is updated by permanent updates and can also be used for vehicles in which one or more driver assistance systems are retrofitted over time.

for TechPRO Line - digital ADAS functions

suitable for all common front ligt systems (also LED)

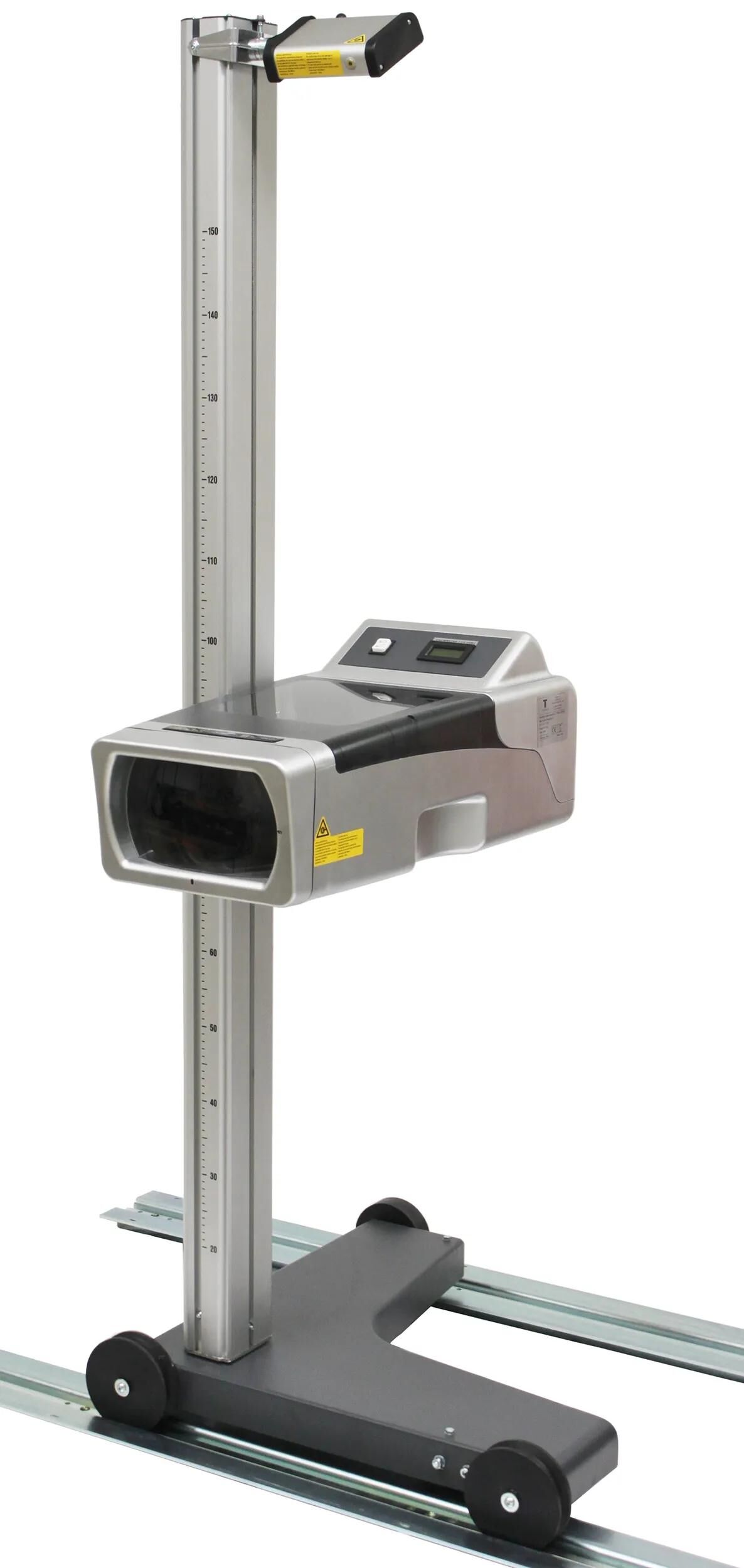

aluminium column with scale for exact adjusting. With robust plastic lens, aluminium laser visor, cross laser as positioning assistance and vertcal bright-dark border. Height: 1700mm, chassis: 3 wheels, glass precision lens

accessory for headlight adjusting device "12240/ D/ L2/ V"

for headlight adjusting device "SEP Comfort"

headlight leveling adjustment point for cars and transporters, 4888mm inspection surface
Possibility of compensation for garage floors slope and uneven surfaces or to comply with defined conditions on the headlight adjustment point.
Technical data: Material: S355MC 2x rolled (high-strength steel for cold forming, thermomechanical rolled), 2x 4 plates with 1220mm finished by DIN ISO 2768-mT, each plate is adjustable through threads by DIN 18202 14 x levelling possibilities, allowed axle load: 3,5t, height compensation: standard type till 50 mm, extension till 100mm possible (alignment and under lining on site), single weight: 45,79kg per plate, total weight: 366,32kg (set), drive area: according GUV-R 181 with non-slipping surface R11, coated in RAL 7011 (metal grey)
Note: Meets all requirements of the guideline according to Appendix 4, § 29 StVZO HU headlight test guideline!

plus freight and assembly costs

suitable for headlight adjusting device from SEG iV and V
Same unevenness from 20mm till 3000mm length.
Note: The SEG requires separately available steel rollers (cannot be combined with standard plastic rollers)
