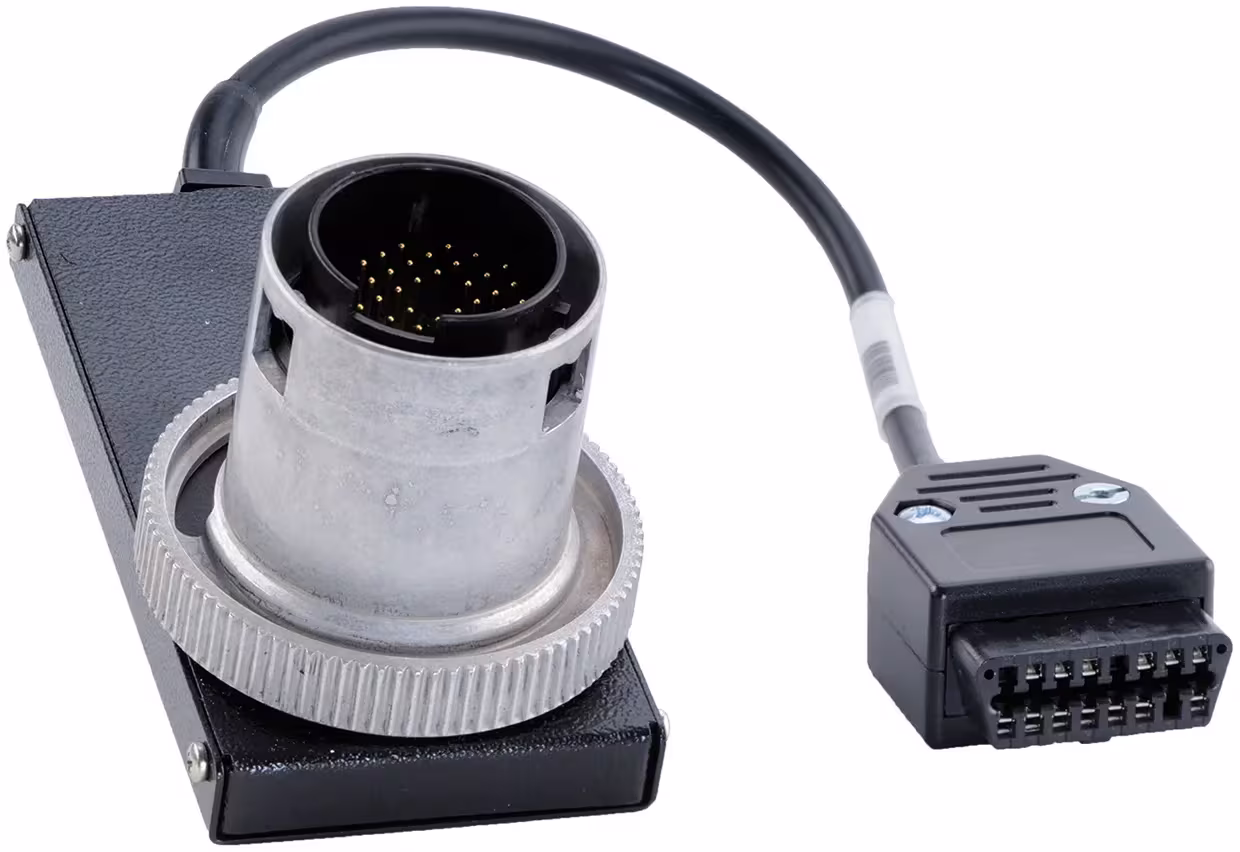

adapter plug Bike mega macs PC Bike, 42 SE Bike and 56, 66, 77

diagnostics and service solution for independent workshops, diagnosis on demand
With this device, dealers and workshops have the possibility to easily program or code vehicle control units after replacement or retrofitting of, for example, trailer couplings or other accessories. Furthermore, a diagnosis of complex errors in the vehicle electronics, even across brands, is possible.

Mobile diagnostic device, multi-brand vehicle diagnostics, intuitive SDI user interface
Diagnostic solution for Android device of your choice, flexible license system (software updates included), regular updates and growing vehicle coverage without monthly running costs included, basic functions (read / delete errors, total query, service reset, basic setting) without monthly running costs, direct data transfer of the selected vehicle data to HGS Data, compatible with current communication protocols such as CAN, DoIP and CAN - FD, clear and intuitive SDI user interface (Smart Diagnostic Interface), smart language handling by automatically adopting the language setting of your end device, error code-based online solution suggestions, integrated Cyber Security Management (CSM), HV battery diagnosis PRO for fact-based determination of the condition of traction batteries (requires a suitable mobile wallbox), ADAS calibrations possible (requires a CSC tool), wide range of additional software licenses.

Technical data:
OBD voltage: 8 - 32 V DC
Current: OBD max. 350 mA
Voltage: USB 5 V DC
Current: USB max. 500 mA
Outside air temperature Operating range: 0 to 45° C
Storage temperature: -20 to 60° C
Weight: 100 g
Protection class: IP40
Frequency band: 2400 to 2483.5 MHz (Bluetooth®)
Field strength: 11 dBm
Interfaces: Bluetooth® Classic, Class 1, USB 2.0 Hi-Speed, Type C plug, CARB
Radio range: Indoors: 3 to 10 m, outdoors: up to max. 50 m

System requirements Android device:
Operating system: at least Android 10
Spokes: Storage capacity ("disc") of at least 8 GB for the app and the associated data must be freely available
Recommended Display - diagonal: at least 8 inches
Working memory: at least 2 GB
Interfaces: Bluetooth® Classic, Class 1, WiFi
Camera may be available

mobile, ECU diagnostic, PC based system
worshop suited, robust tablet PC, spalshwater-, dust- and impactproof, 13,3" HD LED display in widescreen format with touchscreen, special operating surface, diagnosis-interface AVL DiTEST VCI 1000, with connection via bluetooth and SMART Multiplexer technology. 24V compatible, therefore also suitable for use on commercial vehicles. ECU diagnostic AVL DITEST XDS 1000 incl. read/delete fault codes, actuator test, read measuring value, coding / adjustment / login/ basic settings, service functions, EOBD mode 1 - 9. software can be used indefinitely.
Attention: diagnosis-software AVL DiTEST XDS 1000 is not icluded!
Plus freight, system and diagniostic support

to go, complete multi-brand diagnostics for cars, trucks, trailers and buses
Robust, handy tablet PC with high computing power and generous disc space. Mobile networking with bluetooth and Wi-Fi. Shock resistant, water-, oil-, acid- and dust-tight.
Attention: diagnostics software "AVL DITEST XDS 1000" integrated, user license is not included!
Plus freight, system and diagnostic support

combination-AU-diadnostic station (petrol / diesel with integrated control unit diagnosis*), 24V compatible
Modular, PC-based system for analysis of the exhaust gases in gasoline and diesel engines. With integrated speed measurement, automatic self-calibration, wireless connection of the scanbox and the diesel measuring chamber, EOBD mode 1 - 9, and current AU target data. Also suitable for use in commercial vehicles.
*Requires the completion of an "AVL DITEST" diagnostic-update-car subscription.

Scope of delivery:
system carrier MDS SLIM
TFT-monitor
petrol exhaust mode AVL DITEST Gas 1000
diesel exhaust mode AVL DiSmoke 480 Bluetooth
diagnosis interface AVL DITEST VCI 1000
AVL DITEST AUX 2000 with integrated speed measurement
Slim Line PC

The perfect helper for setting and service work in the workshop. The storage surface can be used for test and adjustment devices, e.g. diagnostic and synchronization devices or other tools. In addition, the mobile diagnostic monitor has a base where e.g. a gasoline bottle for carburetor settings or a charger can be attached. The height of the stand can be adjusted by means of the telescopic construction and the adjusting screws

The compact and powerful software solution for all service companies and small workshops that want to make a variety of settings even without a diagnostic device. Read and delete fault codes and service resets for more than 40 vehicle brands are only the base. On request, the range of services of mega macs PC can be individually extended.
Service overview:
read and delete fault codes of all ECUs; service resets all systems; wireless communication; car history; asanetwork able; indication of the diagnostic connection; VIN identification; lexicon; regular updates*; service datas*; service codings*; basic settings and adaptions*; PassThru-able (* available with Service Plus)
Incl. instruction

accessories for diagnostic and exhaust technology, suitable for mega macs and mega compaa

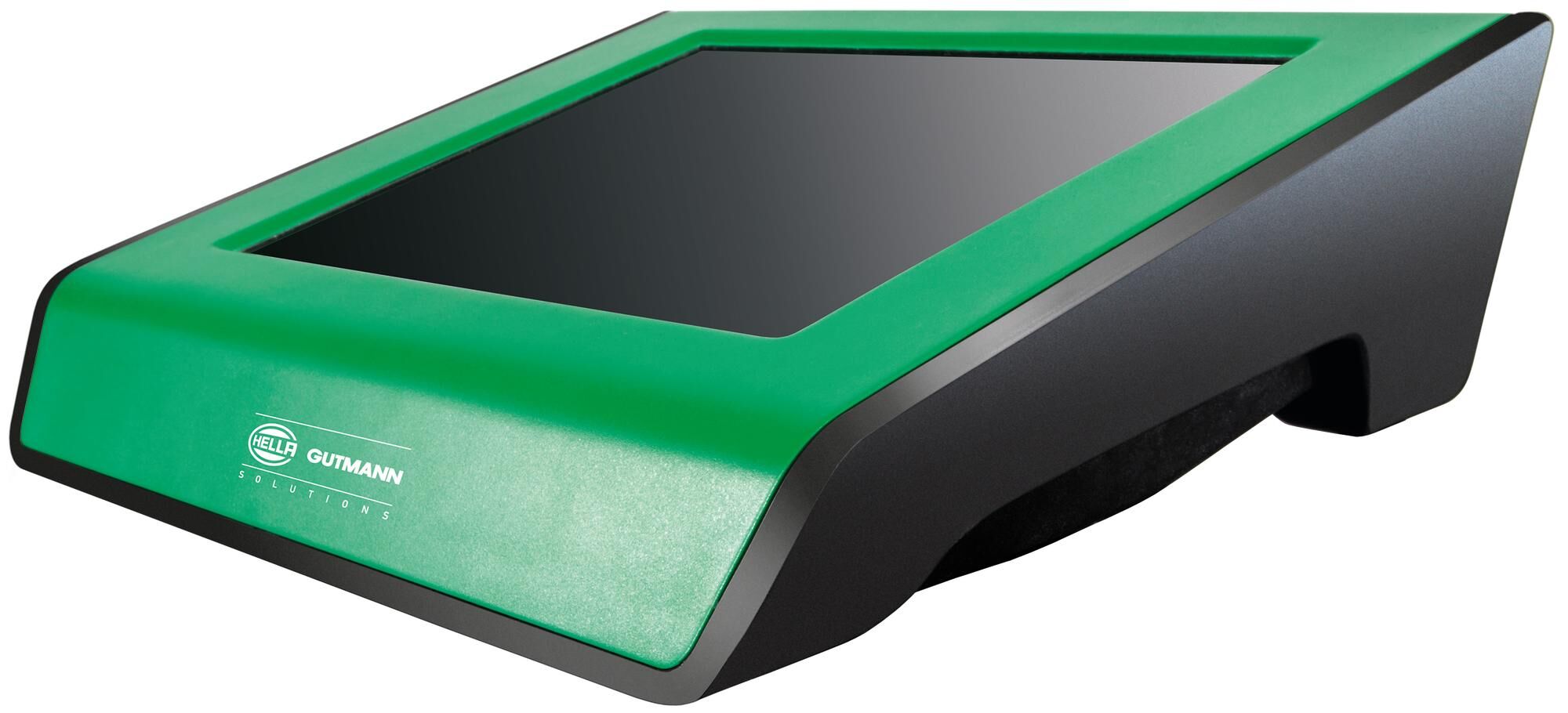

mobile diagnostic device
fault code solutions in real-time*, symptoms solutions*, reading and deleting fault codes of all ECUs*, parameter code explanation with detailed information (up to 12 parameters at the same time), extensive technical data* (timing belt, fuse box assignment etc.), unique vehicle identification via VIN, wireless transmission via VCI, service resets, actuator tests, basic settings, codings, digital compression measurement*, car history, motorcycle diagnostic*, passthru-able, CSC tool compatible, asanetwork compatible, quick change battery***
*In connection with a Repair Plus license (The scope of the licence may depends on the country).
Incl. instruction

Scope of delivery:
"mega macs 56" incl. battery pack, VCI (wireless communication module), power supply and power cable, Bluetooth adapter, USB cable (Device & Host), quick start guide, key strap, transport carton
Optional accessory:
docking station, OBD-cable extension, measurement module incl. cable accessory, battery (piece), device case, ampere pliers blue, 0 to 700A, ampere pliers green, 40A
