Deep-laid electro-hydraulic short-stroke platform for the tire, brake, shock absorber and car body service, carrying capacity: 3200kg
short cycle times, mechanic levelling system assures constantly the level of the lifting platforms regardless of weight distribution, safety according to the European standards, low-voltage (24V) electrical system with control circuit, joint bolts with self-lubricating and maintenancefree bushes
Technical data: lifting height: 100,0cm, height max.: 195,0cm, platform width: 42,0cm, platform length: 142,0cm, 3-phase engine with 2,6 kW, colour: anthracite / RAL 7016

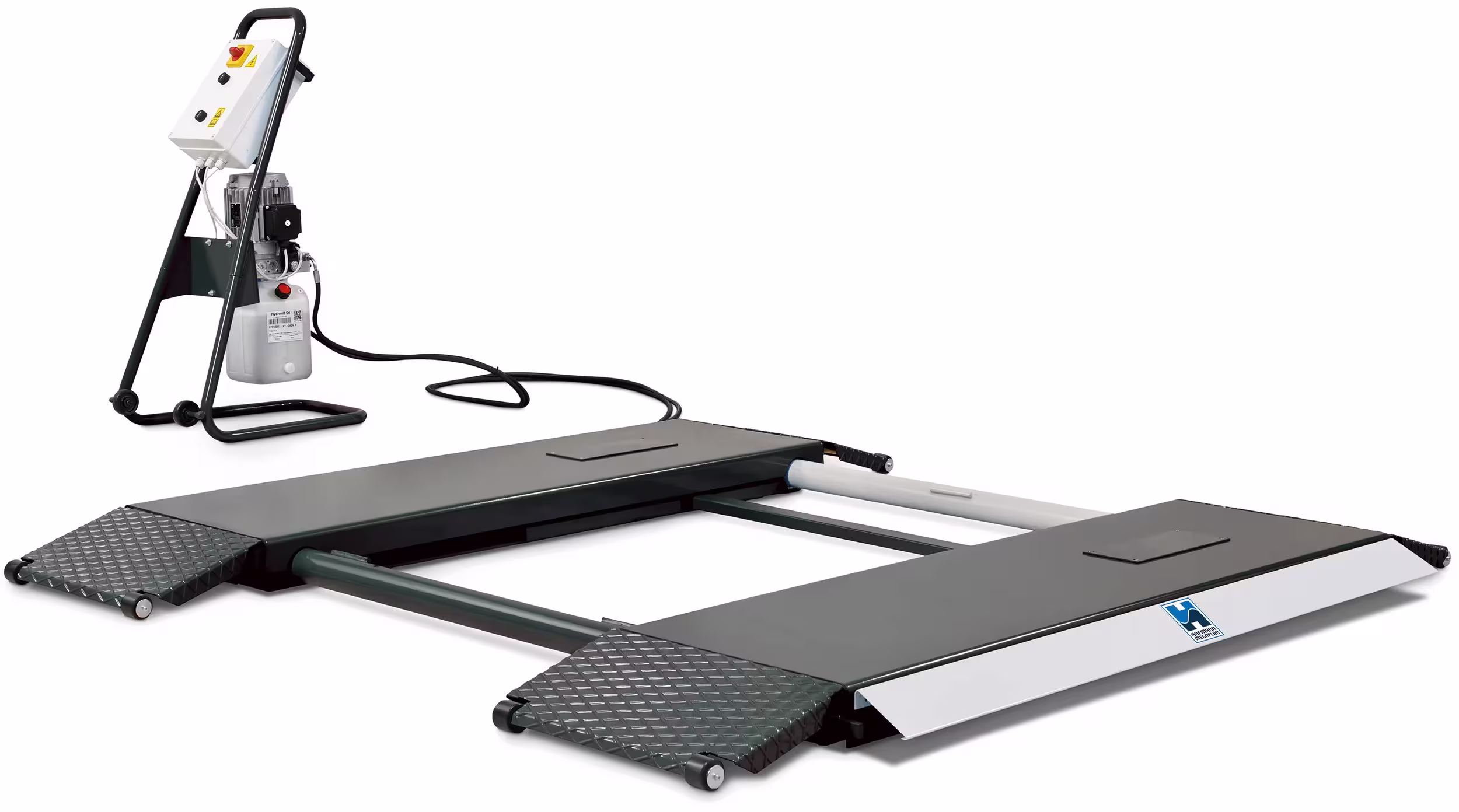

load capacity up to 3000 kg, short lift, electro-hydraulic, incl. mobile kit (#30A552)
Especially suitable for tire, repair and body service workshops. With double stiffening brace for connecting and aligning the two rails, hydraulic synchronization control, non-return valve and safety valve in the event of a pipe breakage, fast-acting hydraulic unit and self-lubricating bolts in bronze bushes. The runways can be used as extensions thanks to the drive-on ramps, the dimensions are very small and the platform is mobile with kit #30A552 (included).
