Deep-laid electro-hydraulic short-stroke platform for the tire, brake, shock absorber and car body service, carrying capacity: 3200kg
short cycle times, mechanic levelling system assures constantly the level of the lifting platforms regardless of weight distribution, safety according to the European standards, low-voltage (24V) electrical system with control circuit, joint bolts with self-lubricating and maintenancefree bushes
Technical data: lifting height: 100,0cm, height max.: 195,0cm, platform width: 42,0cm, platform length: 142,0cm, 3-phase engine with 2,6 kW, colour: anthracite / RAL 7016

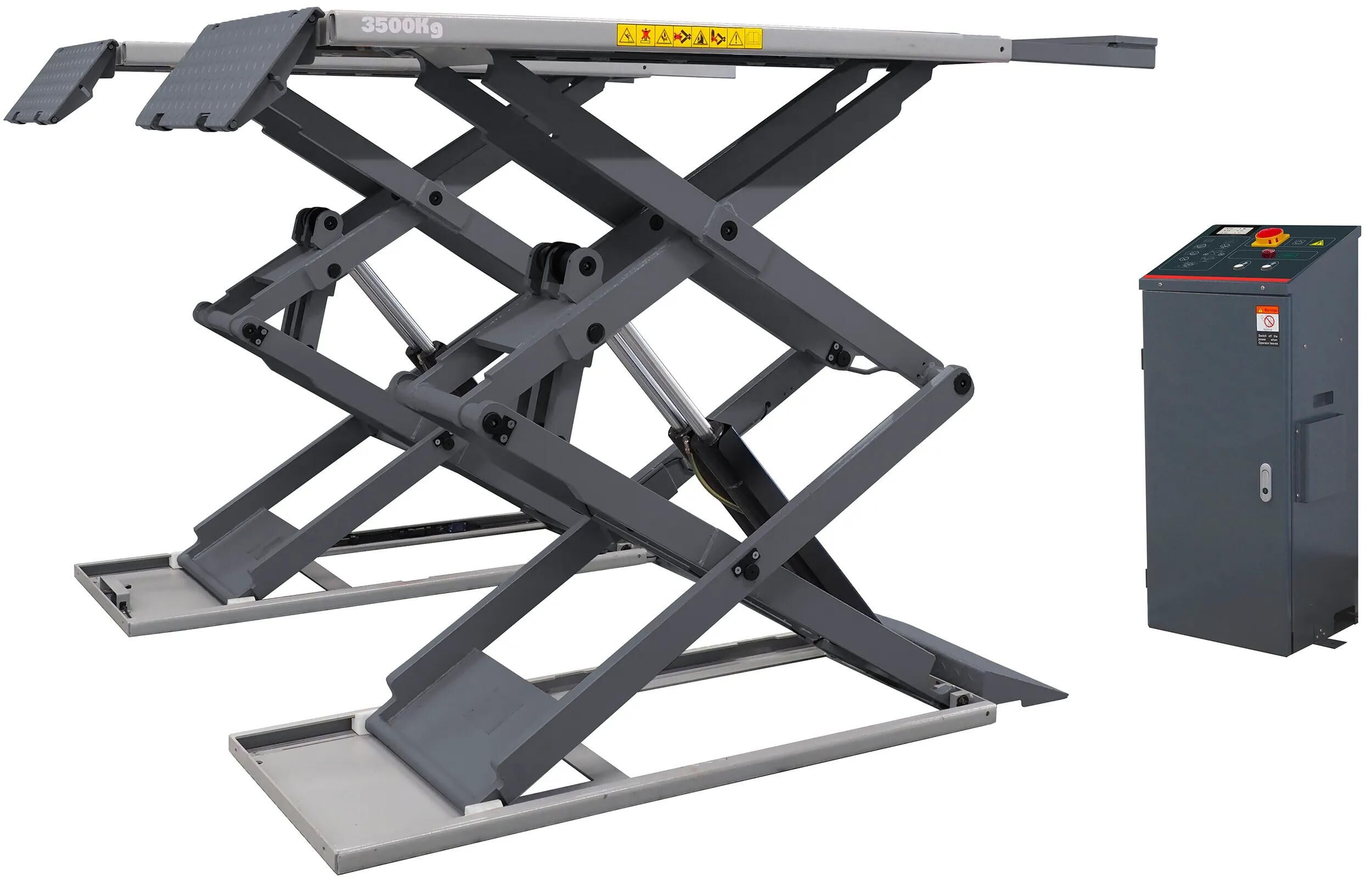

load capacity up to 3500 kg, double scissor lift, electrohydraulic
Suitable for picking up from small cars to vans. With volumetric synchronization and double redundant master/slave circuit that guarantees the stability of the load even in the event of an anomaly (loss in the hydraulic circuit). The lift can be mounted either above ground or at ground level. A proximity sensor detects any obstacles under the lift during lowering. The hydraulic synchronization control monitors the lifting and lowering speed.

Technical data:
load capacity: 3500kg
traversing height: 105mm
lifting height: 1900mm
rail width: 614mm
length of the rails: 1547 - 2270mm
adjustment dimension (inside): 800 - 1000mm
lifting / lowering speed: 50 / 50 sec
mains voltage: 400 V / 50 Hz
power: 3,3 kW
control cabinet with 2 meter hoses
weight: 950kg

load capacity up to 3000 kg, short lift, electro-hydraulic, incl. mobile kit (#30A552)
Especially suitable for tire, repair and body service workshops. With double stiffening brace for connecting and aligning the two rails, hydraulic synchronization control, non-return valve and safety valve in the event of a pipe breakage, fast-acting hydraulic unit and self-lubricating bolts in bronze bushes. The runways can be used as extensions thanks to the drive-on ramps, the dimensions are very small and the platform is mobile with kit #30A552 (included).
