AIRCRAFT compressor "A-K-MAX 7.5-10-270 K VS (IE3)"

• Article number: 89661520
• Original number: 2095564.2

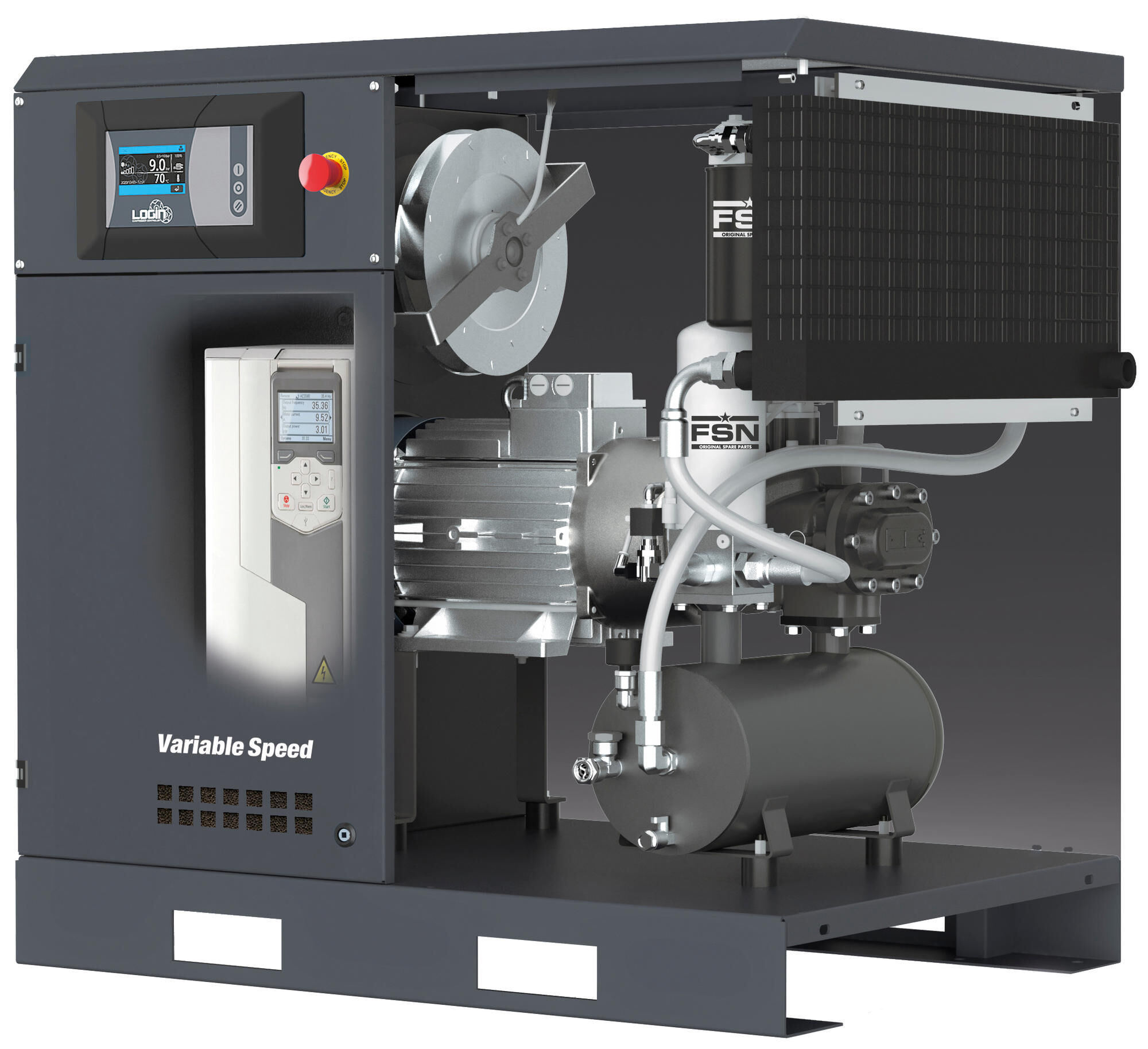

Screw compressor, variable speed control with LOGIN control

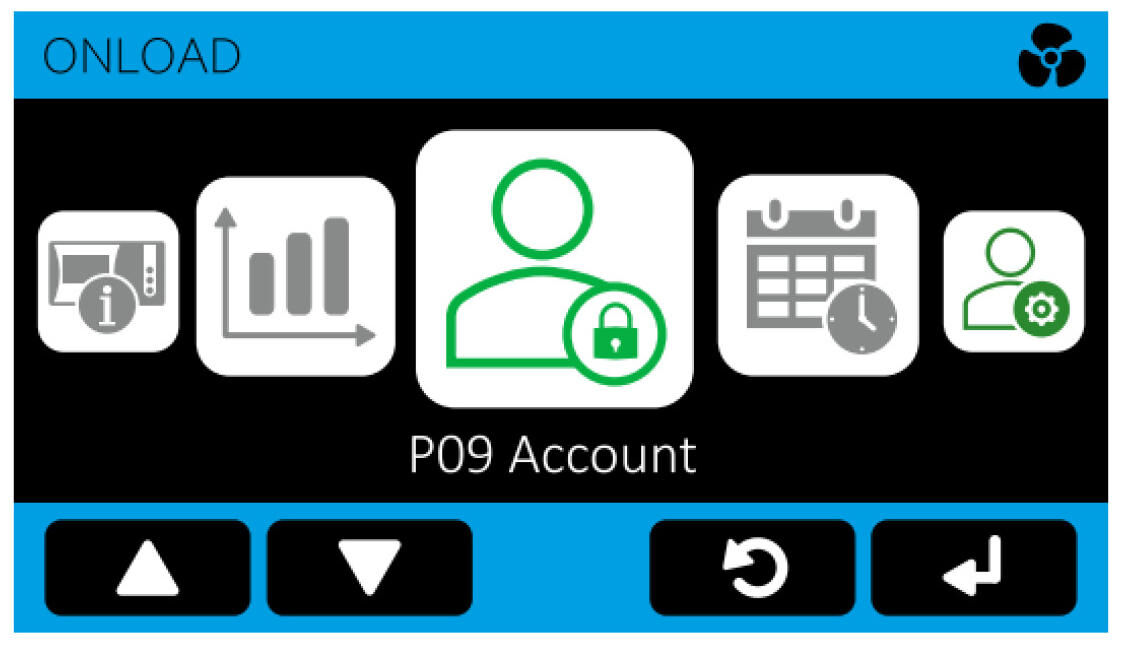

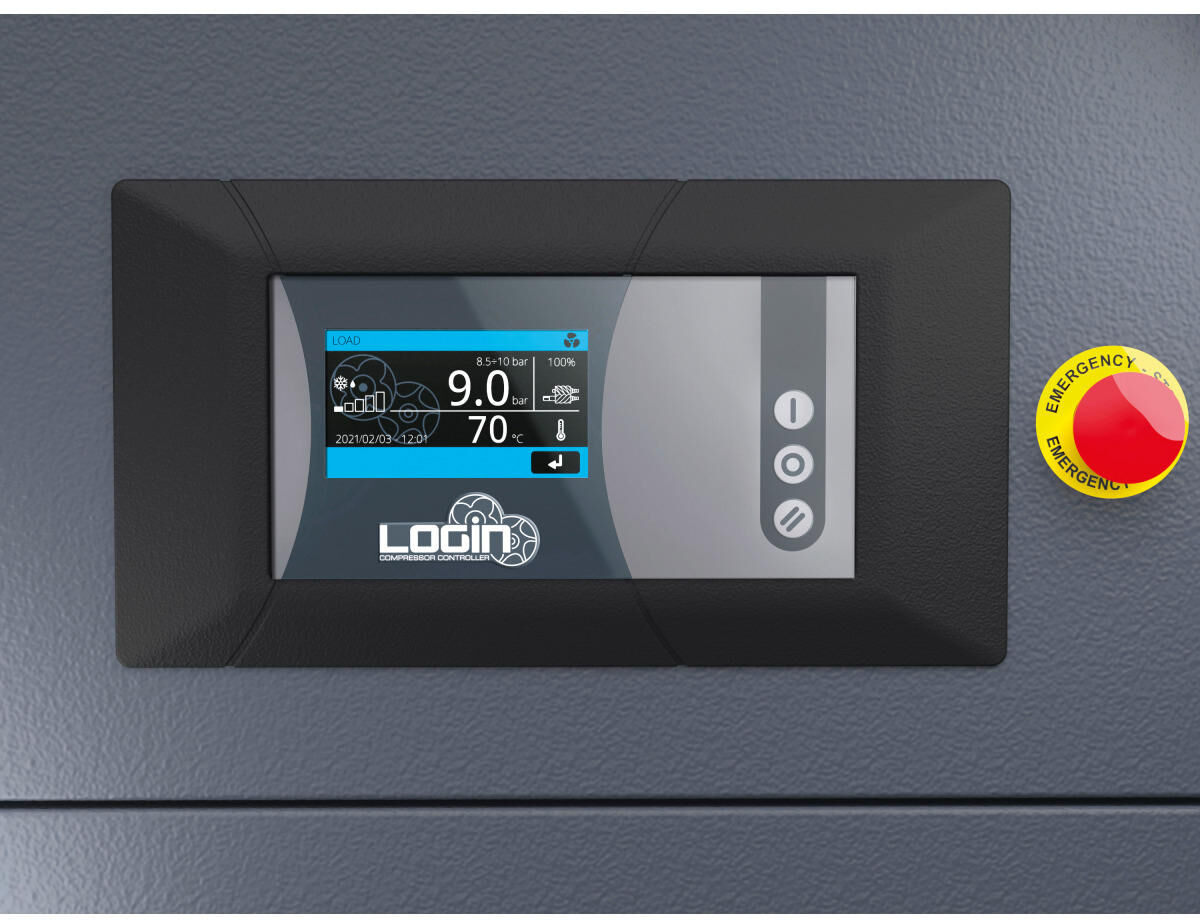

Low noise emission (only max. 67 dB), LOGIN control via 4.3" touchscreen for easy operation and complete control of all functions. Allows all information on the current operating status at a glance. Optimum operating temperature and low fluctuation in oil temperature thanks to thermostatically controlled radial fan, optimum cooling air flow and generously dimensioned heat exchanger. An aftercooler reduces the effort required for drying and filtering the compressed air produced. The electronic Control monitors the engine and compressor speed and keeps the mains pressure constant, even when consumption fluctuates greatly. This makes it ideal for frequently changing compressed air consumption. The compressor's delivery volume adapts to the actual consumption. Equipped with an automatic star-delta switch and a 15-year guarantee against rusting through on the inside and outside of the hot-dip galvanized compressed air tank. Easy removal and installation of all components to be maintained.Connection of up to eight compressors possible, whether with constant or variable speed.

Technical data:
Effective delivery rate: approx. 500 - 1100 l/min
Maximum pressure: 10 bar
Air outlet: 1/2"
Tank volume: 270 l
Voltage: 400 V / 50 Hz
Output power: 7.5 kW
Sound power level: 63 dB(A)
Dimensions (LxW/DxH): approx. 1200 x 680 x 1540 mm
Weight: approx. 290 kg
Oil-lubricated, AD 2000 compliant
