CONTEC Aluminium Rim "Xeta"

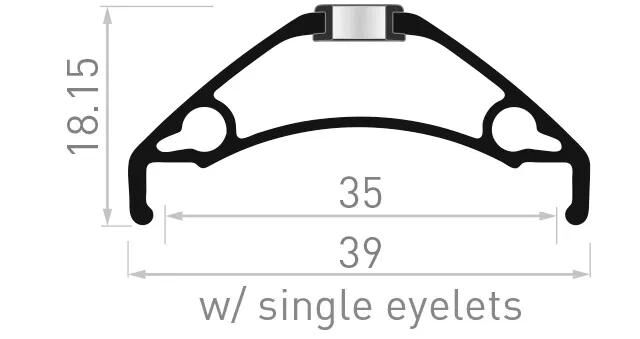

35-622, 604 mm ERD (measured incl. spoke holes), 18.15 mm high, 35 mm inner width, 39 mm outer width, approx. 674 g
- Article number: 03498165
- Original number: 30008496
29", 32 hole, tubeless ready, black
aluminum, hollow chamber
single eyelet, SV, max. load up to 150 kg system weight, max. spoke tension 1200 Nm, suitable for e-bikes, for Disc Brakes
PU 25
Product information
- Brake compatibility rim disc
- Brake mounting disc - 5-hole , disc - 6-hole , disc - Center Lock , drum brake , roller brake
- Brake track no
- Design doublewall
- ETRTO 35-622
- For wheel yes
- Height 18.0 cm
- Main colour black
- Number of spoke holes 32 holes
- Permissible system weight 150 kg
- Rim model Xeta
- Spoke Hole easy eyelets
- Text wheel configurator suitable for E-bike
- Tubeless system tubeless ready
- Valve type Sclaverand (SV)
- Variant Article
- Wheel size 28 / 29 "
- Width 39.0 cm
- Supplier Article Number: 30008496
- EAN 4251971141131
- MSRP: €39.95
- Bidex-Code 204010
- Fedas-Code 160464
- DST-Code 2P02
- SB-Article No
- Brand/Supplier CONTEC
- Unit of measure: PIECE
- Weight 0.635 kg
The ideal basis for building a tubeless-ready Wheel for 29" wheels with 32 Spokes. Thanks to the hollow chamber design, the Xeta Max rims made of 6063 aluminum are particularly light and stable. In the finished Wheel, these rims are suitable for a system weight of up to 150 kg. With an inner rim width of 35 mm, tires ranging in size from 60 to 75 mm fit on the rim. The single eyeletted nipple holes ensure additional durability of the rim by reducing the friction between the Spoke Nipple and the rim and also prevent the Nipples from working their way into the rim. The Xeta Max rim is only suitable for wheels with disc brakes. You can find suitable tubeless rim tapes in our CONTEC range.
Product variants
Using the search field, you can refine the selection of product variants.
| Article | Price | |
|---|---|---|
 25-622, 608 mm ERD (measured incl. spoke holes), 16.3 mm high, 25 mm inner width, 29.3 mm outer width, approx. 569 g Read more Read less
| PU 25 | |
 27-622, 605 mm ERD (measured incl. spoke holes), 18 mm high, 27 mm inner width, 31 mm outer width, approx. 578 g Read more Read less
| PU 25 | |
 30-622, 604 mm ERD (incl. spoke holes measured), 18.15 mm high, 30 mm inner width, 34 mm outer width, approx. 616 g Read more Read less
| PU 25 | |
 35-622, 604 mm ERD (measured incl. spoke holes), 18.15 mm high, 35 mm inner width, 39 mm outer width, approx. 674 g Read more Read less
| PU 25 |
