CONWAY Electric allroad "Nyvon 12.0" Mod. 24
diamond, 28", rustred matt / terra matt, 12-speed SRAM "Force AXS", 51 cm / L
- Article number: 02830103
- Original number: 01025659
Product information
- Battery capacity: 400.0 Wh
- Bosch Smart System: yes
- Brake system: hydraulic disc brake
- Category: allroad
- Chainstay: 440 mm
- Colour designation: rustred matt / terra matt
- Drive: chain drive
- Drive system: BOSCH
- Drive version: middle motor
- E-bike: yes
- Engine power: 250 W
- Frame height: 51 cm
- Frame shape: diamond
- Frame size: L
- Gears: 12-speed
- Gender: gents
- Main colour: red
- Material 1: carbon
- Permissible total weight: 130 kg
- Reach: 397 mm
- Seat angle: 74.0 °
- Seat tube: 510 mm
- Secondary colour: yellow
- Shifting name: 12-Gang SRAM "Force AXS"
- Shifting type: derailleur shifting
- Stack: 603 mm
- Standover height: 825 mm
- Steering tube: 155 mm
- Steering tube angle: 71.5 °
- Stem length: 100.0 mm
- Support: up to 25km/h
- Toptube: 570 mm
- Transmission: 1x 12-speed
- Wheel distance: 1060 mm
- Wheel size: 28 "
- Battery: BOSCH "Compacttube 400", Lithium-Ionen mit BMS, 400 Wh
- Bottom bracket: BOSCH
- Brake: SRAM "Force"
- Brake lever: SRAM "Force"
- Chain / belt: SRAM "Rival"
- Charger: Bosch 2 Ah
- Derailleur hanger: 0347028/3
- Engine: BOSCH Mittelmotor "Performance SX", 36 V, 250 W
- Fork: CARBON "Gravel Disc"
- Frame: CONWAY E-Gravel Intube Bosch, Carbon
- Front light: SUPERNOVA "Mini2"
- Front rotor: SRAM "Paceline", 160 mm, Centerlock
- Grips: FIZIK "Bar Tape"
- Headset: ACROS "IS52 / IS52 ICR"
- Rear rotor: SRAM "Paceline", 160 mm, Centerlock
- Remote: BOSCH "BRC3310"
- Rims: MAVIC
- Seatpost: SATORI "Trident", 27,2 mm, 350 mm
- Sensor: Pedal pressure measuring im Motor + speed sensor

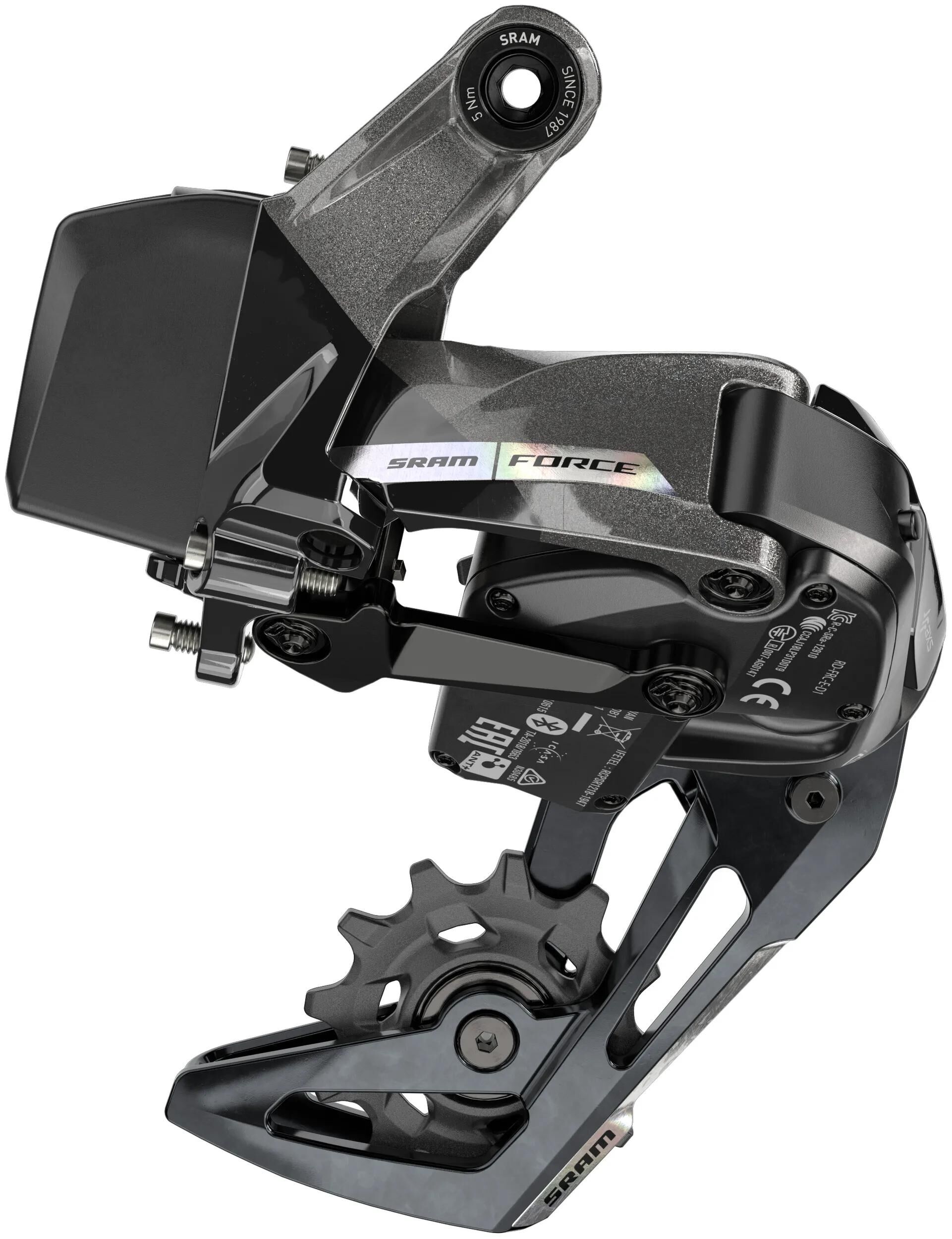

- Shifting lever: SRAM "Force AXS"
- Spokes: MAVIC
- Stem: SATORI "Viper", ICR, 100mm
- Supplier Article Number:: 01025659
- EAN: 4251971149663
- MSRP: €5,899.95
- Brand/Supplier CONWAY
- Unit of measure: PIECE
| Article | Price | |
|---|---|---|
 suitable for eWME (Z10), Ryvon (Z18), matching thru axle 0.281.502/5 and Nyvon (Z17), matching thru axle 0.747.383/0
| ||
 Chainring Spiderless
| ||
 Complete, suitable for Nyvon (Z17)
| ||
 suitable for Nyvon (Z17), 12 x 142 mm, M12 x P1.0
| ||
 for Cairon BES3 (Z11 / Z12), Xyron BES3 aluminium and carbon (Z11), Cairon SUV FS BES3 (Z14) and Nyvon (Z17)
| ||
 | ||
 suitable for Nyvon (Z17), 12 x 119 mm, M12 x P1.0 x 16Note: matching Locking Lever (Art. No. 0.281.503/3)
| ||
 non plug sideNote: mount. screws (0.230.350/1) are not incl.!
| ||
 without pin release, horizontal
| ||
 (LxW): 270 x 150mm, 258g
| ||
 UDH, suitable for eWME (Z10), Nyvon (Z17), Ryvon (Z18) and Xyron ST / LT (Z20)(equivalent substitute: 0.347.028/3)
| ||
 | ||
 for cassette sprocket 10 - 36/44 teeth, unicorn grey
| ||
 | ||
 | ||
 suitable for Nyvon (Z17)
| ||
 | ||
 plug sideNote: mounting screws (0.230.350/1) are not incl.!
| ||
 | ||
 | ||
 | ||
 integrated, suitable for GRV Carbon (from 2022) and Nyvon (Z17)
| ||
| ||
 | ||
 industrial bearings, IS52/IS52, ICR, suitable for Nyvon (Z17)
| ||
 right, rear brake with 2000mm line
| ||
 suitable for New Viper stem, e.g. suitable for Conway Nyvon (Z17)
| ||
 | ||
 10-11-13-15-17-19-21-24-28-32-38-44 teeth
| ||
 Plastic, suitable for Nyvon (Z17)
| ||
 for VR, incl. screw, suitable for Nyvon (Z17)
| ||
 Suitable for the smart system (BES3)Note: only for battery sizes CPT400 , PT500, PT625, PT750
| ||
 left, front brake with 1300mm line
| ||
| ||
 for down tube inner side, suitable for Nyvon (Z17) and Ryvon (Z18)(Only two holders are required for Nyvon models)
| ||
 suitable for all Bosch chargers
| ||
 | ||
 | ||
 Ø 160 mm, without Lock Ring
|
Nothing can stop you - no path, no mountain, no distance. The "NYVON 12.0" is our top model and the best possible companion on your tours, weekend getaways and adventures. With the speed and handling of a pure gravel bike and the pleasant, smooth support of the Bosch SX motor, it combines the best of both worlds: Power and support when it counts, as well as feather-light, effortless gliding wherever possible. When riding normally, you don't notice the motor or the extra weight of the electronic support; you pedal your bike like a normal gravel bike. Only when the route becomes steeper and you need stronger pedalling, does the motor help you to maintain your flow on varied terrain. Incidentally, you can load your "NYVON" at up to 5 mounting points on the bike - one mounting point is also approved for the Bosch Range Extender.
Product variants
Using the search field, you can refine the selection of product variants.
| Article | Price | |
|---|---|---|
 diamond, 28", rustred matt / terra matt, 12-speed SRAM "Force AXS", 48 cm / M
| ||
diamond, 28", rustred matt / terra matt, 12-speed SRAM "Force AXS", 51 cm / L
| ||
diamond, 28", rustred matt / terra matt, 12-speed SRAM "Force AXS", 54 cm / XL
| ||
diamond, 28", rustred matt / terra matt, 12-speed SRAM "Force AXS", 45 cm / S
|
