CONWAY Electric allroad "Nyvon 8.0 C" Mod. 24
diamond, 28", black matt / reflective, 12-speed SRAM "Apex", 54 cm / XL
Read more Read less - Article number: 02830109
- Original number: 01025543
Das Fahrrad verfügt über einen Rahmen aus Carbon. Der Antrieb erfolgt über eine Kette. Das Fahrrad ist mit einer 12-Gang SRAM "Apex" Kettenschaltung ausgestattet. Die Laufradgröße beträgt 28". Das Bremsystem besteht aus hydraulischen Scheibenbremsen. Das zulässige Gesamtgewicht beträgt 130 kg. Das Fahrrad hat ein Antriebssystem von BOSCH mit einem Mittelmotor und einer Akkukapazität von 400,0 Wh. Die Farbausführung ist black matt / reflective.
Product information
- Battery capacity 400.0 Wh
- Bosch Smart System yes
- Brake system hydraulic disc brake
- Category allroad
- Chainstay 440 mm
- Colour designation black matt / reflective
- Drive chain drive
- Drive system BOSCH Performance Line SX
- Drive version middle motor
- E-bike yes
- Engine power 250 W
- Frame height 54 cm
- Frame shape diamond
- Frame size XL
- Gears 12-speed
- Gender gents
- Main colour black
- Material 1 carbon
- Permissible system weight 130 kg
- Reach 412 mm
- Seat angle 74.0 °
- Seat tube 540 mm
- Secondary colour silver
- Shifting name 12-Gang SRAM "Apex"
- Shifting type derailleur shifting
- Stack 622 mm
- Standover height 848 mm
- Steering tube 175 mm
- Steering tube angle 71.5 °
- Stem length 110.0 mm
- Support up to 25km/h
- Toptube 590 mm
- Transmission 1x 12-speed
- Wheel distance 1081 mm
- Wheel size 28 "
- Battery: BOSCH "CompactTube 400", 400 Wh
- Battery Lock: ABUS "XPlus"
- Bottom bracket: BOSCH
- Brake: SRAM "S-300"
- Brake lever: SRAM "S-300"
- Chain ring / pulley: MIRANDA, 42 teeth
- Charger: BOSCH 2 A
- Crank: MIRANDA "Omega", 170 mm, for Bosch Gen. 4, ISIS, Q: 8, black
- Derailleur hanger: SRAM "UDH", for Thru Axle, 1 mm thread pitch
- Engine: BOSCH "Performance Line SX", max. 60 Nm

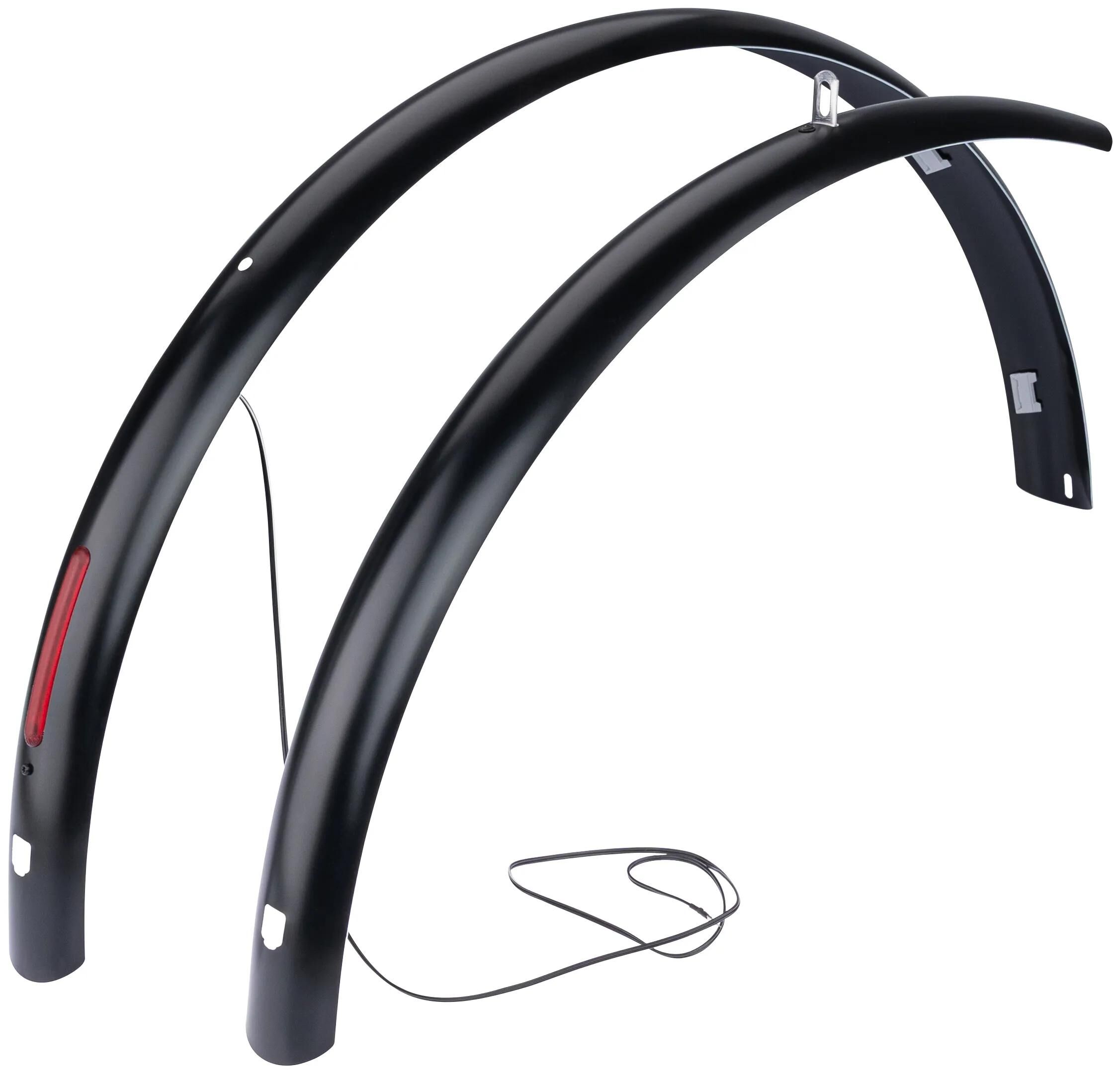

- Fender: curana "CLite 60"
- Fork: Carbon, tapered 1 1/8" - 1.5", flat mount
- Frame: Intube Bosch, Gen. 4, BES3, Carbon, Diamant, 54 cm
- Front hub: MAVIC "E-Speedcity 1 CL", 12 x 100 mm
- Front light: SUPERNOVA "Mini 2", 100 Lux, 235 Lumen, Handlebar Bracket 31.8 mm
- Front rotor: SRAM "Centerline", Ø 160 mm, Centerlock
- Front tire: SCHWALBE "G-One Overland 365", 50-622, Reflex
- Grips: SQlab "70X"
- Handlebar: SATORI "Horizon Bow", 720 mm, Ø 31.8 mm, 9° backsweep, rise 7 mm
- Headset: ACROS IS52/28.6 / IS52/39.8, ICR
- Laufrad H.R.: MAVIC "E-Speedcity 1 700", 12 x 142 mm, Thru Axle, Center Lock
- Pedals: VP COMPONENTS "VPE-527"
- Rear derailleur: SRAM "Apex XPLR"
- Rear hub: MAVIC "E-Speedcity 1 CL", 12 x 142 mm
- Rear light: Busch + Müller "ILU SR"
- Rear rotor: SRAM "Centerline", Ø 160 mm, Centerlock
- Rear tire: SCHWALBE "G-One Overland 365", 50-622, Reflex
- Remote: BOSCH "BRC3300", mini remote
- Rims: MAVIC
- Saddle: Selle Royal "SRX", Athletic
- Seatpost: satori "Trident OF", Ø 27.2 mm, 350 mm long
- Sensor: Pedal pressure measuring im Motor + speed sensor
- Spokes: MAVIC
- Stands: hebie "FIX 40"
- Stem: satori "New Viper",1 1/8", 31,8 mm Lenkerklemmung, 110 mm lang, Winkel -7°, ICR, schwarz
- System Interface: BOSCH "BRC3100"
- Supplier Article Number: 01025543
- EAN: 4251971149717
- MSRP: €4,399.95
- WEEE registration number: DE92509320
- Fedas-Code: 154020
- Bidex-Code: 121010
- DST-Code: 1E01
- SB-Article: No
- Brand/Supplier CONWAY
- Unit of measure: PIECE
- Weight: 16.9 kg
| Article | Price | |
|---|---|---|
 | ||
 suitable for eWME (Z10), Ryvon (Z18), matching thru axle 0.281.502/5 and Nyvon (Z17), matching thru axle 0.747.383/0 Read more Read less
| ||
 | ||
 for VR, incl. screw, suitable for Nyvon (Z17) Read more Read less
| ||
 | ||
 | ||
 suitable for New Viper stem, e.g. suitable for Conway Nyvon (Z17) Read more Read less
| ||
 for down tube inner side, suitable for Nyvon (Z17) and Ryvon (Z18)(Only two holders are required for Nyvon models) Read more Read less
| ||
 industrial bearings, IS52/IS52, ICR, suitable for Nyvon (Z17) Read more Read less
| ||
 | ||
 | ||
 integrated, suitable for GRV Carbon (from 2022) and Nyvon (Z17) Read more Read less
| ||
 UDH, suitable for eWME (Z10), Nyvon (Z17), Ryvon (Z18) and Xyron ST / LT (Z20)(equivalent substitute: 0.347.028/3) Read more Read less
| ||
 | ||
 | ||
 | ||
 | ||
 11-12-13-15-17-19-21-24-28-32-38-44 teeth Read more Read less
| ||
 Suitable for the smart system (BES3)Note: only for battery sizes CPT400 , PT500, PT625, PT750 Read more Read less
| ||
 | ||
 | ||
 suitable for all Bosch chargers Read more Read less
| ||
 | ||
 e.g. suitable for Conway Nyvon Z17 Read more Read less
| ||
 without pin release, horizontal Read more Read less
| ||
 plug sideNote: mounting screws (0.230.350/1) are not incl.! Read more Read less
| ||
 black, fits Conway eWME from 2021 and Victoria eParcour, among others Read more Read less
| ||
 for Cairon BES3 (Z11 / Z12), Xyron BES3 aluminium and carbon (Z11), Cairon SUV FS BES3 (Z14) and Nyvon (Z17) Read more Read less
| ||
 Plastic, suitable for Nyvon (Z17) Read more Read less
| ||
 | ||
 | ||
 for cassettes 10/11 - 44 teeth Read more Read less
| ||
 26" - 28", with thread (M6), matt black Read more Read less
| ||
 suitable for Nyvon (Z17), hub standard 12 x 142 mm, total length 172 mm, thread pitch M12 x 1.0, thread length 14.5 mm, for UDHNote: matching Locking Lever 0.281.503/3 Read more Read less
| ||
 Ø 160mm, without lockring Read more Read less
| ||
 non plug sideNote: mount. screws (0.230.350/1) are not incl.! Read more Read less
| ||
 | ||
 suitable for Nyvon Z17, hub standard 12 x 100 mm, total length 119 mm, thread pitch M12 x 1.0, thread length 15 mmNote: matching Locking Lever 0.281.503/3 Read more Read less
| ||
 | ||
 | ||
 Chainwheel Spiderless Read more Read less
| ||
 Complete, suitable for Nyvon (Z17) Read more Read less
| ||
 |
Do you want to get through the city quickly, avoid traffic and are looking for a sustainable solution for local transport? The "NYVON C 8.0" is the perfect choice to become your new daily companion! Thanks to its flat handlebars, you sit more relaxed and upright and can therefore look over car roofs better, but have the same precise handling as its counterpart with gravel handlebars. The carbon frame offers the same features as the "NYVON C 10.0", all mounting points as well as range extender compatibility and the same perfect ride feel. The custom-made reflective fork stickers are also used here again, ensuring the best lateral visibility - far beyond the STVZO standards. The Bosch SX motor with 55 Nm takes the strain where it counts and accelerates swiftly, even at traffic lights. This way, you can get through the city quickly, no matter how hilly or how much traffic there is on the roads.
Product variants
Using the search field, you can refine the selection of product variants.
| Article | Price | |
|---|---|---|
 diamond, 28", black matt / reflective, 12-speed SRAM "Apex", 45 cm / S Read more Read less
| ||
diamond, 28", black matt / reflective, 12-speed SRAM "Apex", 48 cm / M Read more Read less
| ||
diamond, 28", black matt / reflective, 12-speed SRAM "Apex", 51 cm / L Read more Read less
| ||
diamond, 28", black matt / reflective, 12-speed SRAM "Apex", 54 cm / XL Read more Read less
|
