CONWAY Electric MTB full suspension "Ryvon ST 4.0" Mod. 24
full suspension, 29", carbon matt / black, 12-speed SRAM "NX", 40 cm / S
- Article number: 02830066
- Original number: 01025477
Product information
- Battery capacity: 400.0 Wh
- Brake system: hydraulic disc brake
- Category: full suspension
- Category E-bike: 4
- Chainstay: 442 mm
- Colour designation: carbon matt / black
- Drive: chain drive
- Drive system: BOSCH
- Drive version: middle motor
- E-bike: yes
- Engine power: 250 W
- Features: electronic sliding aid
- Frame height: 40 cm
- Frame shape: full suspension
- Frame size: S
- Frame travel: 150 mm
- Gears: 12-speed
- Gender: gents
- Main colour: black
- Material 1: carbon
- Permissible total weight: 140 kg
- Reach: 445 mm
- Seat angle: 77.9 °
- Seat tube: 400 mm
- Secondary colour: black
- Shifting name: 12-Gang SRAM "NX"
- Shifting type: derailleur shifting
- Stack: 615 mm
- Steering tube: 100 mm
- Steering tube angle: 64.0 °
- Stem length: 40.0 mm
- Support: up to 25km/h
- Toptube: 572 mm
- Transmission: 1x 12-speed
- Travel: 150 mm
- Wheel distance: 1223 mm
- Wheel size: 29 "
- Battery: BOSCH "CompactTube 400", 400 Wh, BES3, horizontal
- Bremse H.R.: MAGURA disc brake "MT5", hydraulic, 4 pistons
- Bremse V.R.: MAGURA disc brake "MT5", hydraulic, 4 pistons, post mount
- Chain / belt: SRAM "SX Eagle"
- Charger: BOSCH 4 A, BES3
- Crank: MIRANDA "Omega", 160 mm, for Bosch Gen. 4, ISIS, Q: 8, black
- Damper: ROCKSHOX "Deluxe Select", 230 mm x 60 mm
- Derailleur hanger: SRAM "UDH", for thru axle, 1mm thread pitch
- Fork: ROCKSHOX Suspension Fork "Lyrik Select", 29", 150 mm travel, tapered, Post Mount, 15 x 110 mm Thru Axle, Maxle Ultimate Thru Axle, 44 mm offset, E-Bike, black
- Frame: Intube Bosch, Gen. 4, BES3, carbon, full suspension, 40 cm
- Front rotor: MAGURA "MDR-C", Ø 203mm, 6-hole
- Front tire: SCHWALBE "Magic Mary" Evolution Line, 62-622, Super Trail, Addix Ultra Soft, TLE, foldable, 67 TPI, E-50
- Grips: SQLAB "70X", size S, 135 mm, black
- Handlebar: LEVELNINE "Team Riser", 760mm, Ø 31,8mm, backsweep 9°, upsweep 5°, rise 10mm, black
- Headset: ACROS ZS56/28.6/OD62 / EC56/40, 1 1/8" - 1.5" tapered
- Laufrad H.R.: SUNringlé "Düroc SD37 Comp", 12 x 148mm, 6-hole, 12-speed HG
- Laufrad V.R.: SUNringlé "Düroc SD37 Comp", 15 x 110mm, 6-hole
- Rear derailleur: SRAM "NX Eagle"
- Rear rotor: MAGURA "MDR-C", Ø 203mm, 6-hole
- Rear tire: SCHWALBE "Hans Dampf" Evolution Line, 60-584, Super Trail, Addix Soft, TLE, foldable, 67 TPI, E-25
- Remote: BOSCH "BRC3300", mini remote
- Saddle: FIZIK "Terra Aidon X1", unisex, type 2, regular, black
- Seatpost: LIMOTEC adjustable seatpost "A1L", Ø 31.6 mm, 445 mm long, 150 mm adjustment range, 0 mm offset, black sandblasted
- Sensor: Pedal pressure measuring im Motor + speed sensor
- Shifting lever: SRAM "NX Eagle", Single Click, 12-speed
- Sprocket / pulley: SRAM "PG-1230", 12-speed Eagle, 11-50 teeth
- Stem: LEVELNINE "Team A-Head", 1 1/8", 31,8mm handlebar clamp, 40mm long, black
- Supplier Article Number:: 01025477
- EAN: 4251971145627
- MSRP: €5,999.95
- Brand/Supplier CONWAY
- Unit of measure: PIECE
| Article | Price | |
|---|---|---|
 CONWAY ball bearing set for Rocker, suitable for Ryvon (Z18) and Xyron LT / ST (Z20)
| ||
 CONWAY Ball Beraing Set for Horst link, suitable for Xyron aluminum BES2 (Z6), eWME with EP8 engine (Z10) and Xyron 29" S and SUV models with aluminum rear triangle (Z11)M12 x 1.0, 33.5 mm shaft length
| ||
 SRAM chain "PC GX Eagle" self-service package
| ||
 CONWAY battery cover Plastic, suitable for Ryvon (Z18)
| ||

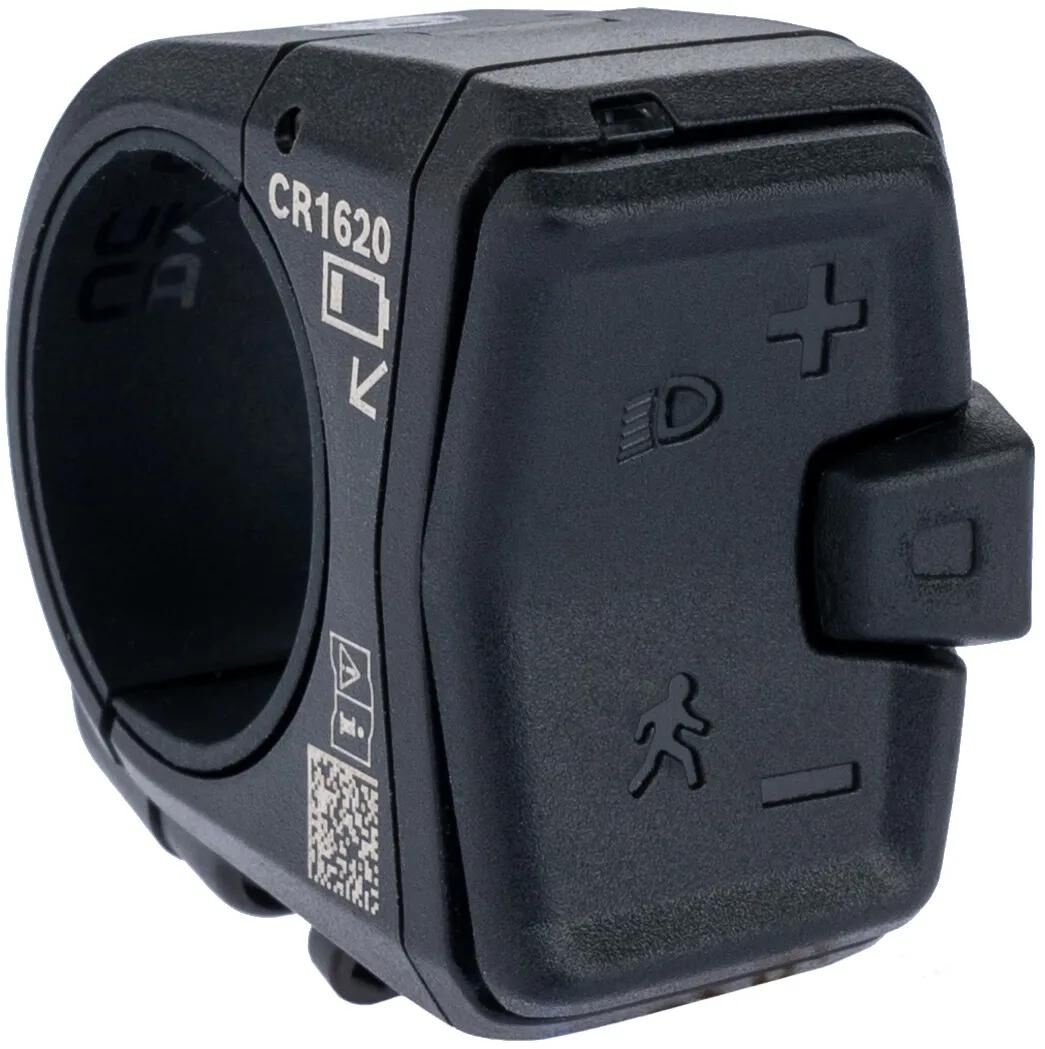

 BOSCH control unit "Mini Remote" 22,2mm
| ||
 CONWAY rocker "Strut Mount" 150mm travel, suitable for Ryvon ST (Z18)
| ||
 CONWAY frame battery bracket suitable for Ryvon (Z18)
| ||
 CONWAY Rocker suitable for Ryvon ST 4.0
| ||
 CONWAY damper bolt set suitable for Ryvon Z18
| ||

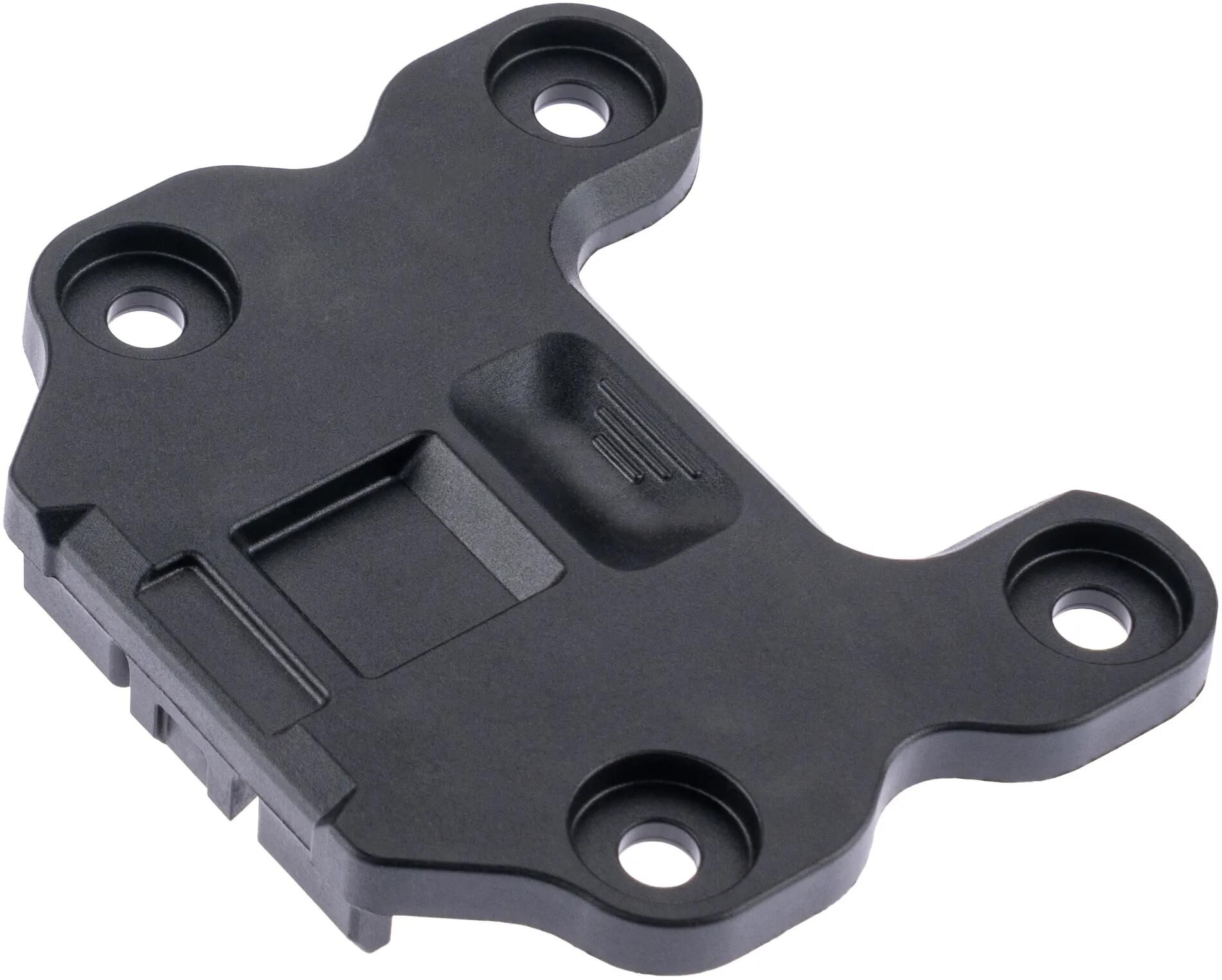

 BOSCH adapter plate plug sideNote: mounting screws (0.230.350/1) are not incl.!
| ||

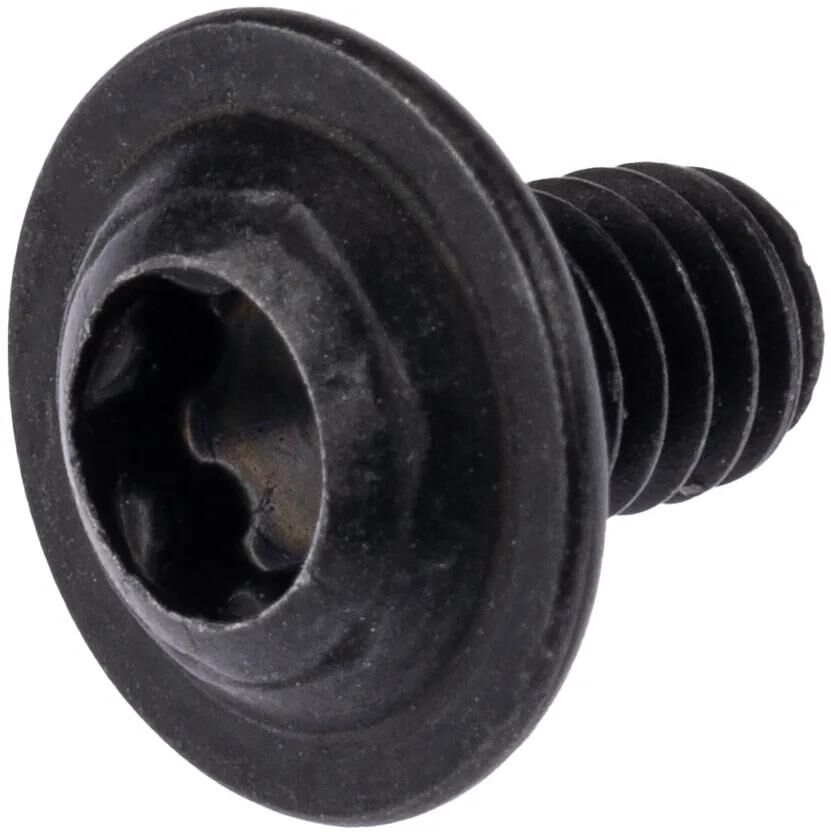

 BOSCH mounting screw pan head screw M4 x 6
| ||

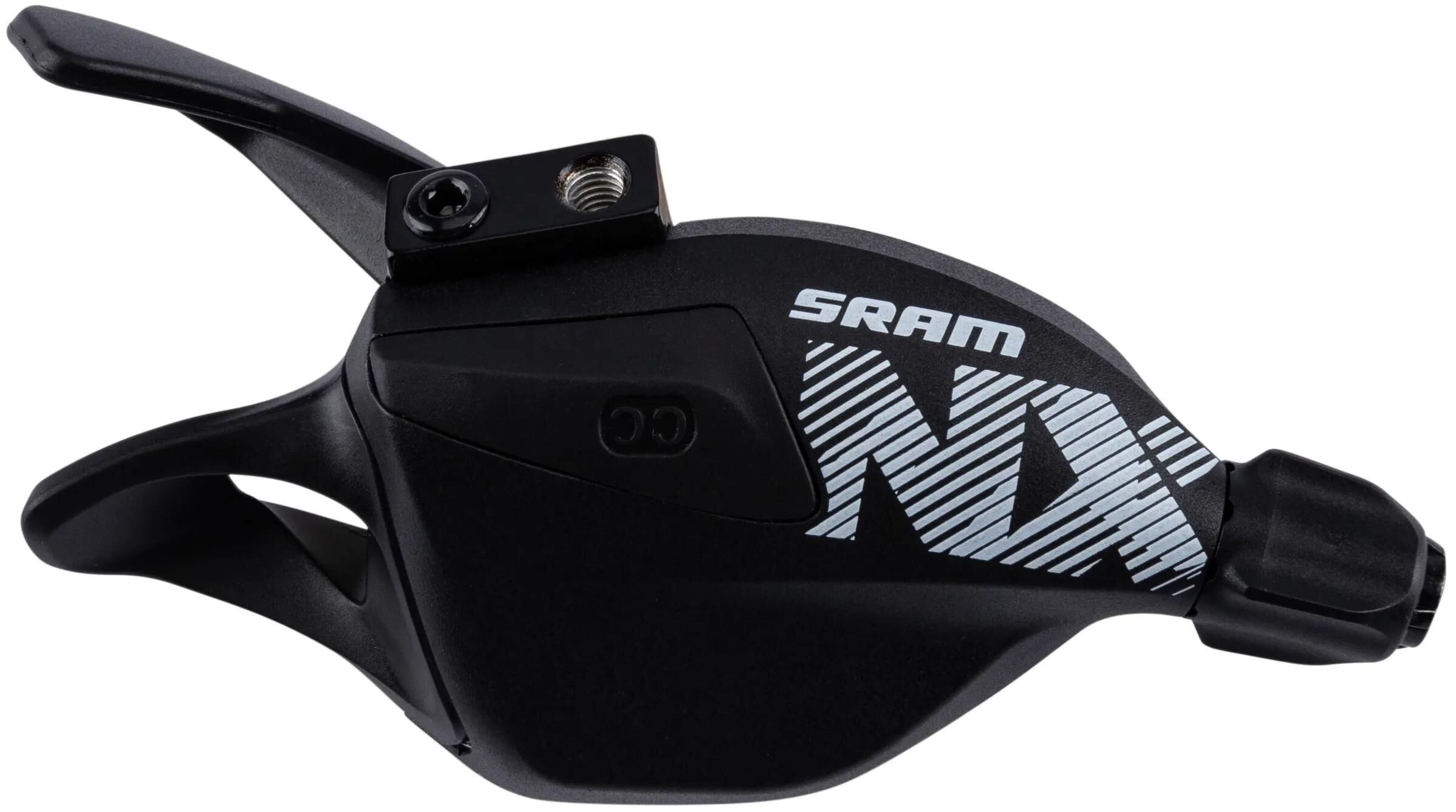

 SRAM trigger shifter "NX Eagle" Single Click black
| ||

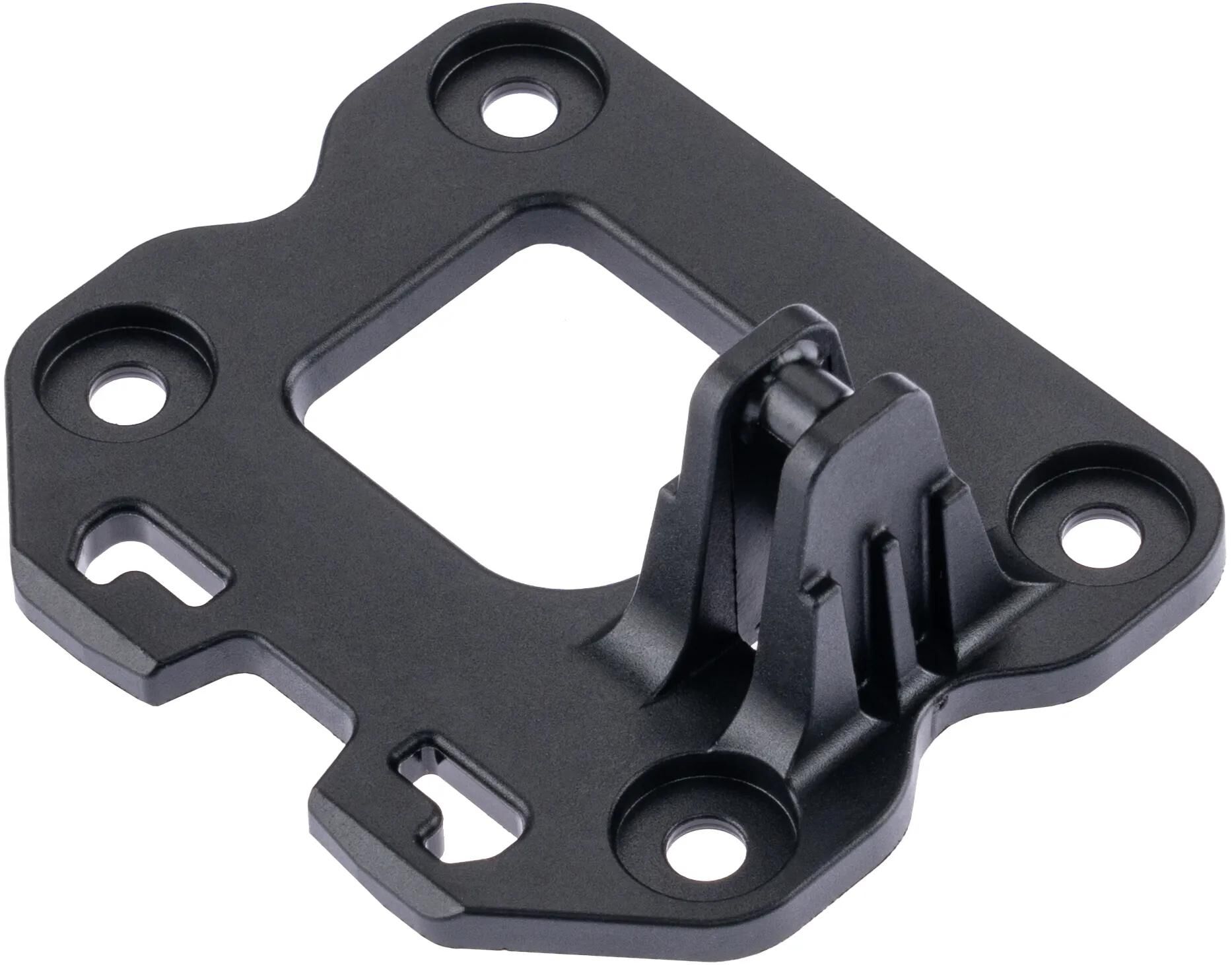

 BOSCH adapter plate non plug sideNote: mount. screws (0.230.350/1) are not incl.!
| ||

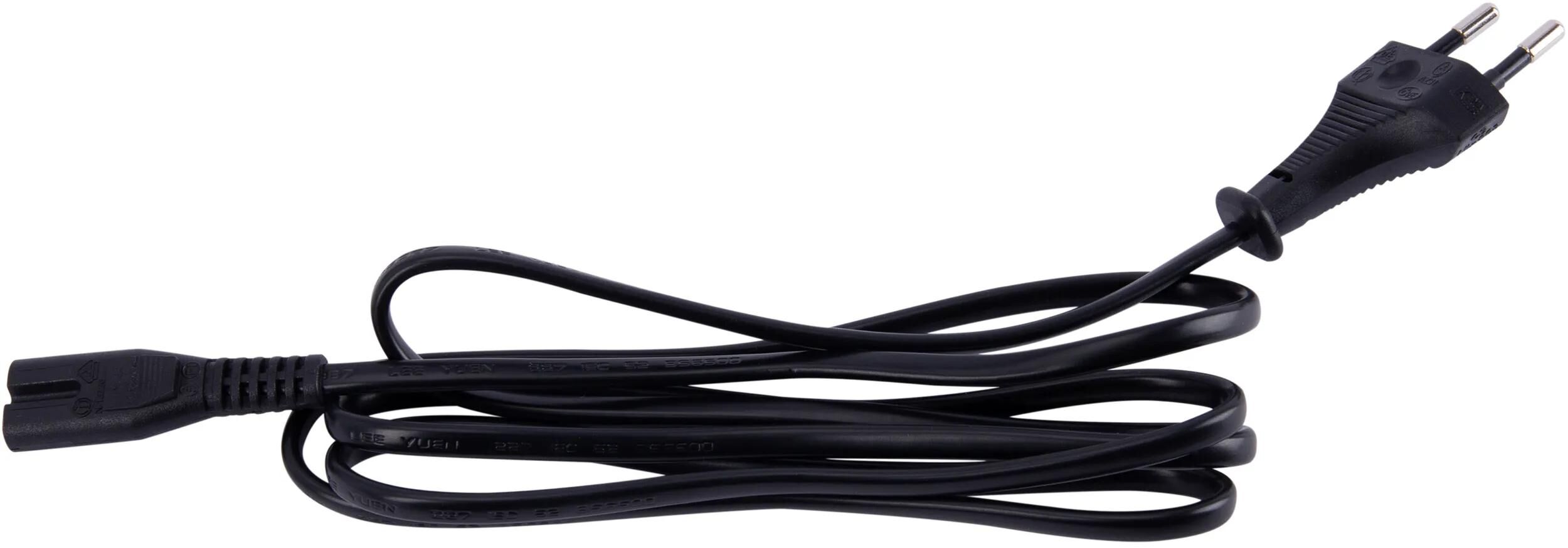

 BOSCH Power Cable suitable for all Bosch chargers
| ||
 CONWAY chain stay "Ryvon" suitable for Ryvon ST 4.0
| ||
 CONWAY cable holder set for down tube inner side, suitable for Nyvon (Z17) and Ryvon (Z18)(Only two holders are required for Nyvon models)
| ||
 CONWAY Ball Beraing Set for Frame main bearing, suitable for Xyron aluminum and carbon with BES3 and smart system (Z11), Ryvon (Z18) and all Xyron LT / ST
| ||

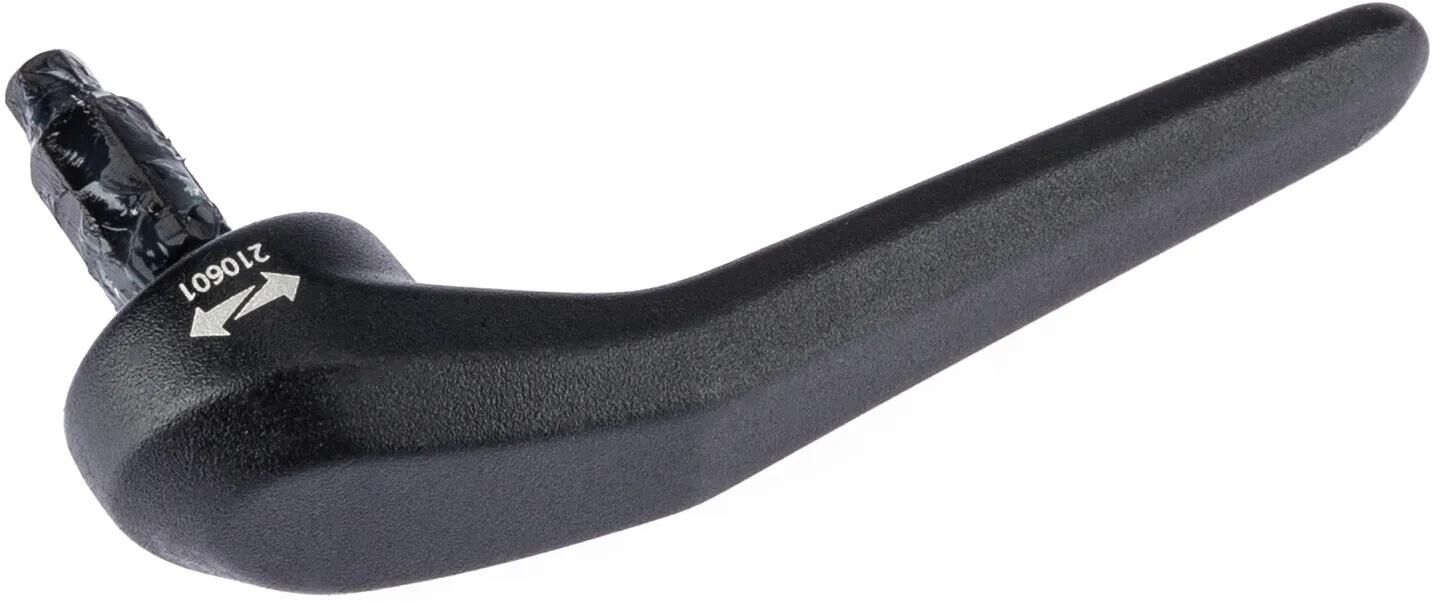

 CONWAY locking lever "SL-B" suitable for eWME (Z10), Ryvon (Z18), matching thru axle 0.281.502/5 and Nyvon (Z17), matching thru axle 0.747.383/0
| ||
 SRAM chain ring 34 teeth, boost
| ||
 CONWAY Saddle Clamp suitable for Ryvon (Z18) and Xyron Carbon LT / ST (Z20)
| ||

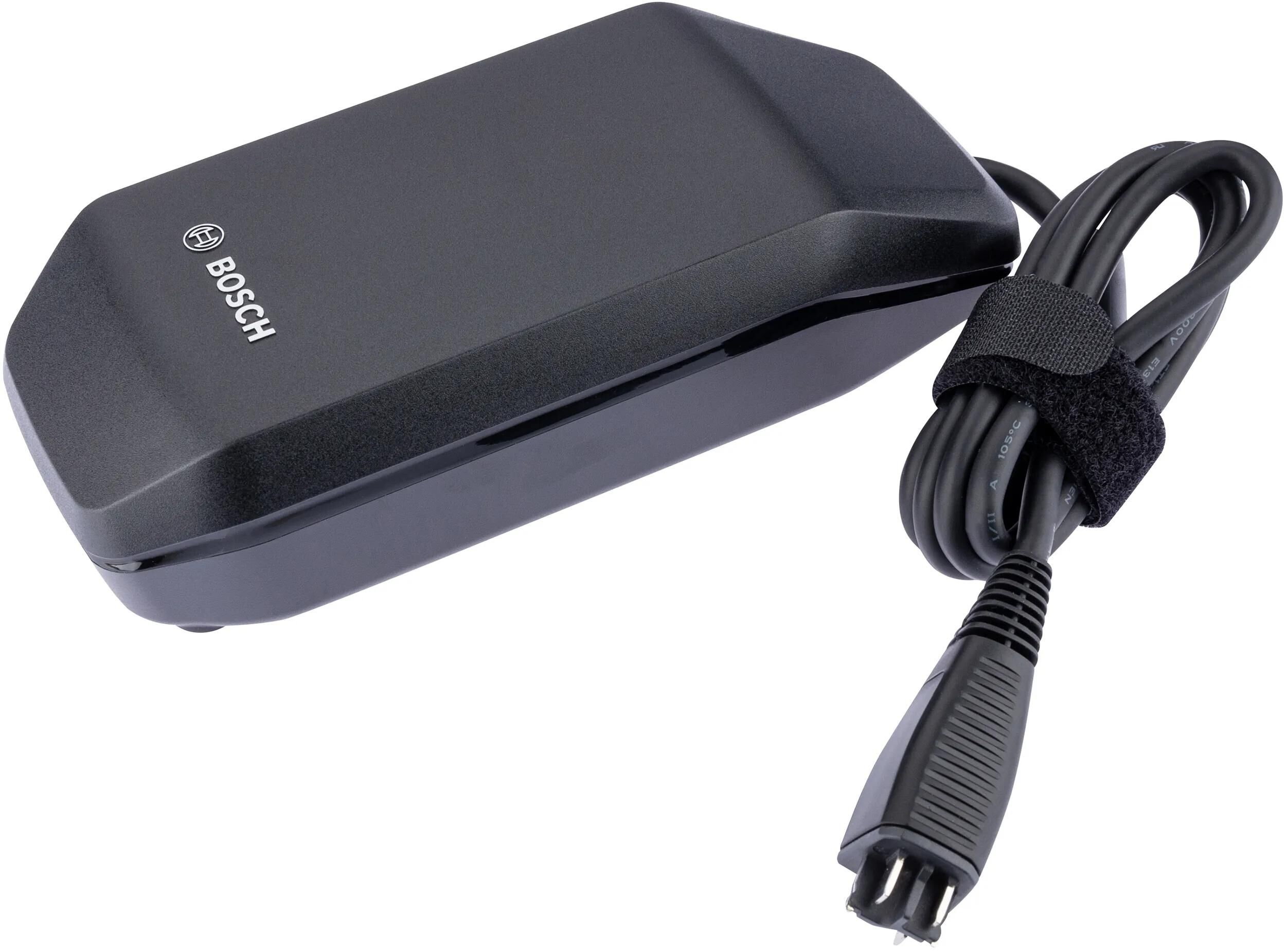

 BOSCH charger 4 A, 230 V
| ||

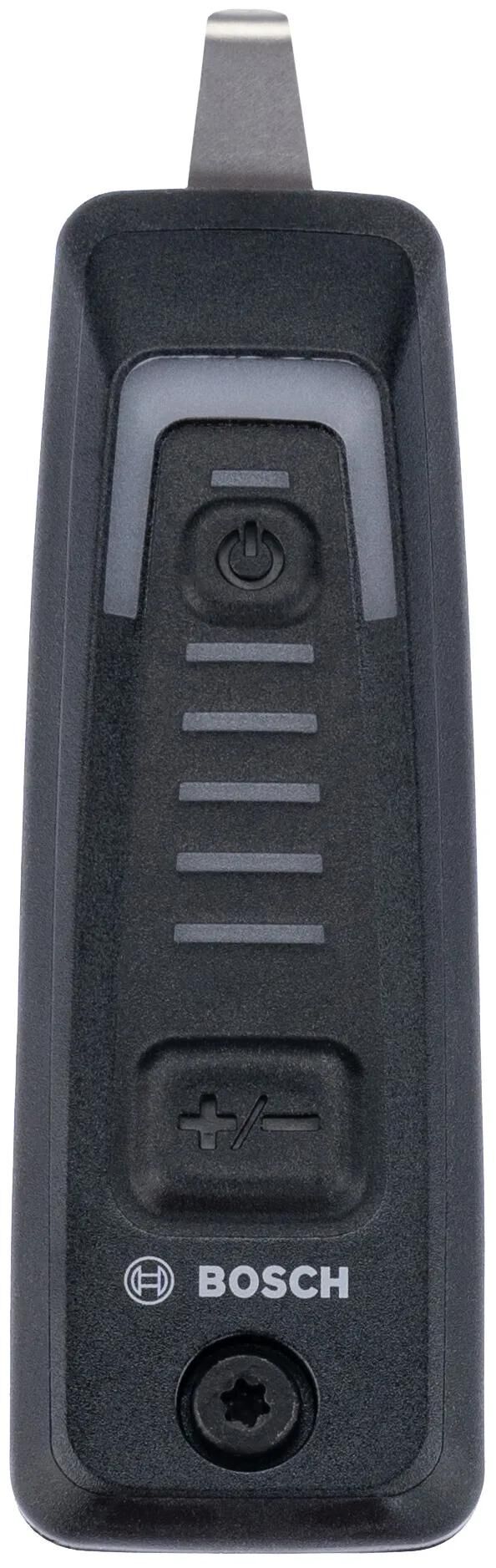

 BOSCH system controller "BRC100" incl. screw
| ||
 CONWAY cable guide for head tube, suitable for Ryvon (Z18) and Xyron LT / ST Carbon (Z20)
| ||
 CONWAY fixing nut suitable for Ryvon (Z18) and all Xyron LT / ST (Z20)
| ||
 CONWAY seat stay suitale for Ryvon ST 4.0
| ||
 SRAM cassette sprocket "PG-1230" 11-13-15-17-19-22-25-28-32-36-42-50 teeth
| ||

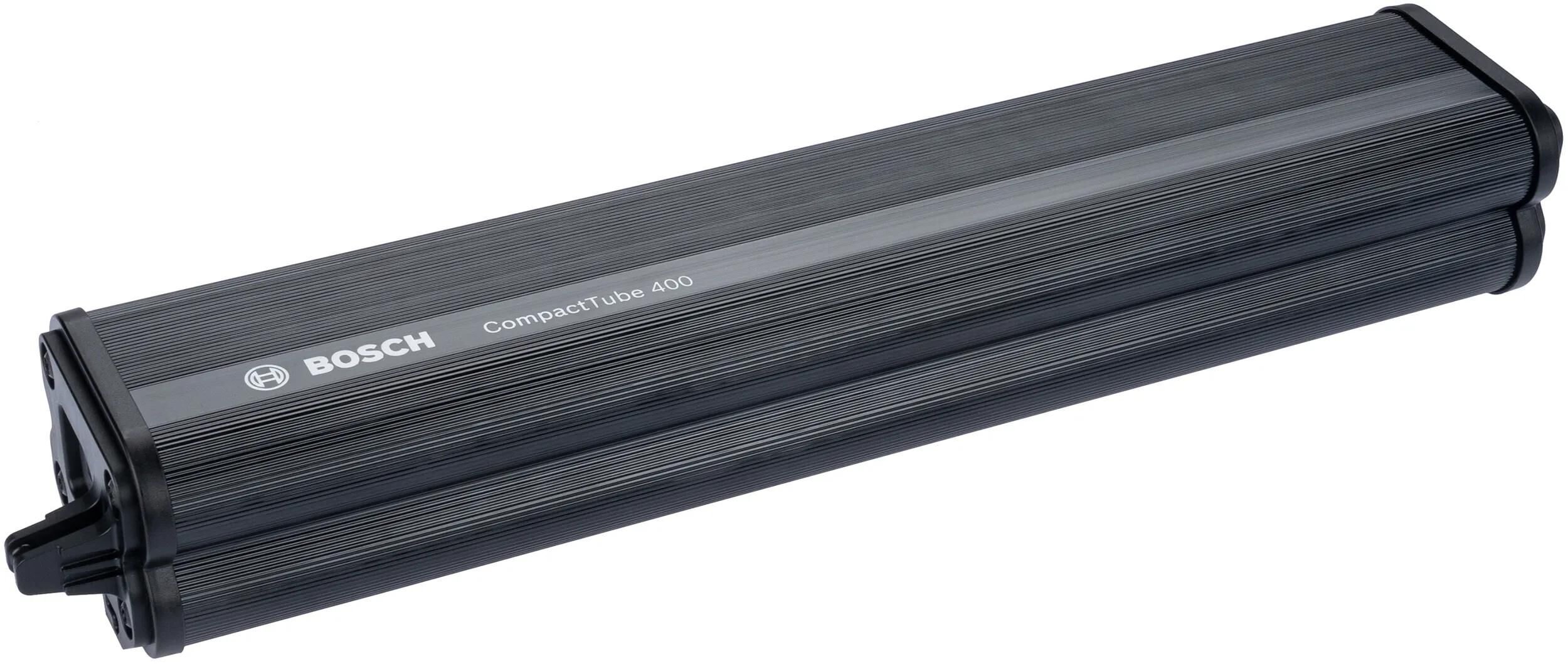

 BOSCH battery "CompactTube" 400 Wh
| ||
 SRAM trigger shifter "NX Eagle" black
| ||

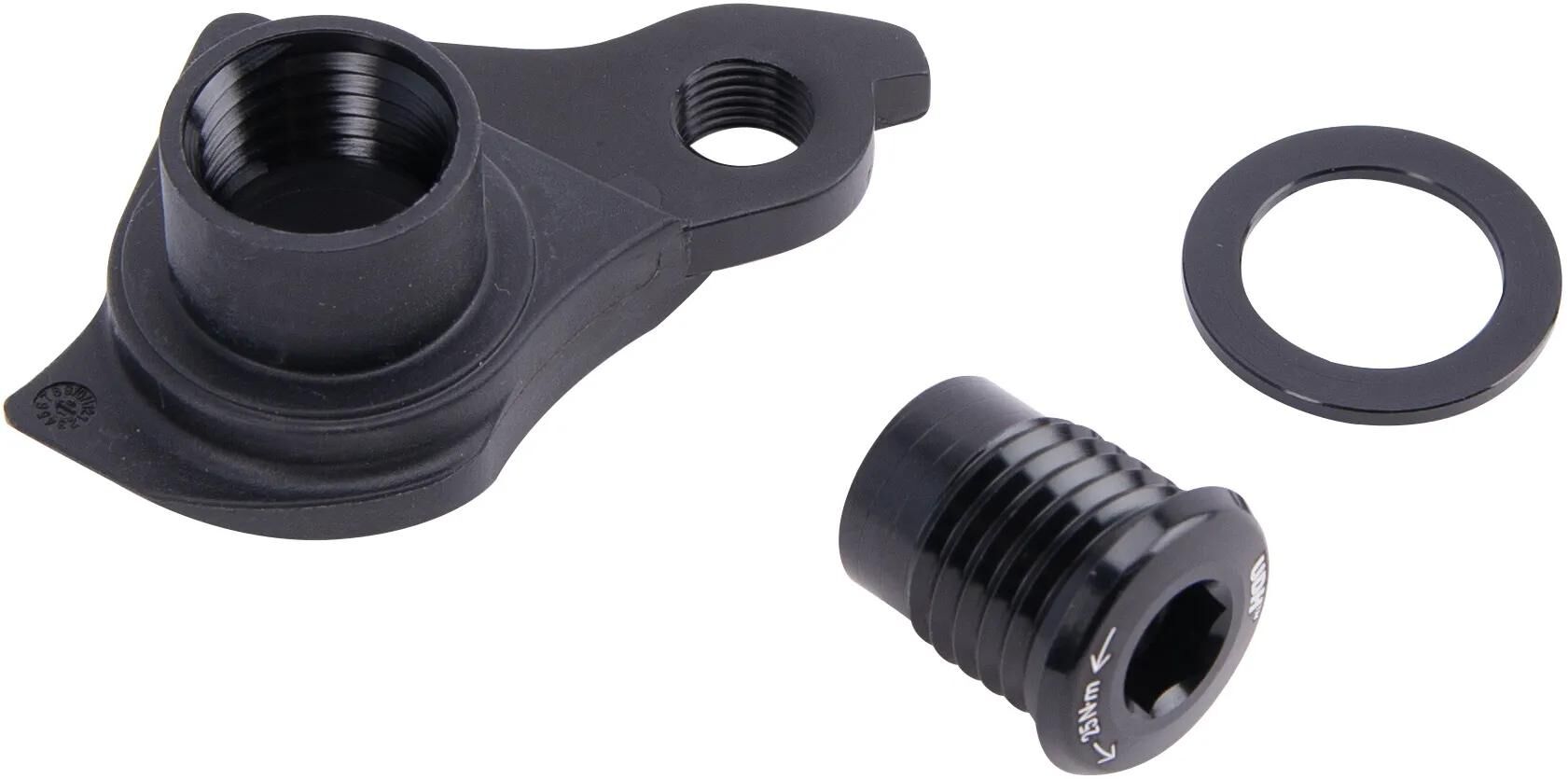

 SRAM derailleur hanger "UDH" black
| ||
 CONWAY motor cover suitable for Ryvon (Z18)
| ||
 CONWAY seat and chain stay guard set suitable for Ryvon (Z18)
| ||
 FASI touch-up stick black matt 20/21
| ||
 SRAM rear derailleur "NX Eagle" black
|
Our CONWAY RYVON ST 4.0 gets you into our new e-enduro series. It offers you a balanced combination of performance and comfort to make your off-road adventures unforgettable.With our reliable Light-E-MTB motor, you'll enjoy a smooth and controlled support that makes it easier for you to ride uphill and ensures a pleasant riding experience. The solid equipment of our entry-level model ensures reliability and durability.Our convenient battery cover technology allows you to comfortably place the battery cover on the top tube. The magnetic parking position keeps it securely in place without complicated attachments.We know how important flexibility is. That's why our e-mountain bike allows you to use a 160mm suspension fork instead of worrying about geometry changes. So you can adjust the suspension to your preferences and still maintain the stability of the bike.We want you to feel comfortable on your bike. That's why we offer CONWAY Ergonomic Sizing with coordinated grip diameters, stem lengths, handlebar widths and crank lengths depending on frame size. So you get a bike that is tailored exactly to you.
Product variants
Using the search field, you can refine the selection of product variants.
| Article | Price | |
|---|---|---|
 CONWAY Electric MTB full suspension "Ryvon ST 4.0" Mod. 24 full suspension, 29", carbon matt / black, 12-speed SRAM "NX", 42 cm / M
| ||
CONWAY Electric MTB full suspension "Ryvon ST 4.0" Mod. 24 full suspension, 29", carbon matt / black, 12-speed SRAM "NX", 44 cm / L
| ||
CONWAY Electric MTB full suspension "Ryvon ST 4.0" Mod. 24 full suspension, 29", carbon matt / black, 12-speed SRAM "NX", 40 cm / S
| ||
CONWAY Electric MTB full suspension "Ryvon ST 4.0" Mod. 24 full suspension, 29", carbon matt / black, 12-speed SRAM "NX", 46 cm / XL
|
