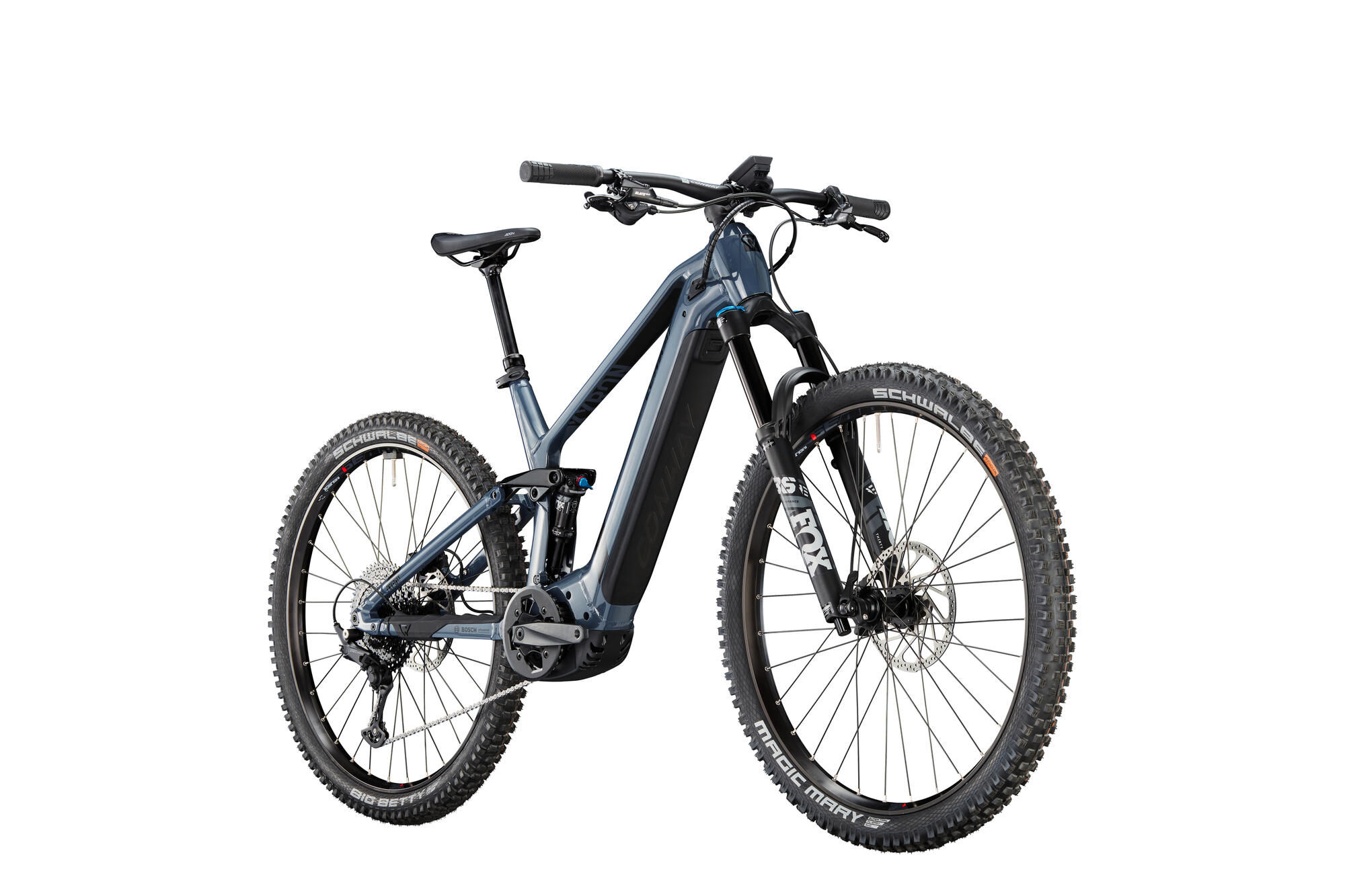

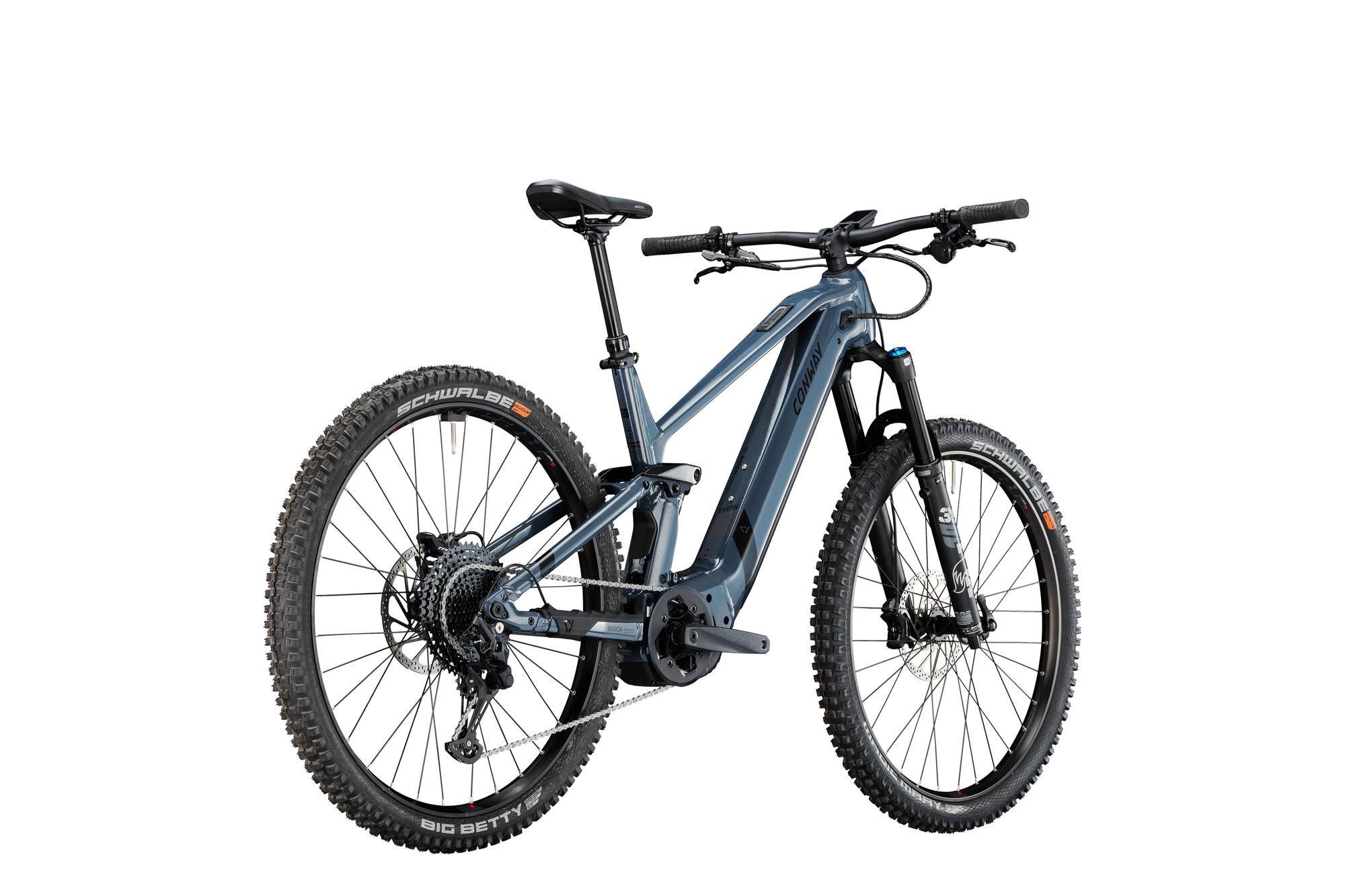

CONWAY Electric MTB full suspension "Xyron S 4.9" Mod. 24
full suspension, 29", anthracite / black metallic, 11-speed SHIMANO "Deore", 40 cm / S
Read more Read less - Article number: 02826881
- Original number: 01024793

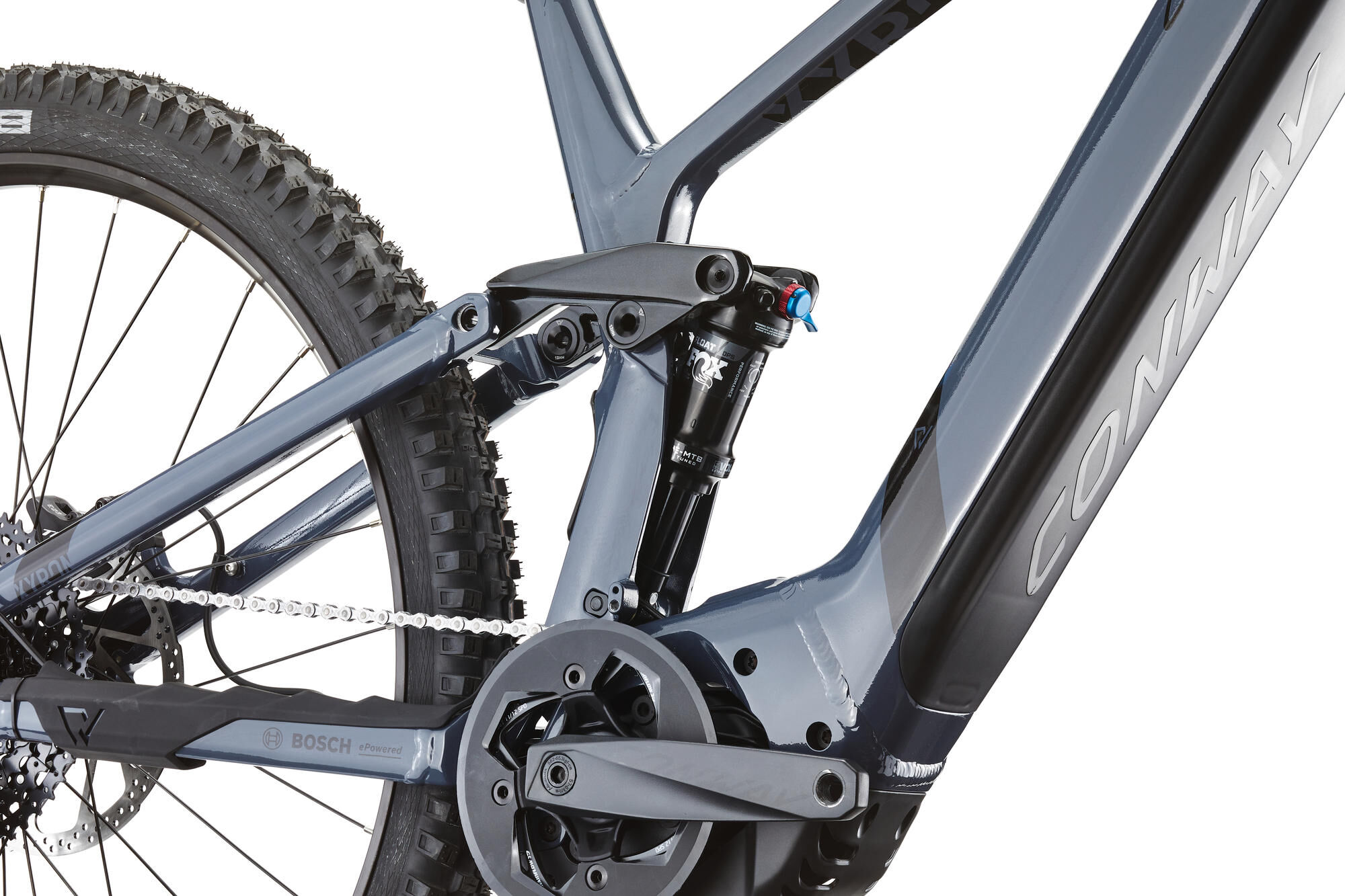

The electric MTB full suspension has an aluminum frame and is equipped with a Bosch Smart System. Drives are provided by a chain drive with a BOSCH Performance Line CX mid-motor, which provides 250 W of power. An 11-speed SHIMANO Deore derailleur enables gear selection. The Suspension Fork has a fork travel of 150 mm, and the Frame also offers a travel of 150 mm. Hydraulic disc brakes provide braking power. The 29" wheels are designed for the permissible system weight of 130 kg. The integrated Battery has a capacity of 750.0 Wh.
Product information
- Battery capacity 750.0 Wh
- Bosch Smart System yes
- Brake system hydraulic disc brake
- Chainstay 465 mm
- Colour designation anthracite / black metallic
- Drive chain drive
- Drive system BOSCH Performance Line CX
- Drive version middle motor
- E-bike yes
- Engine power 250 W
- Features electronic sliding aid
- Frame height 40 cm
- Frame shape full suspension
- Frame size S
- Frame travel 150 mm
- Gears 11-speed
- Gender gents
- Main colour grey
- Material 1 aluminium
- Permissible system weight 130 kg
- Reach 422 mm
- Seat angle 75.5 °
- Seat tube 400 mm
- Secondary colour black
- Shifting name 11-Gang SHIMANO "Deore"
- Shifting type derailleur shifting
- Stack 633 mm
- Steering tube 120 mm
- Steering tube angle 65.0 °
- Stem length 35.0 mm
- Support up to 25km/h
- Toptube 585 mm
- Transmission 1x 11-speed
- Travel 150 mm
- Type full suspension
- Wheel distance 1213 mm
- Wheel size 29 "
- Battery: BOSCH "PowerTube 750", 750 Wh
- Battery Lock: AXA "New Lock"
- Bremse H.R.: TEKTRO Disc Brake "HD-M535", hydraulic, 4 pistons, for 2.3 mm brake rotors
- Chain / belt: KMC "X11e EPT", 11-speed
- Charger: BOSCH 4 A
- Crankset: MIRANDA "Epsilon", 165 mm, 36 teeth
- Damper: FOX "Float DPS", 185 mm x 55 mm
- Derailleur hanger: CONWAY für WME carbon, Xyron, RLC FS, Cairon SUV FS, from mod.20
- Display: BOSCH "Kiox 300", 4-stages, remote control, push aid
- Engine: BOSCH "Performance Line CX", max. 85 Nm
- Fork: FOX "36 Float Performance E", 150 mm travel, Float Evol, Grip, Thru Axle
- Frame: Intube Bosch, Gen. 4, BES3, aluminum, full suspension, 40 cm
- Front hub: FORMULA "DC-511", 15 x 110 mm, Thru Axle
- Front rotor: TRP "RS01E", Ø 203 mm, 6-hole, 2.3 mm thickness
- Front tire: SCHWALBE "Magic Marry", 62-622
- Grips: SQlab "70X"
- Handlebar: LEVELNINE "Race Riser", 780 mm, Ø 31.8 mm, Backsweep 9°, Rise 15 mm
- Headset: ACROS ZS56/28.6 / ZS56/40, 120° blocklock
- Rear derailleur: SHIMANO "Deore RD-M5100"
- Rear hub: FORMULA "EHL-148S", 12 x 148 mm Boost, Thru Axle, 6-hole
- Rear rotor: TRP "RS01E", Ø 203 mm, 6-hole, 2.3 mm thickness
- Rear tire: SCHWALBE "Big Betty ", 62-622
- Remote: BOSCH "BRC3300", mini remote
- Rims: RODI "Ready 35", 35-622, 32 holes, disc brake, easy eyelets, black
- Saddle: FIZIK "Terra Aidon X5"
- Seatpost: CONTEC "Drop-A-Gogo", Ø 31.6 mm, 340 mm long, 100 mm adjustment range
- Sensor: Pedal pressure measuring im Motor + speed sensor
- Spokes: Niro, schwarz
- Stem: LEVELNINE "Race A-Head", 1 1/8", 31.8 mm handlebar clamps, 35 mm long, 0° angle, black
- Supplier Article Number: 01024793
- EAN: 4251971119307
- MSRP: €5,299.95
- Fedas-Code: 154050
- WEEE registration number: DE92509320
- DST-Code: 1E01
- SB-Article: No
- Bidex-Code: 121020
- Brand/Supplier CONWAY
- Unit of measure: PIECE
- Weight: 26.3 kg
- Bedienungsanleitung DE
- Bedienungsanleitung DK
- Bedienungsanleitung EN
- Bedienungsanleitung ES
- Bedienungsanleitung FR
- Bedienungsanleitung IT
- Bedienungsanleitung NL
- Bedienungsanleitung DE
- Bedienungsanleitung DK
- Bedienungsanleitung EN
- Bedienungsanleitung FR
- Bedienungsanleitung NL
- Bedienungsanleitung
- DE
- DK
- EN
- ES
- FR
- IT
- NL
- Explosionszeichnung Grease
- Explosionszeichnung Kunststoff und Gummi
- Explosionszeichnung Metall
- Explosionszeichnung Torque
| Article | Price | |
|---|---|---|
 | ||
 for Xyron aluminum, BES3 with smart system, black (Z11) Read more Read less
| ||
 suitable for Xyron , black (Z11) Read more Read less
| ||
 for Horst link, suitable for Xyron aluminum BES2 (Z6), eWME with EP8 engine (Z10) and Xyron 29" S and SUV models with aluminum rear triangle (Z11)M12 x 1.0, 33.5 mm shaft length Read more Read less
| ||
 | ||
 11-13-15-18-21-24-28-33-39-45-51Teeth Read more Read less
| ||
 suitable for WME Carbon (Z7) and Xyron Carbon BES2 and BES3 (Z6 / Z11), for Xyron Alu the spacer 0.281.070/0 is also required Read more Read less
| ||
 | ||
 | ||
 for damper, suitable for Xyron aluminium and carbon, BES3 with smart system (Z11) Read more Read less
| ||
 | ||
 | ||
 for Frame main bearing, suitable for Xyron aluminum and carbon with BES3 and smart system (Z11), Ryvon (Z18) and all Xyron LT / ST, (Z20), M15x1.0 mm Read more Read less
| ||
 12 x 148mm, 180mm long, 1,75mm thread pitch, Boost Read more Read less
| ||
 suitable for Cairon (Z11 and Z12), Cairon SUV FS (Z14) and Xyron (Z11), Gen.4 (Performance CX), smart system (BES3) Read more Read less
| ||
 | ||
 Ø 31,6mm, 125mm adjustment range, 390mm long Read more Read less
| ||
 | ||
 | ||
 | ||
Ø 31,6mm, 100mm adjustment range, 340mm long Read more Read less
| ||
 | ||
 | ||
 EPT anti-rost technology, self-service package, 136 links Read more Read less
| ||
 suitable for Cairon and Xyron aluminium BES3 models Read more Read less
| ||
 suitable for Xyron Aluminium 29" Read more Read less
| ||
 | ||
 suitable for all Bosch chargers Read more Read less
| ||
 for Rocker, suitable for WME (Z7), eWME E8000 (Z4/Z5), eWME EP8 (Z10), Xyron Aluminum and Carbon BES2 (Z6) and BES3 (Z11) and Xyron LT / ST (Z20), M15x1.0 mm Read more Read less
| ||
 | ||
 suitable for Xyron S, black (Z11) Read more Read less
| ||
 | ||
 suitable for WME (Z7), 180 mm / M12 x P1, 75 x 20 mm Read more Read less
| ||
 | ||
 suitable for eWME (Z10), Ryvon (Z18), matching thru axle 0.281.502/5 and Nyvon (Z17), matching thru axle 0.747.383/0 Read more Read less
| ||
 suitable for Cairon Wave / Trapeze / Men (Z11 and Z12), Xyron Aluminum and Xyron Carbon / Aluminum, smart system, BES3 (Z11) and Xyron LT / ST (Z20) Read more Read less
| ||
 | ||
 | ||
 suitable for Cairon trapeze and gents (Z11, Z12, Z14) and Xyron (Z11), Smart system, Gen.4 (Performance Line CX), BES3 Read more Read less
| ||
 suitable for XYRON Alu BES2 and BES3 (Z6/11) Read more Read less
| ||
 suitable for Cairon trapeze and gents with thru axle and Xyron, Smart system, BES3 (Z11) Read more Read less
| ||
Ø 31,6mm, 125mm adjustment range, 390mm long Read more Read less
| ||
 for Cairon BES3 (Z11 / Z12), Xyron BES3 aluminium and carbon (Z11), Cairon SUV FS BES3 (Z14) and Nyvon (Z17) Read more Read less
| ||
 suitable for Xyron aluminium, Smart system, BES3 (Z11) Read more Read less
| ||
 suitable for Cairon / Xyron (Z11) Read more Read less
| ||
 11-speed, right, with gear display Read more Read less
| ||
 anthracite grey, 20/21, MS, ML, RLC, WME, TS, Xyron, Cairon C SUV, eWME Read more Read less
| ||
 for Damper, suitable for eWME from 2021 (Z10), Xyron 27.5" (Z6) and Xyron 29" (Z11), for Xyron 29" SUV fits 0.281.780/7 (long version). Read more Read less
| ||
 11-speed, right, without gear display Read more Read less
| ||
 | ||
 |

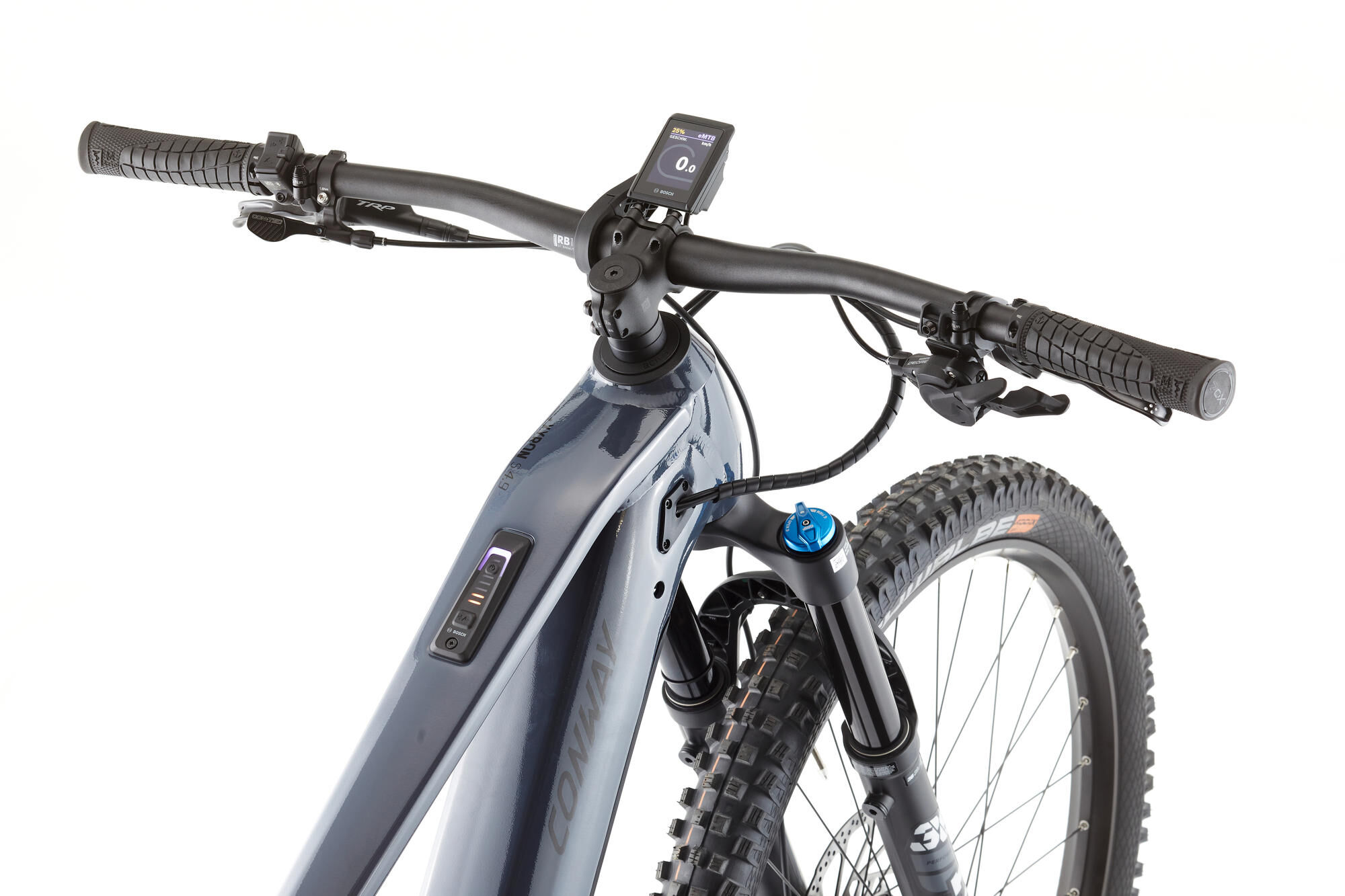

Digital and fully connected - our "Xyron S 4.9" is now equipped with the Bosch Smart System and offers a whole new bike experience. The Display, engine, remote unit and the heart of the whole thing - the E-Bike Flow app - can communicate with each other and always provide you with the information you need for your tour.The robust equipment paired with the solid aluminum frame make the "Xyron S 4.9" the e-bike of choice when it comes to fast descents and steep climbs. For even longer tours, we have upgraded the E-Fully with the highest-capacity 750 Wh battery from Bosch, which is completely concealed in the down tube.In the top tube you will find the Bosch Bluetooth System Controller, whose function is reduced to the bare essentials, but is a good addition to the remote lever. The appearance is tidy and clean, with all the cables also routed through the frame.The all-terrain concept is only really driven forward by the full suspension with 150 mm travel on the Fork and Frame. Speed is provided by the interplay of the sporty Bosch "Performance CX" engine and the finely graduated Shimano gears.Schwalbe's 65 mm wide "Nobby Nic" tires provide optimum grip even on loose surfaces. Together with the 29er wheels, they deliver the best rollover characteristics on changing terrain. The TRP hydraulic disc brakes with their four pistons and 203 mm discs are there for precise braking.Fine details include our 780 mm wide Handlebar, which allows sensitive steering over the trail. The lowerable "Drop-A-Gogo" seatpost from Contec also makes its contribution: at the touch of a button in the cockpit, it always puts you in the optimum position on the bike.
Product variants
Using the search field, you can refine the selection of product variants.
| Article | Price | |
|---|---|---|
 full suspension, 29", anthracite / black metallic, 11-speed SHIMANO "Deore", 40 cm / S Read more Read less
| ||
full suspension, 29", anthracite / black metallic, 11-speed SHIMANO "Deore", 43 cm / M Read more Read less
| ||
full suspension, 29", anthracite / black metallic, 11-speed SHIMANO "Deore", 46 cm / L Read more Read less
| ||
full suspension, 29", anthracite / black metallic, 11-speed SHIMANO "Deore", 49 cm / XL Read more Read less
| ||
full suspension, 29", anthracite / black metallic, 11-speed SHIMANO "Deore", 52 cm / XXL Read more Read less
| ||
 full suspension, 29", blue metallic fade / bronze metallic, 11-speed SHIMANO "Deore", 40 cm / S Read more Read less
| ||
full suspension, 29", blue metallic fade / bronze metallic, 11-speed SHIMANO "Deore", 43 cm / M Read more Read less
| ||
full suspension, 29", blue metallic fade / bronze metallic, 11-speed SHIMANO "Deore", 46 cm / L Read more Read less
| ||
full suspension, 29", blue metallic fade / bronze metallic, 11-speed SHIMANO "Deore", 49 cm / XL Read more Read less
| ||
full suspension, 29", blue metallic fade / bronze metallic, 11-speed SHIMANO "Deore", 52 cm / XXL Read more Read less
|
