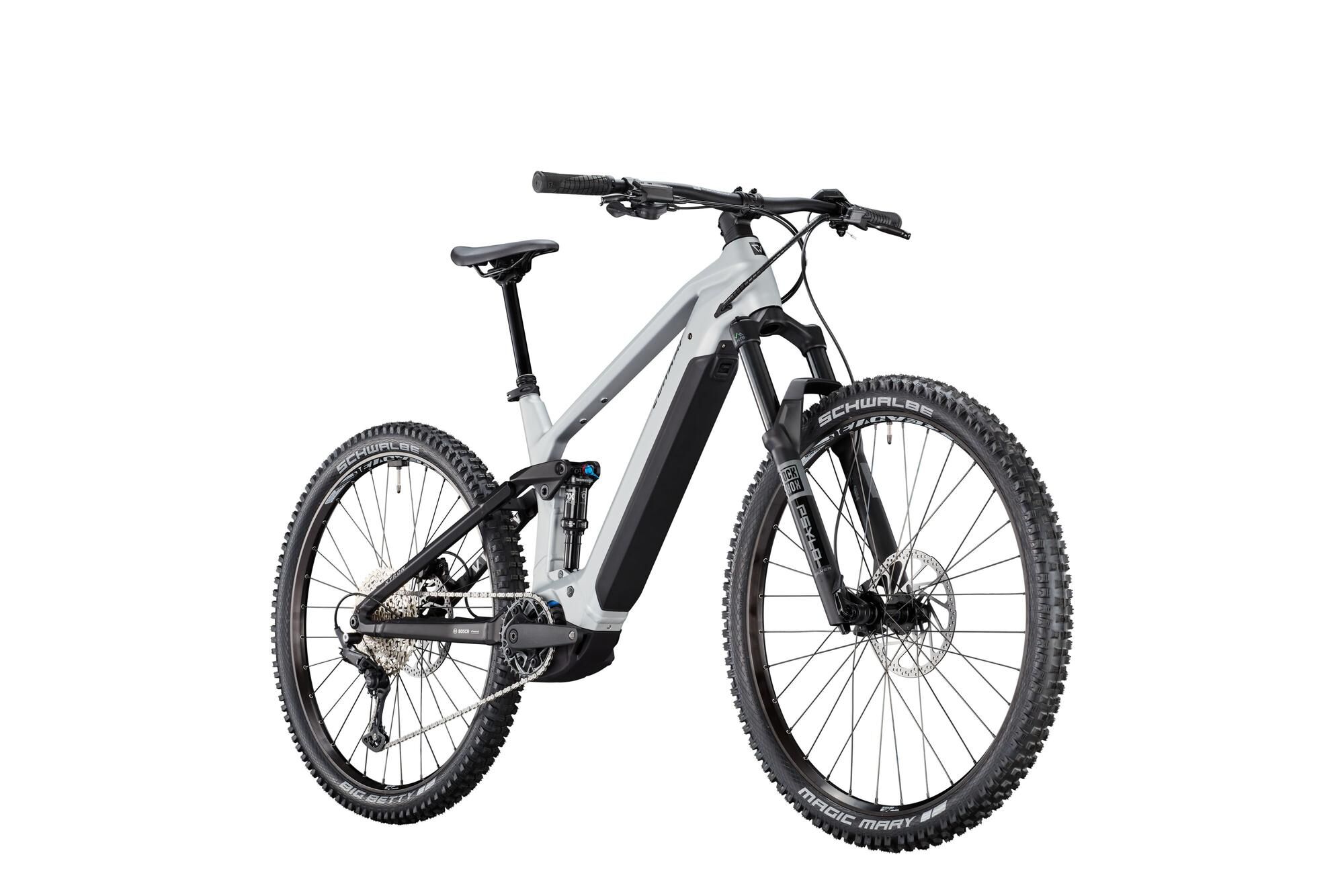

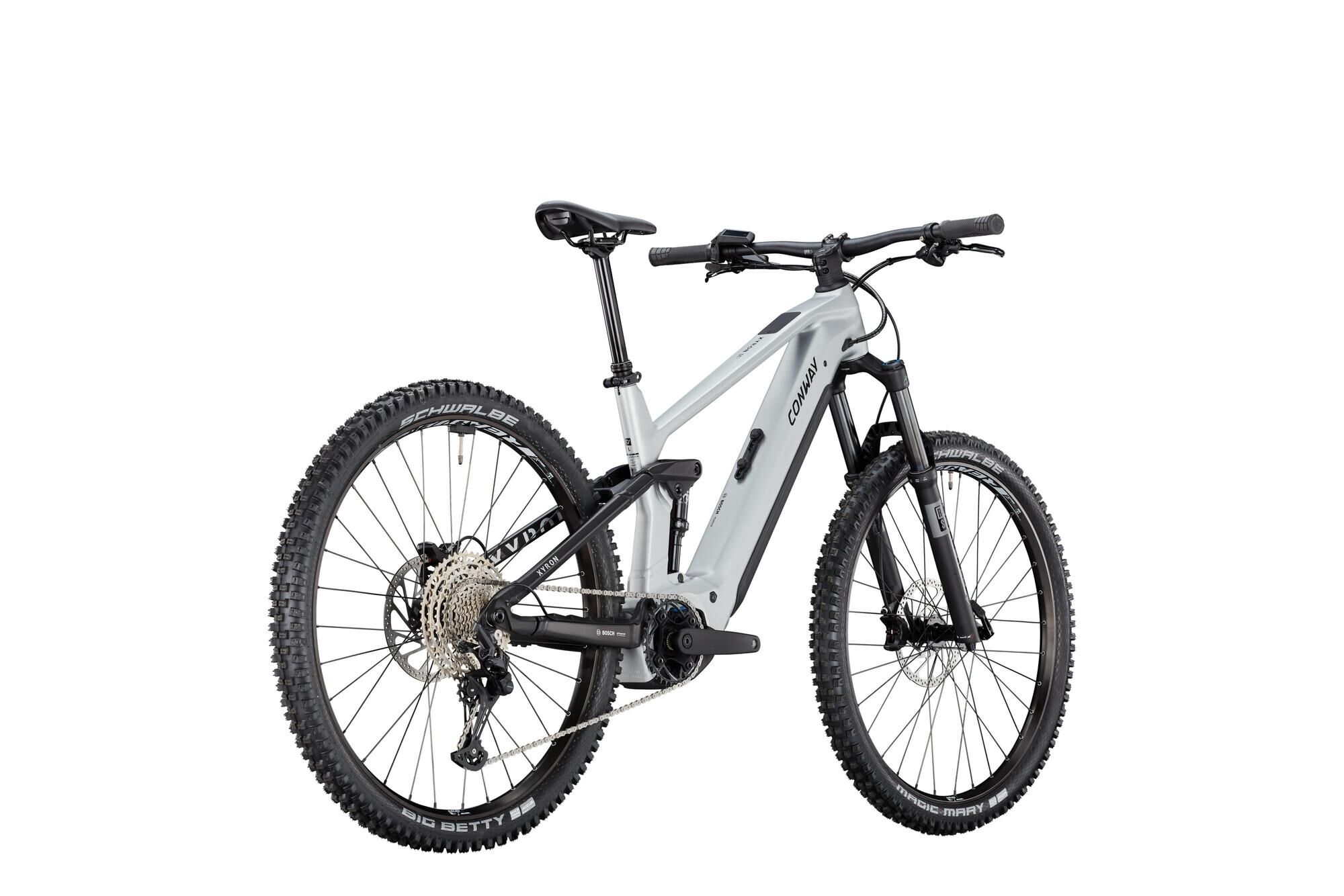

CONWAY Electric MTB full suspension "Xyron ST 4.0" (#1)
full suspension, 29", alu raw matt / black, 12-speed SHIMANO "Deore", 46 cm / XL
Read more Read less - Article number: 02810160
- Original number: 01025709
The electric MTB full suspension is equipped with a drive system from BOSCH, which has a mid-motor. The drives are powered by a chain. The electric MTB full suspension has a suspension fork with a fork travel of 150 mm and a frame travel of 150 mm. The 12-speed SHIMANO "Deore" derailleur system enables precise gear changes. The hydraulic disc brakes ensure reliable deceleration. The battery capacity is 800.0 Wh. The wheel size is 29". The permissible total weight is 140 kg.
Product information
- Battery capacity 800.0 Wh
- Brake system hydraulic disc brake
- Category full suspension
- Category E-bike 3
- Chainstay 452 mm
- Colour designation alu raw matt / black
- Drive chain drive
- Drive system BOSCH Performance Line CX
- Drive version middle motor
- E-bike yes
- Engine power 250 W
- Features damper , electronic sliding aid , suspension fork
- Frame height 46 cm
- Frame shape full suspension
- Frame size XL
- Frame travel 150 mm
- Gears 12-speed
- Gender gents
- Main colour silver
- Material 1 aluminium
- Permissible system weight 140 kg
- Reach 505 mm
- Seat angle 77.6 °
- Seat tube 460 mm
- Secondary colour black
- Shifting name 12-Gang SHIMANO "Deore"
- Shifting type derailleur shifting
- Stack 651 mm
- Steering tube 145 mm
- Steering tube angle 64.5 °
- Stem length 50.0 mm
- Support up to 25km/h
- Toptube 638 mm
- Transmission 1x 12-speed
- Travel 150 mm
- Wheel distance 1289 mm
- Wheel size 29 "
- Battery: BOSCH "PowerTube 800", 800 Wh
- Battery Lock: ABUS "XPlus"
- Bottom bracket: BOSCH
- Brake: TEKTRO "HD-M535", 4/4-Kolben
- Brake lever: TEKTRO "HD-M535"
- Bremse H.R.: TEKTRO Disc Brake "HD-M535", hydraulic, 4 pistons, for 2.3 mm brake rotors
- Chain / belt: SHIMANO "Deore CN-M6100"
- Chain ring / pulley: e*thirteen "Helix Core e*spec", 34 teeth
- Charger: BOSCH 4 A
- Crank: MIRANDA "Mythos" 165 mm, for Bosch Gen. 4, ISIS, Q:8, black

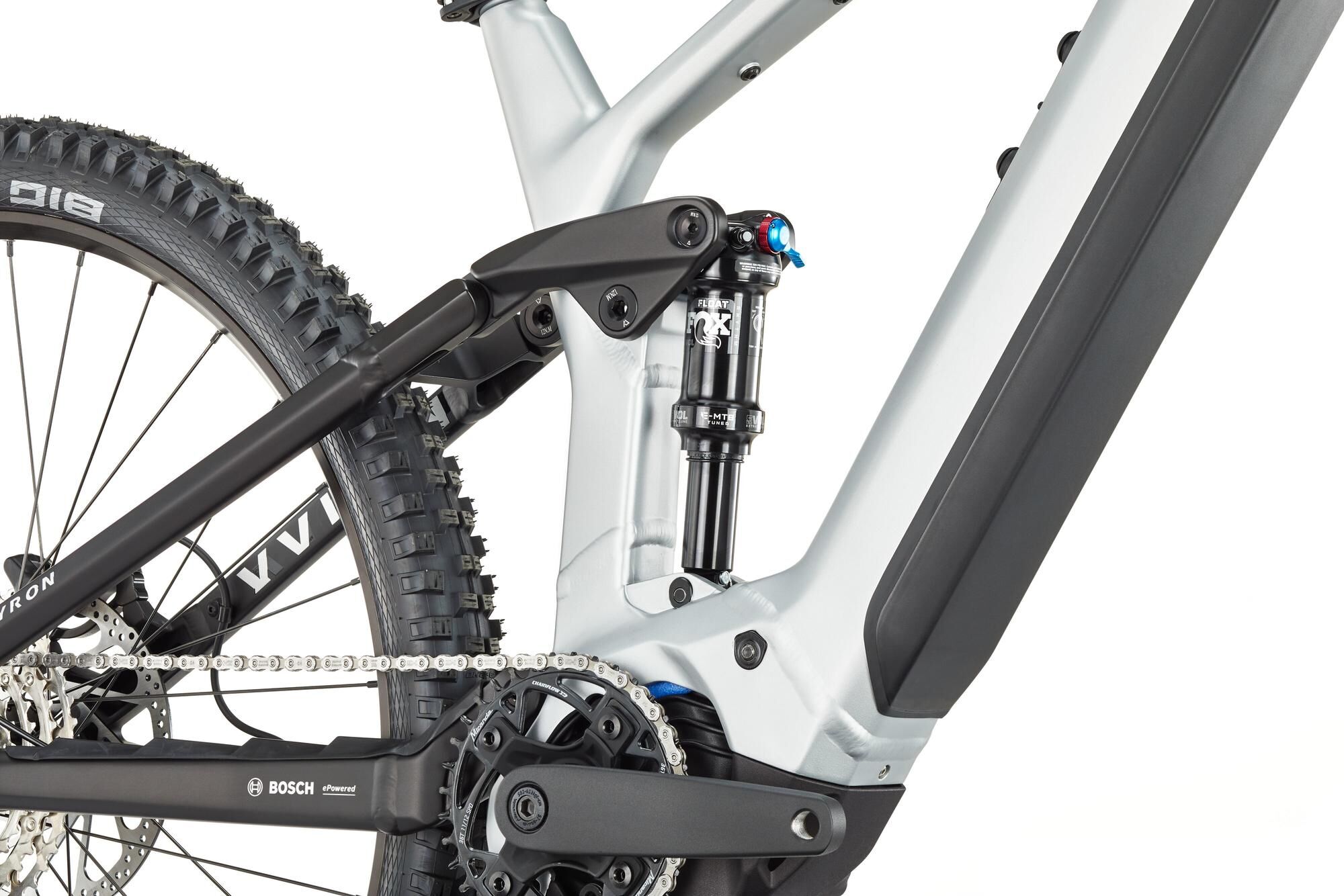

- Damper: FOX "Float Rhythm", 185 mm x 52.5 mm
- Derailleur hanger: SRAM "UDH", for Thru Axle, 1 mm thread pitch

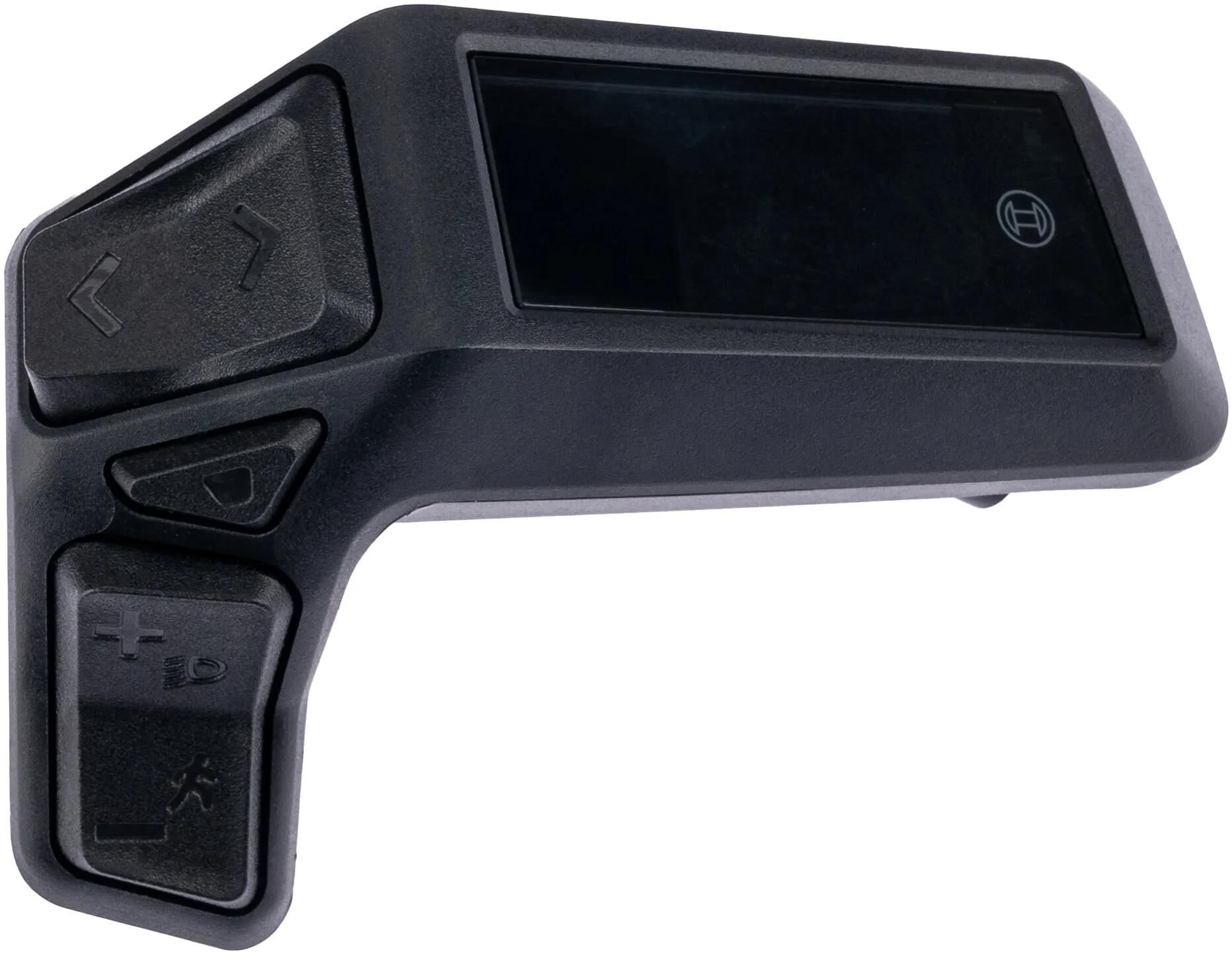

- Display: BOSCH "Purion 200" Display, 4-stage, Remote Control, Pushing Help

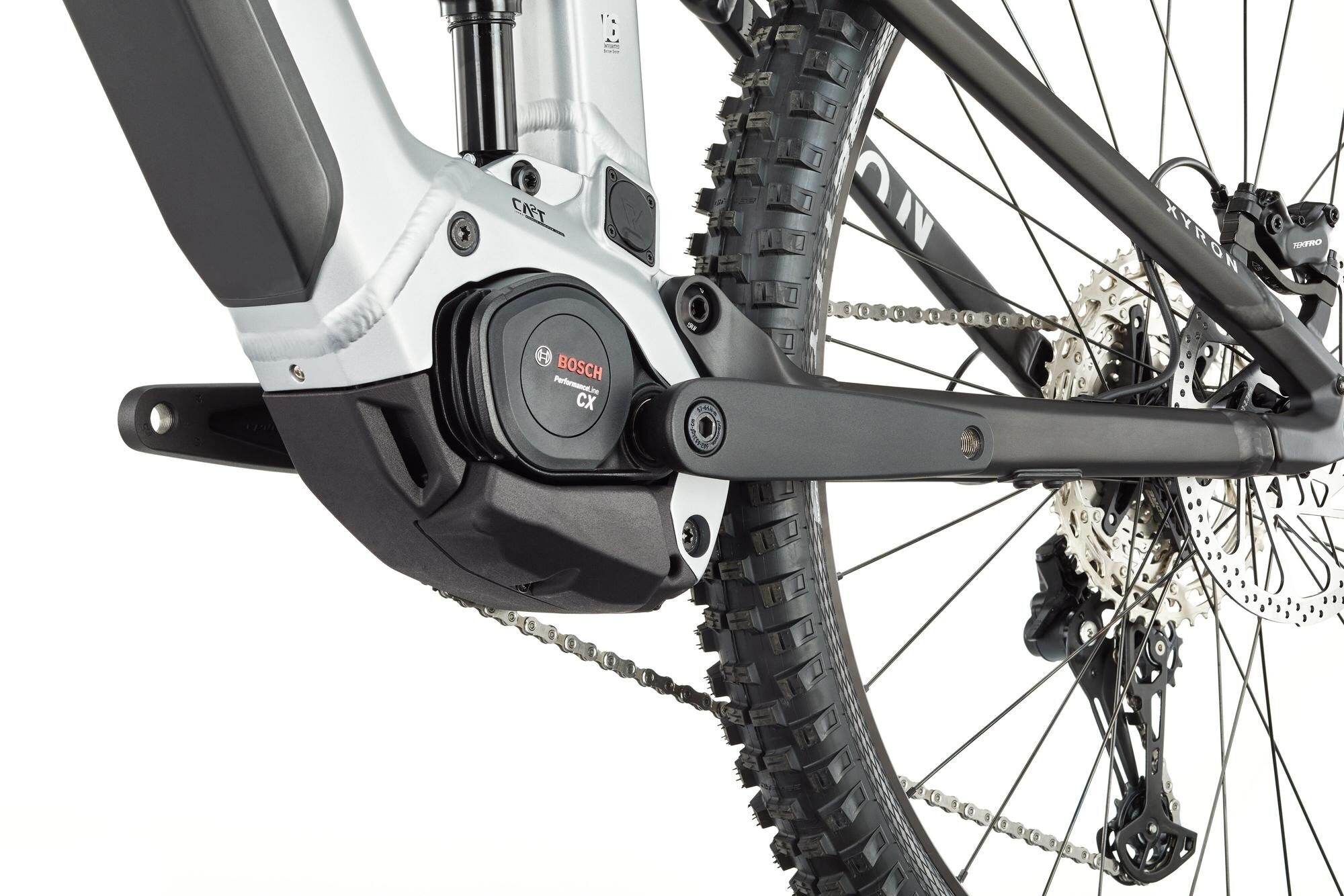

- Engine: BOSCH "Performance Line CX", BDU38, max. 100 Nm
- Fork: ROCKSHOX "Psylo Silver RC", 150 mm travel, SoloAir, Motion Control, Maxle Lite Thru Axle
- Frame: Intube Bosch, Gen. 4, BES3, Aluminium, Fullsuspension, 46 cm
- Front hub: SHIMANO "HB-TC500-15-B", 15 x 110 mm Boost, Thru Axle, Center Lock
- Front rotor: TEKTRO "TR203-17", Ø 203 mm, 6-hole, 2.3 mm thick
- Front tire: SCHWALBE "Magic Mary", 62-622
- Grips: SQlab "70X"
- Handlebar: LEVELNINE "Race Riser", 780 mm, Ø 31.8 mm, Backsweep 9°, Rise 15 mm
- Headset: ACROS ZS56/28.6/OD62 / ZS56/40, 150° blocklock

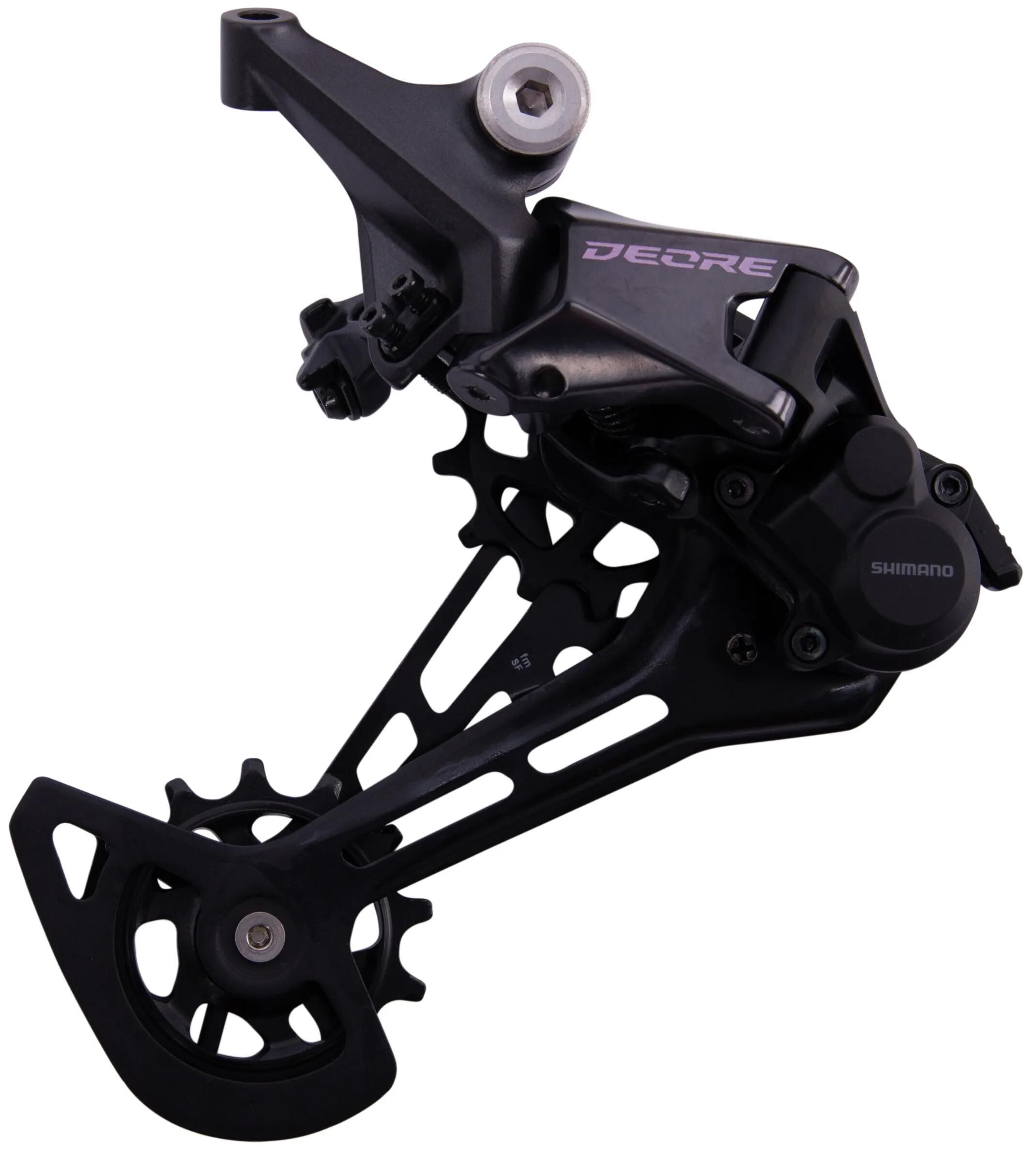

- Rear derailleur: SHIMANO "Deore RD-M6100", long cage

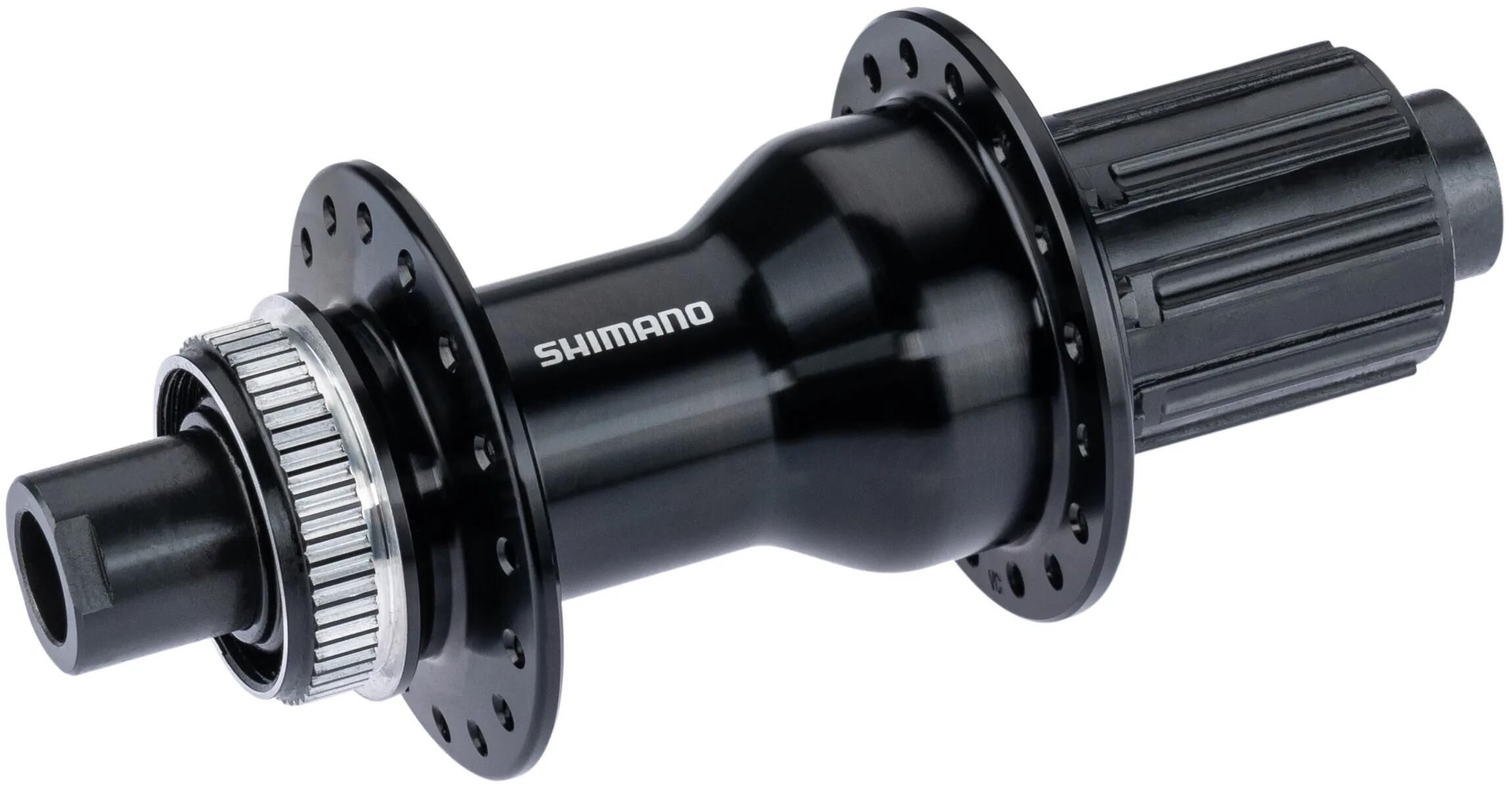

- Rear hub: SHIMANO "FH-TC500-HS-B", 12 x 148 mm Boost, Center Lock, Thru Axle
- Rear rotor: TEKTRO "TR203-17", Ø 203 mm, 6-hole, 2.3 mm thick
- Rear tire: SCHWALBE "Big Betty", 62-622
- Rims: RODI "Ready 30", 30-622, 32 holes, disc brake, easy eyelets, black
- Saddle: FIZIK "Terra Aidon X5"
- Seatpost: LIMOTEC "D1", Ø 31.6 mm, 465 mm long, 170 mm adjustment range, 0 mm offset
- Sensor: Pedal pressure measuring im Motor + speed sensor
- Spokes: MACH 1 "PRO"
- Stem: LEVELNINE "Team A-Head", 1 1/8", 31,8 mm Lenkerklemmung, 50 mm lang, schwarz
- Supplier Article Number: 01025709
- EAN: 4251971155244
- MSRP: €4,499.95
- Fedas-Code: 154050
- WEEE registration number: DE92509320
- DST-Code: 1E01
- SB-Article: No
- Bidex-Code: 121020
- Brand/Supplier CONWAY
- Unit of measure: PIECE
- Weight: 26.6 kg
- Konformitätserklärung FR
- Explosionszeichnung metal
- Konformitätserklärung ES
- Konformitätserklärung NL
- Explosionszeichnung grease
- Konformitätserklärung EN
- Konformitätserklärung IT
- Konformitätserklärung DK
- Konformitätserklärung DE
- Explosionszeichnung plastic
- Bedienungsanleitung
- Explosionszeichnung torque
| Article | Price | |
|---|---|---|
 suitable for Xyron LT / ST (Z20) Read more Read less
| ||
 | ||
 black, fits Conway eWME from 2021 and Victoria eParcour, among others Read more Read less
| ||
 suitable for Xyron LT / ST (Z20) Read more Read less
| ||
 suitable for Ryvon (Z18) and all Xyron LT / ST (Z20) Read more Read less
| ||
 for Cairon BES3 (Z11 / Z12), Xyron BES3 aluminium and carbon (Z11), Cairon SUV FS BES3 (Z14) and Nyvon (Z17) Read more Read less
| ||
 Without stickers / decals!suitable for Xyron ST 4.0, alu raw matt / black matt and Xyron ST 5.0, bronze matt / black matt and graphite gray matt / black matt, from mod. 2025 (Z20)incl. ball bearings Read more Read less
| ||
for complete rear triangle. Important note: only suitable for Xyron aluminum ST 4.0 + 5.0 with 1.5 mm thread pitch (Z20) Read more Read less
| ||
 Suitable for the smart system (BES3)Note: only for battery sizes PT600 and PT800 Read more Read less
| ||

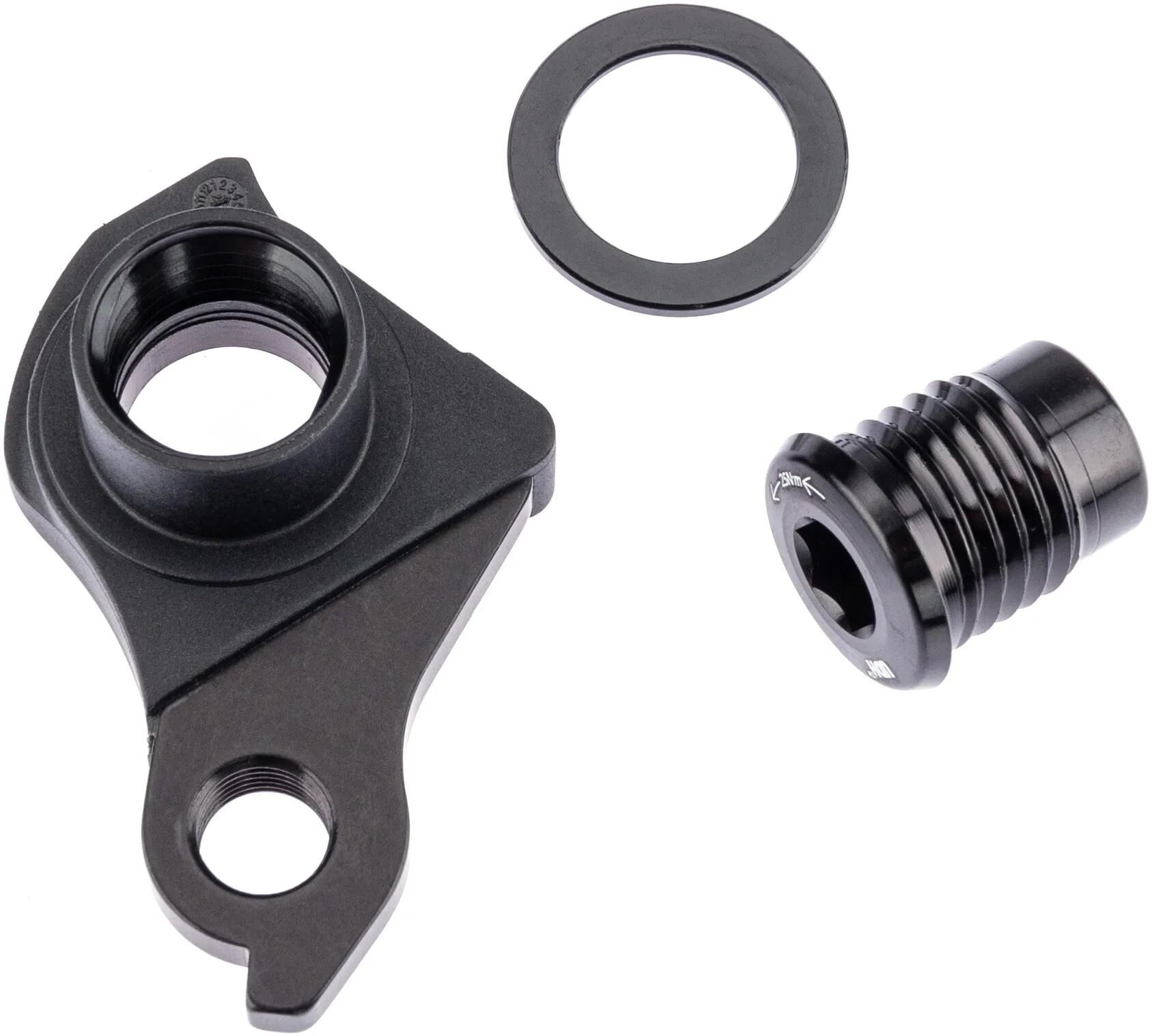

 UDH, suitable for eWME (Z10), Nyvon (Z17), Ryvon (Z18) and Xyron ST / LT (Z20)(equivalent substitute: 0.347.028/3) Read more Read less
| ||
 | ||
 | ||
 regular, (LxW): 255 x 145mm, 262g Read more Read less
| ||
 | ||
 for Rocker, suitable for WME (Z7), eWME E8000 (Z4/Z5), eWME EP8 (Z10), Xyron Aluminum and Carbon BES2 (Z6) and BES3 (Z11) and Xyron LT / ST (Z20), M15x1.0 mm Read more Read less
| ||
 | ||
 10-12-14-16-18-21-24-28-33-39-45-51 teeth Read more Read less
| ||
 for Frame main bearing, suitable for Xyron aluminum and carbon with BES3 and smart system (Z11), Ryvon (Z18) and all Xyron LT / ST, M15x1.0 mm Read more Read less
| ||
 suitable for Xyron LT / ST aluminum (Z20) Read more Read less
| ||

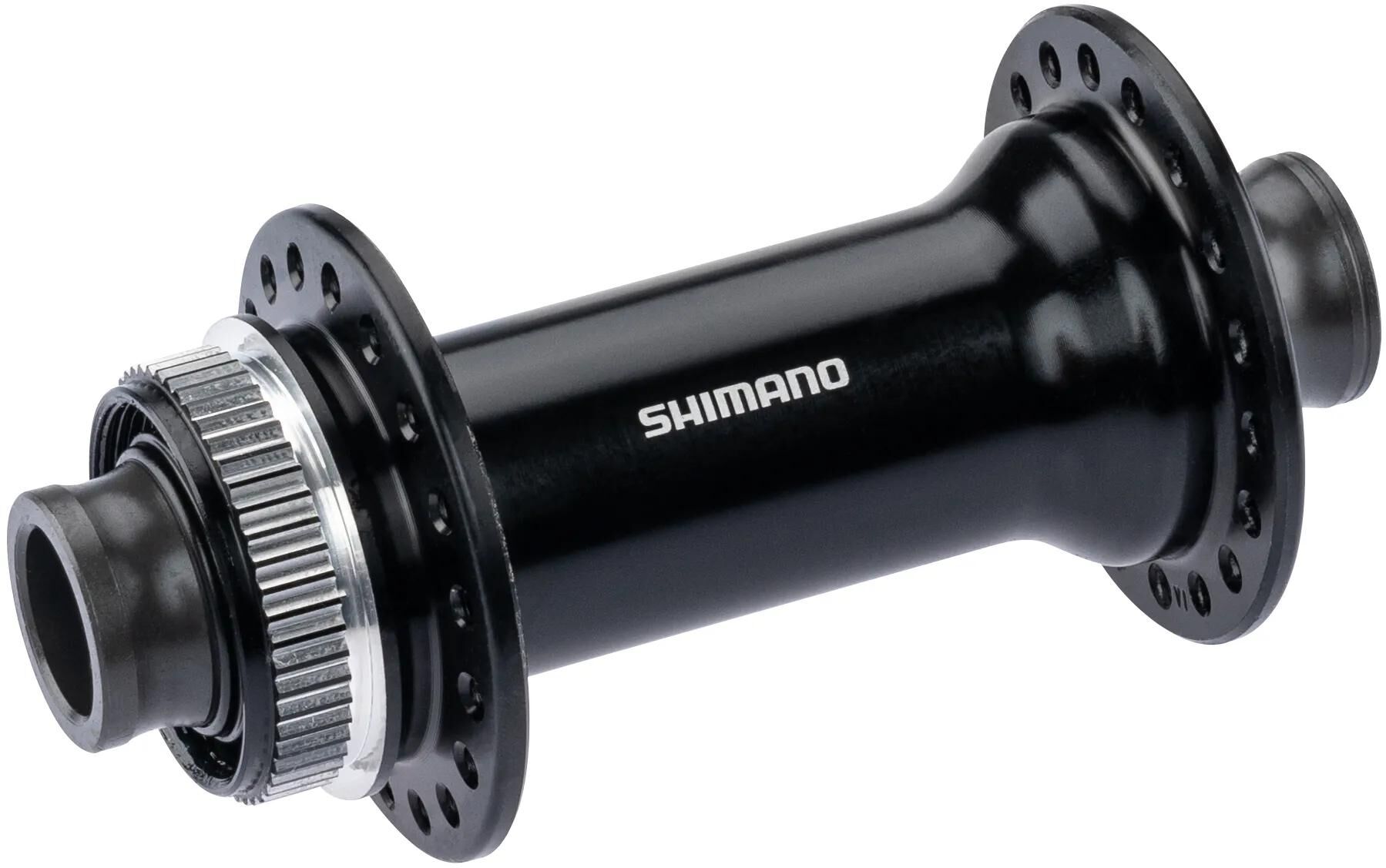

 36 holes, 110mm, 15mm thru axle Read more Read less
| ||
 without stickers / decals!suitable for Xyron ST 4.0, alu raw matt / black matt and Xyron ST 5.0, bronze matt / black matt and graphite gray matt / black matt, from mod. 2025 (Z20) Read more Read less
| ||
 Ø 203 mm, old packaging Read more Read less
| ||
 suitable for Ryvon (Z18) and Xyron Carbon LT / ST (Z20) Read more Read less
| ||
 Top part, suitable for Conway Xyron aluminum LT / ST (Z20) Read more Read less
| ||
suitable for Xyron LT / ST aluminum (Z20), M8 x 1.25 mm Read more Read less
| ||
 for Xyron ST, black matt, from mod. 2025 (Z20), incl. ball bearings Read more Read less
| ||
 suitable for all Bosch chargers Read more Read less
| ||
 | ||
 | ||
 suitable for all Xyron LT / ST (Z20) Read more Read less
| ||
 for down tube, suitable for Cairon gents, trapeze and wave und Xyron with 500 / 625 Wh PT battery, BES2 (Z6) Read more Read less
| ||
 SB-packed, e.g. suitable for Conway Xyron ST Alu, application range from 280 mm to 330 mm, kickstand rubbers extendable up to a maximum of 42 mm Read more Read less
| ||
 suitable for Xyron (Z20), with Bosch Performance CX 2 bolts Read more Read less
| ||
 | ||
 suitable for eWME (Z10), Ryvon (Z18), matching thru axle 0.281.502/5 and Nyvon (Z17), matching thru axle 0.747.383/0 Read more Read less
| ||
 suitable for eWME (Z10), 180 mm / M12 x P1.0 x 14.5 mm Read more Read less
| ||
 Plastic with rubber rim, suitable for all Xyron LT / ST (Z20) Read more Read less
| ||
 suitable for Cairon Wave / Trapeze / Men (Z11 and Z12), Xyron Aluminum and Xyron Carbon / Aluminum, smart system, BES3 (Z11) and Xyron LT / ST (Z20) Read more Read less
| ||
 suitable for all Xyron LT / ST (Z20) Read more Read less
| ||
 | ||
 | ||
 Lower part, suitable for Conway Xyron aluminum LT / ST (Z20) Read more Read less
| ||
 | ||
 | ||
| ||
for Horst-Link (Dropout) Important note: only suitable for Xyron aluminum LT / ST (Z20), M12 x 1.0 mm, shaft length 28.5 mm Read more Read less
| ||
 suitable for Xyron Aluminum LT / ST (Z20) Read more Read less
| ||
 Ø 31,6mm, 480mm long, 170mm adjustment range Read more Read less
|
| Article | Price | |
|---|---|---|
 full suspension, 29", alu raw matt / black matt, 12-speed SHIMANO "Deore", 46 cm / XL Read more Read less
|
The "Xyron ST 4.0" presents itself as a powerful full suspension E-MTB, which is equipped with a Bosch mid-motor and offers a battery capacity of a whopping 800 Wh. With a wheel size of 29" and a chain drive, the bike is the ideal companion for challenging terrain.The 12-speed "Deore" derailleur gears from Shimano enable precise and comfortable gear changes, while the hydraulic disc brake system ensures reliable braking power. The fork suspension travel of 150 mm and the frame suspension travel of 150 mm also guarantee a comfortable ride and optimum damping - no matter where you are riding.
