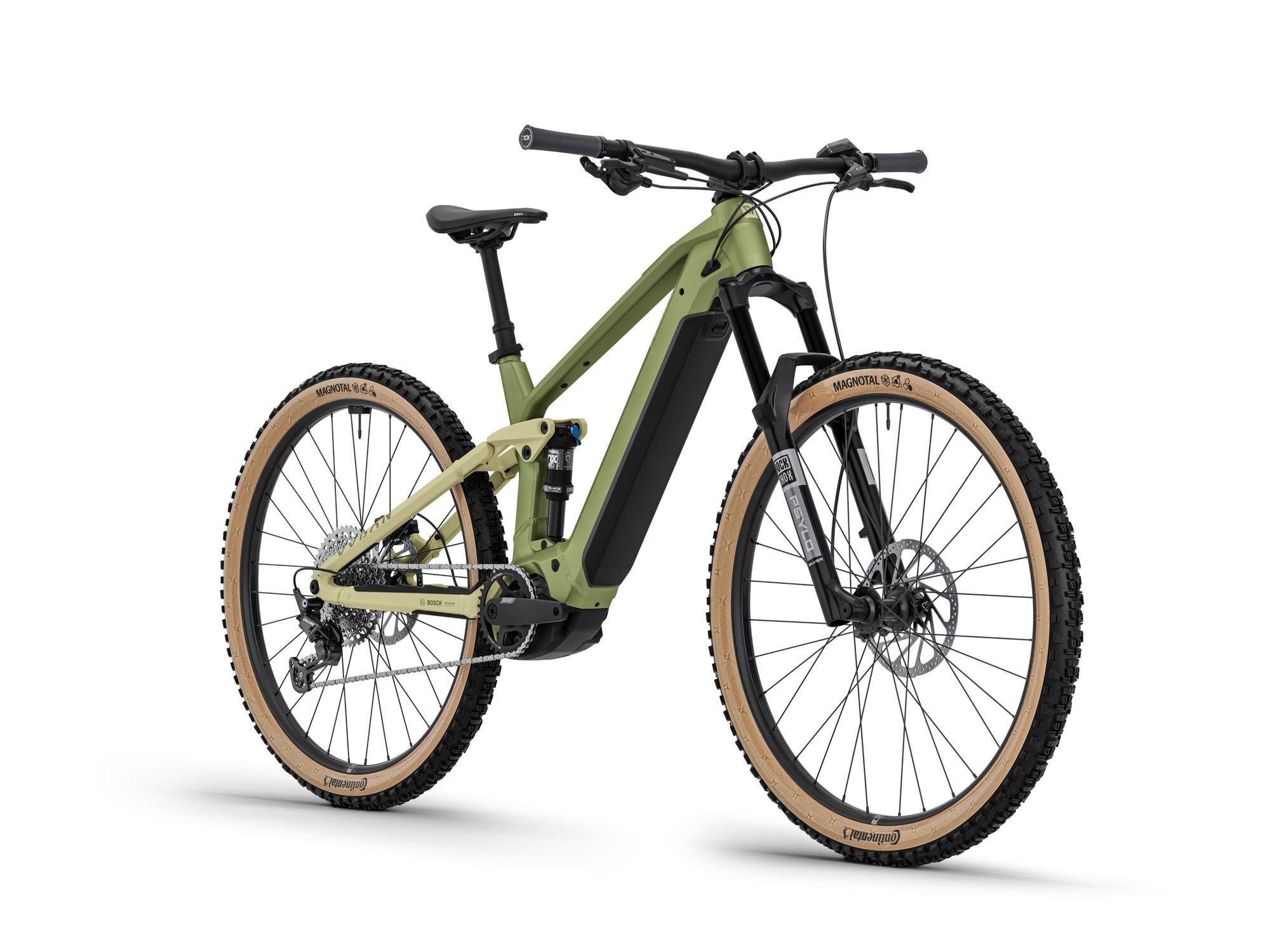

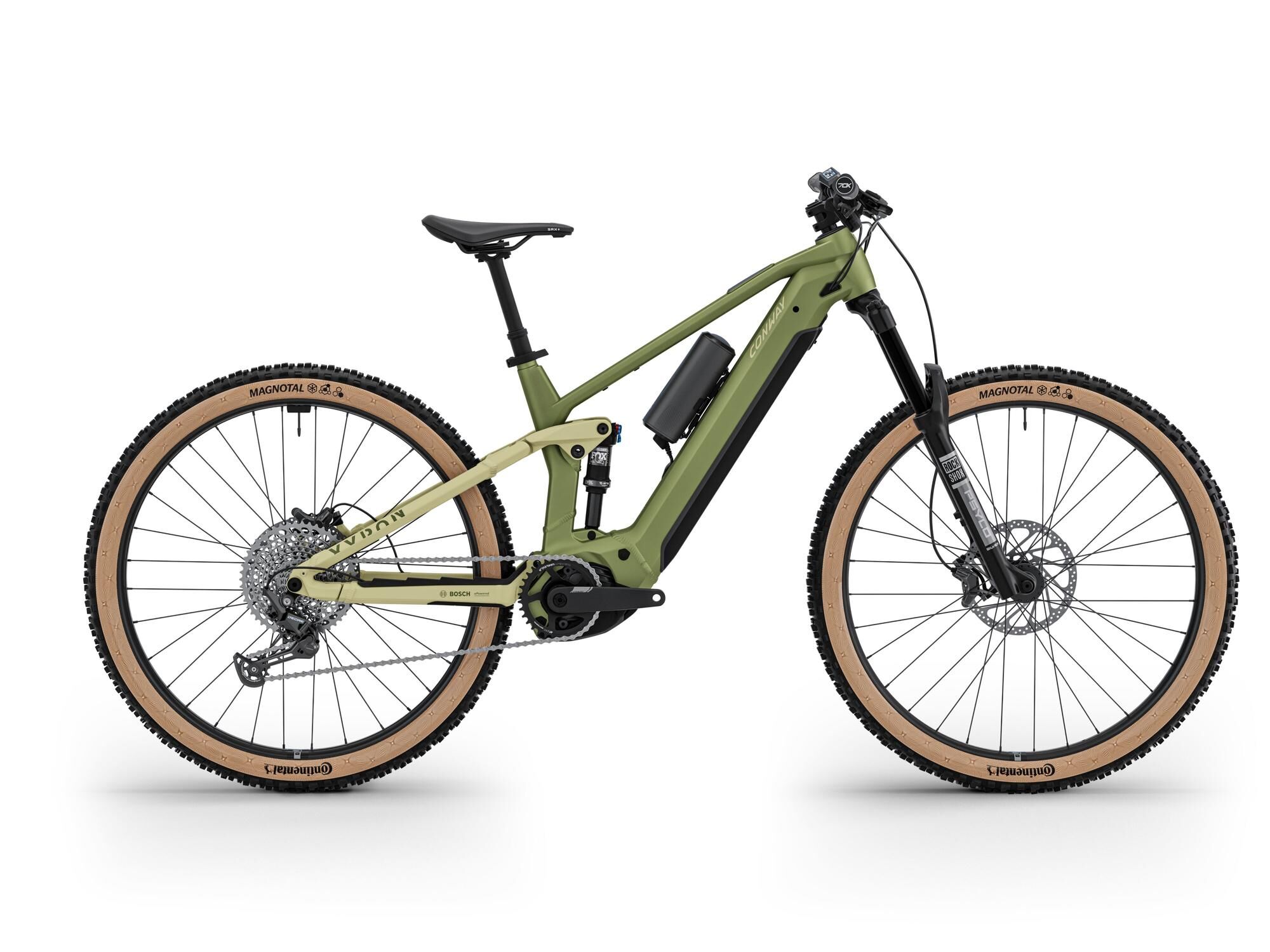

CONWAY Electric MTB full suspension "Xyron ST 4.0" (#2)
full suspension, 29", olive matt / dusty yellow matt, 12-speed SHIMANO "Deore", 44 cm / L
Read more Read less - Article number: 02810805
- Original number: BK26HA1530

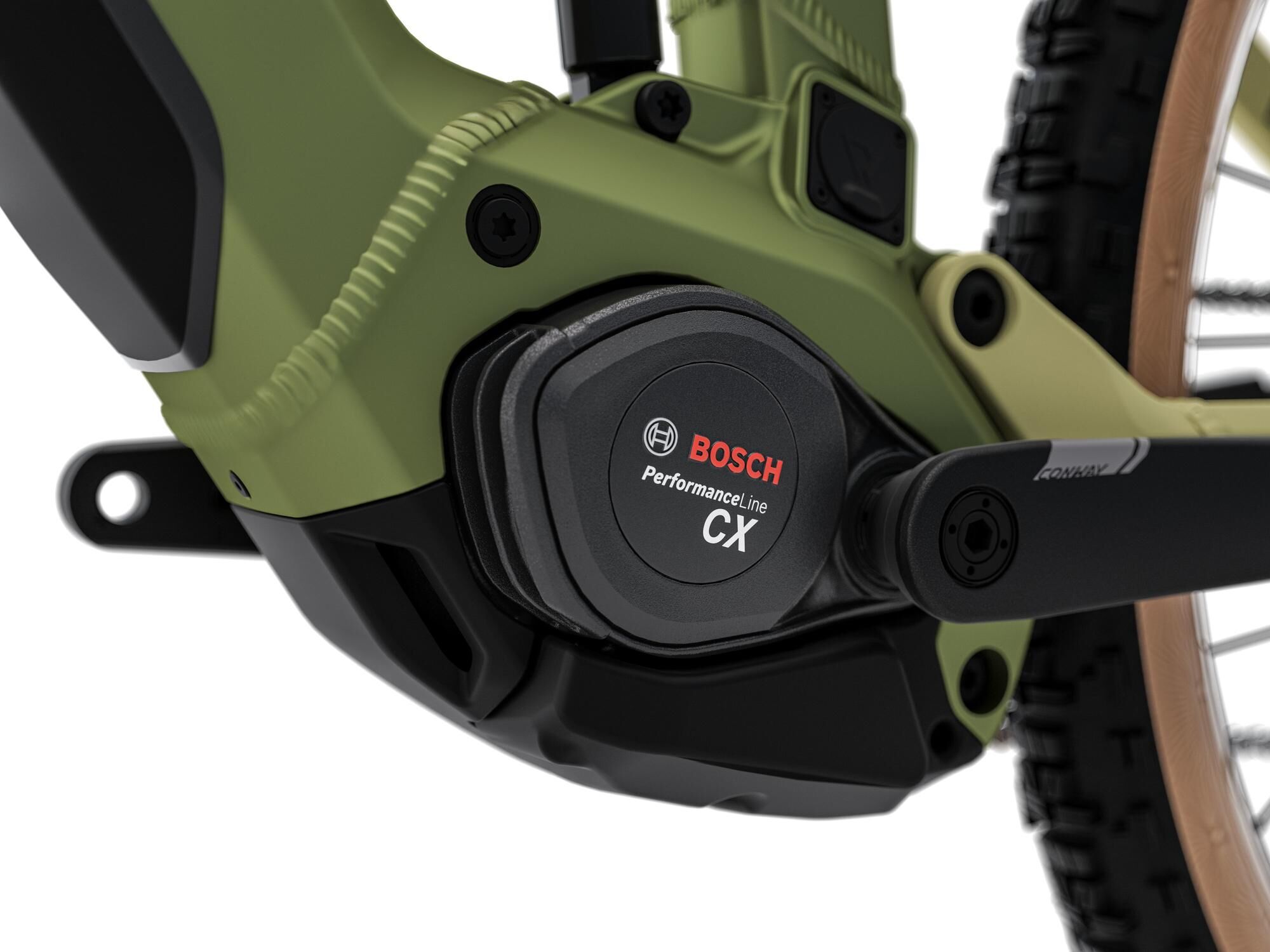

The electric MTB full suspension is equipped with a Bosch Performance Line CX mid-motor, which offers 250 W of power. The battery capacity is 800.0 Wh. A 12-speed SHIMANO "Deore" derailleur gear system is installed for gear selection. Drives are provided by a chain drive. The bike is equipped with a Suspension Fork and Damper, which offer a fork travel of 150 mm and a frame travel of 150 mm. The hydraulic disc brakes ensure reliable braking performance. The wheel size is 29" and the permissible system weight is 140 kg.
Product information
- Battery capacity 800.0 Wh
- Bosch Smart System yes
- Brake system hydraulic disc brake
- Chainstay 452 mm
- Colour designation olive matt / dusty yellow matt
- Drive chain
- Drive system BOSCH Performance Line CX
- Drive version middle motor
- E-bike yes
- Engine power 250 W
- Features electronic sliding aid
- Frame height 44 cm
- Frame shape full suspension
- Frame size L
- Frame travel 150 mm
- Gears 12-speed
- Gender gents
- Main colour green
- Material 1 aluminium
- Permissible system weight 140 kg
- Reach 485 mm
- Seat angle 77.6 °
- Seat tube 440 mm
- Secondary colour yellow
- Shifting name 12-Gang SHIMANO "Deore"
- Shifting type derailleur shifting
- Stack 637 mm
- Steering tube 130 mm
- Steering tube angle 64.5 °
- Stem length 40.0 mm
- Support up to 25km/h
- Toptube 615 mm
- Transmission 1x 12-speed
- Travel 150 mm
- Type full suspension
- Wheel distance 1269 mm
- Wheel size 29 "
- Battery: BOSCH "Powertube 800", Lithium-Ionen mit BMS, HOR w. SOP Pivot
- Bottom bracket: BOSCH
- Brake: TEKTRO "HD-M535", 4/4-Kolben
- Brake lever: TEKTRO "HD-M535"
- Chain / belt: SHIMANO "Deore"
- Chain ring / pulley: MIRANDA "Virage", 34 Z.
- Charger: Bosch 4 Ah, BES3
- Crank: MIRANDA "Virage", 160 mm

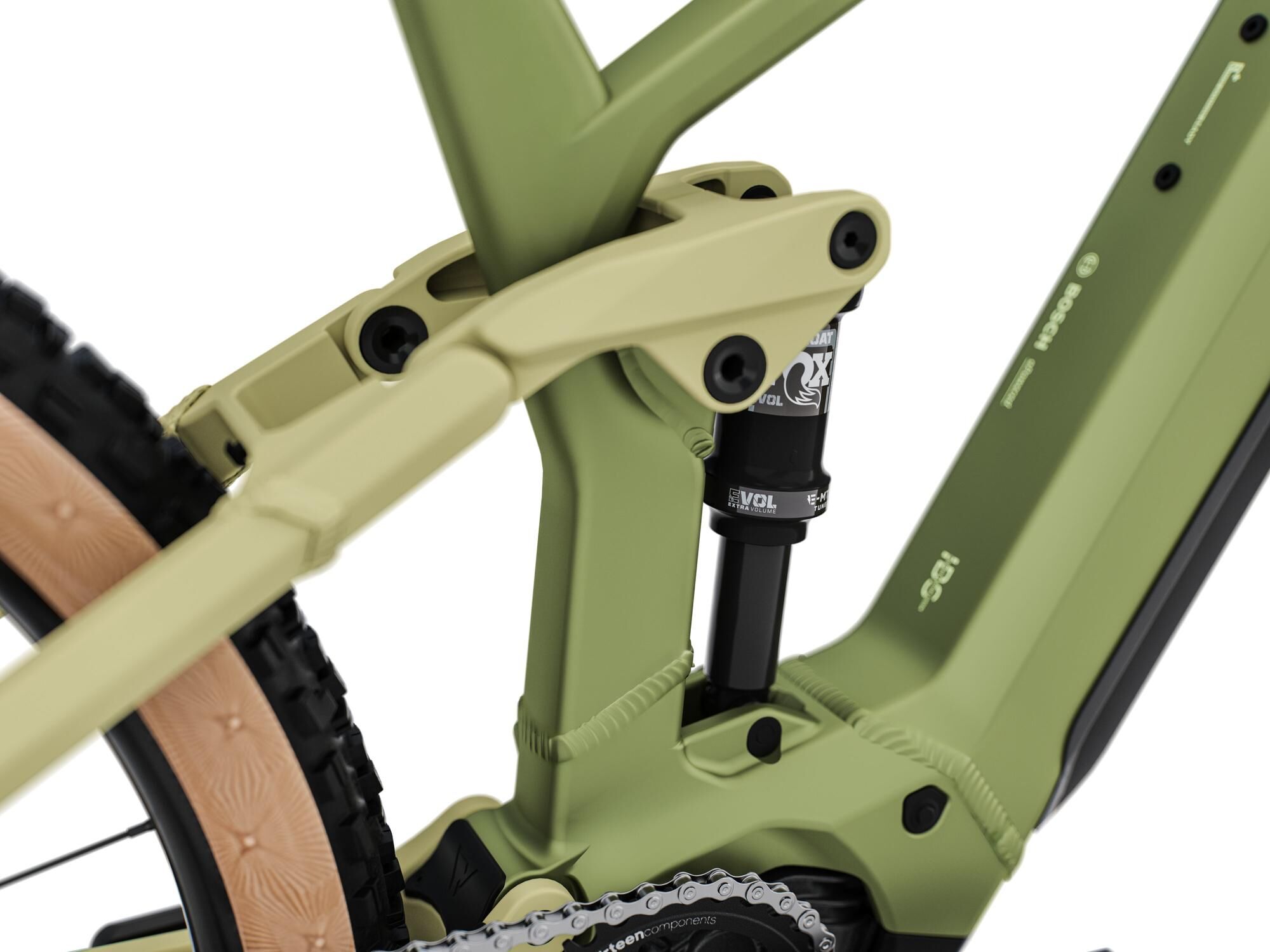

- Damper: FOX "Float Rhythm", 2 Pos.
- Derailleur hanger: 0347028/3

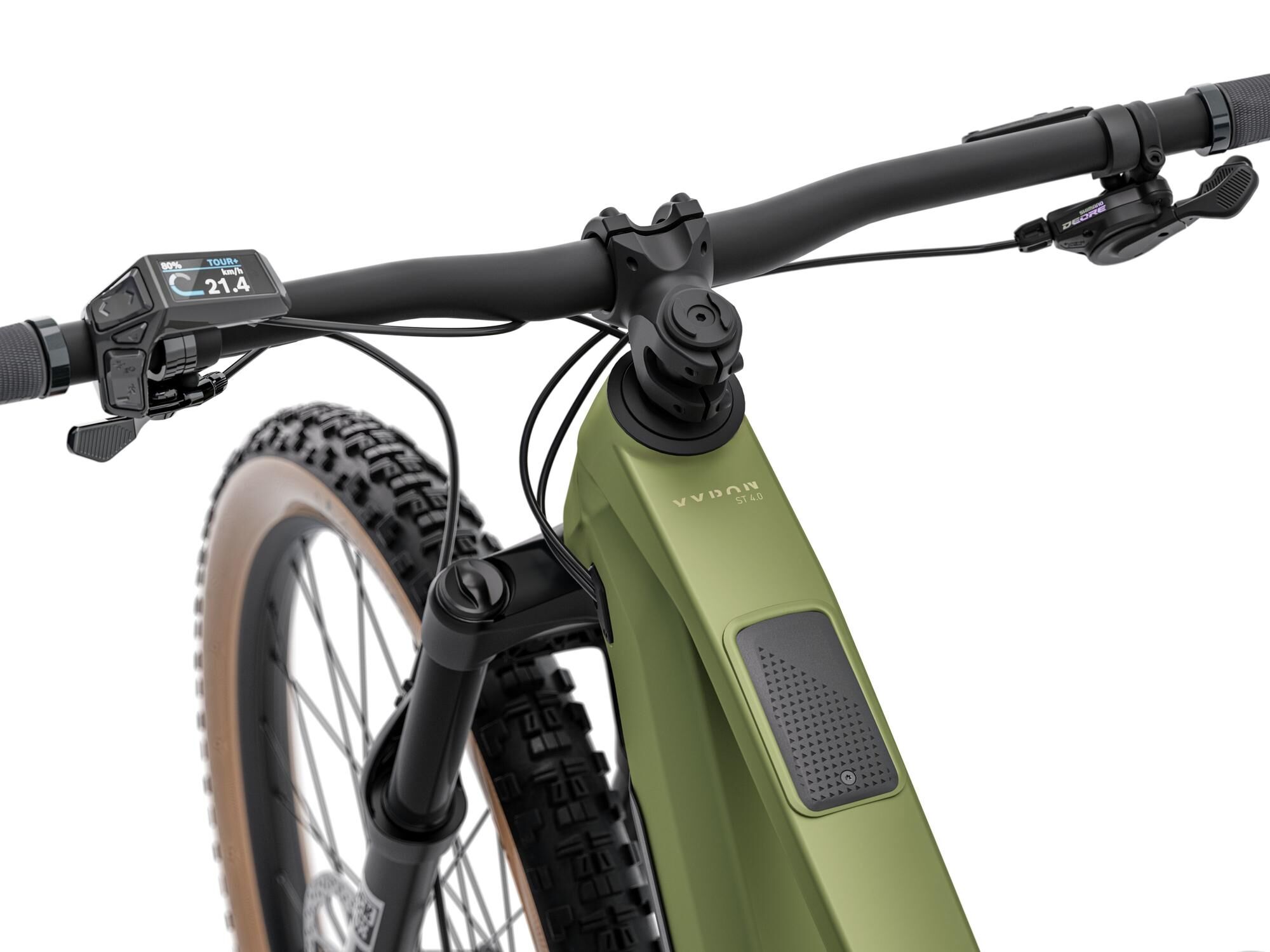

- Display: BOSCH "Purion 200"
- Engine: BOSCH Mittelmotor Gen.5 "Performance CX", 36 V, 250 W
- Fork: ROCK SHOX "Psylo Silver RC"
- Frame: CONWAY Fully Intube Bosch, Alu
- Front hub: SHIMANO "HB-TC500", 15 x 110 mm
- Front rotor: TEKTRO "TR203-45", 203 mm
- Front tire: CONTINENTAL "Magnotal Trail soft" 60-622, bronze, TLE
- Grips: SQLAB "70X"
- Handlebar: LEVEL 9 "Race e35.0", Rise 20mm, 780 mm
- Headset: ACROS "ZS56-ZS56", Blocklock
- Rear derailleur: SHIMANO "Deore", 12speed
- Rear hub: SHIMANO "FH-TC500", 12 x 148 mm, MS
- Rear rotor: TEKTRO "TR203-45", 203 mm
- Rear tire: CONTINENTAL "Magnotal Trail soft" 60-622, bronze, TLE
- Remote: BOSCH "Purion 200"
- Rims: RODI "READY 30", 30-622
- Saddle: SELLE ROYAL "SRX+", 145mm
- Seatpost: LIMOTEC "A1", 31,6 mm, 170 mm
- Sensor: Pedal pressure measuring im Motor + speed sensor
- Shifting lever: SHIMANO "Deore"
- Spokes: ALPINA
- Sprocket / pulley: SHIMANO "Deore", 10-51 Z.
- Stem: LEVEL 9, "Race e35.0", 40mm
- Supplier Article Number: BK26HA1530
- EAN: 4251971176317
- MSRP: €4,499.95
- Fedas-Code: 154050
- WEEE registration number: DE92509320
- DST-Code: 1E01
- SB-Article: No
- Bidex-Code: 121020
- Brand/Supplier CONWAY
- Unit of measure: PIECE
- Weight: 25.7 kg
| Article | Price | |
|---|---|---|
 full suspension, 29", black / black, 12-speed SHIMANO "Deore", 44 cm / L Read more Read less
|
The "Xyron ST 4.0 Alu" makes it possible! With its powerful Bosch mid-motor and huge 800 Wh Battery, you can literally fly over the trails. Even steep climbs are no longer a problem - thanks to 100 Nm of torque, the powerful Bosch engine pushes you up everywhere. With 150 mm front and rear suspension travel, the fully simply swallows up everything the trail throws at you. The large 29" wheels roll smoothly over roots and rocks, while the Shimano "Deore" 12-speed gear system always has the perfect gear for you.Your riding position is central and controlled - ideal for technical descents and steep climbs. The tool mount under the top tube and the hidden kickstand mount on the rear triangle? Practical without sacrificing style. The electronic Pushing Help helps you when things aren't rolling. And all of this on a stable aluminum frame with a permissible total weight of 140 kg.
