CONWAY Electric MTB full suspension "Xyron ST 5.0" (#2)
full suspension, 29", graphit grey matt, 12-speed SHIMANO "XT" Blender, 44 cm / L
Read more Read less - Article number: 02810814
- Original number: 01026913
Product information
- Battery capacity 800.0 Wh
- Bosch Smart System yes
- Brake system hydraulic disc brake
- Category full suspension
- Chainstay 452 mm
- Colour designation graphit grey matt
- Drive chain drive
- Drive version middle motor
- E-bike yes
- Engine power 250 W
- Features electronic sliding aid
- Frame height 44 cm
- Frame shape full suspension
- Frame size L
- Frame travel 150 mm
- Gears 12-speed
- Gender gents
- Main colour grey
- Material 1 aluminium
- Reach 485 mm
- Seat angle 77.6 °
- Seat tube 440 mm
- Secondary colour black
- Shifting name 12-Gang SHIMANO "XT" Mix
- Shifting type derailleur shifting
- Stack 637 mm
- Steering tube 130 mm
- Steering tube angle 64.5 °
- Stem length 40.0 mm
- Support up to 25km/h
- Toptube 615 mm
- Transmission 1x 12-speed
- Travel 150 mm
- Wheel distance 1269 mm
- Wheel size 29 "
- Battery: BOSCH "Powertube 800", Lithium-Ionen mit BMS, HOR w. SOP Pivot
- Bottom bracket: BOSCH
- Brake: TEKTRO "SLATE EVO HD-M807", 4/4-Kolben
- Brake lever: TEKTRO "SLATE EVO HD-M807"
- Chain / belt: SHIMANO "Deore"
- Chain ring / pulley: MIRANDA "Virage", 34 Z.
- Charger: Bosch 4 Ah, BES3
- Crank: MIRANDA "Virage", 160 mm

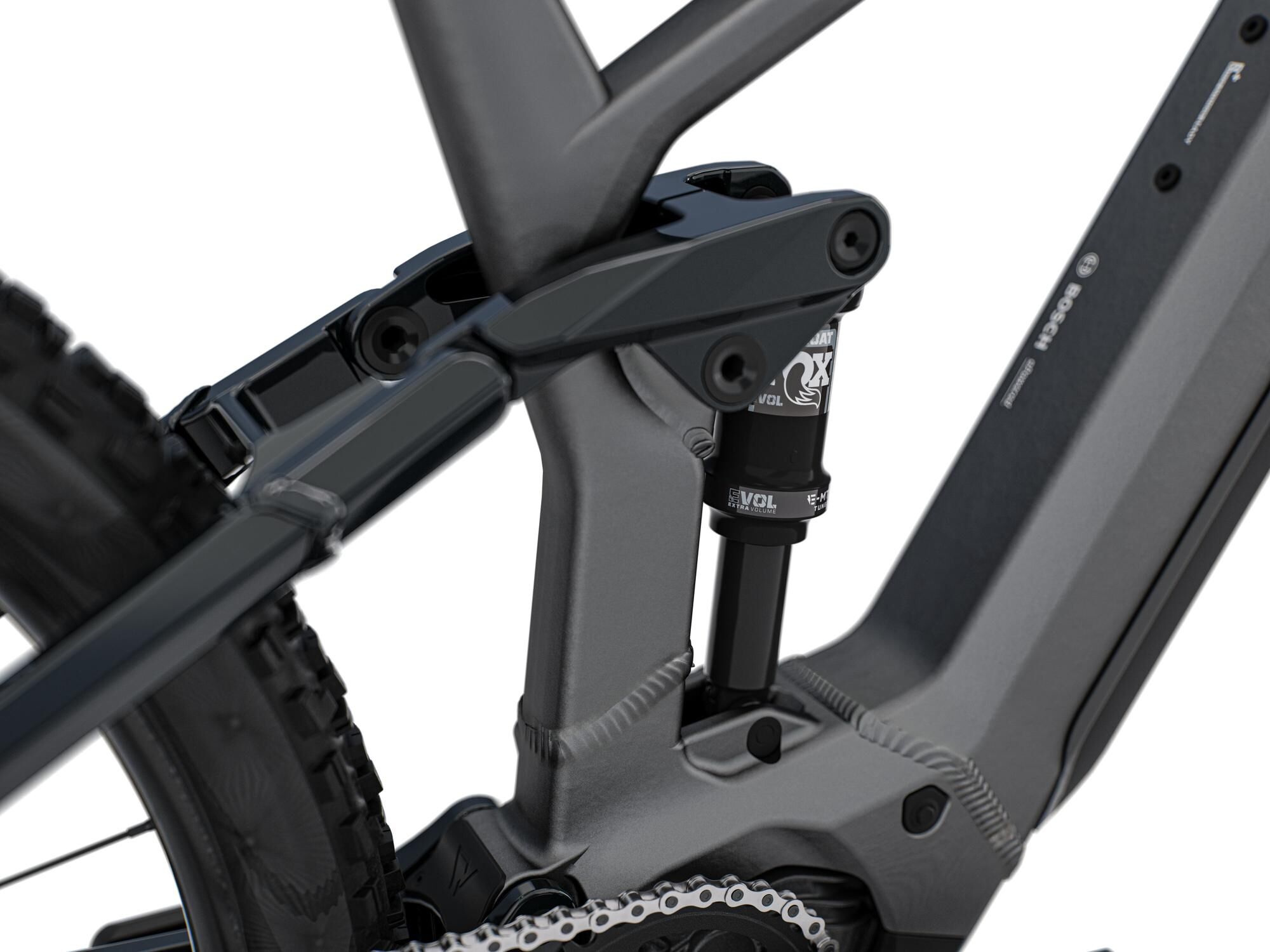

- Damper: FOX "Float Rhythm", 2 Pos.
- Derailleur hanger: 0347028/3
- Display: BOSCH "Kiox 400"
- Engine: BOSCH Mittelmotor Gen.5 "Performance CX", 36 V, 250 W
- Fork: FOX "36 Rhythm"
- Frame: CONWAY Fully Intube Bosch, Alu
- Front hub: NEWMEN "Basic", 15 x 110 mm
- Front rotor: TEKTRO "RS01E", 203 mm
- Front tire: CONTINENTAL "Magnotal Trail soft" 60-622, bronze, TLE
- Grips: SQLAB "70X"
- Handlebar: LEVEL 9 "Race e35.0", Rise 20mm, 780 mm
- Headset: ACROS "ZS56-ZS56", Blocklock
- Rear derailleur: SHIMANO "Deore XT", 12speed
- Rear hub: NEWMEN "Basic", 12 x 148 mm, MS
- Rear rotor: TEKTRO "RS01E", 203 mm
- Rear tire: CONTINENTAL "Magnotal Trail soft" 60-622, bronze, TLE
- Remote: BOSCH "Mini Remote"
- Rims: NEWMEN "Performance 30 Base", 30-622
- Saddle: SELLE ROYAL "SRX+", 145mm
- Seatpost: LIMOTEC "A1", 31,6 mm, 170 mm
- Sensor: Pedal pressure measuring im Motor + speed sensor
- Shifting lever: SHIMANO "Deore XT"
- Spokes: SAPIM
- Sprocket / pulley: SHIMANO "Deore", 10-51 Z.
- Stem: LEVEL 9, "Race e35.0", 40mm
- Supplier Article Number: 01026913
- EAN: 4251971176393
- MSRP: €4,999.95
- DST-Code: 1E01
- Bidex-Code: 121020
- Brand/Supplier CONWAY
- Unit of measure: PIECE
| Article | Price | |
|---|---|---|
 full suspension, 29", graphit grey matt / black matt, 12-speed SHIMANO "XT" Mix, 44 cm / L Read more Read less
|
With our "Xyron ST 5.0 Alu", every trail becomes a playground: 150 mm front and rear suspension travel, 29" wheels and a frame geometry that places you firmly and centrally on the bike thanks to the balance of reach, seat and steering angle - both uphill and downhill. The Bosch mid-motor with 800 Wh Battery provides powerful support up to 25 km/h, while the high-quality Shimano "XT" 12-speed gears ensure precise gear changes. Stable, hydraulic Disc Brakes bring you to a safe stop at all times.The beautifully designed aluminum frame with a permissible total weight of 140 kg offers you complete freedom on this MTB - even for longer tours. Practical: the tool mount under the top tube and the hidden kickstand mount on the rear triangle. With a 390 mm seat tube, 570 mm top tube and 452 mm Chain Stay, the bike is perfect for dynamic handling and control in any position.
Product variants
Using the search field, you can refine the selection of product variants.
| Article | Price | |
|---|---|---|
 full suspension, 29", graphit grey matt, 12-speed SHIMANO "XT" Blender, 46 cm / XL Read more Read less
| ||
 full suspension, 29", alu raw matt / deepblue matt, 12-speed SHIMANO "XT" Blender, 44 cm / L Read more Read less
| ||
 full suspension, 29", alu raw matt / deepblue matt, 12-speed SHIMANO "XT" Blender, 42 cm / M Read more Read less
| ||
 full suspension, 29", graphit grey matt, 12-speed SHIMANO "XT" Blender, 44 cm / L Read more Read less
| ||
 full suspension, 29", desert matt / black matt, 12-speed SHIMANO "XT" Blender, 44 cm / L Read more Read less
| ||
 full suspension, 29", alu raw matt / deepblue matt, 12-speed SHIMANO "XT" Blender, 46 cm / XL Read more Read less
| ||
 full suspension, 29", desert matt / black matt, 12-speed SHIMANO "XT" Blender, 42 cm / M Read more Read less
| ||
 full suspension, 29", desert matt / black matt, 12-speed SHIMANO "XT" Blender, 46 cm / XL Read more Read less
| ||
 full suspension, 29", graphit grey matt, 12-speed SHIMANO "XT" Blender, 39 cm / S Read more Read less
| ||
 full suspension, 29", graphit grey matt, 12-speed SHIMANO "XT" Blender, 42 cm / M Read more Read less
| ||
 full suspension, 29", alu raw matt / deepblue matt, 12-speed SHIMANO "XT" Blender, 39 cm / S Read more Read less
| ||
 full suspension, 29", desert matt / black matt, 12-speed SHIMANO "XT" Blender, 39 cm / S Read more Read less
|
