Out of Stock

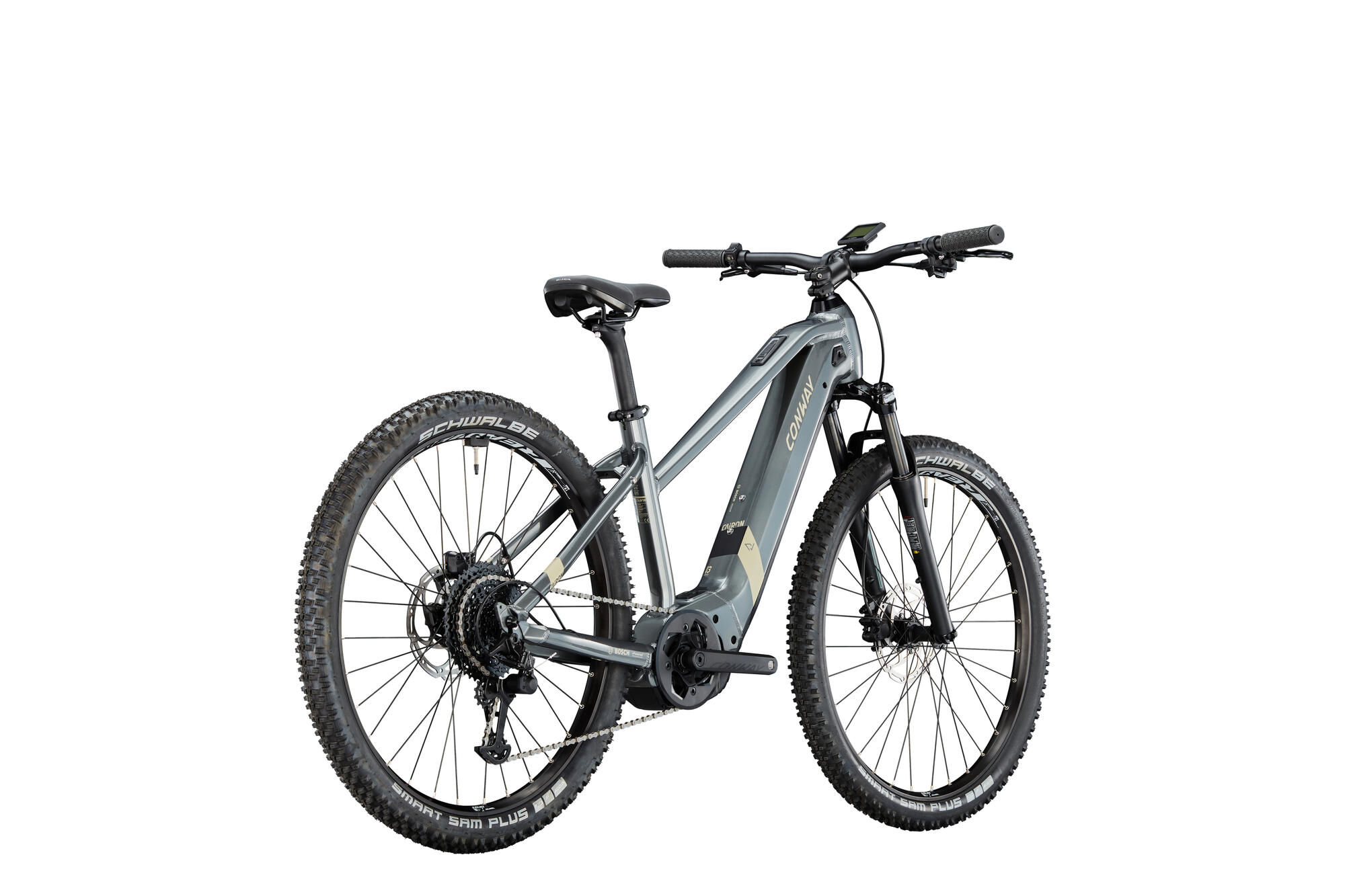

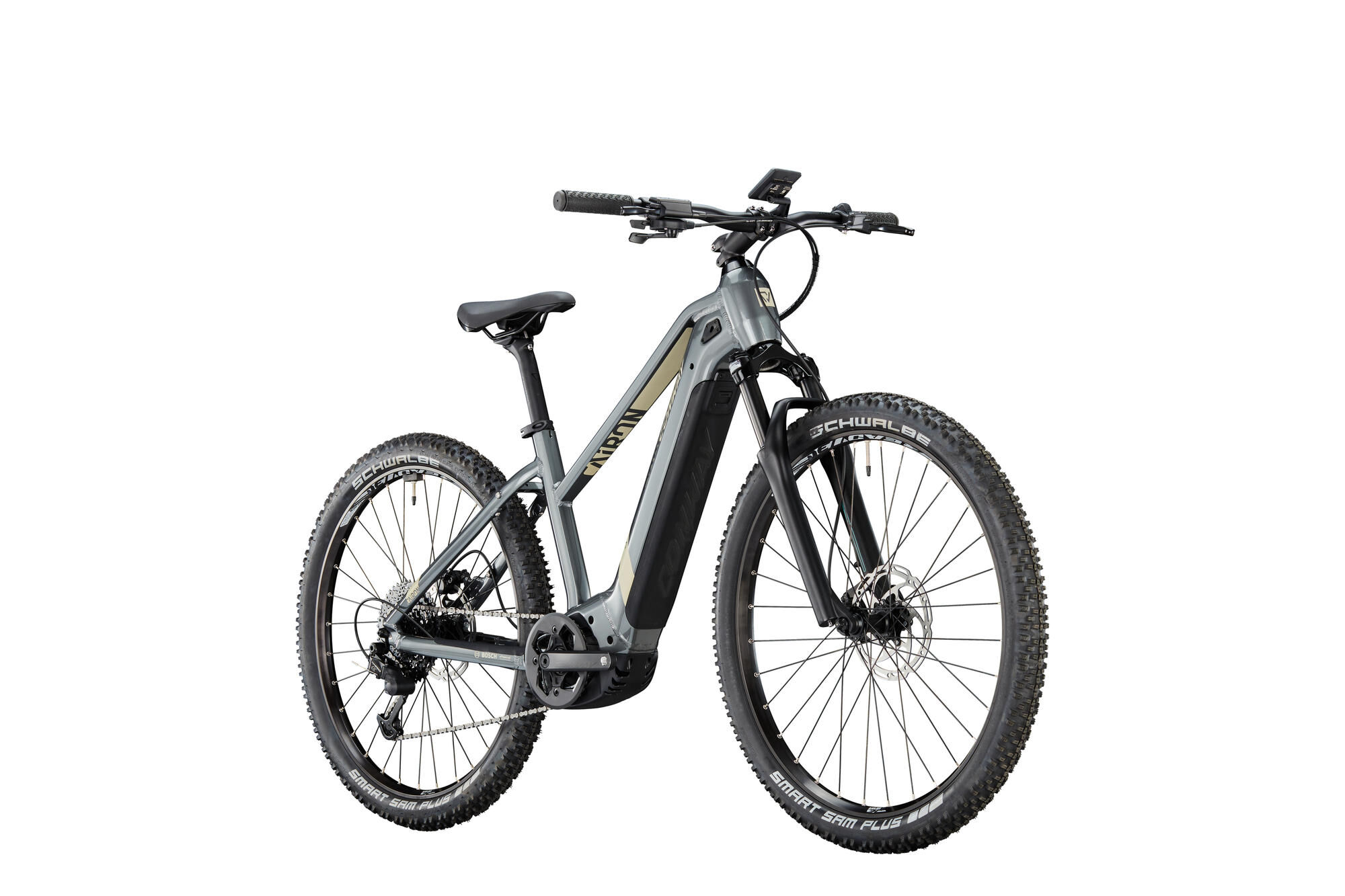

CONWAY Electric MTB hardtail "Cairon S 2.0 625" Mod. 24
trapeze, 27,5", shadowgrey metallic / desert matt, 9-speed TEKTRO "M350", 37 cm / XS
Read more Read less - Article number: 02825990
The electric MTB hardtail consists of an aluminum frame and is equipped with the BOSCH Performance Line CX mid-motor, which offers a motor output of 250 W. The Battery has a capacity of 625.0 Wh. A 9-speed derailleur system from TEKTRO "M350" is integrated for gear selection. The Suspension Fork has a fork travel of 120 mm. The braking system includes hydraulic disc brakes. The permissible system weight is 130 kg. The bike is also equipped with an electronic Pushing Help system.
PU 1
Product information
- Battery capacity 625.0 Wh
- Bosch Smart System yes
- Brake system hydraulic disc brake
- Chainstay 440 mm
- Colour designation shadowgrey metallic / desert matt
- Drive chain
- Drive system BOSCH Performance Line CX
- Drive version middle motor
- E-bike yes
- Engine power 250 W
- Features electronic sliding aid
- Frame height 37 cm
- Frame shape trapeze
- Frame size XS
- Gears 9-speed
- Gender ladies
- Main colour grey
- Material 1 aluminium
- Modellreihe Cairon
- Permissible system weight 130 kg
- Reach 379 mm
- Seat angle 74.0 °
- Seat tube 370 mm
- Secondary colour beige
- Shifting name 9-Gang TEKTRO "M350"
- Shifting type derailleur shifting
- Stack 619 mm
- Steering tube 130 mm
- Steering tube angle 67.0 °
- Stem length 75.0 mm
- Support up to 25km/h
- Toptube 555 mm
- Transmission 1x 9-speed
- Travel 120 mm
- Type hardtail
- Wheel distance 1113 mm
- Wheel size 27,5 "
- Battery: BOSCH "PowerTube 625", 625 Wh, BES3, horizontal
- Battery Lock: AXA "New Lock"
- Bremse H.R.: TEKTRO Disc Brake "HD-M280", hydraulic, 2 pistons, for 1.8 mm brake rotors
- Chain / belt: SHIMANO "CN-HG53"
- Chain ring / pulley: MIRANDA, 36 teeth
- Charger: BOSCH 4 A
- Crank: MIRANDA "Classic", 165 mm, for Bosch Gen. 4, ISIS, Q:12, black
- Derailleur hanger: CONWAY "V2" for Cairon QR

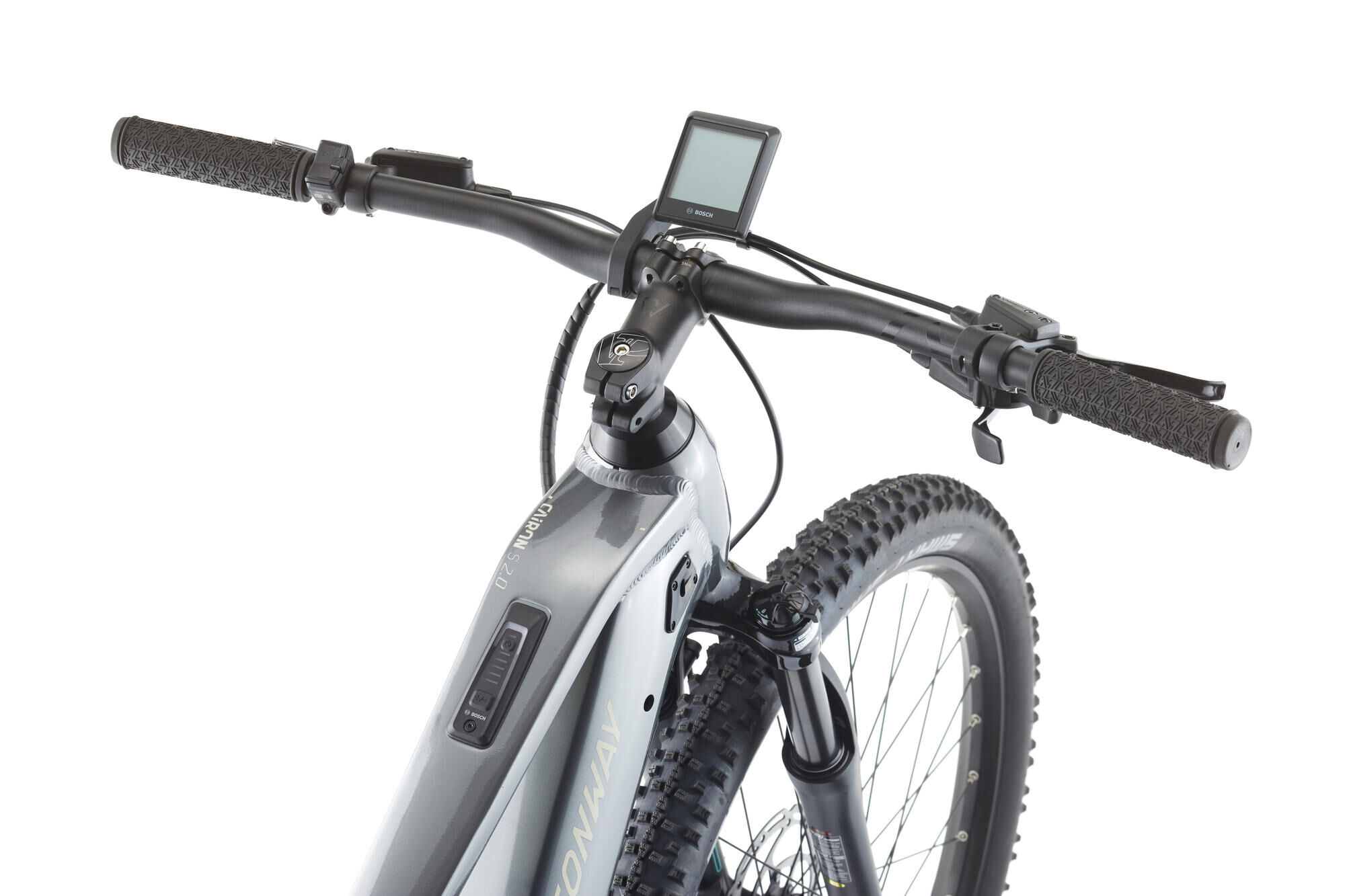

- Display: BOSCH "Intuvia 100", 4-stages, remote control, push aid

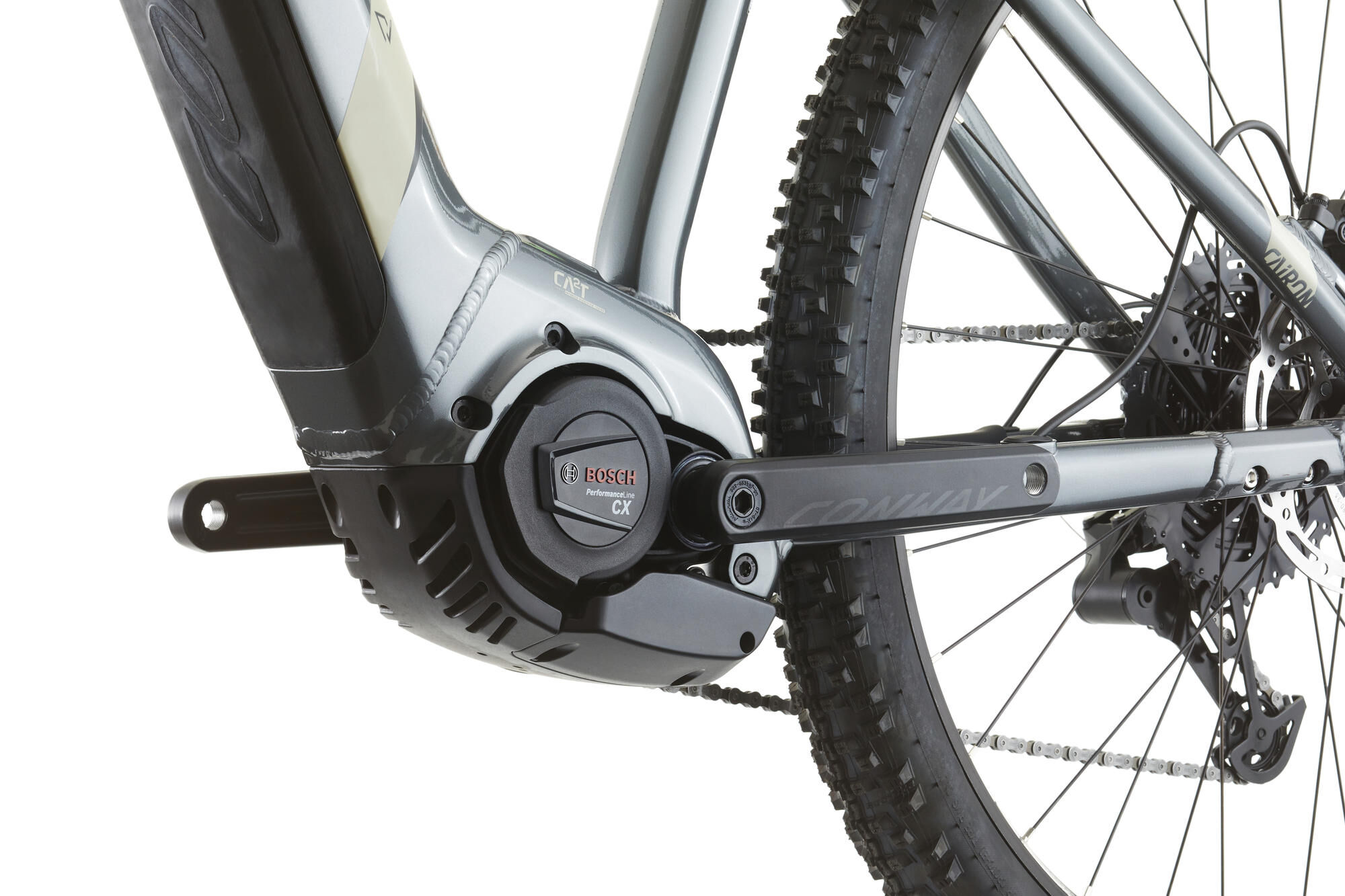

- Engine: BOSCH "Performance Line CX", max. 85 Nm
- Fork: RST "Blaze ML", 120 mm travel, QR
- Frame: Intube Bosch, Gen. 4, BES3, aluminum, trapezoid, 37cm
- Front hub: SHIMANO "Tourney TX HB-TX505", Center Lock, QR
- Front rotor: TEKTRO "TR180-35", Ø 180 mm, Center Lock
- Front tire: SCHWALBE "Tough Tom", 60-584
- Handlebar: LEVELNINE "Low Riser", 720 mm, Ø 31.8 mm, backsweep 9°, upsweep 5°
- Headset: GLORY WHEEL "SIT3 Strummer", ZS56/28.6 / ZS56/40
- Pedals: VP COMPONENTS "VPE-506"
- Rear derailleur: TEKTRO "RD-M350"
- Rear hub: SHIMANO "Tourney TX FH-TX505", Center Lock, QR
- Rear rotor: TEKTRO "TR180-35", Ø 180 mm, Center Lock
- Rear tire: SCHWALBE "Tough Tom", 60-584
- Remote: BOSCH "BRC3300", mini remote
- Rims: CROSS "X17", 32 hole, eyeleted
- Saddle: Selle Royal "Vivo", Athletic
- Seatpost: CONWAY, Ø 31.6 mm, 350 mm long, 15 mm offset
- Sensor: Pedal pressure measuring im Motor + speed sensor
- Spokes: Niro, schwarz
- Stem: CONWAY, 1 1/8", 31,8mm handlebar clamp, 75mm long, angle 7°, black
- EAN: 4251971118836
- MSRP: €3,299.95
- WEEE registration number: DE92509320
- Fedas-Code: 154020
- Bidex-Code: 121010
- DST-Code: 1E01
- SB-Article: No
- Brand/Supplier CONWAY
- Unit of measure: PIECE
- Weight: 24.3 kg
- instruction manual DE
- instruction manual DK
- instruction manual EN
- instruction manual ES
- instruction manual FR
- instruction manual IT
- instruction manual NL
- instruction manual DE
- instruction manual DK
- instruction manual EN
- instruction manual FR
- instruction manual NL
- instruction manual
- DE
- DK
- EN
- ES
- FR
- IT
- NL
- exploded view Kunststoff und Gummi
- exploded view Metall
| Article | Price | |
|---|---|---|
 | PU 50 | |
 for Cairon BES3 (Z11 / Z12), Xyron BES3 aluminium and carbon (Z11), Cairon SUV FS BES3 (Z14) and Nyvon (Z17) Read more Read less
| PU 1 | |
 suitable for Cairon trapeze and gents with rear QR, Smart system, BES3 (Z12) Read more Read less
| PU 1 | |
 Extensions for 500 Wh Battery to 625 Wh Battery Bracket and 625 Wh Battery to 750 Wh Battery Bracket Read more Read less
| PU 1 | |
 | PU 1 | |
 | PU 50 | |
 suitable for Cairon trapeze and gents (Z11, Z12, Z14) and Xyron (Z11), Smart system, Gen.4 (Performance Line CX), BES3 Read more Read less
| PU 1 | |
PU 1 | ||
grey 20/21, MS, GRV, Cairon T, Xyron Read more Read less
| PU 36 | |
 | PU 1 | |
 suitable for Cairon with rear QR axle (Z12) and Cairon SUV FS (Z14), Smart system, BES3 Read more Read less
| PU 1 | |
 | PU 1 | |
 suitable for Cairon (Z11 and Z12), Cairon SUV FS (Z14) and Xyron (Z11), Gen.4 (Performance CX), smart system (BES3) Read more Read less
| PU 1 | |
 | PU 1 | |
 | PU 1 | |
138 links, self-service package Read more Read less
| PU 50 | |
 | PU 1 | |
 | PU 50 | |
 | PU 1 | |
 | PU 1 | |
 suitable for Cairon and Xyron aluminium BES3 models Read more Read less
| PU 1 | |
 32 hole, QR 173 mm, 135 mm installation width, black Read more Read less
| PU 40 | |
 suitable for Cairon Wave / Trapeze / Men (Z11 and Z12), Xyron Aluminum and Xyron Carbon / Aluminum, smart system, BES3 (Z11) and Xyron LT / ST (Z20) Read more Read less
| PU 1 | |
 suitable for all Bosch chargers Read more Read less
| PU 1 | |
 suitable for Cairon with rear QR (Z12) and Cairon SUV FS (Z14), Smart system, BES3 Read more Read less
| PU 1 | |
 | PU 10 | |
 | PU 20 | |
suitable for Cairon trapeze, gents and wave, Smart System, BES3 (Z11 / Z12) Read more Read less
| PU 1 | |
 Out of Stock Ø 180 mm, old packaging Read more Read less
| PU 20 | |
 | PU 10 | |
 | PU 1 | |
 | PU 25 |
Off-road - balanced and sporty with the "Cairon S 2.0 625". The e-hardtail has a very clean look, as the Battery is fully integrated into the Frame. With 625 Wh, it supplies the Bosch "Performance CX" mid-motor with energy for extensive tours in the great outdoors. The Tektro derailleur takes care of the finer details of the drives.A new feature is the smart system from Bosch, which ensures complete digitalization of your bike. The drive system is compatible with the E-Bike Flow app, which provides you with all the information about your tour, battery status and maintenance intervals.The Tektro hydraulic Disc Brakes are there for precise braking. The e-hardtail is suitable for trails and touring with the RST Suspension Fork, which provides plenty of compensation with its 120 mm. With the large 29er wheels, the "Cairon S 2.0 625" has already laid the foundation for bumpy trails. In combination with the chunky tread of the Schwalbe "Tough Tom" tires, the bike is perfectly designed for dirt roads and easy trails.
Product variants
Using the search field, you can refine the selection of product variants.
| Article | Price | |
|---|---|---|
 Out of Stock diamond, 27,5", black metallic / turquoise metallic, 9-speed TEKTRO "M350", 41 cm / S Read more Read less
| PU 1 | |
 Out of Stock diamond, 27,5", shadowgrey metallic / desert matt, 9-speed TEKTRO "M350", 41 cm / S Read more Read less
| PU 1 | |
Out of Stock diamond, 29", black metallic / turquoise metallic, 9-speed TEKTRO "M350", 45 cm / M Read more Read less
| PU 1 | |
Out of Stock diamond, 29", black metallic / turquoise metallic, 9-speed TEKTRO "M350", 49 cm / L Read more Read less
| PU 1 | |
Out of Stock diamond, 29", black metallic / turquoise metallic, 9-speed TEKTRO "M350", 53 cm / XL Read more Read less
| PU 1 | |
Out of Stock diamond, 29", black metallic / turquoise metallic, 9-speed TEKTRO "M350", 57 cm / XXL Read more Read less
| PU 1 | |
Out of Stock diamond, 29", shadowgrey metallic / desert matt, 9-speed TEKTRO "M350", 45 cm / M Read more Read less
| PU 1 | |
diamond, 29", shadowgrey metallic / desert matt, 9-speed TEKTRO "M350", 49 cm / L Read more Read less
| PU 1 | |
Out of Stock diamond, 29", shadowgrey metallic / desert matt, 9-speed TEKTRO "M350", 53 cm / XL Read more Read less
| PU 1 | |
Out of Stock diamond, 29", shadowgrey metallic / desert matt, 9-speed TEKTRO "M350", 57 cm / XXL Read more Read less
| PU 1 | |
 Out of Stock trapeze, 27,5", shadowgrey metallic / desert matt, 9-speed TEKTRO "M350", 37 cm / XS Read more Read less
| PU 1 | |
Out of Stock trapeze, 27,5", shadowgrey metallic / desert matt, 9-speed TEKTRO "M350", 41 cm / S Read more Read less
| PU 1 | |
 Out of Stock trapeze, 27,5", topaz metallic / red metallic, 9-speed TEKTRO "M350", 37 cm / XS Read more Read less
| PU 1 | |
Out of Stock trapeze, 27,5", topaz metallic / red metallic, 9-speed TEKTRO "M350", 41 cm / S Read more Read less
| PU 1 | |
Out of Stock trapeze, 29", shadowgrey metallic / desert matt, 9-speed TEKTRO "M350", 45 cm / M Read more Read less
| PU 1 | |
trapeze, 29", shadowgrey metallic / desert matt, 9-speed TEKTRO "M350", 49 cm / L Read more Read less
| PU 1 | |
trapeze, 29", shadowgrey metallic / desert matt, 9-speed TEKTRO "M350", 53 cm / XL Read more Read less
| PU 1 | |
Out of Stock trapeze, 29", topaz metallic / red metallic, 9-speed TEKTRO "M350", 45 cm / M Read more Read less
| PU 1 | |
trapeze, 29", topaz metallic / red metallic, 9-speed TEKTRO "M350", 49 cm / L Read more Read less
| PU 1 | |
trapeze, 29", topaz metallic / red metallic, 9-speed TEKTRO "M350", 53 cm / XL Read more Read less
| PU 1 |
