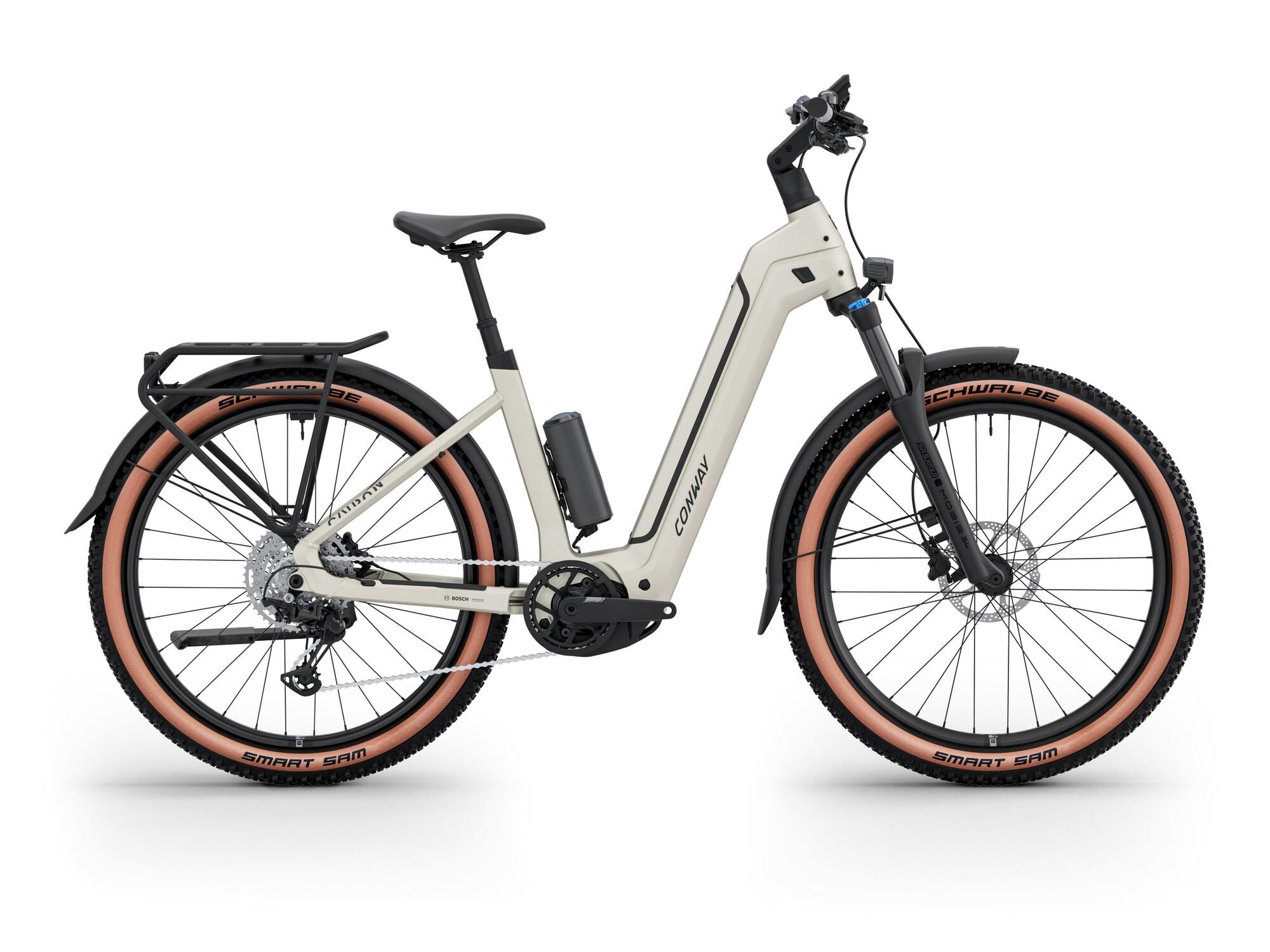

CONWAY Electric SUV "Cairon SUV 4.0" (#2)
wave, 27", offwhite matt, 12-speed SHIMANO "XT", 53 cm / XL
Read more Read less - Article number: 02810682
- Original number: BK26HA0240
- 250 W mid-drive motor and 800.0 Wh battery capacity.
- 12-speed SHIMANO "XT" derailleur and chain drive.
- Hydraulic Disc Brakes.
- 120 mm front fork travel.
- 28" wheels.
- Suspension Fork, Fenders, Electronic Pushing Help.
- Aluminum frame.
- Maximum system weight: 140 kg.
PU 1
Product information
- Battery capacity 800.0 Wh
- Bosch Smart System yes
- Brake system hydraulic disc brake
- Child Seat Approval yes
- Colour designation offwhite matt
- Drive chain
- Drive system BOSCH Performance Line CX
- Drive version middle motor
- E-bike yes
- Engine power 250 W
- Features electronic sliding aid , fender , suspension fork
- Frame height 53 cm
- Frame shape wave
- Frame size XL
- Gears 12-speed
- Gender ladies
- Main colour white
- Material 1 aluminium
- Model range Cairon
- Permissible system weight 140 kg
- Shifting name 12-Gang SHIMANO "XT"
- Shifting type derailleur shifting
- Support up to 25km/h
- Trailer Approval yes
- Transmission 1x 12-speed
- Travel 120 mm
- Type SUV
- Wheel size 27 "
- Chainstay 466 mm
- Reach 447 mm
- Seat angle 74.5 °
- Seat tube 530 mm
- Stack 695 mm
- Steering tube 180 mm
- Steering tube angle 68.0 °
- Stem length 110.0 mm
- Toptube 640 mm
- Wheel distance 1213 mm
- Battery BOSCH "Powertube 800", Lithium-Ionen mit BMS, HOR w. SOP Pivot
- Bottom bracket BOSCH
- Brake TEKTRO "HD-M535", 4/4-Kolben
- Brake lever TEKTRO "HD-M535"
- Chain / belt SHIMANO "CN-M6100"
- Chain ring / pulley MIRANDA "36T w Guard"
- Charger Bosch 4 A, BES3
- Crank MIRANDA "Virage", Q12, 165mm
- Derailleur hanger 0347028/3

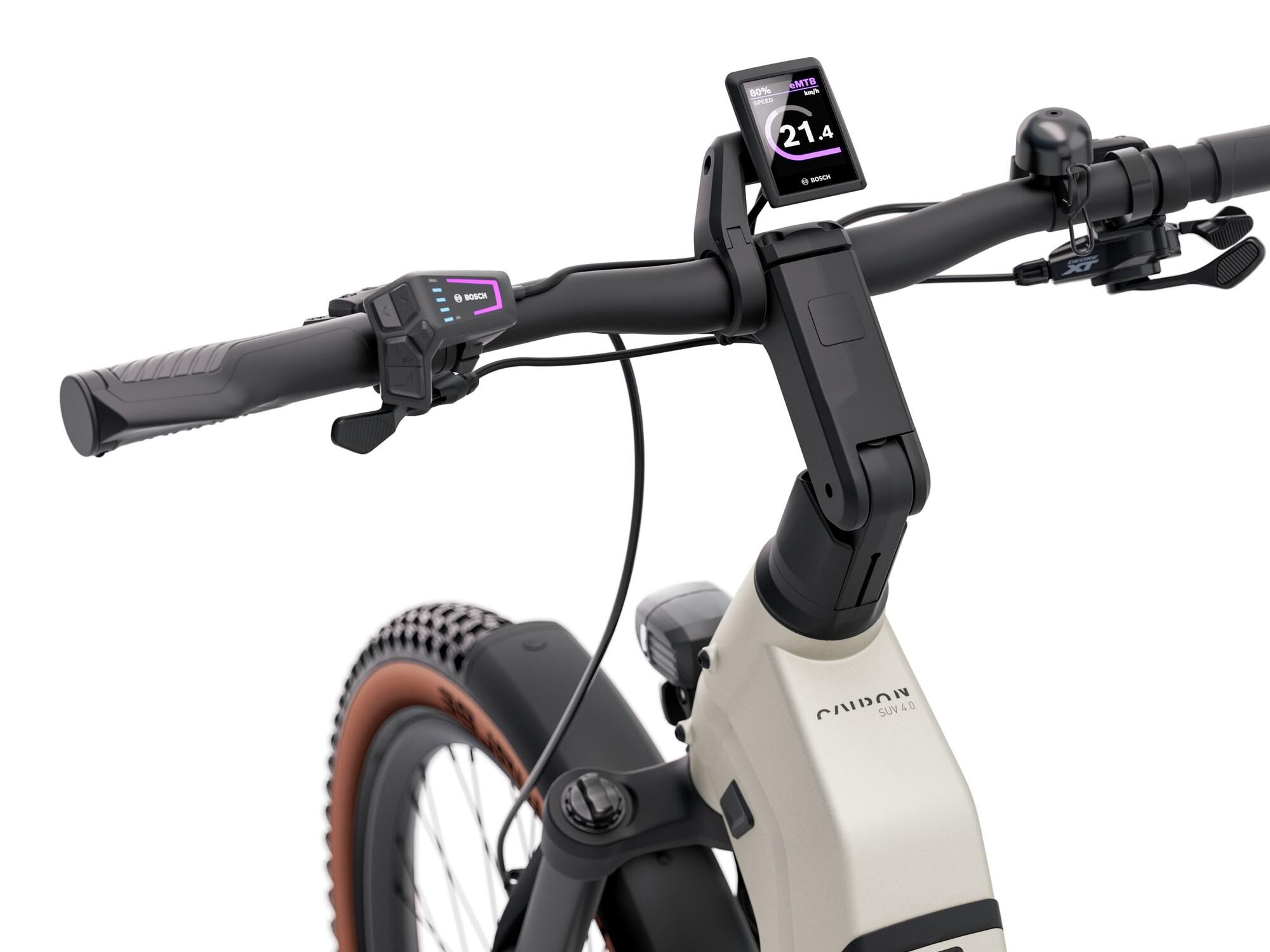

- Display BOSCH "Kiox 300"

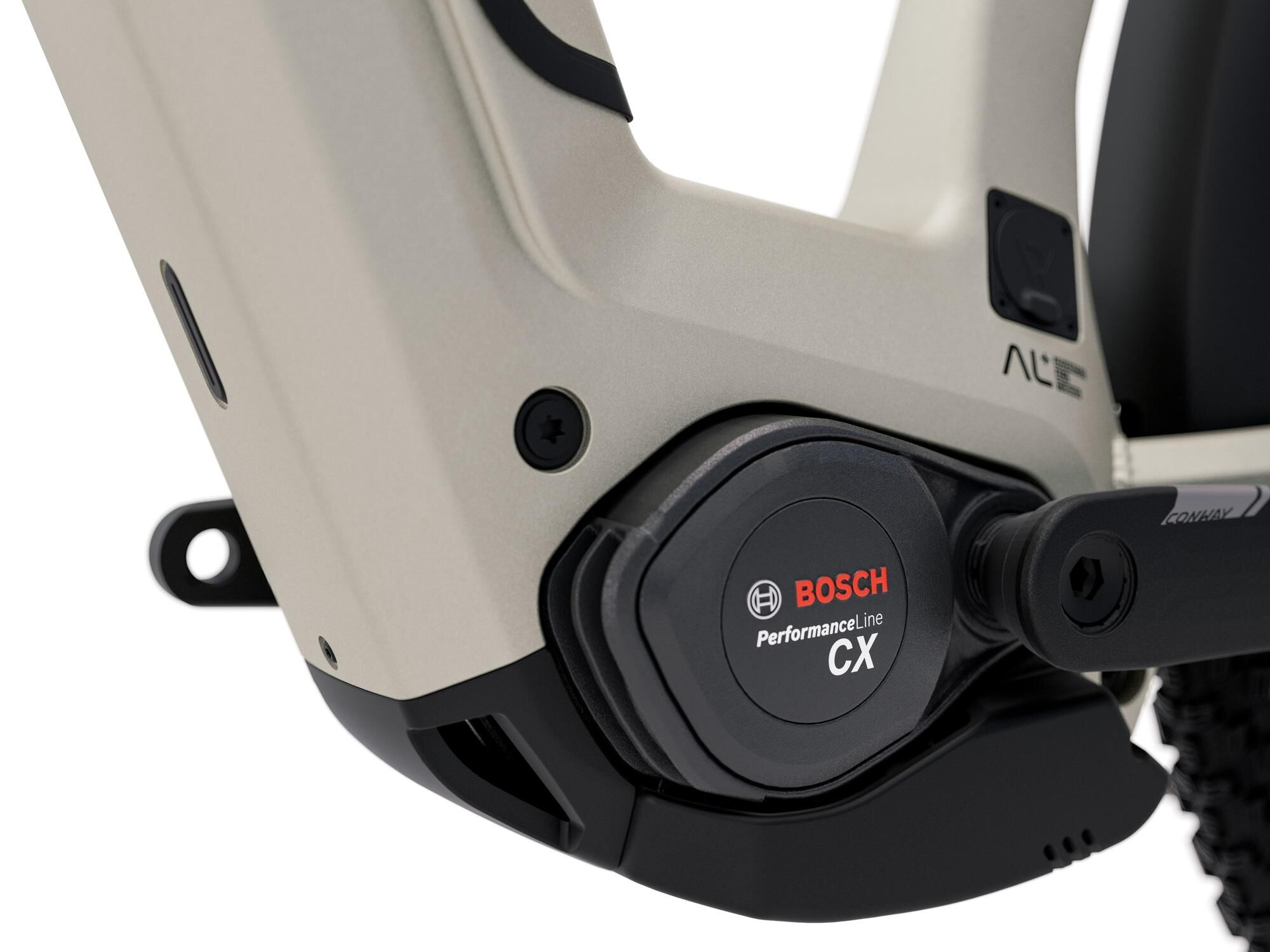

- Engine BOSCH Mittelmotor Gen.5 "Performance CX", 36 V, 250 W
- Fender CURANA "Apollo 75"
- Fork SUNTOUR "Mobie34 Air NLO", Boost, 120 mm
- Frame CONWAY Intube Bosch, Alu
- Front hub SHIMANO "HB-TC500", 15 x 110 mm
- Front light HERRMANS "MR9"
- Front rotor TEKTRO "TR203-45, 203 mm
- Front tire SCHWALBE "Smart Sam", 60-584
- Grips CONTEC "Tour Wing"
- Handlebar SATORI
- Headset ACROS "ICR ZS56-ZS56", Blocklock
- Pedals VP "VPE-527"
- Rear carrier MASSLOAD "MIK HD", inkl. Federklappe
- Rear derailleur SHIMANO "XT RD-M8100", 12-speed
- Rear hub SHIMANO "FH-TC500", 12 x 148mm
- Rear light AXA "Juno E-Bike", Brake Light
- Rear rotor TEKTRO "TR180-45 2,3", 180 mm
- Rear tire SCHWALBE "Smart Sam", 60-584
- Remote BOSCH "LED Remote"
- Rims CONWAY "TRYP 30"
- Saddle SELLE ROYAL "Vivo Moderat Ergo"
- Seatpost LIMOTEC "D1", 31,6 mm, 100 mm
- Sensor Pedal pressure measuring im Motor + speed sensor
- Shifting lever SHIMANO "XT SL-M8100"
- Spokes Niro
- Sprocket / pulley SHIMANO "CS-M6100-12", 10-51 Z.
- Stands URSUS "MOOI Plus", 40 mm
- Stem SATORI "Python ICR adjustable", 110mm
- System Interface BOSCH
- Supplier Article Number: BK26HA0240
- EAN 4251971175204
- MSRP: €4,499.95
- WEEE registration number DE92509320
- DST-Code 1B01
- SB-Article No
- Bidex-Code 122010
- Fedas-Code 155021
- Brand/Supplier CONWAY
- Unit of measure: PIECE
- Weight 28.6 kg
- product data sheet CONWAY Electric SUV Cairon SUV 4.0 DA
- product data sheet CONWAY Electric SUV Cairon SUV 4.0 DE
- product data sheet CONWAY Electric SUV Cairon SUV 4.0 EN
- product data sheet CONWAY Electric SUV Cairon SUV 4.0 ES
- product data sheet CONWAY Electric SUV Cairon SUV 4.0 FR
- product data sheet CONWAY Electric SUV Cairon SUV 4.0 IT
- product data sheet CONWAY Electric SUV Cairon SUV 4.0 NL
- exploded view metal
- exploded view plastic
| Article | Price | |
|---|---|---|
 suitable for all Bosch chargers Read more Read less
| PU 1 | |
 | PU 50 | |
 | PU 1 | |
 | PU 7 | |
 | PU 25 | |
 for 1 x 12-speed, max. 51 teeth, SGS Read more Read less
| PU 25 | |
 10-12-14-16-18-21-24-28-33-39-45-51Teeth Read more Read less
| PU 10 | |
 | PU 50 | |
 black, fits Conway eWME from 2021 and Victoria eParcour, among others Read more Read less
| PU 100 | |
 | PU 10 | |
 | PU 10 | |
 for Cairon BES3 (Z11 / Z12), Xyron BES3 aluminium and carbon (Z11), Cairon SUV FS BES3 (Z14) and Nyvon (Z17) Read more Read less
| PU 1 | |
 suitable for Cairon Wave / Trapeze / Men (Z11 and Z12), Xyron Aluminum and Xyron Carbon / Aluminum, smart system, BES3 (Z11) and Xyron LT / ST (Z20) Read more Read less
| PU 1 | |
 | PU 1 | |
 | PU 1 | |
 | PU 1 | |
 | PU 1 | |
 Out of Stock UDH, suitable for eWME (Z10), Nyvon (Z17), Ryvon (Z18) and Xyron ST / LT (Z20)(equivalent substitute: 0.347.028/3) Read more Read less
| PU 1 | |
 suitable for eWME (Z10), 180 mm / M12 x P1.0 x 14.5 mm Read more Read less
| PU 1 | |
 suitable for eWME (Z10), Ryvon (Z18), matching thru axle 0.281.502/5 and Nyvon (Z17), matching thru axle 0.747.383/0 Read more Read less
| PU 1 | |
 | PU 1 | |
 | PU 25 | |
 32 hole, 110 mm, 15 mm Thru Axle Read more Read less
| PU 25 | |
 distance between screws: 40mm Read more Read less
| PU 20 | |
 suitable for Ryvon (Z18) and all Xyron LT / ST (Z20) Read more Read less
| PU 1 | |
 | PU 1 | |
 | PU 18 | |
 165 mm, GEN4, (special item loose) Read more Read less
| PU 1 | |
 | PU 1 | |
| PU 1 | |
 | PU 20 | |
 | PU 20 | |
 Suitable for the smart system (BES3)Note: only for battery sizes PT600 and PT800 Read more Read less
| PU 1 | |
Base, compatible with Cairon FS (CB22) Read more Read less
| PU 3000 | |
27.5", MIK HD, suitable for Cairon Wave with Bosch 2-bolt engine, max. load 27 kg Read more Read less
| PU 1 | |
Black, Screws included, compatible with Cairon C FS + SUV FS (CB22) / Cairon C WAVE + SUV WAVE (CB23) with Bosch 2-bolt engine Read more Read less
| PU 1 | |
Plastic, fits all Cairon models with a Bosch 2-bolt engine (CB23) Read more Read less
| PU 1 | |
Covers with openingssuitable for all Cairon with Bosch 2-bolt engine (CB23) Read more Read less
| PU 1 | |
Covers without openingssuitable for all Cairon with Bosch 2-bolt engine (CB23) with integrated cable guides (ICR) Read more Read less
| PU 1 | |
Set, compatible with Cairon C FS + SUV FS (CB22) / Cairon C WAVE + SUV WAVE (CB23) with Bosch 2-bolt CX engine Read more Read less
| PU 1 | |
Fits the Cairon SUV FS (CB22) Read more Read less
| PU 1 | |
 Screw spacing 50 mm, Mod. 25 Read more Read less
| PU 10 | |
 | PU 1 | |
 | PU 1 | |
off-white, fits Cairon (CB22) Read more Read less
| PU 1 | |
| PU 36 | |
| PU 1 |
With the "Cairon SUV 4.0," you get an e-bike that not only looks powerful but also rides powerfully. The Bosch mid-drive motor with Smart System confidently takes you to your destination at speeds of up to 25 km/h—powered by an 800 Wh Battery that can be easily removed from the top for charging. Want to go even further? No problem: The bike is range extender-ready—for even more range on long rides.The HTM 2.0 front rack mount makes adding luggage solutions easy and secure, while the BCM module-ready feature makes your bike ready for smart connectivity. With the 12-speed Shimano “Deore XT” drivetrain, 120 mm of suspension travel, and smooth handling, you’ll ride with sportiness, comfort, and confidence.The sporty frame geometry, combined with everyday-ready features and a maximum load capacity of 140 kg, makes this bike the ideal companion for anyone who leads an active lifestyle—but doesn’t want to compromise on comfort.
